/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/26012ET3Y355M/L-W22 WEG 350HP/260kW IEC TRU-Metric Electric Motor, 1200RPM

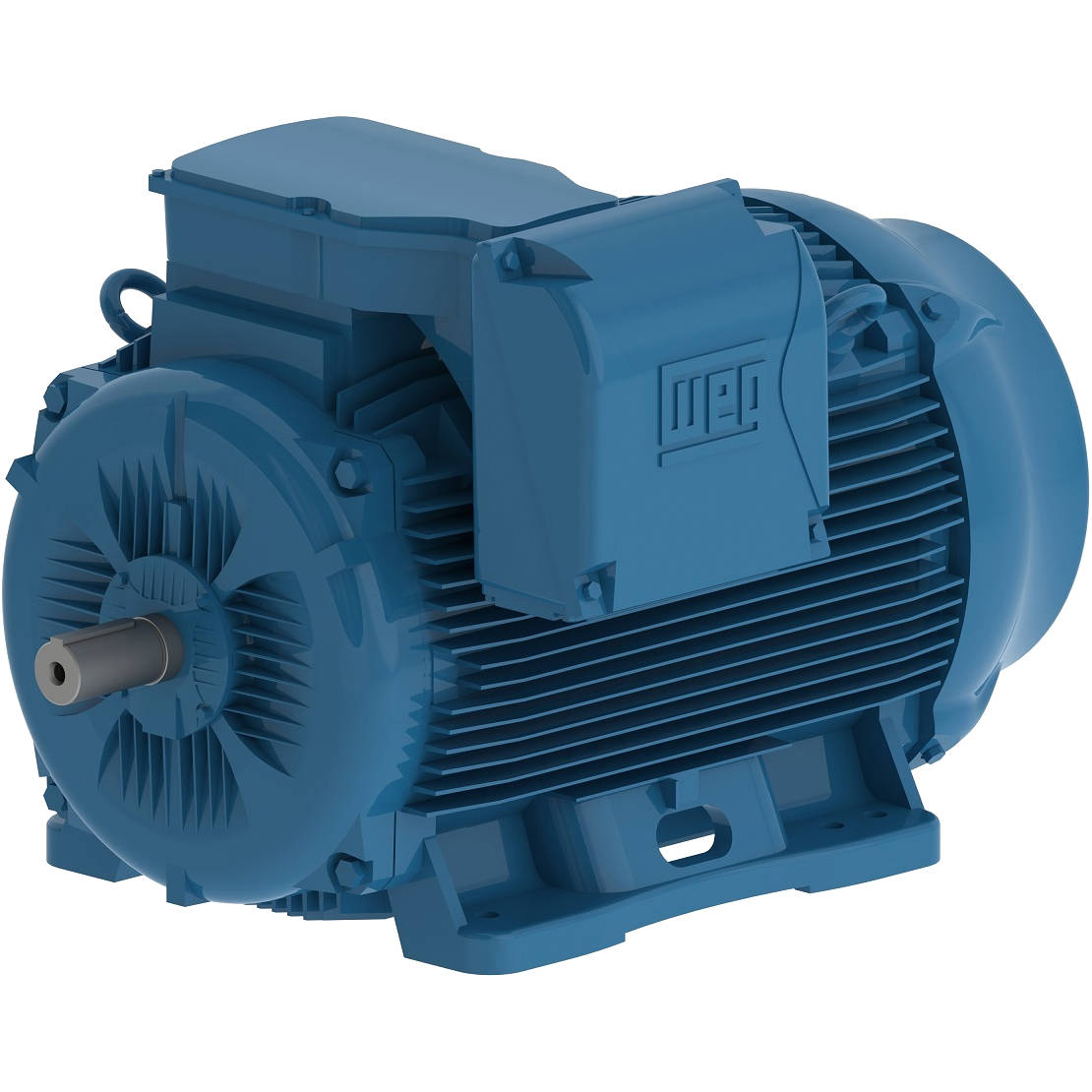

26012ET3Y355M/L-W22 WEG 350HP/260kW IEC TRU-Metric Electric Motor, 1200RPM
Enlarge Photo

Product ID: 26012ET3Y355M/L-W22

26012ET3Y355M/L-W22 WEG 350HP/260kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 26012ET3Y355M/L-W22

Selected accessories will also be added to cart
$39,750.75 / Each
Quantity:
IC411 - TEFC, IP55, 355M/355L Frame, 460/380-415VAC 60Hz 3 Phase, 13034211, B3L(E) Mounting, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1193 rpm
Slip 0.58 %
Rated voltage 460 V
Rated current 437 A
L. R. Amperes 2316 A
LRC 5.3
No load current 165 A
Rated torque 1540 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 131s (cold) 73s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 4344 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.4  95.8

Power factor

50% 75% 100%
0.61  0.73  0.78
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 501 A
L. R. Amperes 2255 A
LRC 4.5
No load current 160 A
Rated torque 1860 ft.lb
Locked rotor torque 160 %
Breakdown torque 180 %
Locked rotor time 117s (cold) 65s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.7  96.1  96.2

Power factor

50% 75% 100%
0.68  0.78  0.82
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 992 rpm
Slip 0.80 %
Rated voltage 400 V
Rated current 487 A
L. R. Amperes 2338 A
LRC 4.8
No load current 170 A
Rated torque 1850 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 111s (cold) 62s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.5  96.1  96.3

Power factor

50% 75% 100%
0.64  0.75  0.80
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 993 rpm
Slip 0.70 %
Rated voltage 415 V
Rated current 475 A
L. R. Amperes 2470 A
LRC 5.2
No load current 180 A
Rated torque 1850 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 106s (cold) 59s (hot)
Moment of inertia (J) 356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4344 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.3  96.0  96.3

Power factor

50% 75% 100%
0.61  0.73  0.79

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
