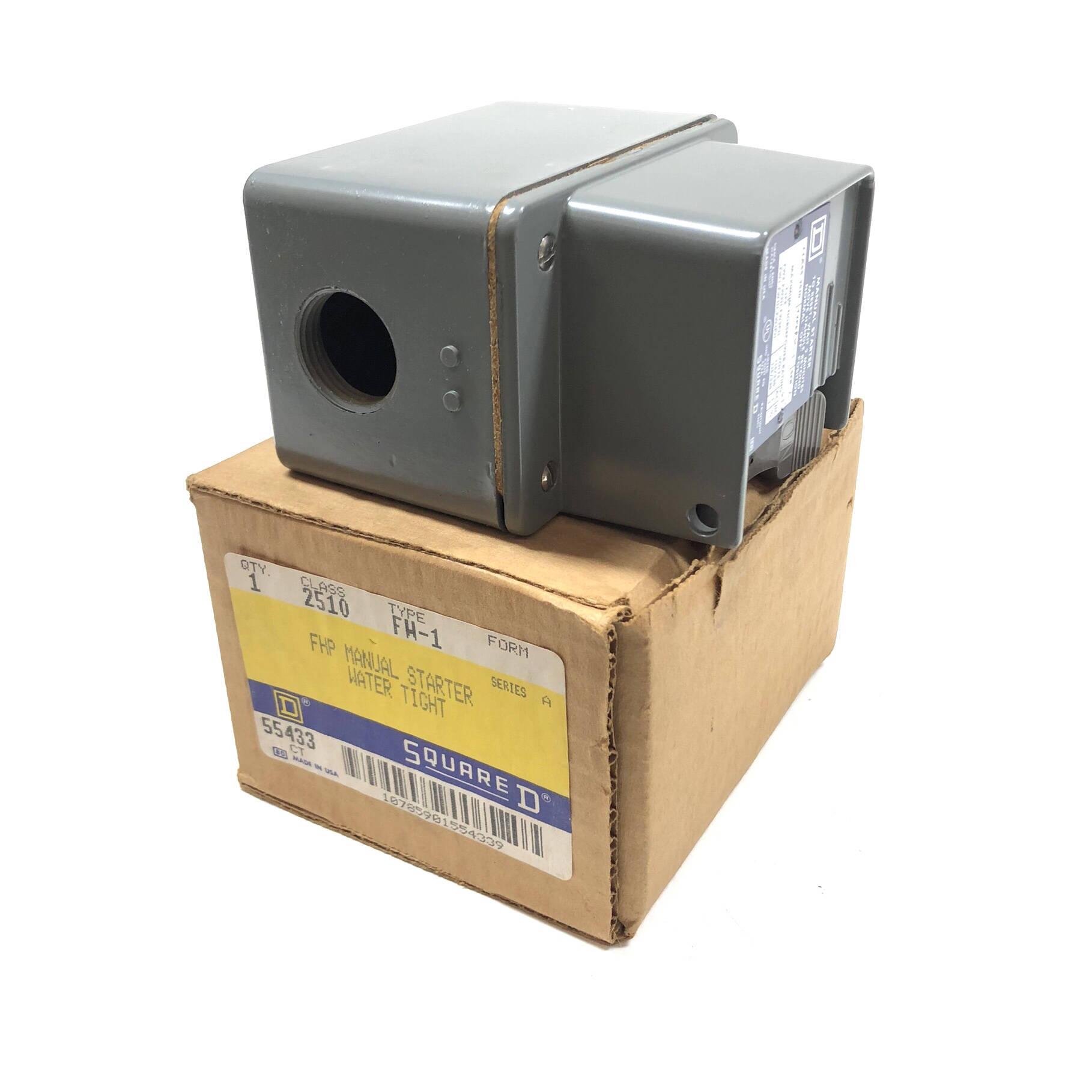

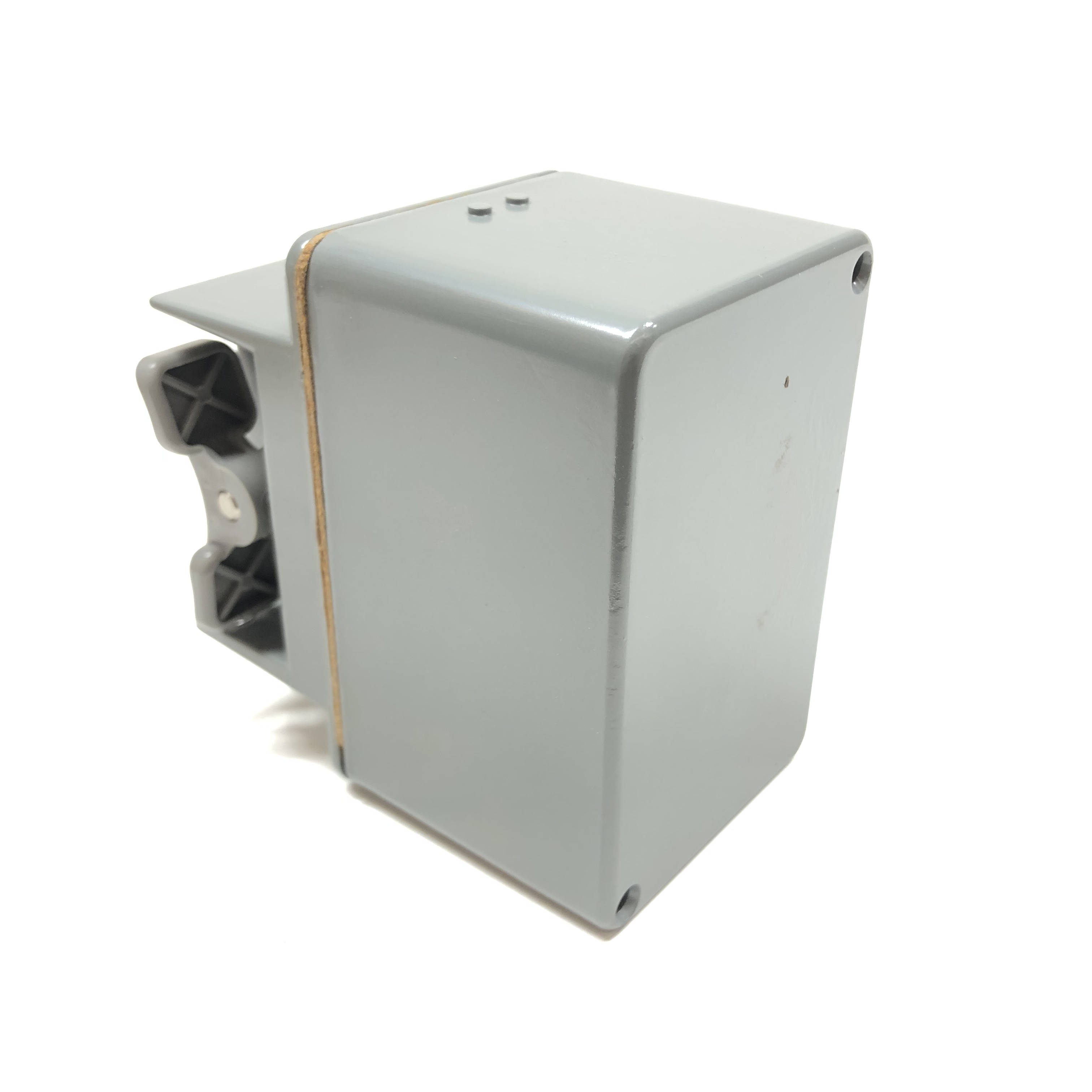

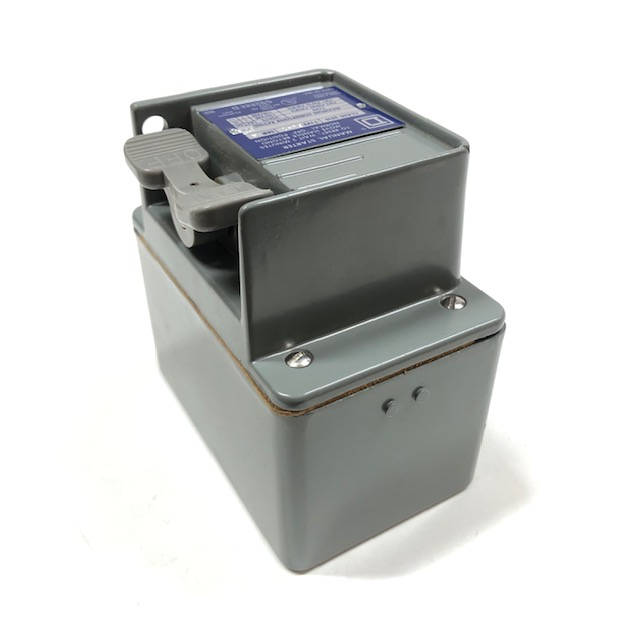

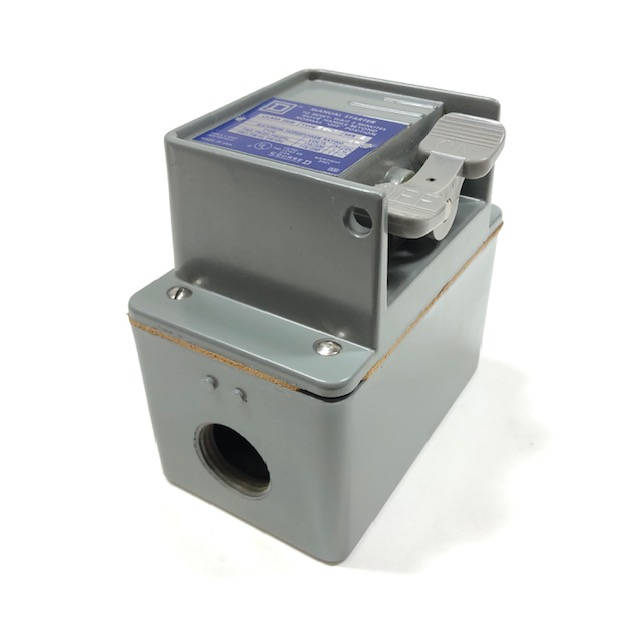

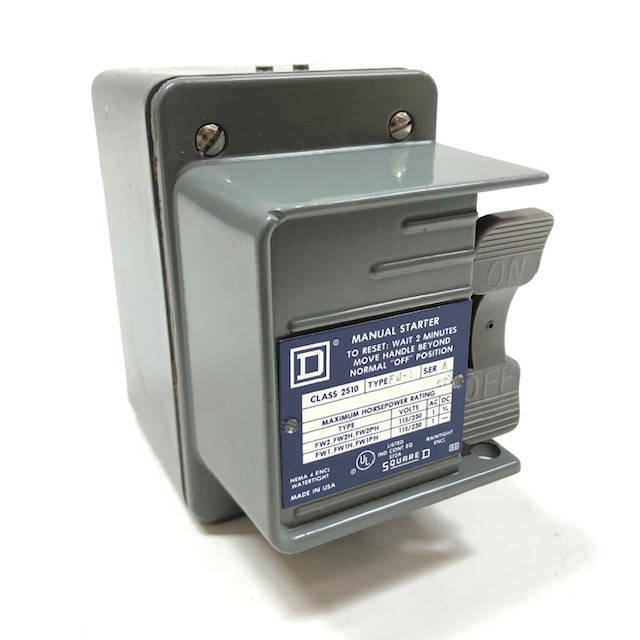

Square D 2510FW1 Manual Starter
The New Square D 2510FW1 277Vac Fractional Manual Motor Starter is a 16A, noneversing, single unit manual starter with melting alloy thermal overload relay. This fractional horsepower starter provides control/short-circuit current and overload protection as well as manual On-Off control for small motors in a variety of industrial and commercial installations. This noneversing motor starter has a NEMA 4 die cast zinc alloy enclosure and screw clamp terminals. This type-F manual motor starter has 1 phase and 1 pole with toggle switch. The Square D 2510FW1 includes 3/4-inch bottom pipe tap and an oil tight and dust tight single unit metal box.
Specifications :
• Manufacturer: Square D
• SKU: 2510FW1
• UPC: 785901554332
• GTIN: 00785901554332
• Item: Manual Starter
• Amperage: 16
• Voltage: 277 VAC
• Poles: 1
• Length: 4.25"
• Width: 3"
• Height: 4.38"
• Series: 2510F
• Terminal Connection: Screw Clamp
• Standards: UL Listed - CSA Certified - CE Marked
• Actuator Type: Toggle
• Phase: 1
• Wire Guage: AWG 14...AWG 12 (Copper)
• Voltage Protection Rating: 600V
