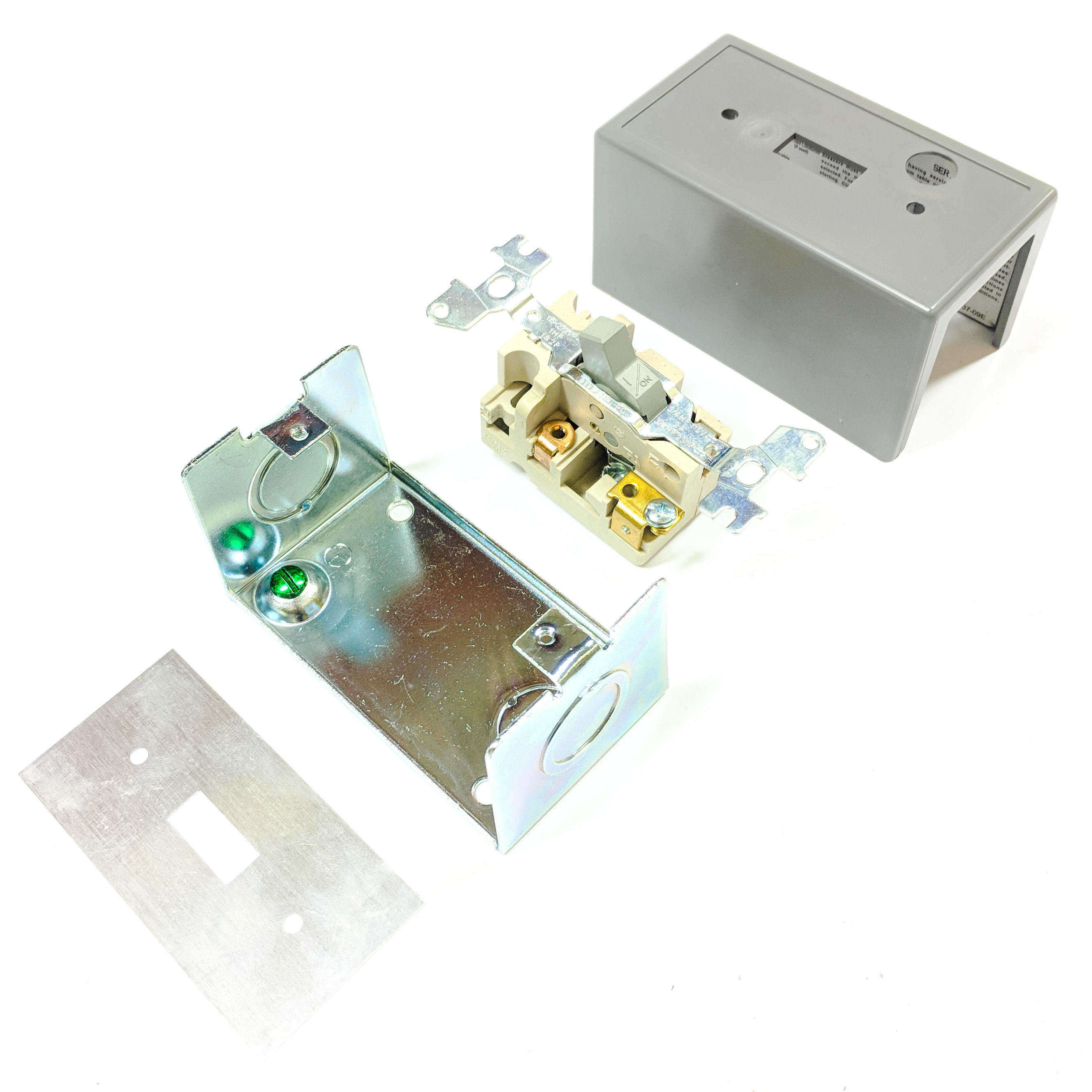

2510FG1 Square D FHP Manuel Motor Starter

product or component type Single Unit Manual Starter
range of product F
thermal overload type Melting alloy
Line Rated Current 16 A
cable entry 0.5" and 0.75" knock-outs (top and bottom)
motor power hp 1 hp at 115 V AC 1 hp at 230 V AC 1 hp at 277 V AC

System Voltage 277 V AC
poles description 1P
control type Toggle switch
Phase 1 phase
local signalling No indicator
reset Manual
motor starter type Non reversing
electrical connection Screw clamp terminals
AWG gauge AWG 14...AWG 12 (copper)
height 4.25 in
width 2.44 in
depth 2.75 in
