/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/25036EG3G447TS-W22 WEG 250HP Electric Motor, 3600RPM

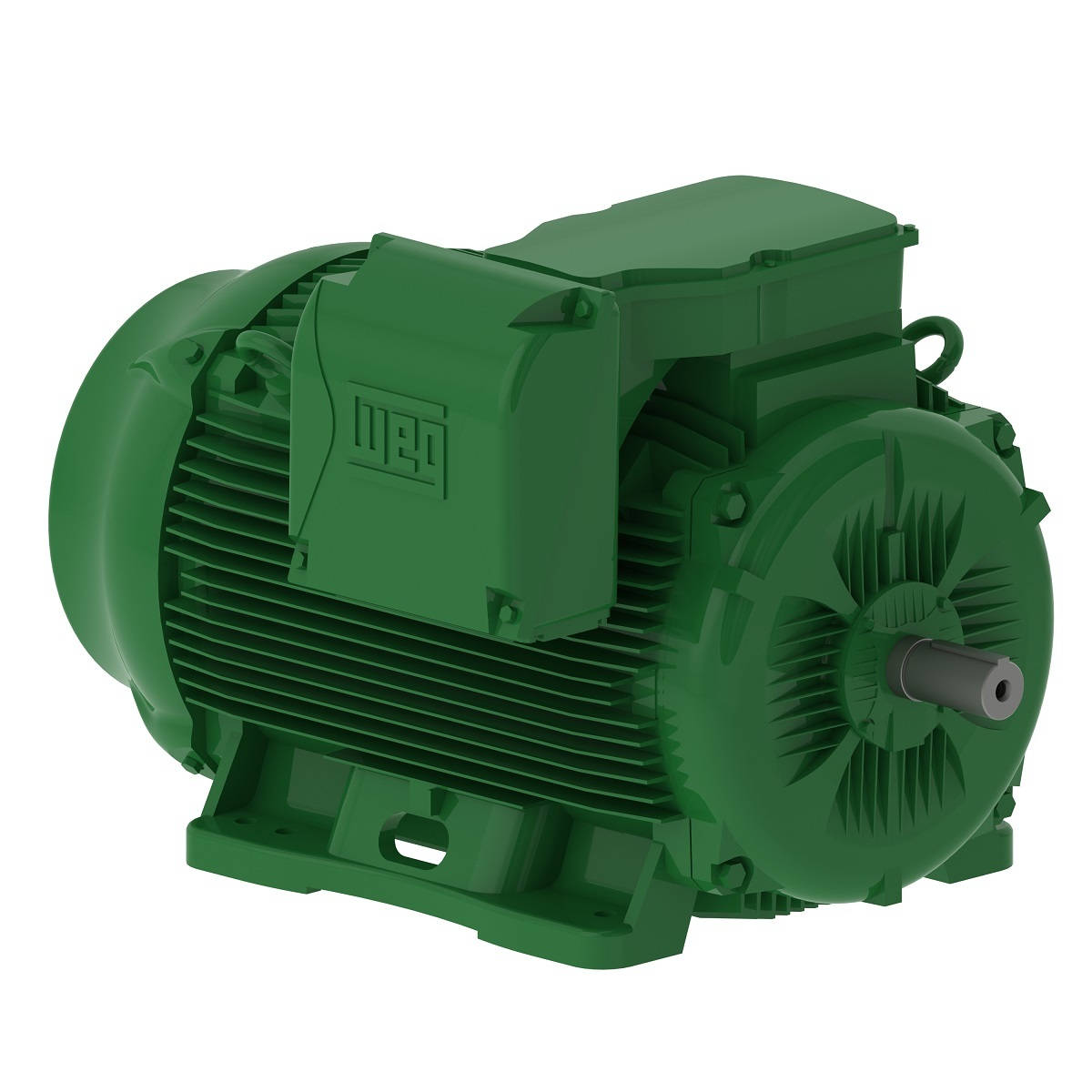

25036EG3G447TS-W22 WEG 250HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 25036EG3G447TS-W22

25036EG3G447TS-W22 WEG 250HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 25036EG3G447TS-W22

Selected accessories will also be added to cart
$24,623.25 / Each
Quantity:
IC411 - TEFC, IP55, 445TS/447TS Frame, 460VAC 60Hz 3 Phase, 11792554, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 445/7TS
Output 250 HP (185 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3575 rpm
Slip 0.69 %
Rated voltage 460 V
Rated current 267 A
L. R. Amperes 2109 A
LRC 7.9x(Code H)
No load current 70.0 A
Rated torque 367 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 46.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.5  96.5

Power factor

50% 75% 100%
0.82  0.88  0.90
Frame 445/7TS
Output 250 HP (185 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 321 A
L. R. Amperes 2215 A
LRC 6.9x(Code G)
No load current 68.0 A
Rated torque 442 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 46.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.87  0.90  0.91
Frame 445/7TS
Output 250 HP (185 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 400 V
Rated current 308 A
L. R. Amperes 2310 A
LRC 7.5x(Code H)
No load current 72.0 A
Rated torque 441 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 46.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.85  0.89  0.90
Frame 445/7TS
Output 250 HP (185 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 415 V
Rated current 300 A
L. R. Amperes 2400 A
LRC 8.0x(Code H)
No load current 76.0 A
Rated torque 441 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 46.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.2  96.5  96.5

Power factor

50% 75% 100%
0.83  0.88  0.89

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
