/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/25018ST3QIE449T-W22 WEG 250HP Severe Duty Electric Motor, 1800RPM

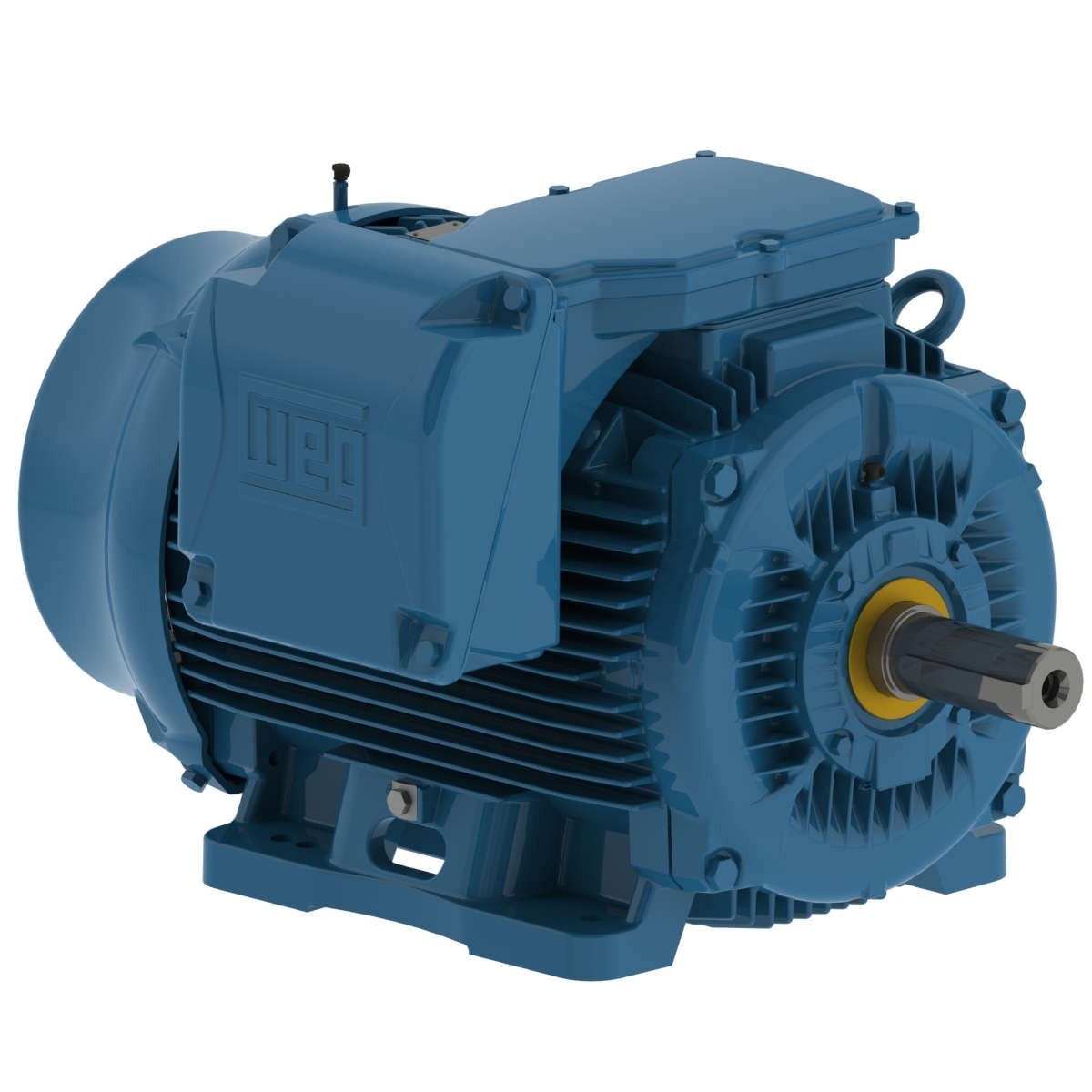

25018ST3QIE449T-W22 WEG 250HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 25018ST3QIE449T-W22

25018ST3QIE449T-W22 WEG 250HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 25018ST3QIE449T-W22

Selected accessories will also be added to cart
$22,560.75 / Each
Quantity:
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 11432097, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 3-3/8" Keyed Shaft

Electric Motors

Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 281 A
L. R. Amperes 1827 A
LRC 6.5x(Code G)
No load current 85.0 A
Rated torque 738 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.75  0.83  0.86
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 273 A
L. R. Amperes 1665 A
LRC 6.1x(Code F)
No load current 85.0 A
Rated torque 710 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.8  95.8

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 263 A
L. R. Amperes 1788 A
LRC 6.8x(Code G)
No load current 90.0 A
Rated torque 707 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.8  95.8

Power factor

50% 75% 100%
0.74  0.83  0.86
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 256 A
L. R. Amperes 1894 A
LRC 7.4x(Code H)
No load current 95.0 A
Rated torque 707 ft.lb
Locked rotor torque 290 %
Breakdown torque 290 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.8  95.8

Power factor

50% 75% 100%
0.72  0.81  0.85
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 342 A
L. R. Amperes 1744 A
LRC 5.1x(Code E)
No load current 85.0 A
Rated torque 890 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.80  0.86  0.87
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 323 A
L. R. Amperes 1841 A
LRC 5.7x(Code F)
No load current 90.0 A
Rated torque 890 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.9  95.0  95.0

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 314 A
L. R. Amperes 1915 A
LRC 6.1x(Code F)
No load current 95.0 A
Rated torque 887 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2842 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.4  95.8  95.4

Power factor

50% 75% 100%
0.75  0.83  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Bronze
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
