/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/25012OT3G447/9T-W40 WEG 250HP, General Purpose Electric Motor, 1200RPM

Product ID: 25012OT3G447/9T-W40

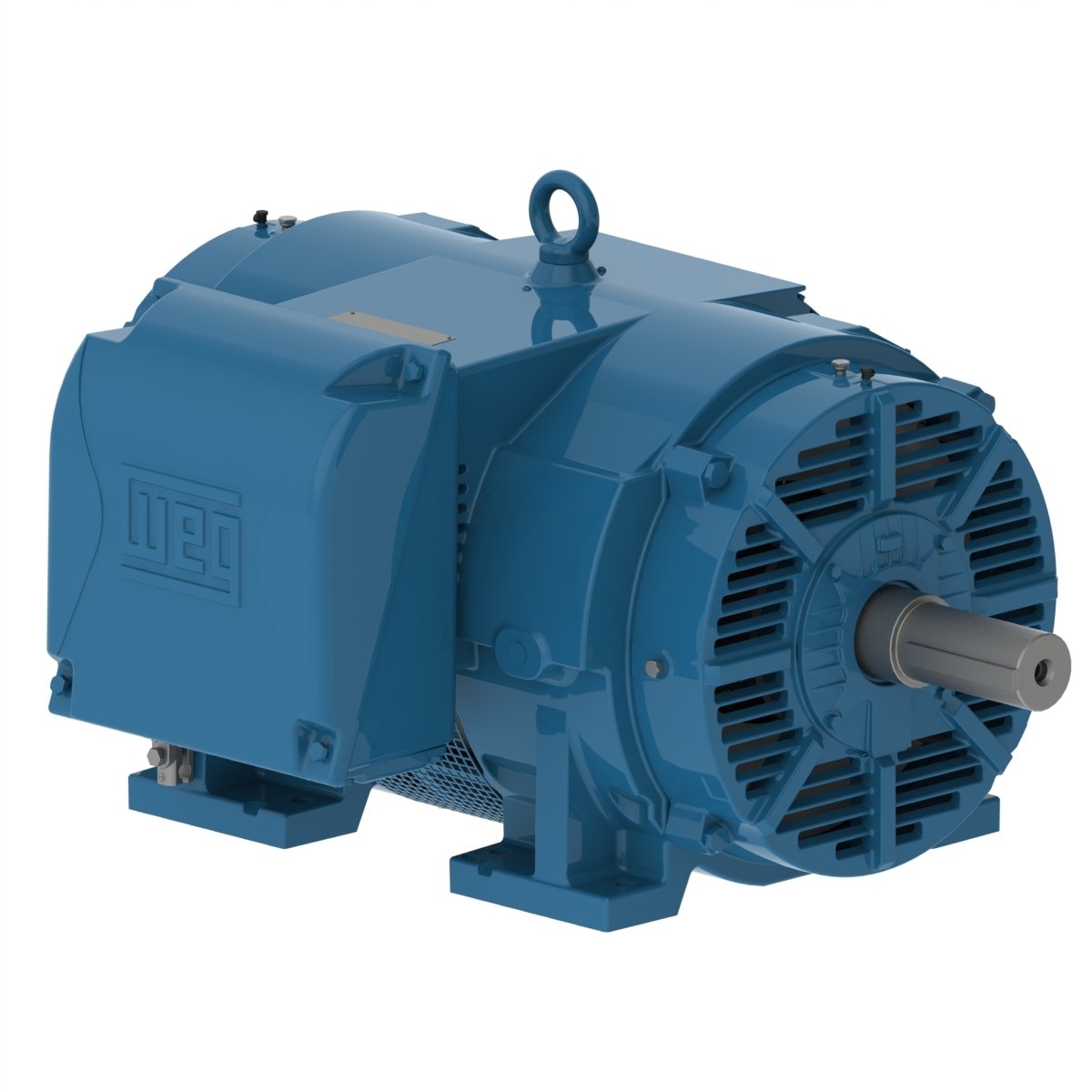

25012OT3G447/9T-W40 WEG 250HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 25012OT3G447/9T-W40

Selected accessories will also be added to cart

$20,436.75 / Each

Quantity:

IC01 - ODP, IP23, 447T/449T Frame, 460VAC 3-Phase 50/60Hz, 13611338, Cast Iron, Foot Mount, NEMA Premium Efficiency, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	447/9T
Output	250 HP (185 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	460 V
Rated current	299 A
L. R. Amperes	1944 A
LRC	6.5x(Code G)
No load current	125 A
Rated torque	1090 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	95.8

Power factor

50%	75%	100%
0.67	0.77	0.81

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	263 A
L. R. Amperes	1841 A
LRC	7.0x(Code H)
No load current	123 A
Rated torque	920 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.4	94.9	95.4

Power factor

50%	75%	100%
0.62	0.75	0.80

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	263 A
L. R. Amperes	1999 A
LRC	7.6x(Code J)
No load current	136 A
Rated torque	920 ft.lb
Locked rotor torque	260 %
Breakdown torque	310 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.7	94.5	95.4

Power factor

50%	75%	100%
0.57	0.70	0.76

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	264 A
L. R. Amperes	2376 A
LRC	9.0x(Code L)
No load current	149 A
Rated torque	920 ft.lb
Locked rotor torque	300 %
Breakdown torque	330 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.2	94.3	95.4

Power factor

50%	75%	100%
0.52	0.66	0.73

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	296 A
L. R. Amperes	1835 A
LRC	6.2x(Code G)
No load current	123 A
Rated torque	1050 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	94.9

Power factor

50%	75%	100%
0.67	0.77	0.81

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	294 A
L. R. Amperes	1999 A
LRC	6.8x(Code H)
No load current	136 A
Rated torque	1050 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	94.5

Power factor

50%	75%	100%
0.62	0.73	0.78

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	291 A
L. R. Amperes	2386 A
LRC	8.2x(Code K)
No load current	149 A
Rated torque	1050 ft.lb
Locked rotor torque	260 %
Breakdown torque	290 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	115 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	2205 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.5	94.5

Power factor

50%	75%	100%
0.57	0.69	0.76

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
