3/4 223 STD
Watts

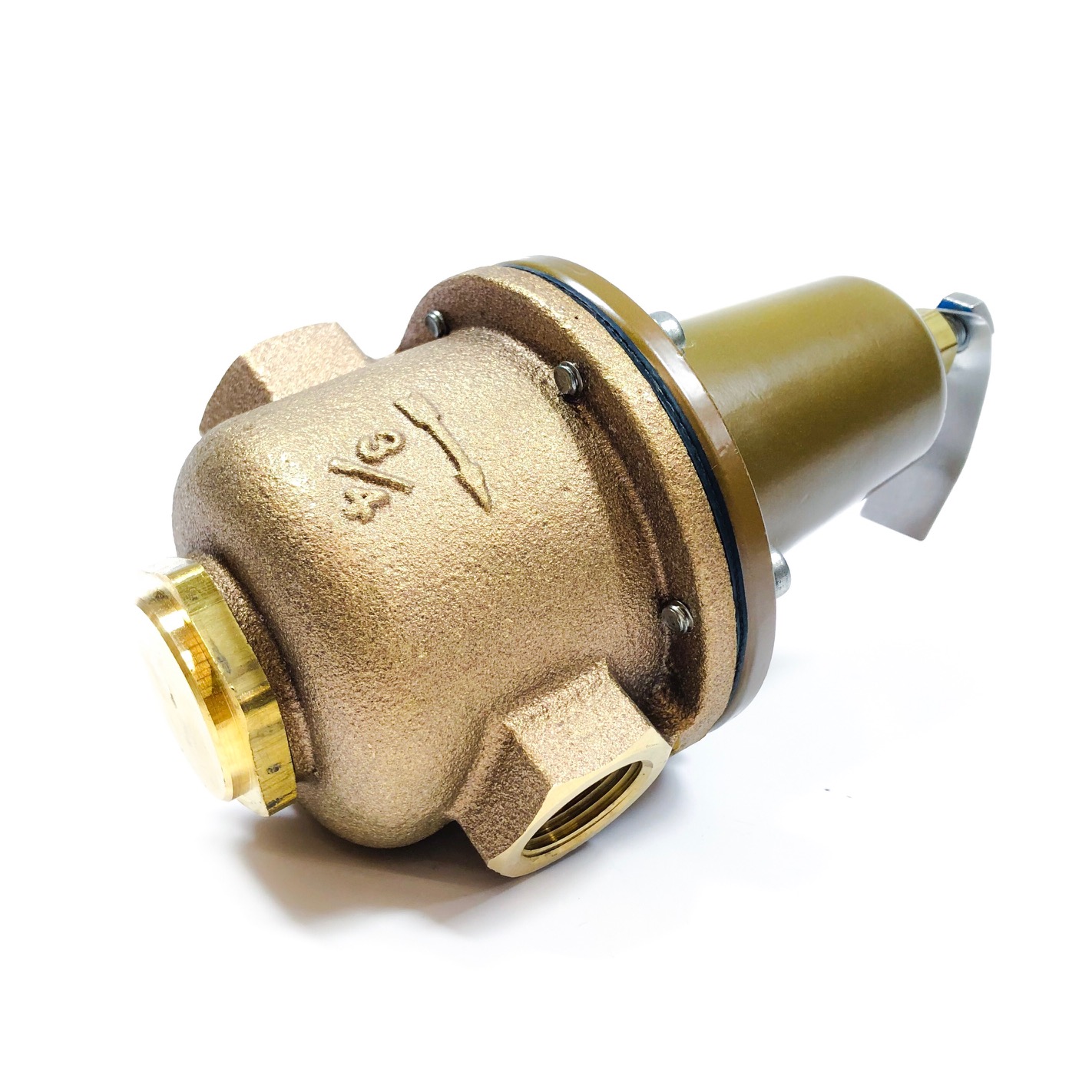

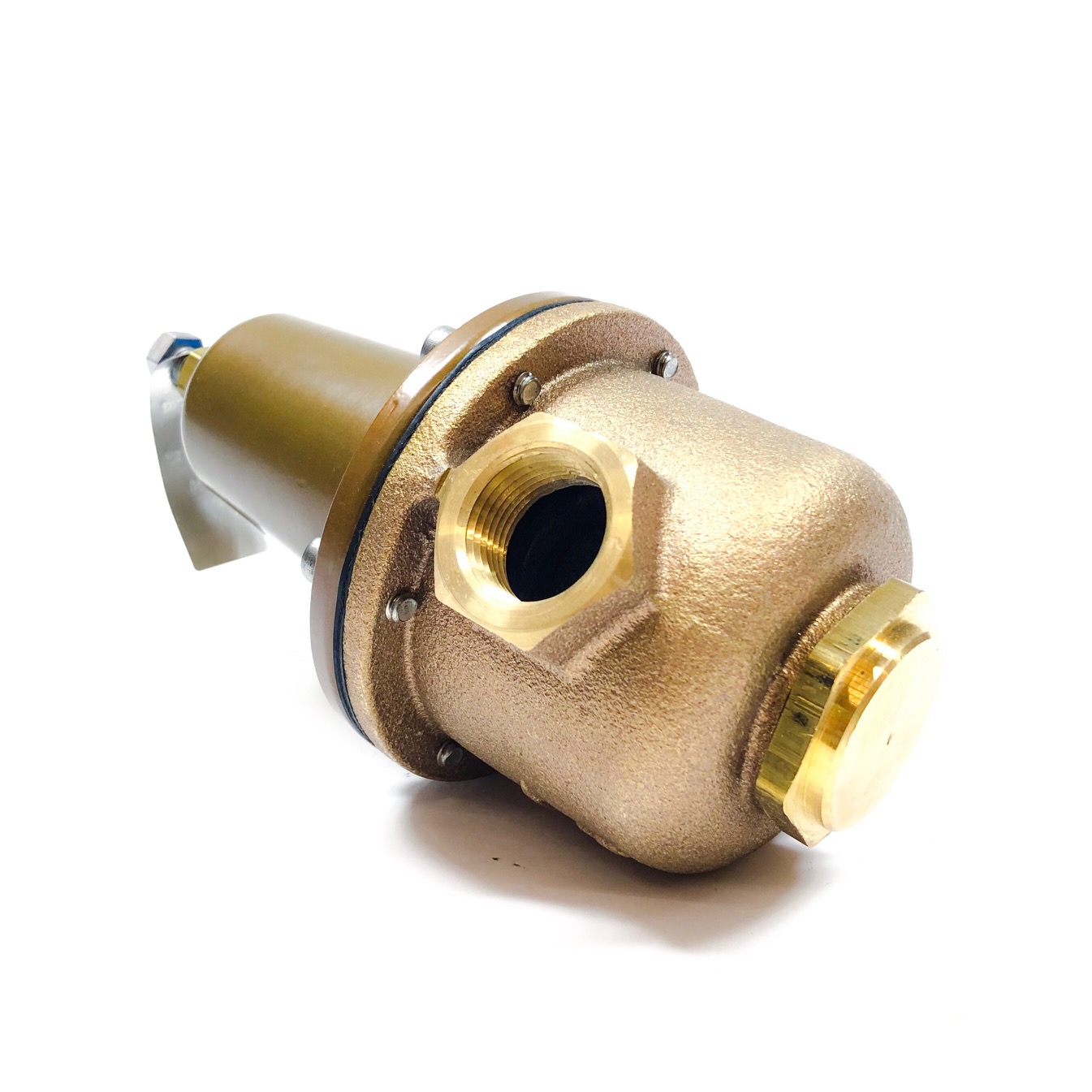

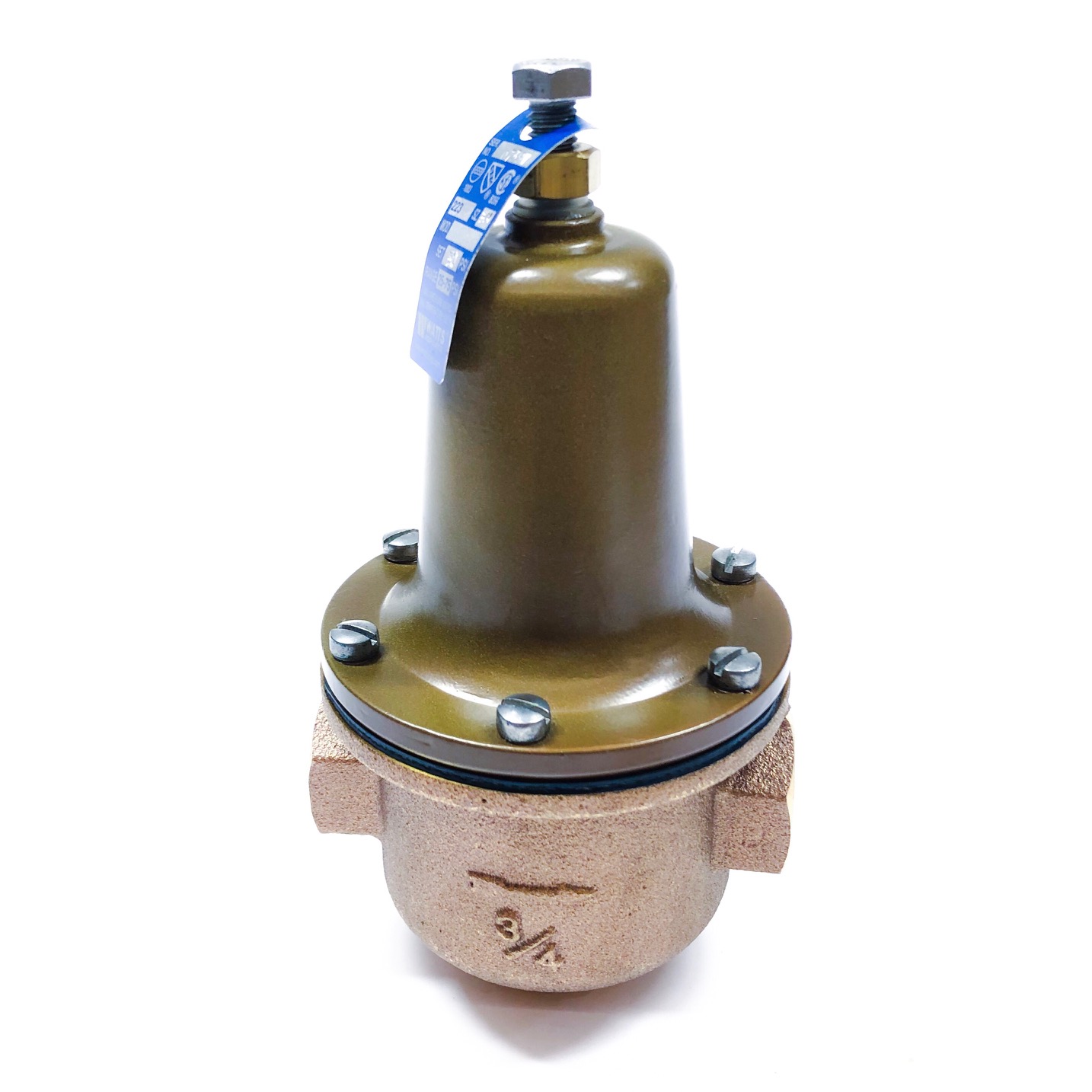

Water Pressure Reducing Valve
High Capacity Sealed Spring Cage
Brand:WATTS
Max. Temp.: 160 Degrees F
MPN: 1 LF 223
Material of Construction: Lead-Free Brass
NumberOfItems: 1
Max. Working Pressure (PSI): 300
Material: Lead Free Brass
Max. Pressure: 300 psi
Item: Water Pressure Reducing Valve
Max. Temp. (F): 160
Type: Super Capacity
Connection Type: NPT
Standards: ASSE 1003, ANSI A112.26, CSA B356, Southern Standard Plumbing Cod
Connection: NPT Threaded Female Inlet x NPT Threaded Female Outlet Length (In.): 4 3/4
Pipe Size: 1"
Weight: 7.75
Valve Type: Super Capacity
Height: 8-3/4"
Pressure Adjustment Range: 25 to 75 psi
Length: 10.100
Adjustable Range: 25 to 75 psi
Width: 8.800
Strainer: No
Height (In.): 8-3/4
