/Products/Power Tools/Milwaukee/Test Equipment/2206-20 Milwaukee HVAC/R Fork Meter
Click Image to Expand

Product ID: 2206-20

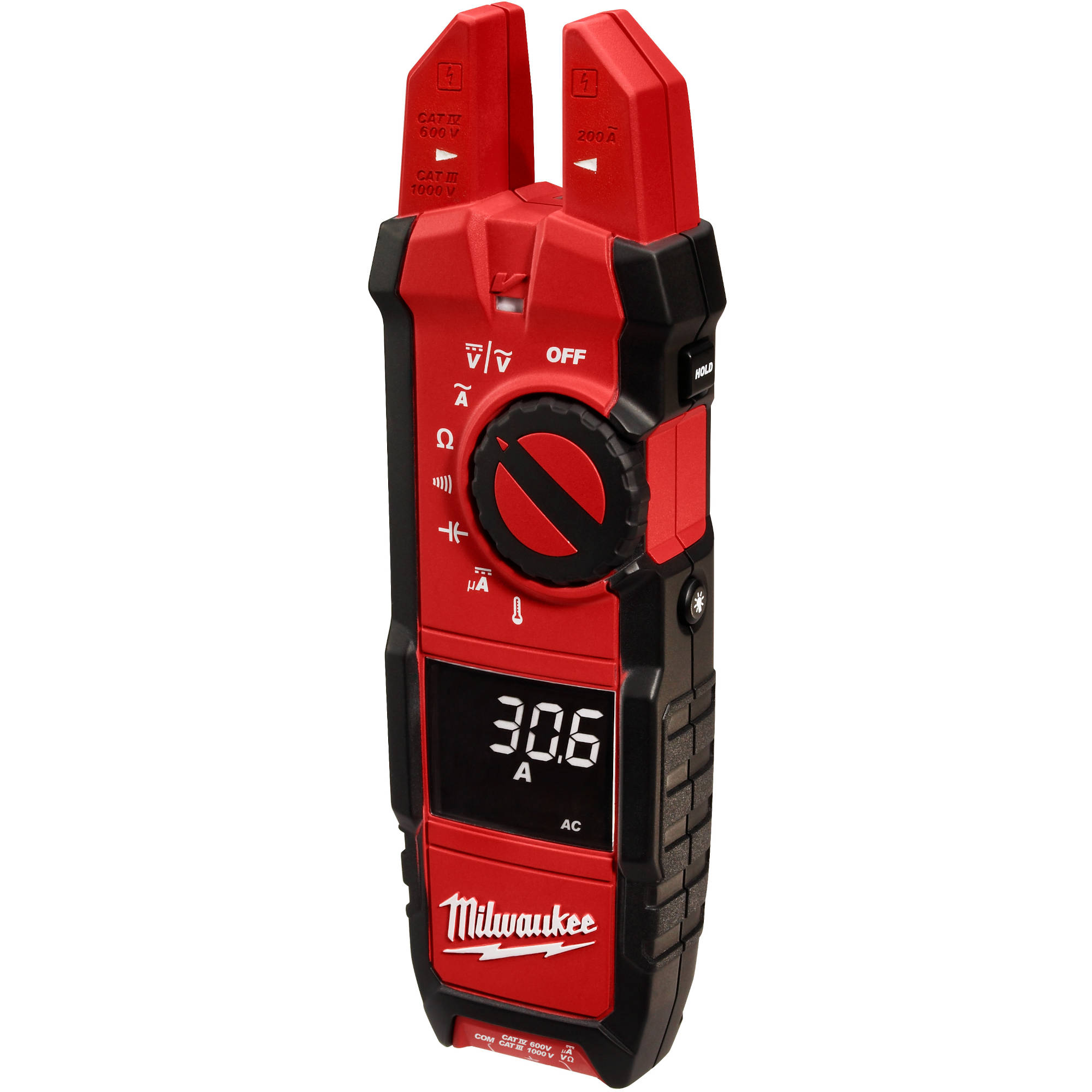

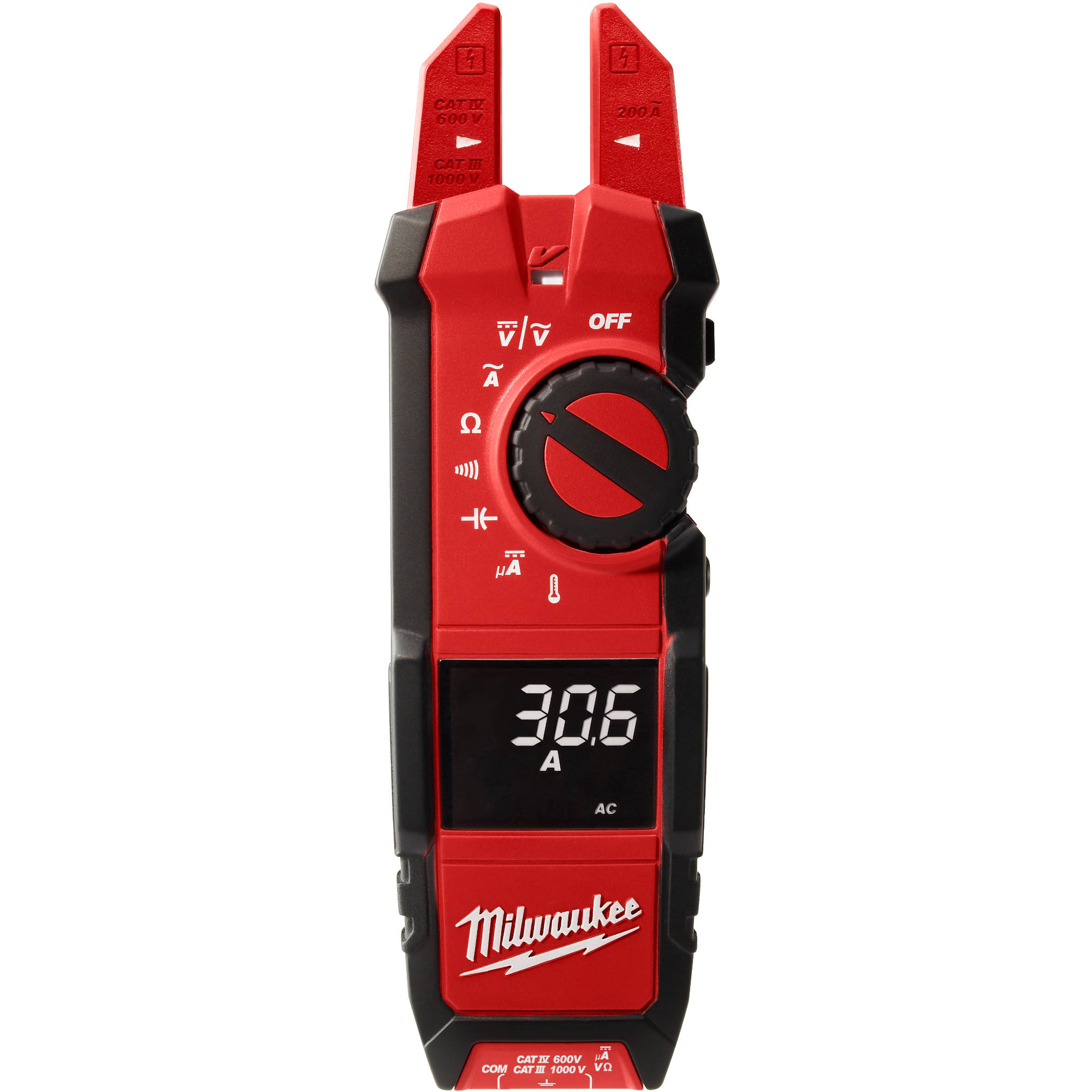

2206-20 Milwaukee HVAC/R Fork Meter

MFG: Milwaukee Tool
MFG Part Number: 2206-20

Available Stock: 1
Selected accessories will also be added to cart
$170.00 / Each
Quantity:

Description

The Milwaukee Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63” fork opening, high 200amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

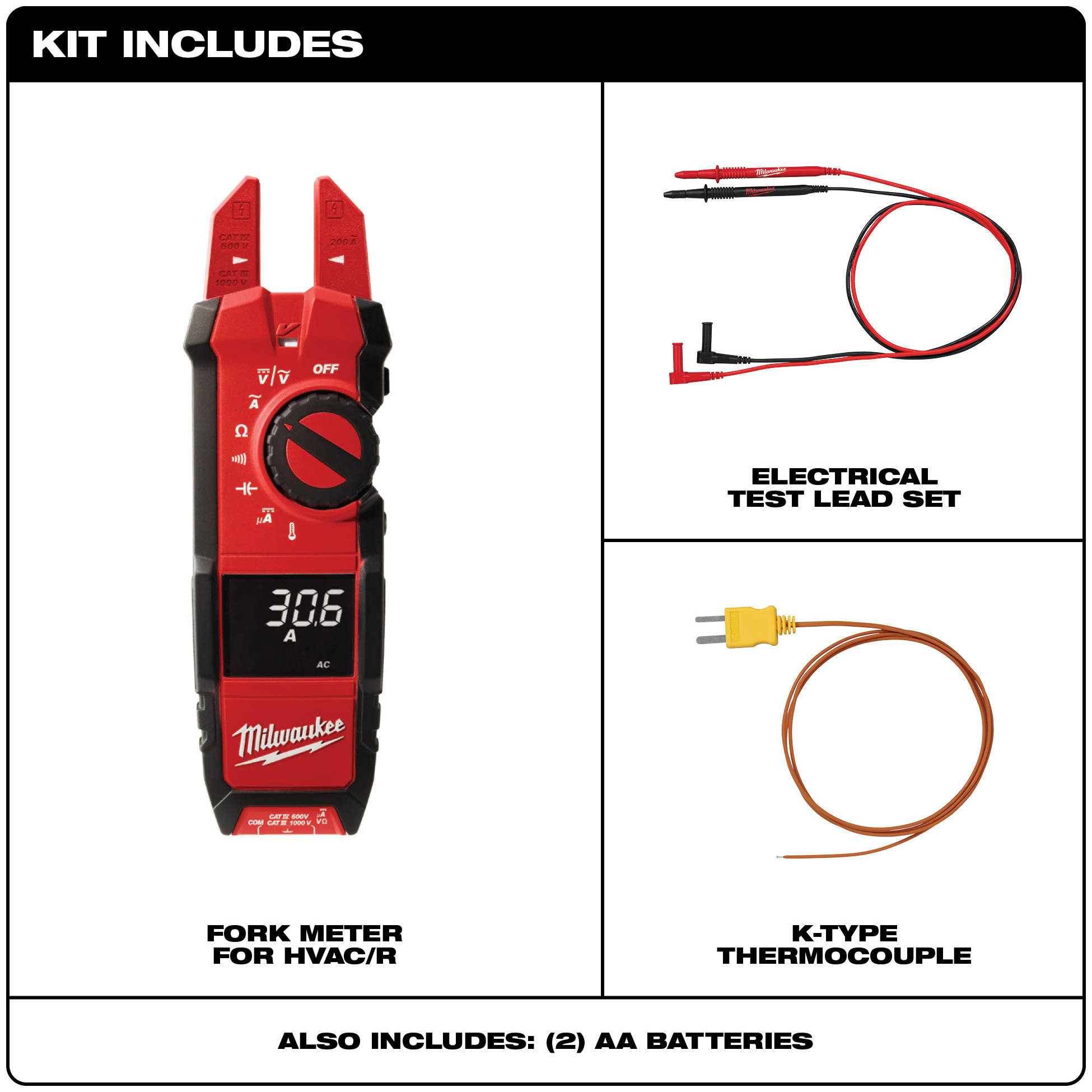

Includes

(1) Fork Meter for HVAC/R (2206-20) (1) Test Lead Set (1) Dual Banana Thermocouple (2) AA Batteries (1) Manual

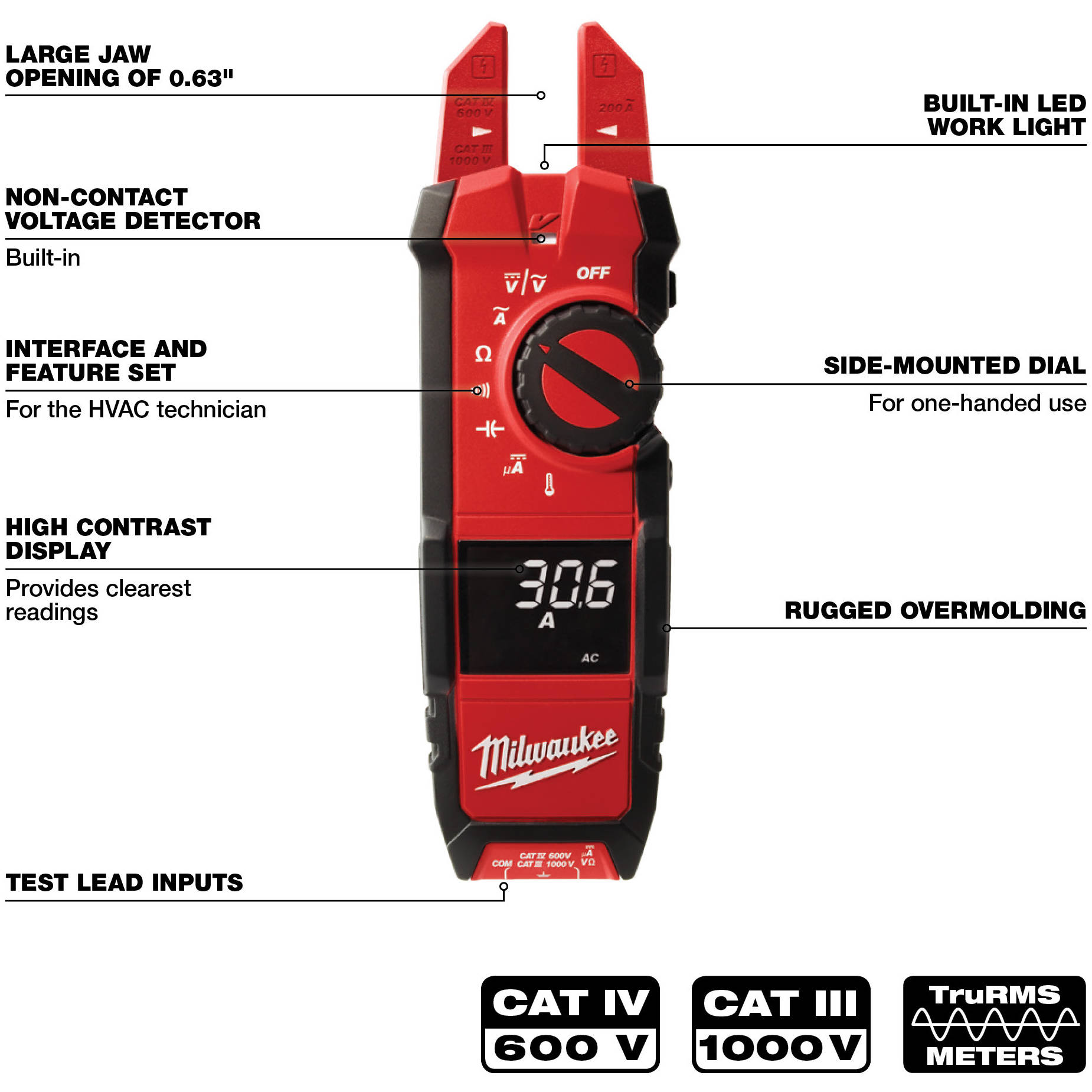

Product Features

  • Measures up to 200 amps, Wide 0.63” jaw opening
  • Wide Voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Product Specifications

Display Type White on Black LCD
Switch Type Dial
Tool Warranty 5 Years
Battery Type Alkaline (AA)
Length 8"
TRMS Yes
Safety Rating CAT IV 600V / CAT III 1000V
Current AC 200A
Microamps DC 1,000µA
Voltage AC DC 1000V
Resistance 40MO
Continuity Audible
Capacitance 1,000µF
Contact Temperature -40° F to 752° F (-40° C to 400° C)
Display Backlight Yes
Non Contact Voltage Yes
LED Work Light Yes
Rugged Over molding Yes
Fork Opening .63"
