/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/20036ST3QIE447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

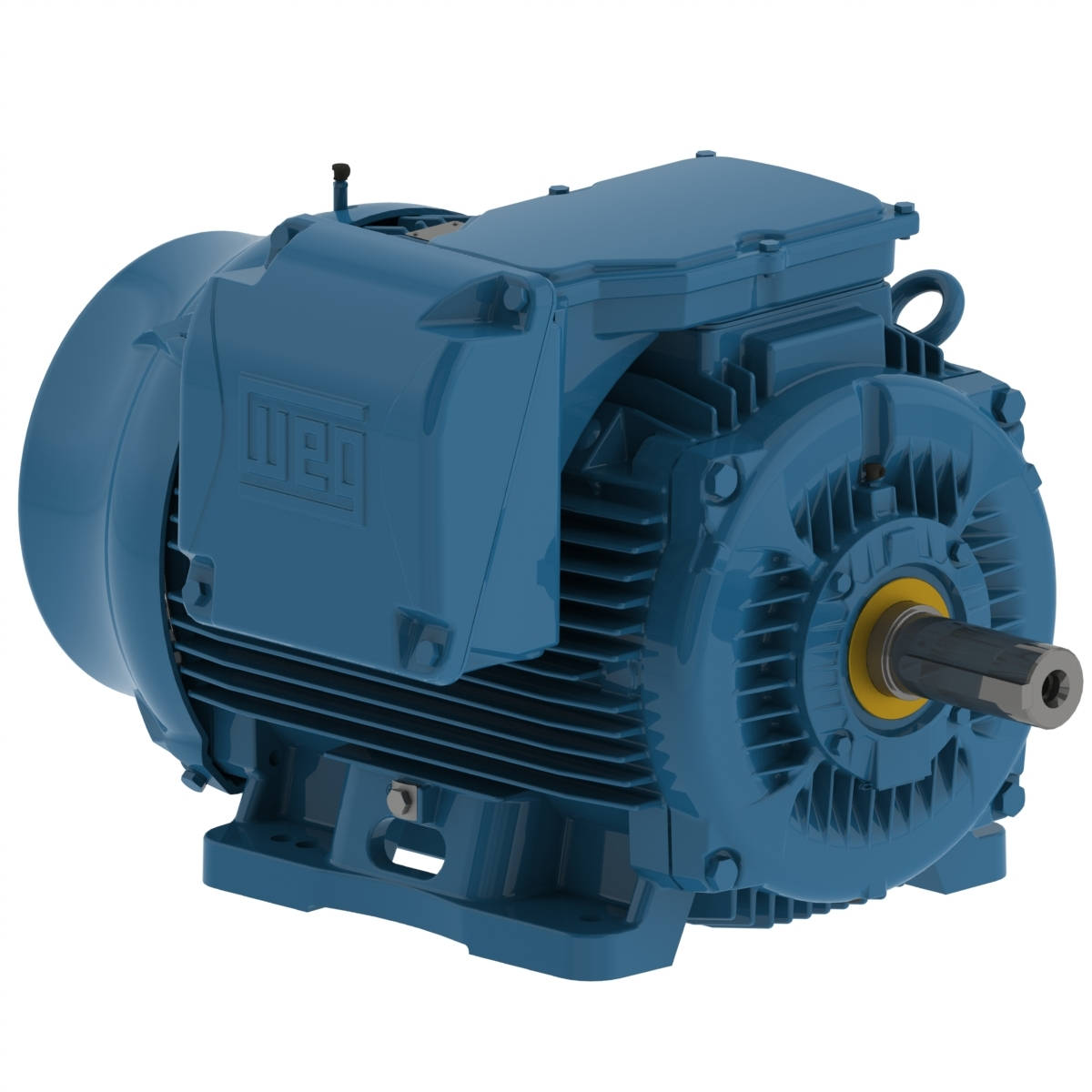

20036ST3QIE447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 20036ST3QIE447TS-W22

20036ST3QIE447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036ST3QIE447TS-W22

Selected accessories will also be added to cart
$21,426.00 / Each
Quantity:
IC411 - TEFC, IP55, 445TS/447TS Frame, 460VAC 60Hz 3 Phase, 11431383, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 445/7TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 219 A
L. R. Amperes 1424 A
LRC 6.5x(Code G)
No load current 45.0 A
Rated torque 294 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.4

Power factor

50% 75% 100%
0.86  0.89  0.90
Frame 445/7TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 380 V
Rated current 193 A
L. R. Amperes 1312 A
LRC 6.8x(Code G)
No load current 44.0 A
Rated torque 265 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.2  95.2

Power factor

50% 75% 100%
0.85  0.90  0.91
Frame 445/7TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2980 rpm
Slip 0.67 %
Rated voltage 400 V
Rated current 183 A
L. R. Amperes 1391 A
LRC 7.6x(Code H)
No load current 47.0 A
Rated torque 264 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.3  95.3

Power factor

50% 75% 100%
0.83  0.89  0.91
Frame 445/7TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2980 rpm
Slip 0.67 %
Rated voltage 415 V
Rated current 178 A
L. R. Amperes 1477 A
LRC 8.3x(Code H)
No load current 49.3 A
Rated torque 264 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.3  95.3

Power factor

50% 75% 100%
0.82  0.88  0.90
Frame 445/7TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 268 A
L. R. Amperes 1447 A
LRC 5.4x(Code E)
No load current 42.0 A
Rated torque 355 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  94.5

Power factor

50% 75% 100%
0.88  0.90  0.90
Frame 445/7TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 253 A
L. R. Amperes 1543 A
LRC 6.1x(Code F)
No load current 45.0 A
Rated torque 354 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.87  0.89  0.90
Frame 445/7TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 244 A
L. R. Amperes 1635 A
LRC 6.7x(Code G)
No load current 47.0 A
Rated torque 354 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2051 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.0

Power factor

50% 75% 100%
0.86  0.89  0.90

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3

Bearing details

  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing Inpro/Seal  Inpro/Seal
Lubrication interval 4000 h  4000 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
1142 lb  3194 lb
