/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/575VAC/20036ST3HIE447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

Product ID: 20036ST3HIE447TS-W22

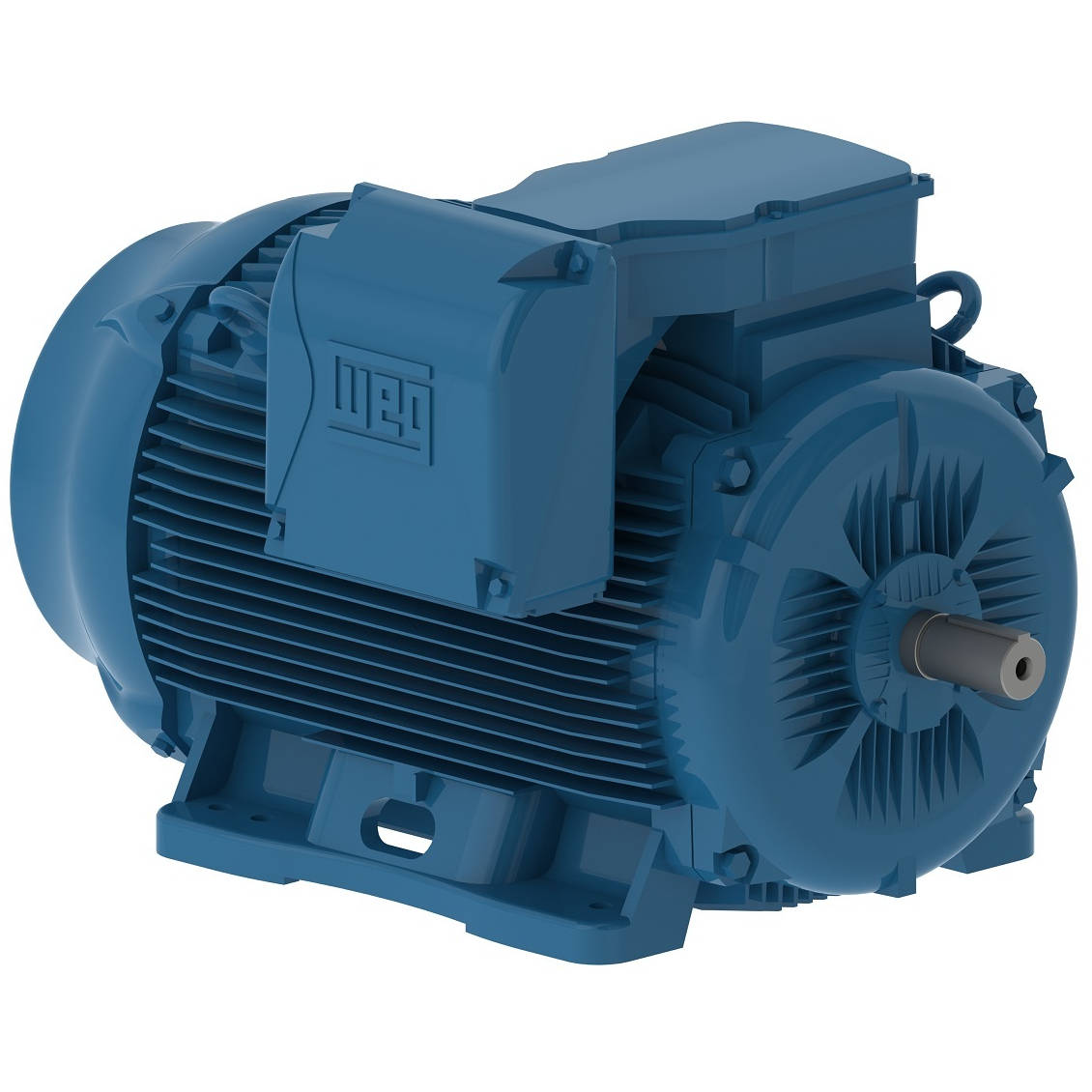

20036ST3HIE447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036ST3HIE447TS-W22

Selected accessories will also be added to cart

$21,426.00 / Each

Quantity:

IC411 - TEFC, IP55, 445TS/447TS Frame, 575VAC 60Hz 3 Phase, 11434740, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	445/7TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	575 V
Rated current	175 A
L. R. Amperes	1139 A
LRC	6.5x(Code G)
No load current	36.0 A
Rated torque	294 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	81.0 dB(A)
Approx. weight³	2047 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.86	0.89	0.90

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
