/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/20036OT3G444TS-W40 WEG 200 HP, General Purpose Electric Motor, 3600 RPM

Product ID: 20036OT3G444TS-W40

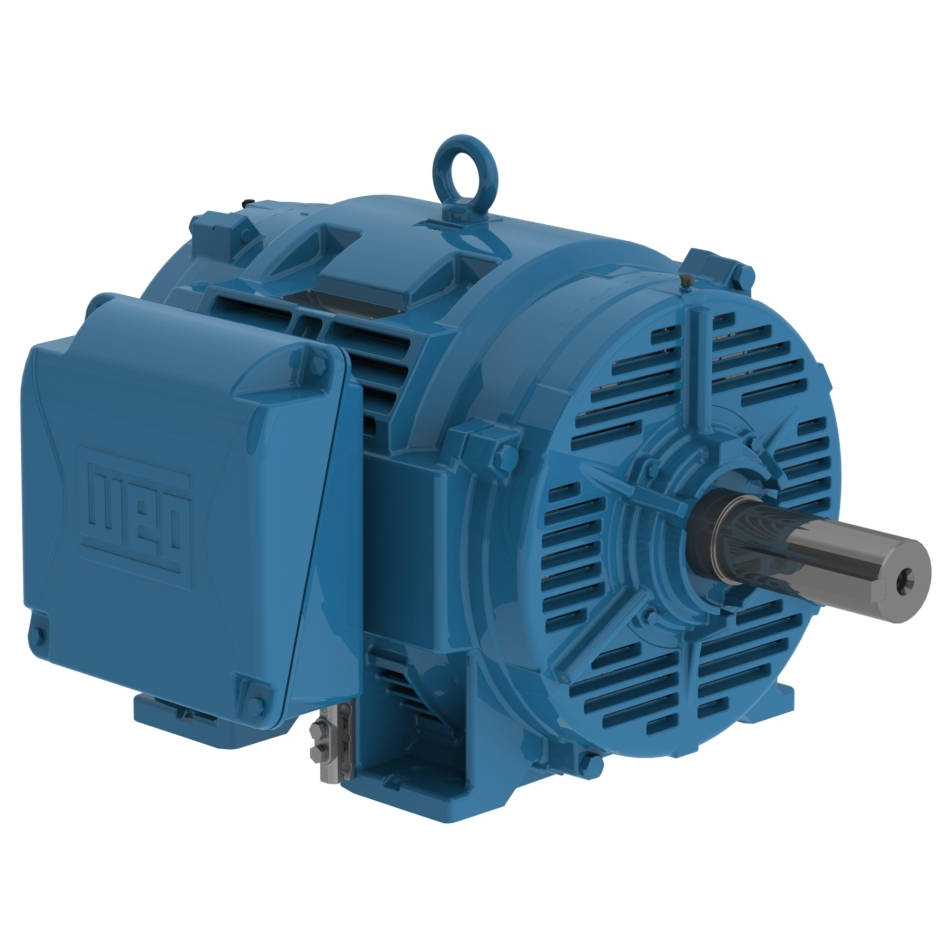

20036OT3G444TS-W40 WEG 200 HP, General Purpose Electric Motor, 3600 RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036OT3G444TS-W40

Selected accessories will also be added to cart

$10,878.00 / Each

Quantity:

IC01 - ODP, IP23, 444TS/445TS Frame, 460/380VAC 60Hz 3 Phase, 14026894, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	444/5TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	225 A
L. R. Amperes	1463 A
LRC	6.5x(Code G)
No load current	67.0 A
Rated torque	294 ft.lb
Locked rotor torque	140 %
Breakdown torque	229 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	23.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	85.0 dB(A)
Approx. weight³	1270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.5	95.0

Power factor

50%	75%	100%
0.79	0.86	0.88

Frame	444/5TS
Output	175 HP (132 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	380 V
Rated current	239 A
L. R. Amperes	1530 A
LRC	6.4x(Code G)
No load current	66.4 A
Rated torque	310 ft.lb
Locked rotor torque	140 %
Breakdown torque	210 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	23.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	85.0 dB(A)
Approx. weight³	1270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.9	95.4

Power factor

50%	75%	100%
0.81	0.86	0.88

Frame	444/5TS
Output	175 HP (132 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	230 A
L. R. Amperes	1633 A
LRC	7.1x(Code H)
No load current	74.0 A
Rated torque	309 ft.lb
Locked rotor torque	150 %
Breakdown torque	229 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	23.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	85.0 dB(A)
Approx. weight³	1270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.9	95.4

Power factor

50%	75%	100%
0.77	0.85	0.87

Frame	444/5TS
Output	175 HP (132 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	224 A
L. R. Amperes	1658 A
LRC	7.4x(Code H)
No load current	80.5 A
Rated torque	309 ft.lb
Locked rotor torque	160 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	23.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	85.0 dB(A)
Approx. weight³	1270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.9	94.0	95.4

Power factor

50%	75%	100%
0.74	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector

Bearing details

	Drive End	Non Drive End
Bearing type	6314 C3	6212 Z C3
Sealing	Without Bearing Seal	Without Bearing Seal
Lubrication interval	14418 h	20000 h
Lubricant amount	27 g	13 g
Grease Type	Mobil Polyrex EM
