/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/20018OT3G445T-W40 WEG 200HP, General Purpose Electric Motor, 1800RPM

Product ID: 20018OT3G445T-W40

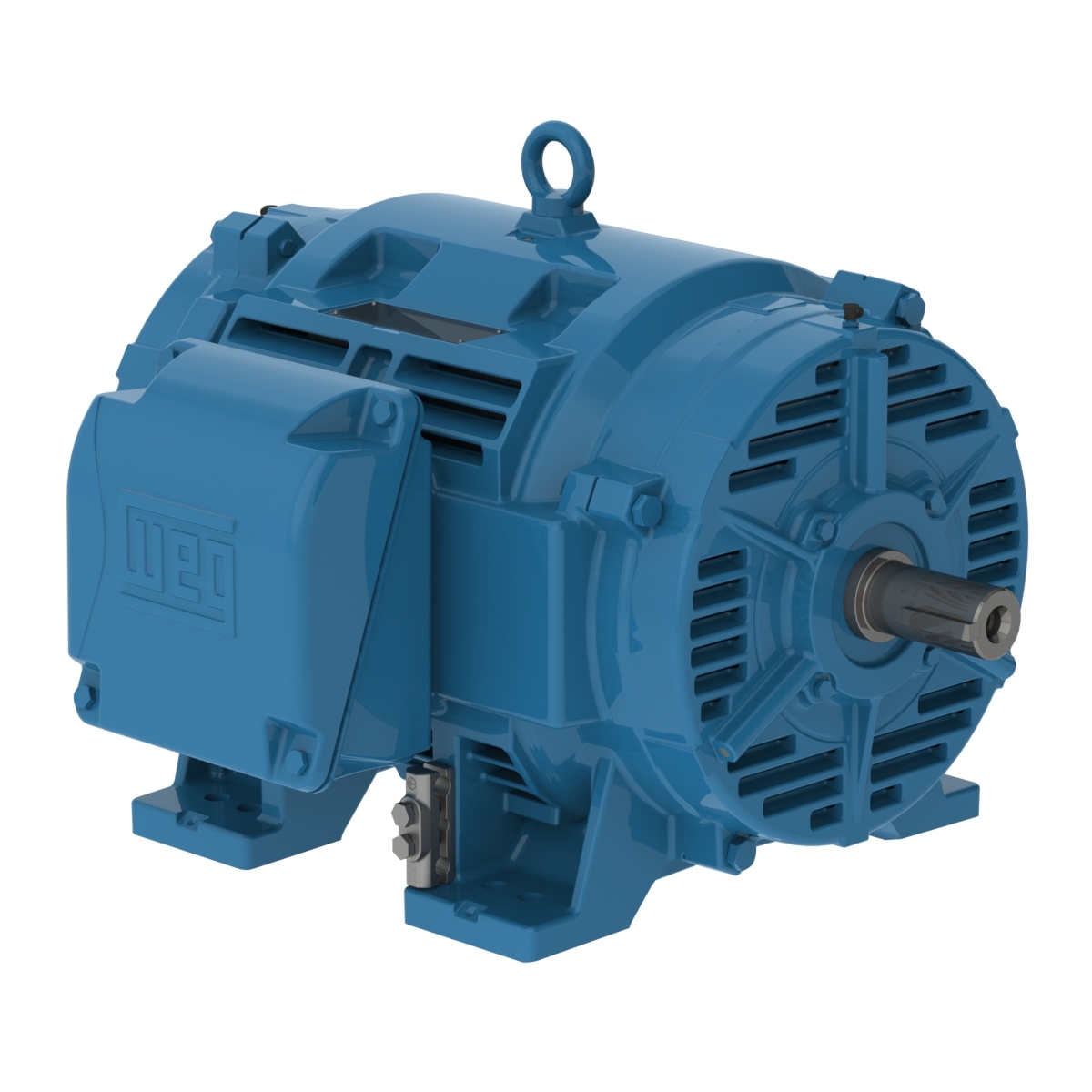

20018OT3G445T-W40 WEG 200HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 20018OT3G445T-W40

Selected accessories will also be added to cart

$9,753.00 / Each

Quantity:

IC01 - ODP, IP23, 444T/445T Frame, 460/380VAC 50/60Hz 3 Phase, 14272546, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	444/5T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1783 rpm
Slip	0.94 %
Rated voltage	460 V
Rated current	234 A
L. R. Amperes	1544 A
LRC	6.6x(Code G)
No load current	86.5 A
Rated torque	589 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	46.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	78.0 dB(A)
Approx. weight³	1457 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	95.8

Power factor

50%	75%	100%
0.72	0.80	0.84

Frame	444/5T
Output	175 HP (132 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	247 A
L. R. Amperes	1630 A
LRC	6.6x(Code G)
No load current	85.2 A
Rated torque	621 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	46.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	78.0 dB(A)
Approx. weight³	1457 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.2	95.6	95.6

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	444/5T
Output	175 HP (132 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	237 A
L. R. Amperes	1635 A
LRC	6.9x(Code H)
No load current	93.6 A
Rated torque	621 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	46.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	78.0 dB(A)
Approx. weight³	1457 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.6	95.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	444/5T
Output	175 HP (132 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	234 A
L. R. Amperes	1568 A
LRC	6.7x(Code H)
No load current	101 A
Rated torque	619 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	46.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	78.0 dB(A)
Approx. weight³	1457 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.2	95.6	95.6

Power factor

50%	75%	100%
0.67	0.77	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
