/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/20018EG3G449T-W22 WEG 200HP Electric Motor, 1800RPM

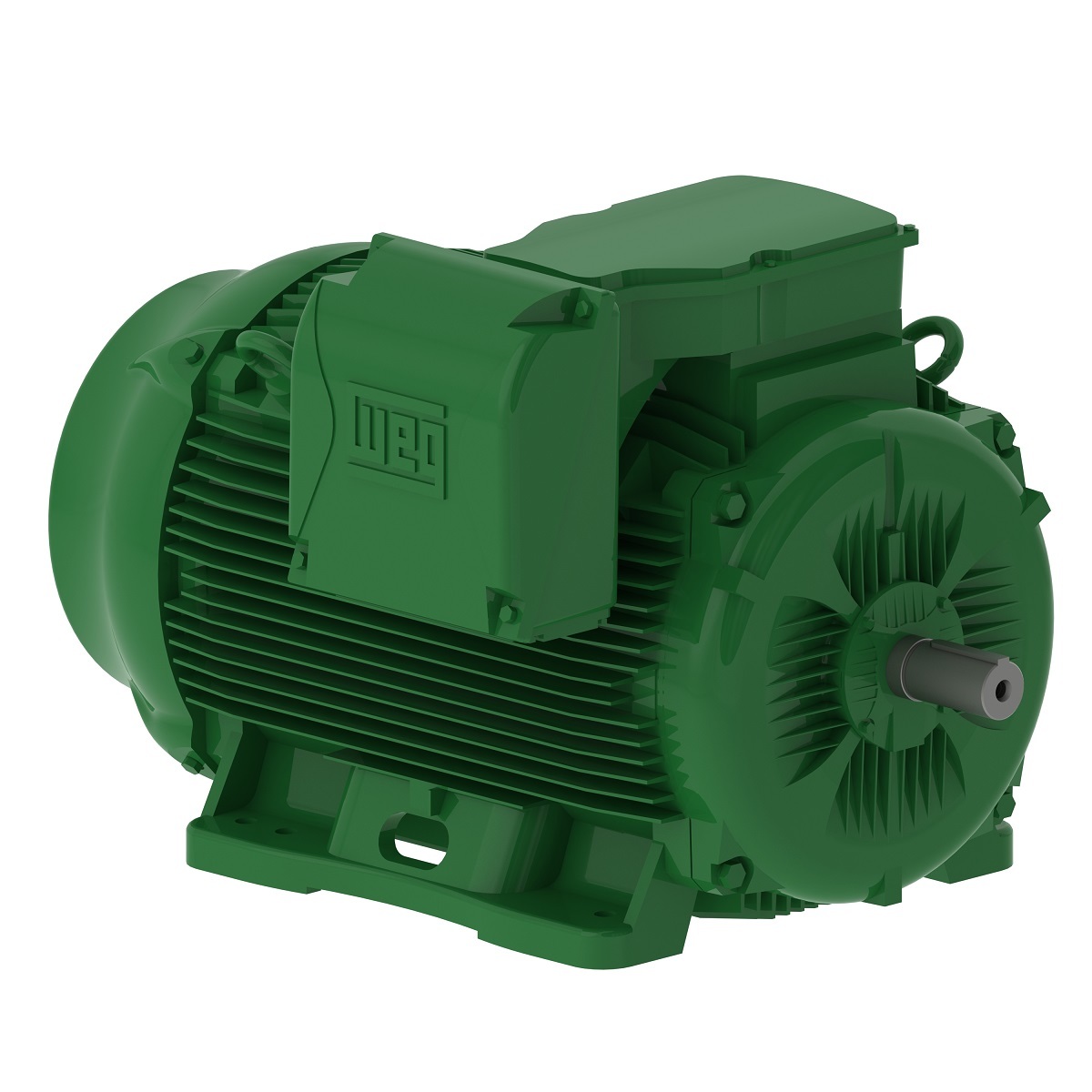

20018EG3G449T-W22 WEG 200HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 20018EG3G449T-W22

20018EG3G449T-W22 WEG 200HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 20018EG3G449T-W22

Selected accessories will also be added to cart
$17,406.00 / Each
Quantity:
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 11792552, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1785 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 234 A
L. R. Amperes 1802 A
LRC 7.7x(Code J)
No load current 105 A
Rated torque 588 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 98.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 2794 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.5  96.8

Power factor

50% 75% 100%
0.66  0.77  0.83
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 275 A
L. R. Amperes 1760 A
LRC 6.4x(Code G)
No load current 95.0 A
Rated torque 710 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 98.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2794 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.72  0.81  0.86
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 265 A
L. R. Amperes 1855 A
LRC 7.0x(Code H)
No load current 100 A
Rated torque 707 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 98.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2794 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.69  0.79  0.85
Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 258 A
L. R. Amperes 1909 A
LRC 7.4x(Code H)
No load current 105 A
Rated torque 707 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 98.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 2794 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.2  96.4  96.4

Power factor

50% 75% 100%
0.67  0.78  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
