/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/20012OT3G447/9T-W40 WEG 200HP, General Purpose Electric Motor, 1200RPM

Product ID: 20012OT3G447/9T-W40

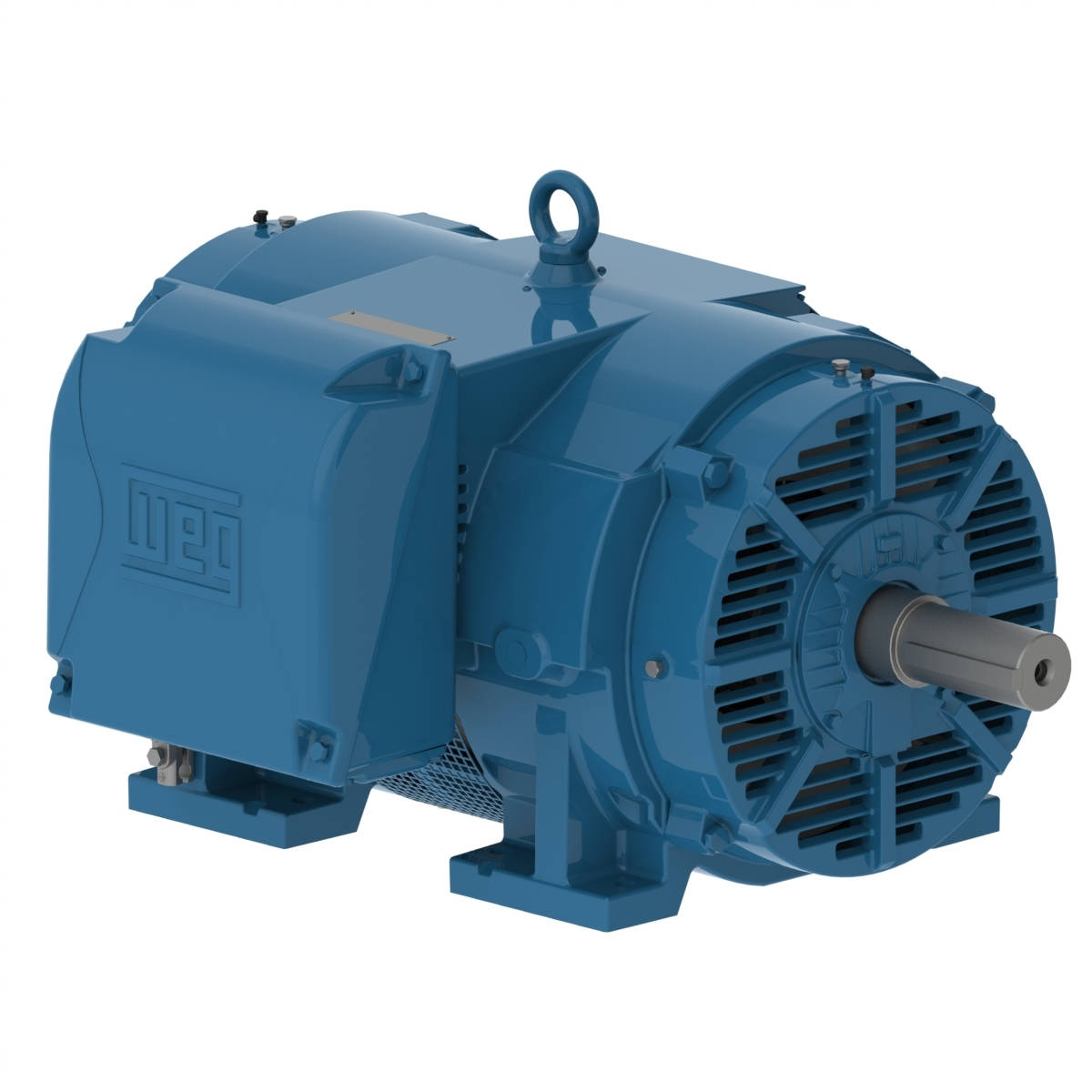

20012OT3G447/9T-W40 WEG 200HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 20012OT3G447/9T-W40

Selected accessories will also be added to cart

$17,535.00 / Each

Quantity:

IC01 - ODP, IP23, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13621121, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	460 V
Rated current	241 A
L. R. Amperes	1398 A
LRC	5.8x(Code F)
No load current	95.0 A
Rated torque	886 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.69	0.78	0.82

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	253 A
L. R. Amperes	1316 A
LRC	5.2x(Code E)
No load current	93.7 A
Rated torque	938 ft.lb
Locked rotor torque	170 %
Breakdown torque	190 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.3	94.6	95.4

Power factor

50%	75%	100%
0.70	0.80	0.83

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	244 A
L. R. Amperes	1415 A
LRC	5.8x(Code G)
No load current	101 A
Rated torque	938 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.6	95.4

Power factor

50%	75%	100%
0.66	0.77	0.82

Frame	447/9T
Output	175 HP (132 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	238 A
L. R. Amperes	1499 A
LRC	6.3x(Code G)
No load current	108 A
Rated torque	938 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.0	94.6	95.4

Power factor

50%	75%	100%
0.63	0.76	0.81

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	290 A
L. R. Amperes	1305 A
LRC	4.5x(Code D)
No load current	93.7 A
Rated torque	1070 ft.lb
Locked rotor torque	150 %
Breakdown torque	170 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.7

Power factor

50%	75%	100%
0.75	0.81	0.83

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	275 A
L. R. Amperes	1403 A
LRC	5.1x(Code E)
No load current	101 A
Rated torque	1070 ft.lb
Locked rotor torque	170 %
Breakdown torque	190 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.7

Power factor

50%	75%	100%
0.71	0.79	0.83

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	269 A
L. R. Amperes	1506 A
LRC	5.6x(Code F)
No load current	108 A
Rated torque	1070 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	98.2 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	1996 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.7

Power factor

50%	75%	100%
0.68	0.78	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
