Product ID: 191569.00

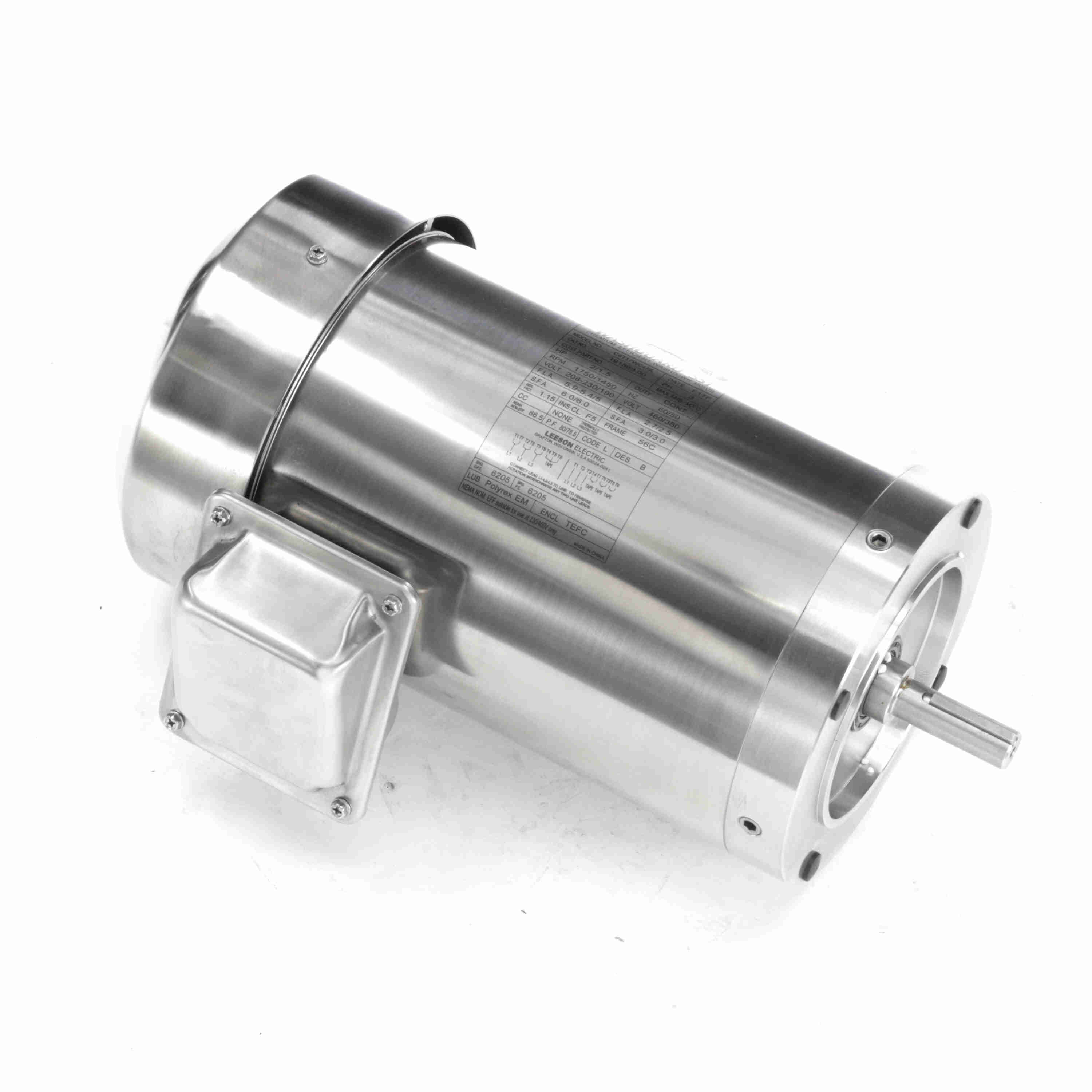

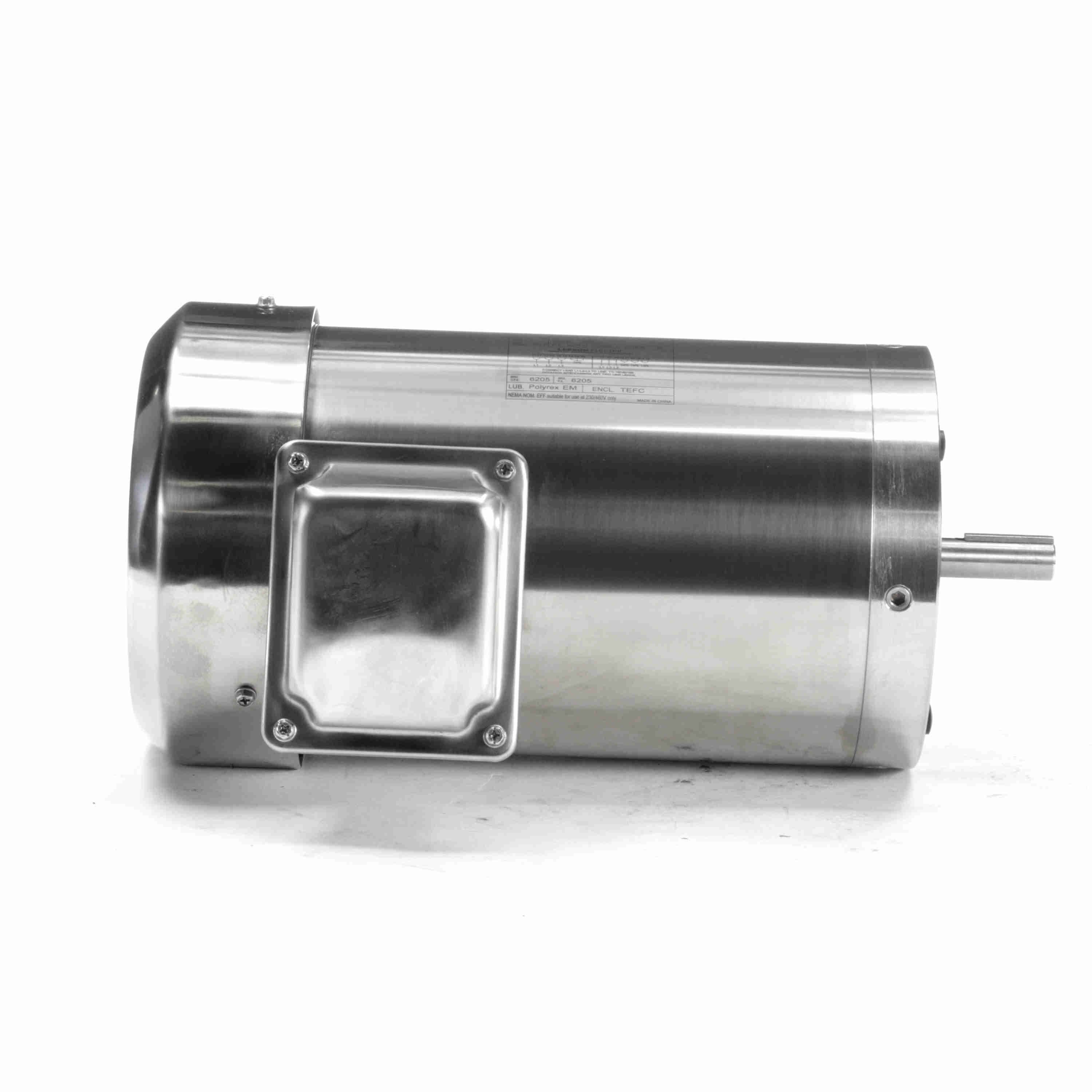

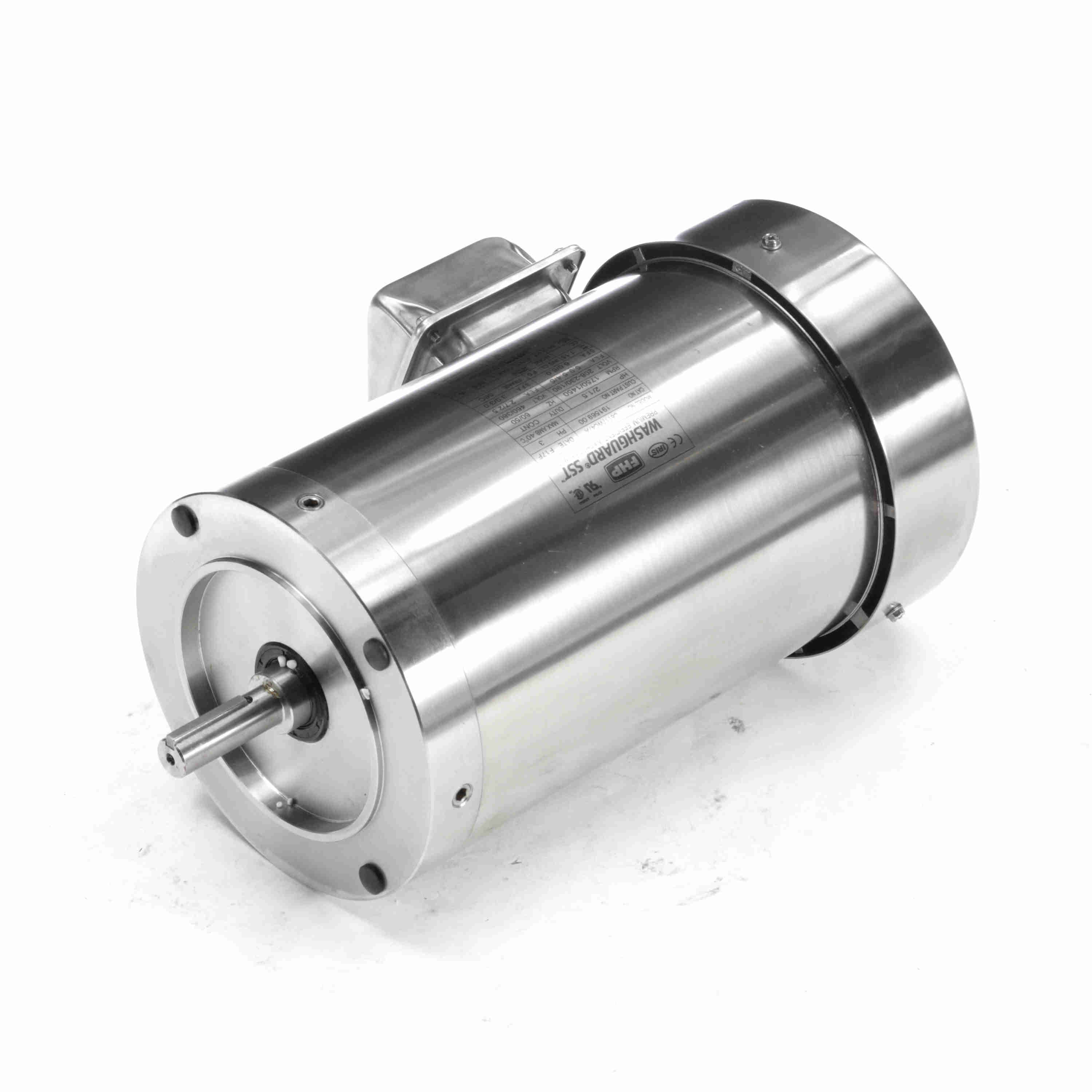

191569.00 Leeson 2HP Stainless Steel Electric Motor, Washdown Duty

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WC47

Selected accessories will also be added to cart
$966.97 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

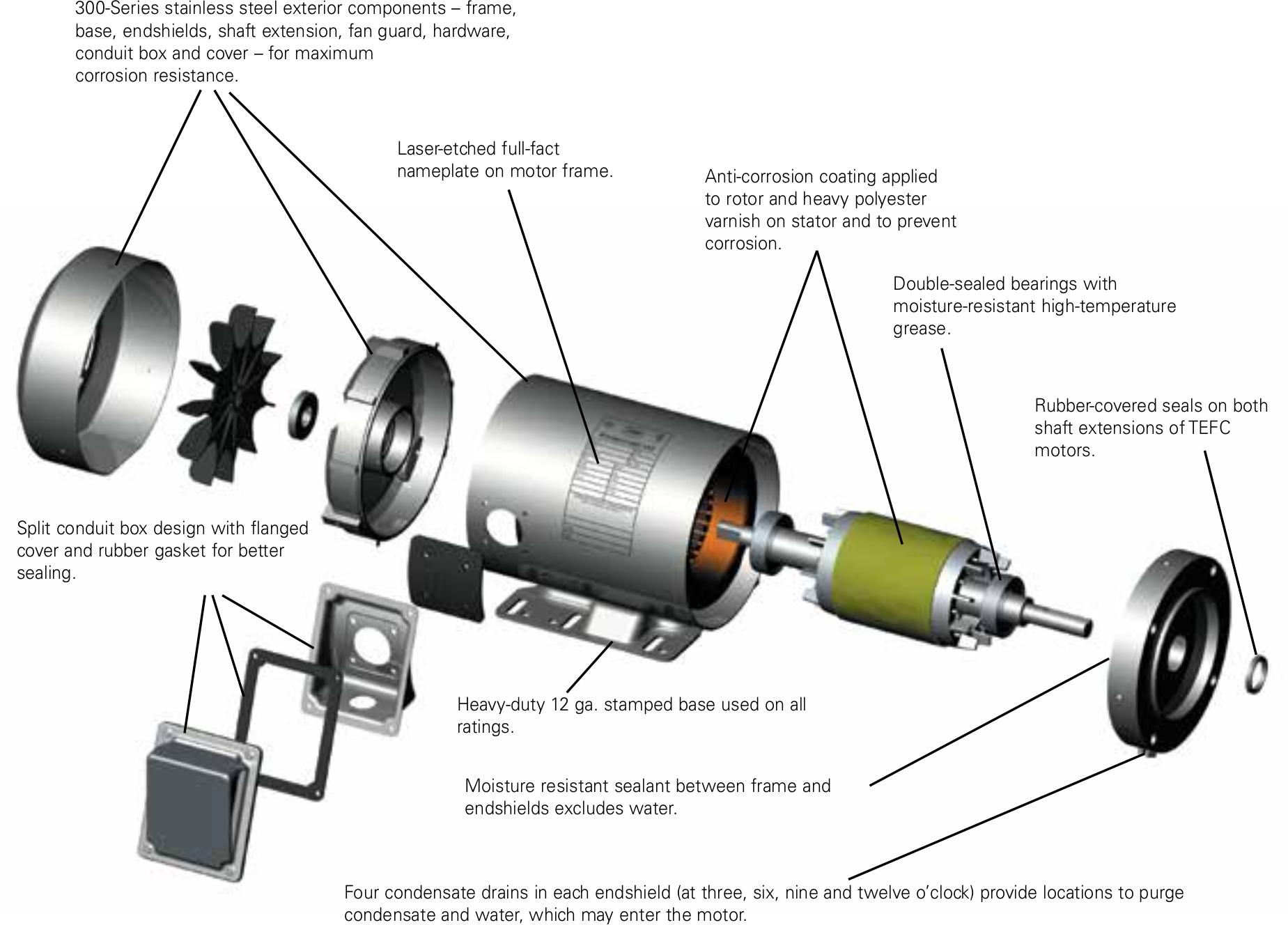

Features

Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications

Model : C6T17WC64A Catalog No : 191569.00
Part Description : ..2HP..1740RPM.56C.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.....WASHGUARD-ALL STAINLESS.NOT....... Category : Paint Free
Stock : No

Nameplate Specifications

Nameplate Specifications

Output HP : 2 HP Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 5.8-5.4/2.7 A Speed : 1750 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 86.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 56C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55

Technical Specifications

Technical Specifications

Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Stainless Steel Shaft Type : NEMA 56
Overall Length : 13.77 in Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 691720104095 Weight : 47.00 LB

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 22.90 848.0 14.04 235.0 321 9.80 53.9 2.00
Locked-Rotor 23.40 867.0 17.40 291.0 0 9.60 51.5 2.00
Full Load 2.70 100.0 5.98 100.0 1,754 1.69 78.3 2.00
Break-Down 14.20 526.0 25.44 425.0 1,364 9.10 80.6 2.00
Load Characteristics

  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.40
  • 0.099
  • 0.0
  • 8.9
  • 0
  • 0.0
  • 0.00
  • 25 %
  • 1.60
  • 0.479
  • 77.9
  • 37.6
  • 1,789
  • 0.0
  • 1.47
  • 50 %
  • 1.80
  • 0.868
  • 85.9
  • 60.5
  • 1,779
  • 0.0
  • 2.95
  • 75 %
  • 2.20
  • 1.270
  • 88.2
  • 72.5
  • 1,767
  • 0.0
  • 4.46
  • 100 %
  • 2.70
  • 1.685
  • 88.4
  • 78.3
  • 1,754
  • 46.0
  • 5.98
  • 115 %
  • 2.96
  • 1.927
  • 89.0
  • 81.7
  • 1,747
  • 0.0
  • 6.91
  • 125 %
  • 3.20
  • 2.115
  • 88.1
  • 83.0
  • 1,741
  • 0.0
  • 7.54
  • 150 %
  • 3.80
  • 2.565
  • 87.2
  • 84.7
  • 1,725
  • 0.0
  • 9.13
