/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC Pedestal Fan Motor/191547.00 Leeson 1/2HP Stainless Steel Electric Motor, 1725RPM
Click Image to Expand

Product ID: 191547.00

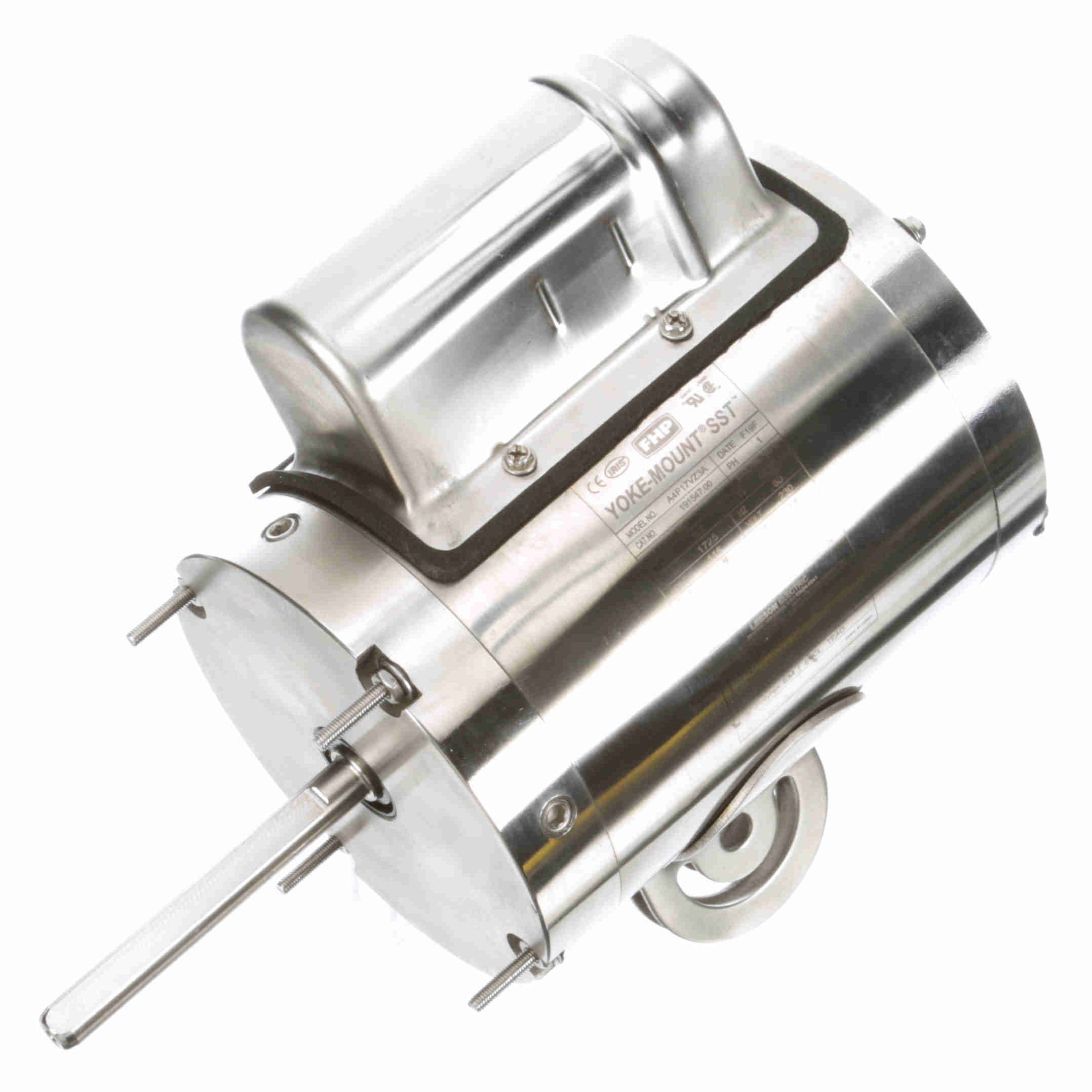

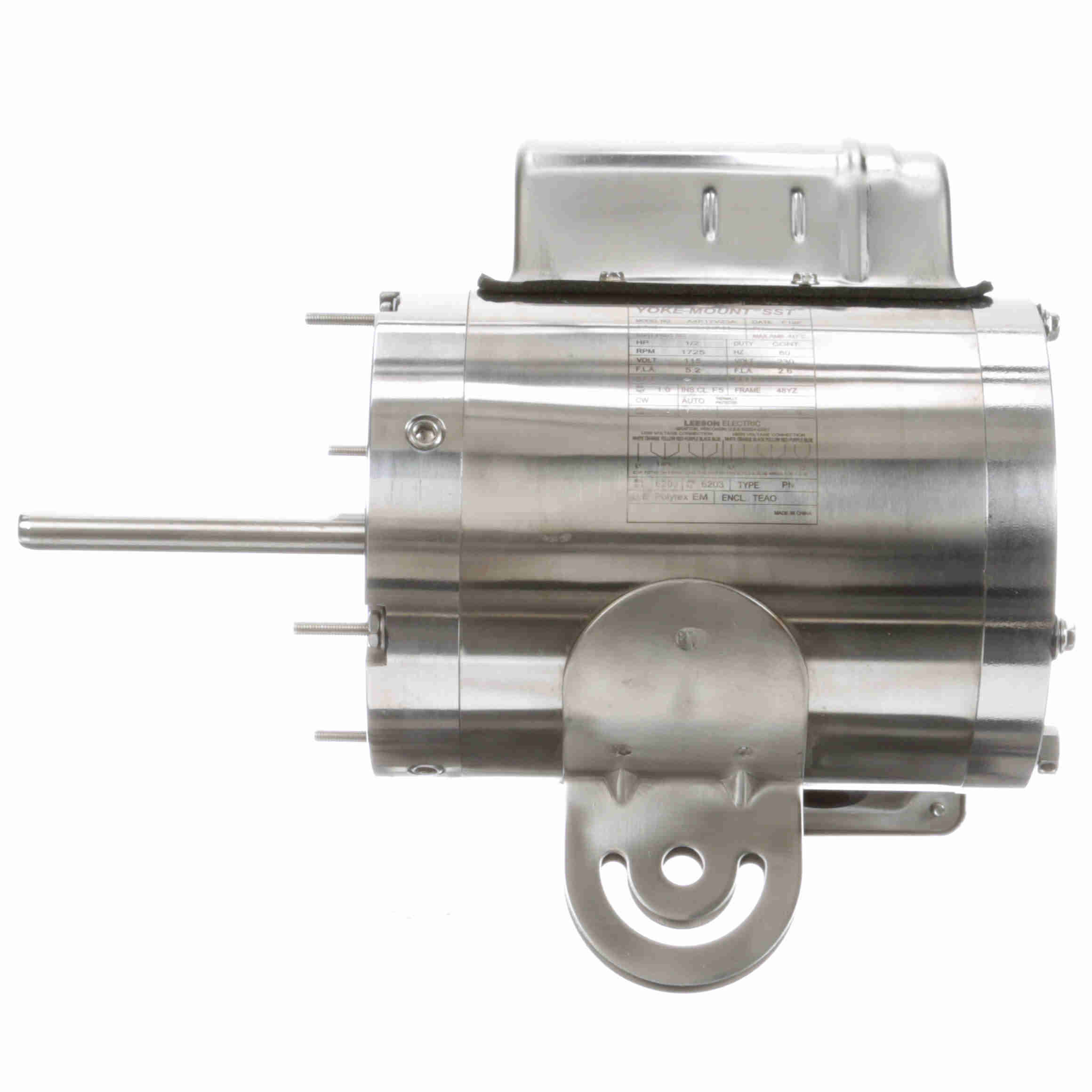

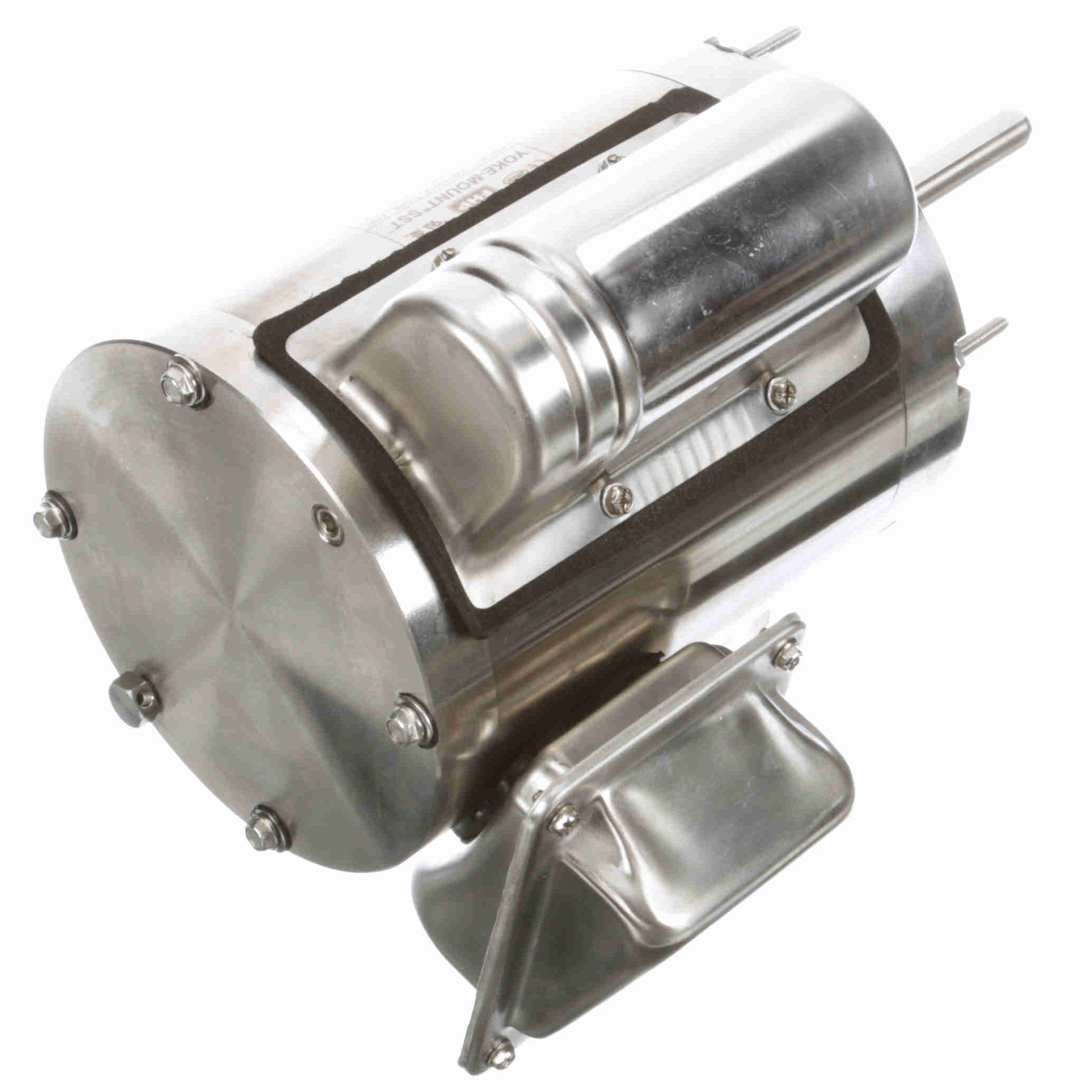

191547.00 Leeson 1/2HP Stainless Steel Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17VZ3A

Selected accessories will also be added to cart
$569.53 / Each
Quantity:
TEFC, 48Y Frame, 115/230VAC 60Hz Single Phase, Washdown Duty, Round Body, Extended Studs, 1/2" Shaft
Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components
General Specifications
Model :A4P17VZ3A Catalog No :191547.00
Part Description :..1/2HP..1725RPM.48Y.TEAO.115/230V.1PH.60HZ.FAN DUTY.40C.1.0SF.YOKE......STAINLESS STEEL PEDESTAL FAN.AUTO....... Category :Pedestal Fan Motors
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :5.2/2.6 A Speed :1750 rpm
Service Factor :1 Phase :1
Efficiency :72 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :D Frame :48YZ
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Clockwise
Mounting :Round - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Stainless Steel Shaft Type :Single Special Extension
Overall Length :11.58 in Shaft Diameter :0.500 in
Shaft Extension :4.05 in Assembly/Box Mounting :F1 ONLY
UPC :691720052563 Weight :24.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load2.60100.024.40100.01,7360.580.00.50
Locked-Rotor8.80338.06.8028.031.360.00.50
Break-Down5.30204.044.40182.01,5961.120.00.50
Pull-Up7.20277.05.2021.01021.120.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.90
  • 0.167
  • 0.0
  • 80.7
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 1.30
  • 0.280
  • 33.3
  • 93.6
  • 1,781
  • 0.0
  • 5.90
  • 50 %
  • 1.70
  • 0.371
  • 50.4
  • 94.9
  • 1,769
  • 0.0
  • 11.90
  • 75 %
  • 2.10
  • 0.468
  • 59.9
  • 96.9
  • 1,755
  • 0.0
  • 18.00
  • 100 %
  • 2.60
  • 0.579
  • 64.9
  • 96.8
  • 1,736
  • 0.0
  • 24.40
  • 115 %
  • 2.90
  • 0.649
  • 66.3
  • 97.3
  • 1,725
  • 0.0
  • 28.10
  • 125 %
  • 3.10
  • 0.698
  • 66.7
  • 97.9
  • 1,715
  • 0.0
  • 30.60
  • 150 %
  • 3.90
  • 0.857
  • 65.2
  • 95.5
  • 1,678
  • 0.0
  • 37.50
