191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty
Click Image to Expand
Previous
Next
Product ID: 191507.00

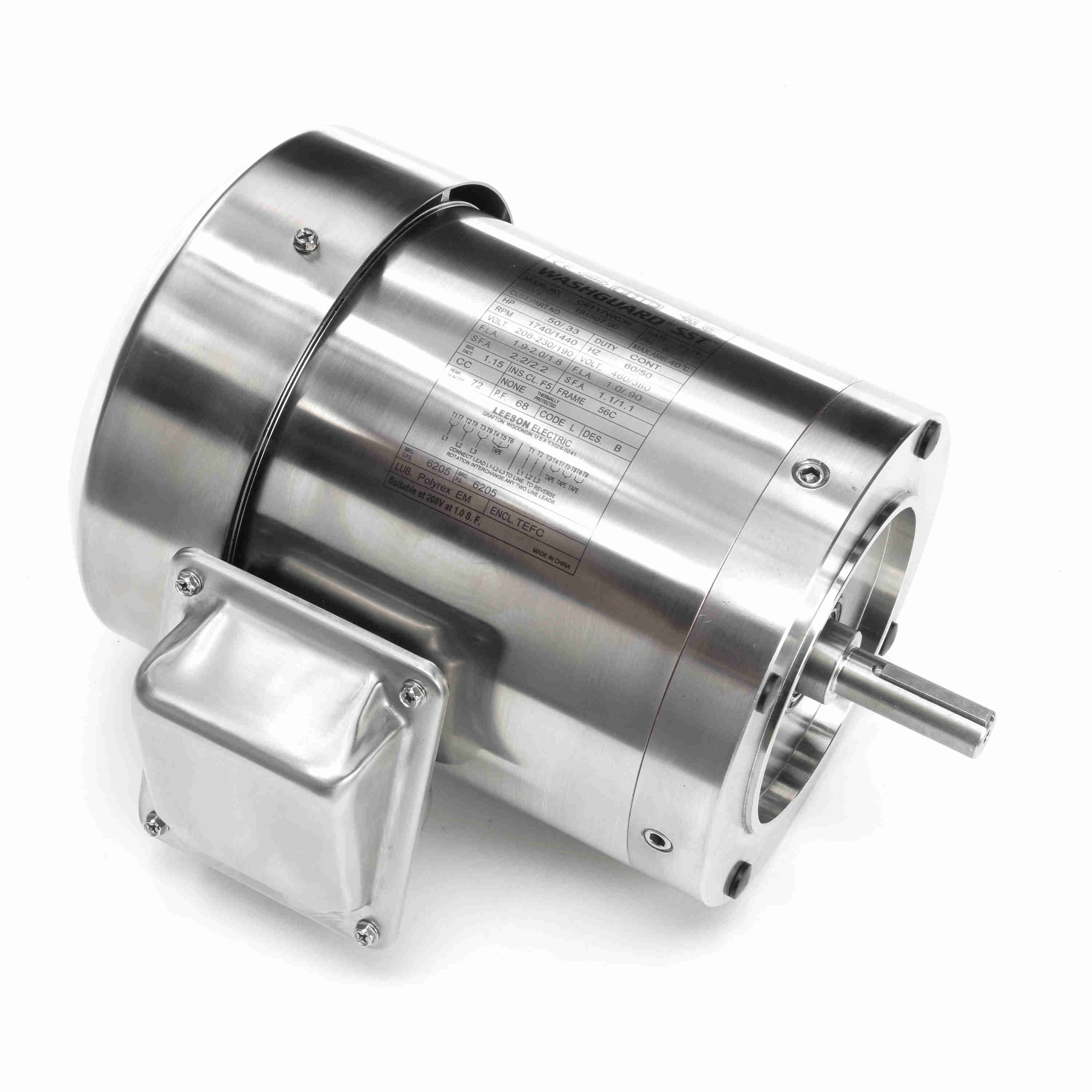

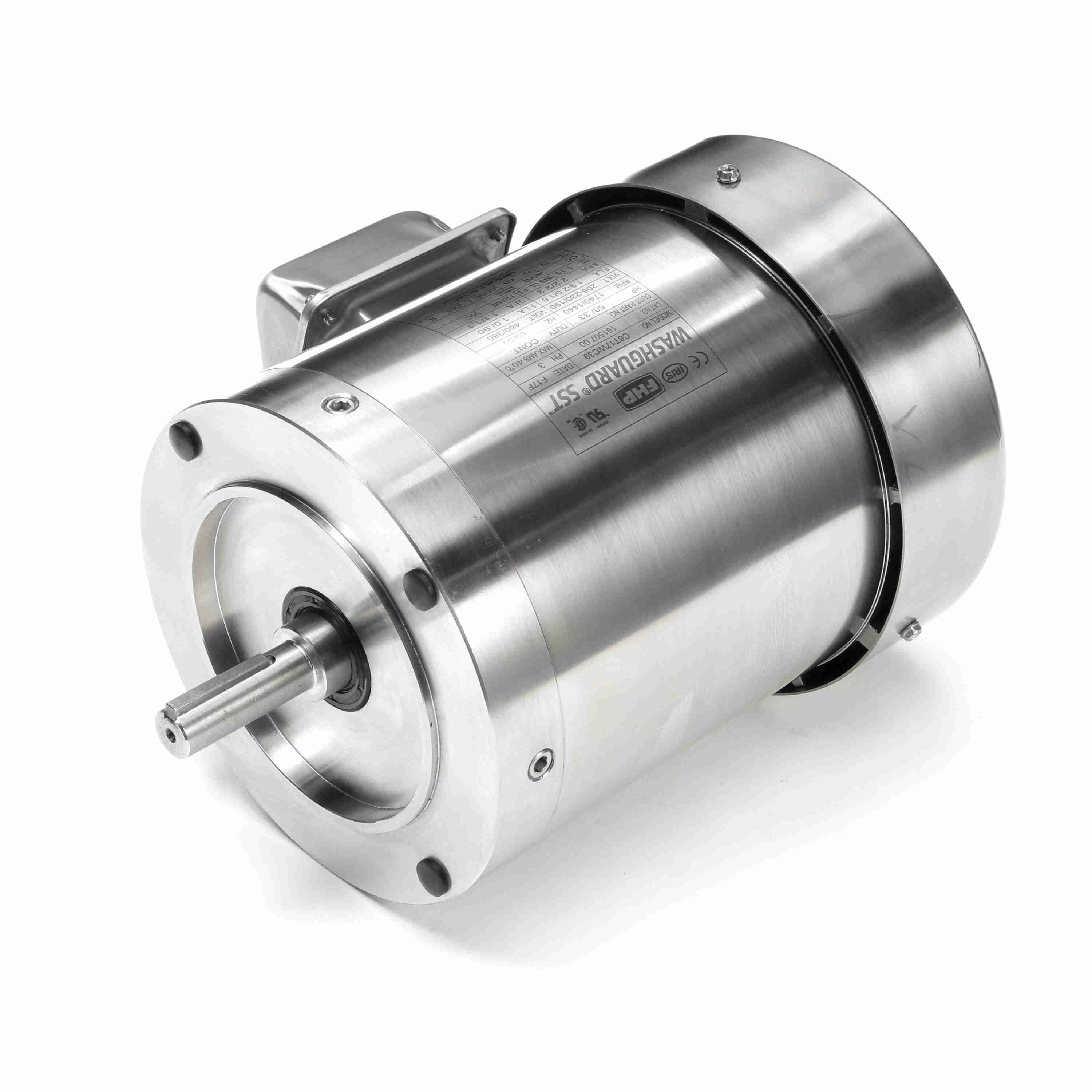

191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WC39
Selected accessories will also be added to cart
$928.97 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC
Details
Features

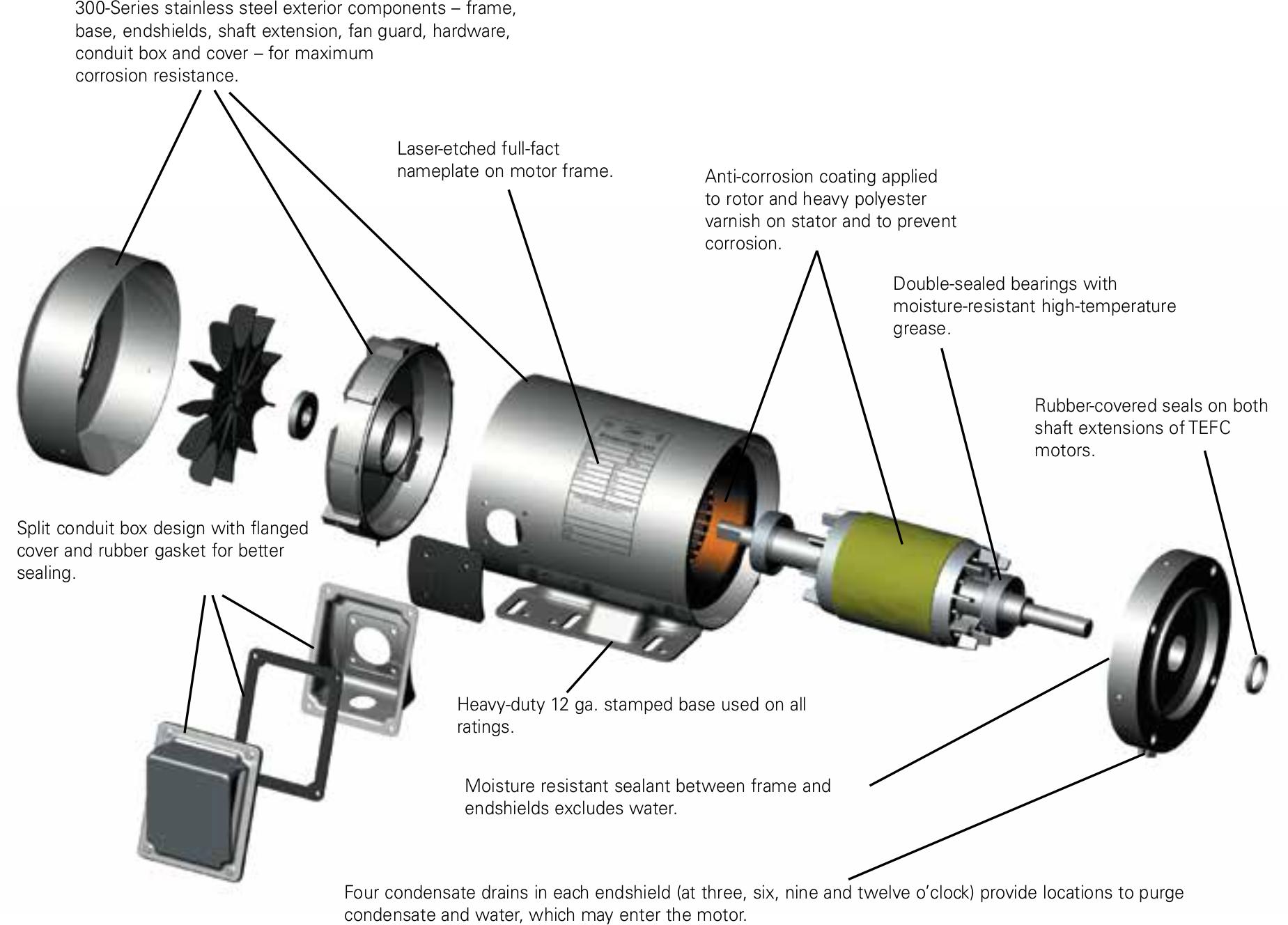

Features
Extended Thru-bolts
Auto Reset Protectors
TEAO designs
Laser etched full-fact nameplate on frame
All Stainless exterior
Anti-corrosion coating applied to interior components
General Specifications
General Specifications
Model :
C6T17WC39A
Catalog No :
191507.00
Part Description :
1/2 HP 1800 208-230/460 TEFC 3PH 60HZ SS C FACE NO BASE
Category :
Paint Free
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
0.50 HP
Output KW :
0.37 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
1.9-2.0/1.0 A
Speed :
1740 RPM
Service Factor :
1.15
Phase :
3
Efficiency :
72 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
L
Frame :
56C
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6205
UL :
Recognized
CSA :
Y
CE :
N
IP Code :
43
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter
Poles :
4
Rotation :
Reversible
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
NEMA 56
Overall Length :
11.10 in
Frame Length :
5.49 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.87 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720052822
Weight :
28.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Pull-Up
0.00
0.0
42.25
176.0
0
0.00
0.0
0.50
Break-Down
0.00
0.0
61.13
254.0
0
0.00
0.0
0.50
Full Load
0.74
100.0
24.07
100.0
1,795
0.45
0.0
0.50
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
0.42
0.040
0.0
0.0
1,795
0.0
0.00
25 %
0.44
0.140
67.0
40.0
1,788
0.0
5.90
50 %
0.52
0.240
78.0
58.0
1,773
0.0
11.70
75 %
0.62
0.340
81.6
69.0
1,759
0.0
17.94
100 %
0.74
0.450
82.6
77.0
1,744
31.3
24.07
125 %
0.87
0.560
82.6
82.0
1,729
0.0
30.45
150 %
1.02
0.680
81.8
84.0
1,713
0.0
36.82
