/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC C-Face with Base/191475.00 1/2HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191475.00

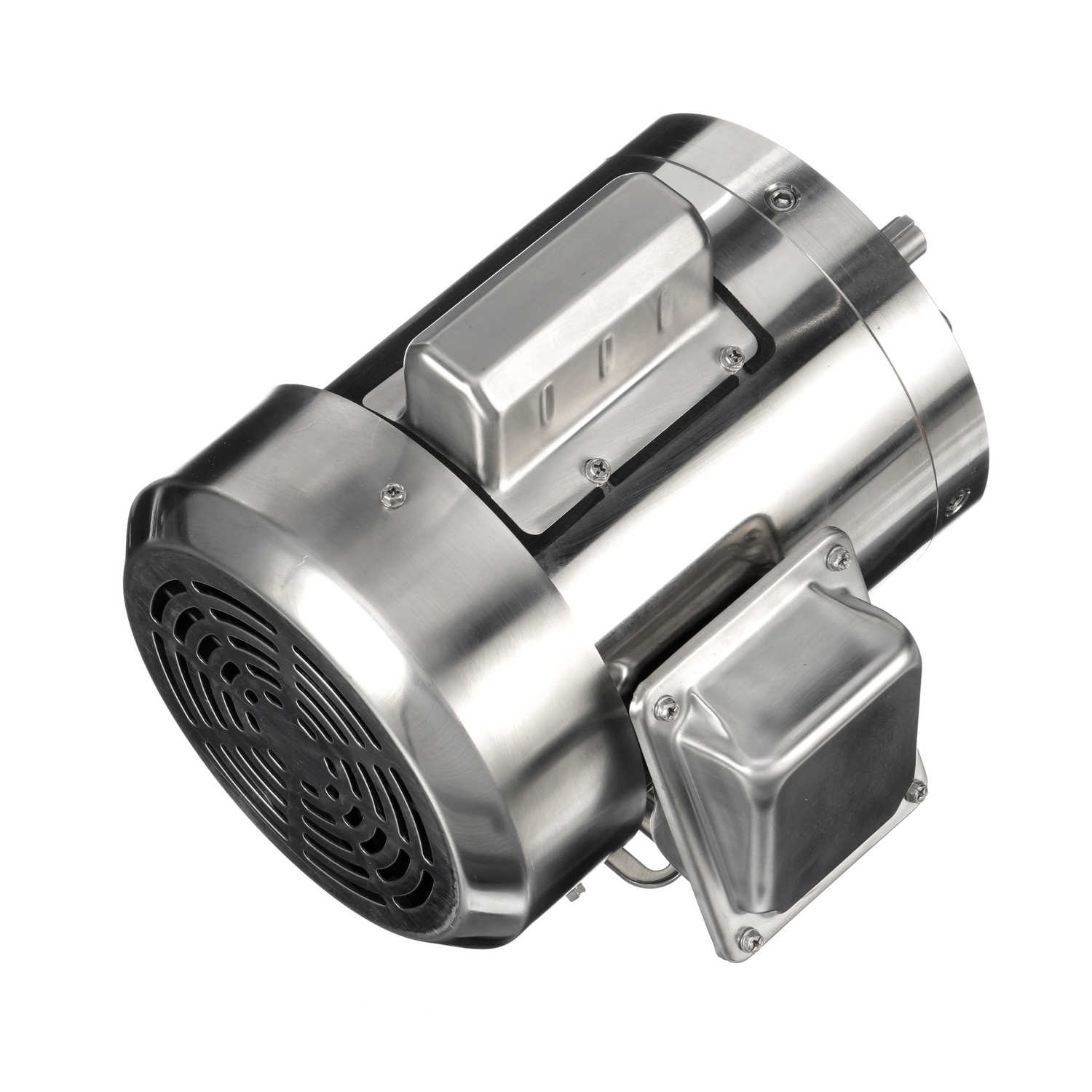

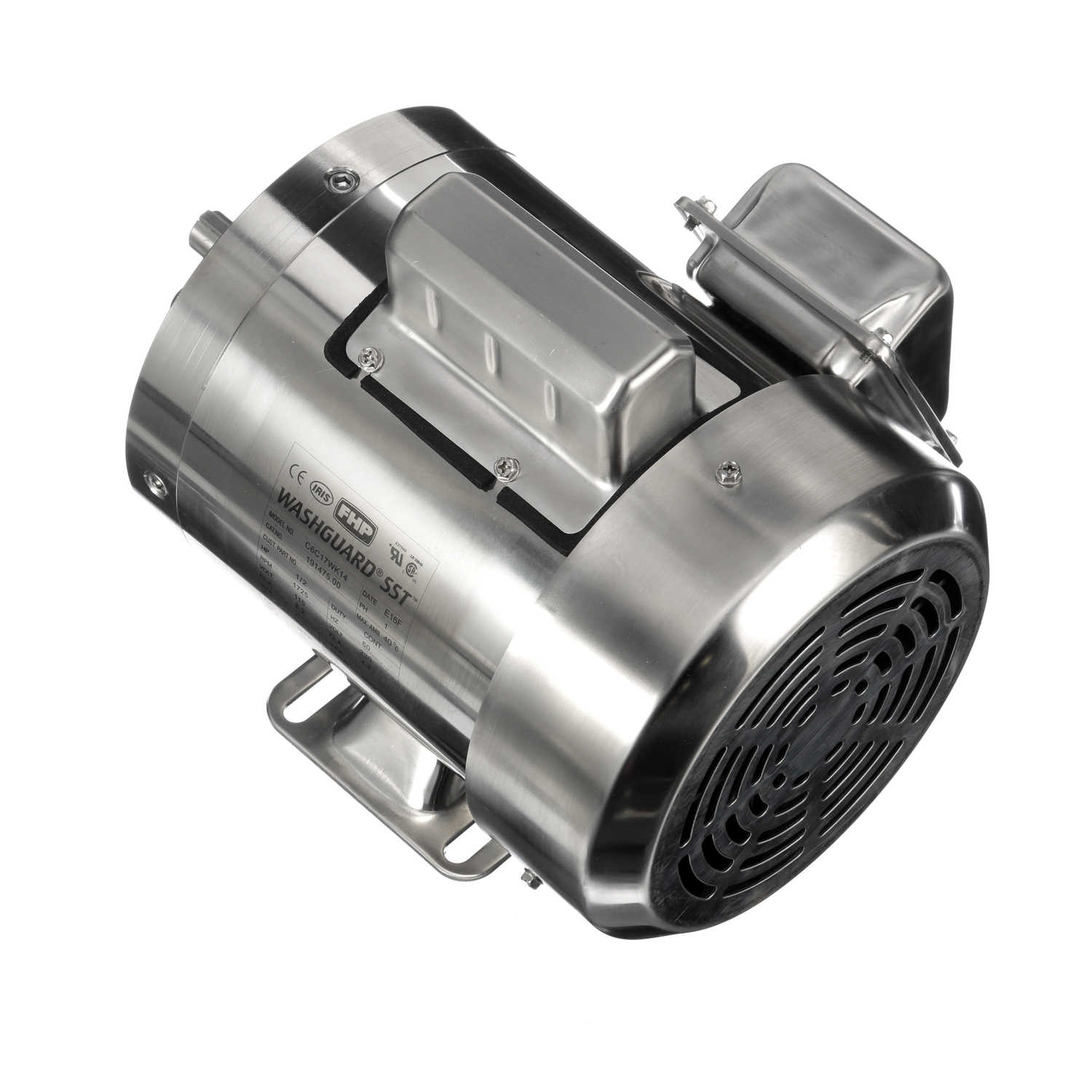

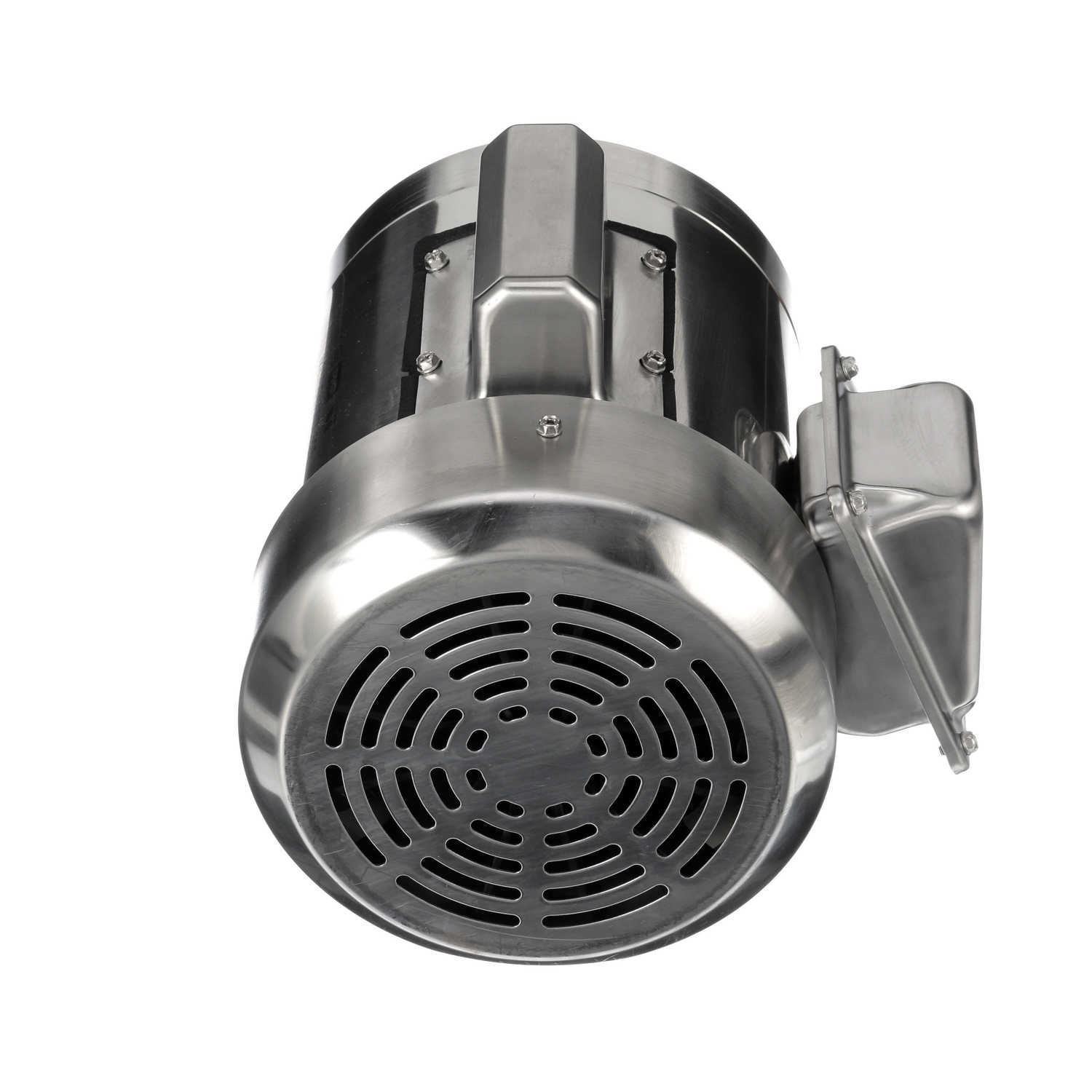

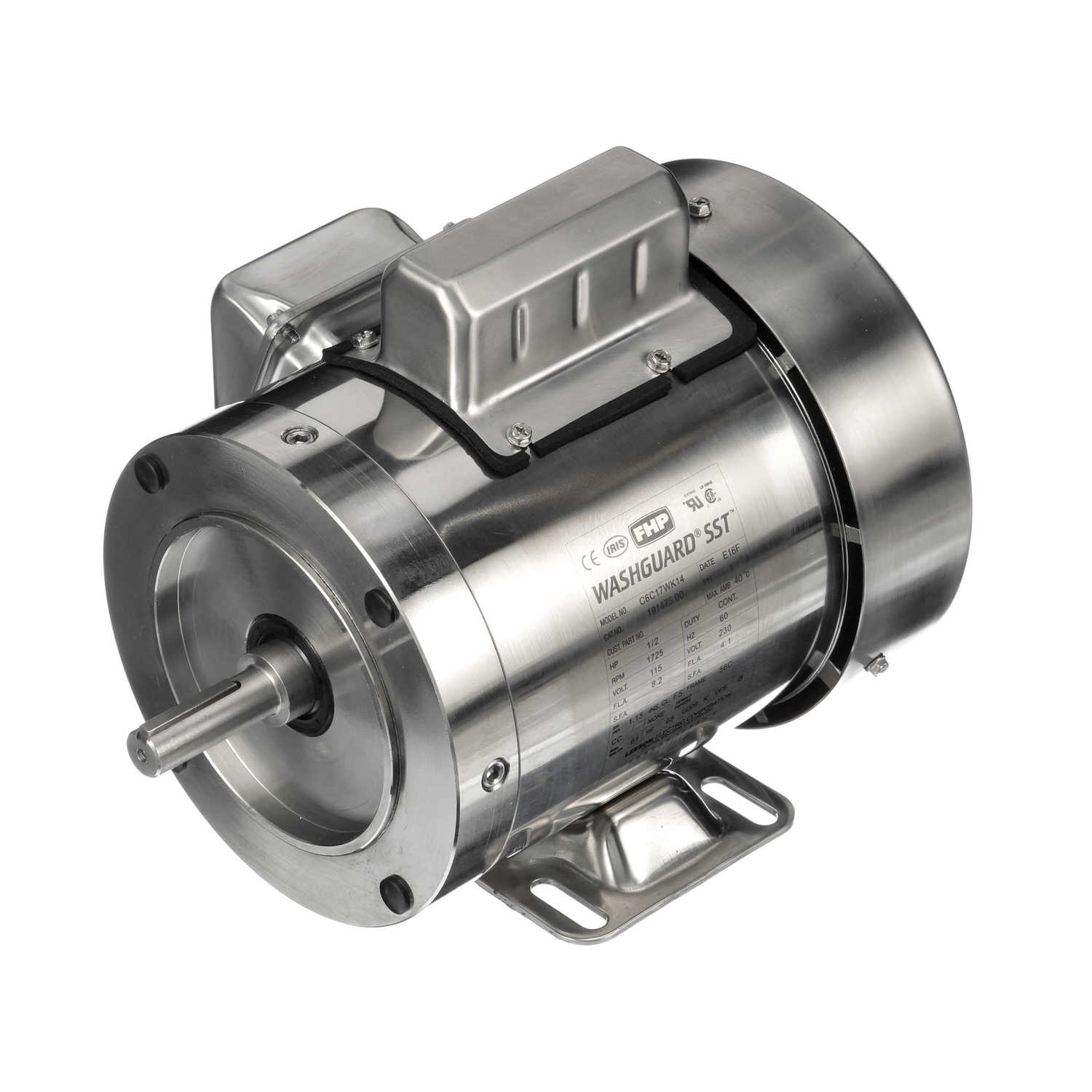

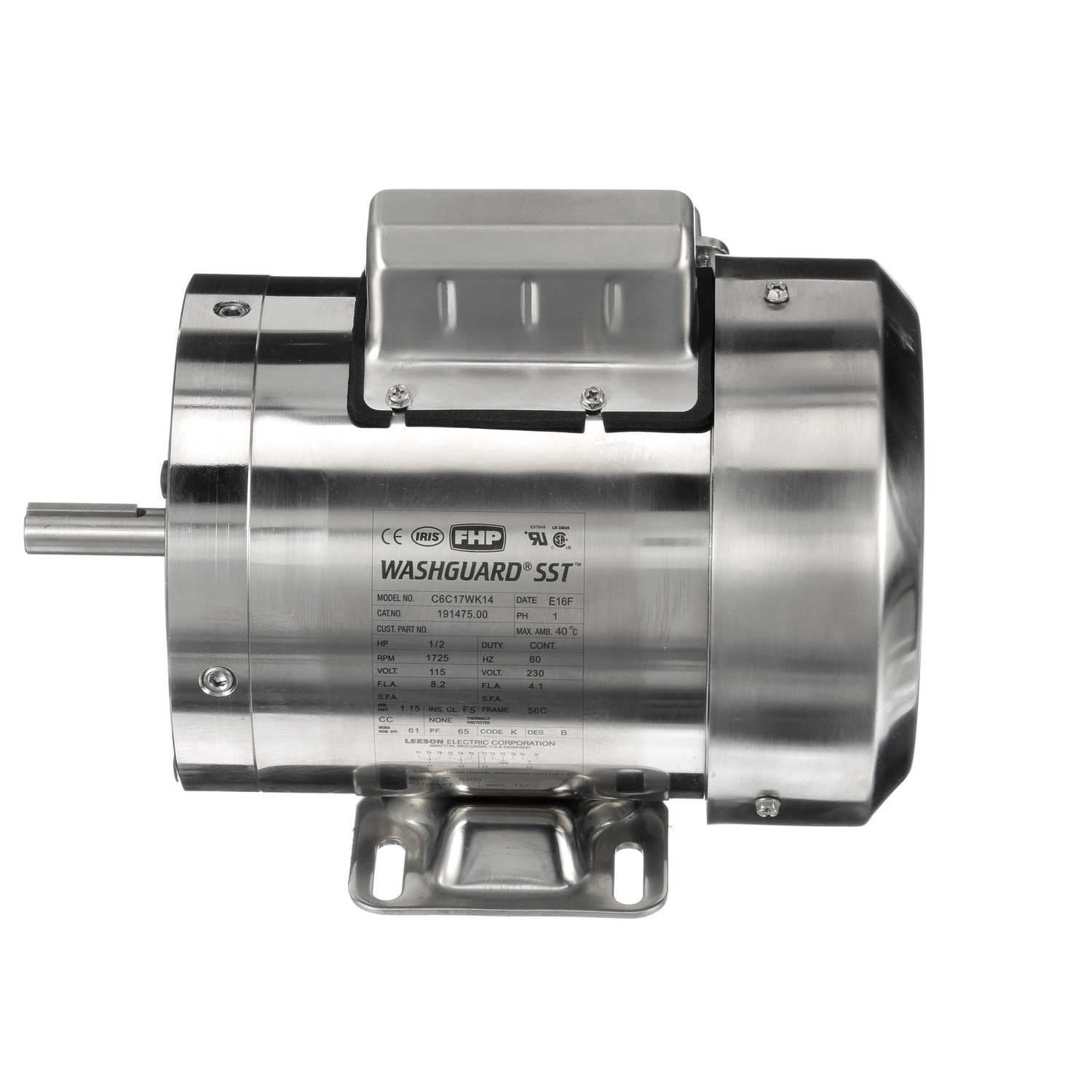

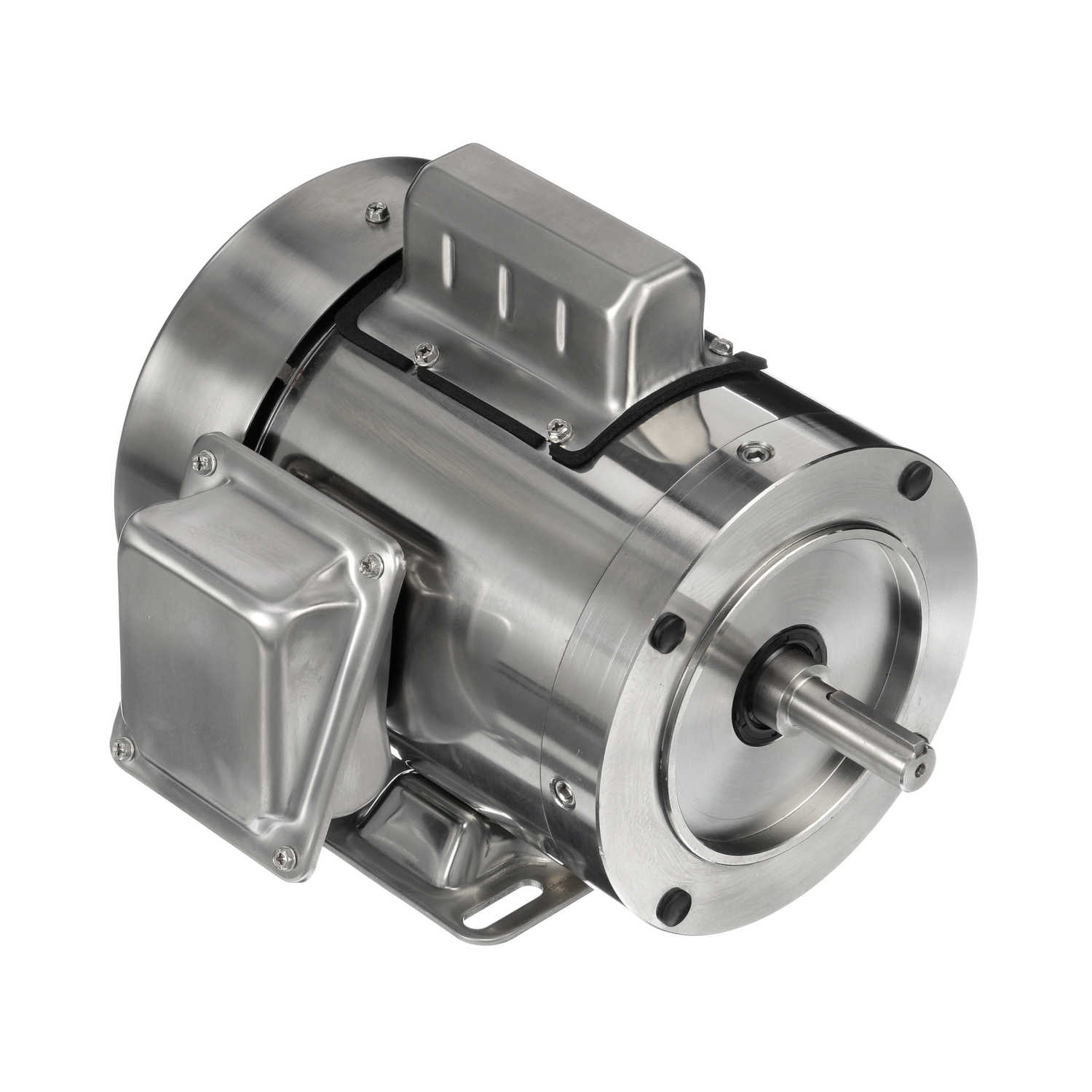

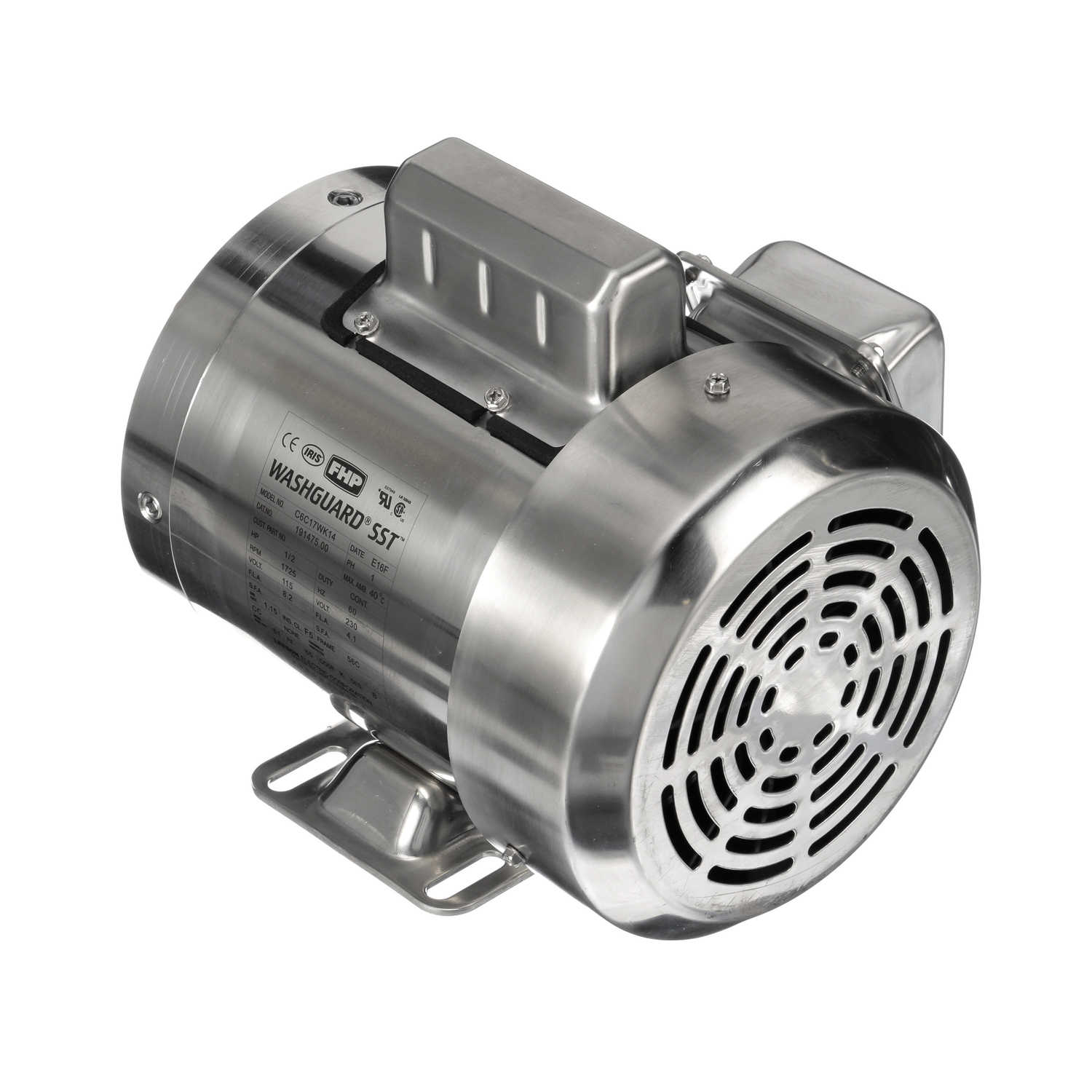

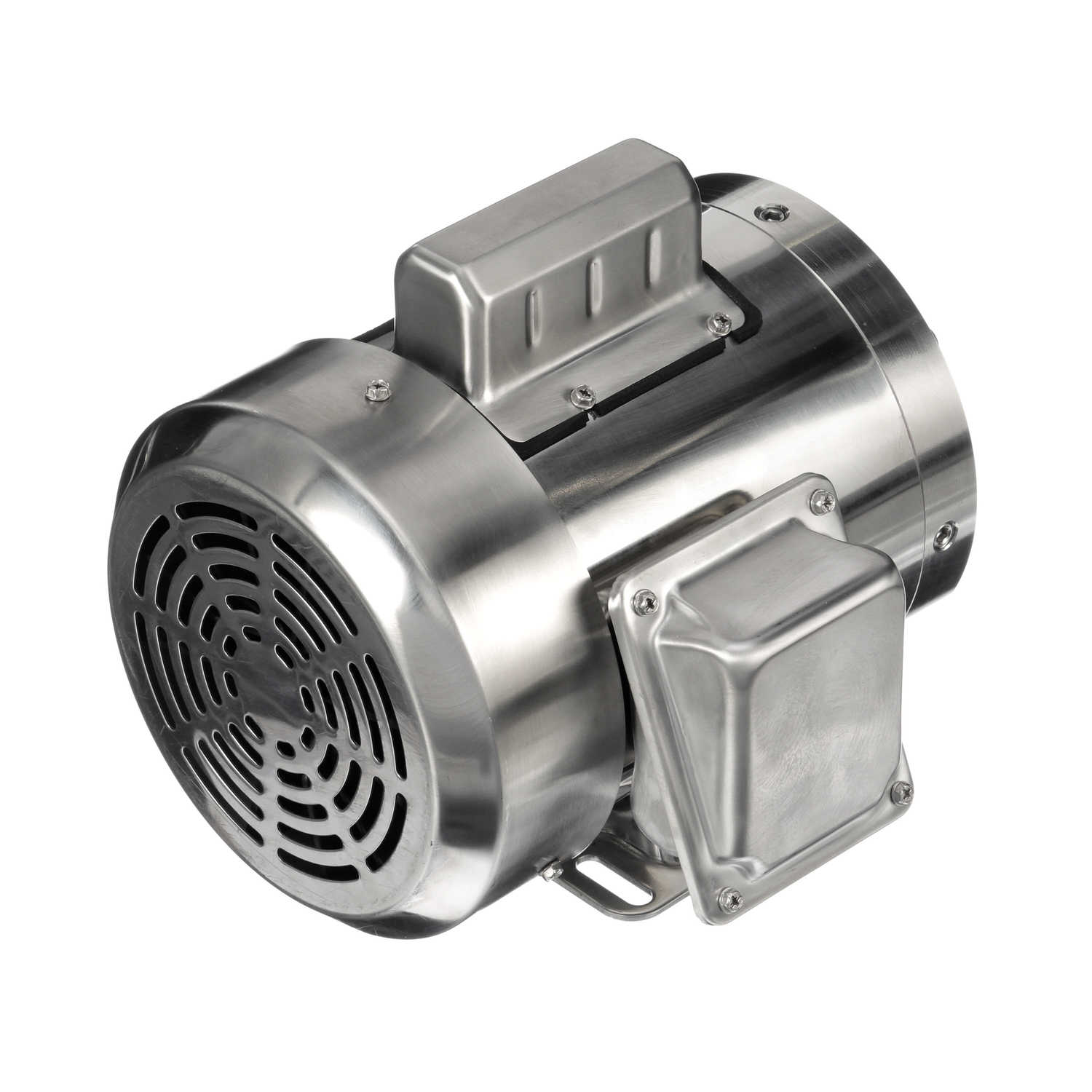

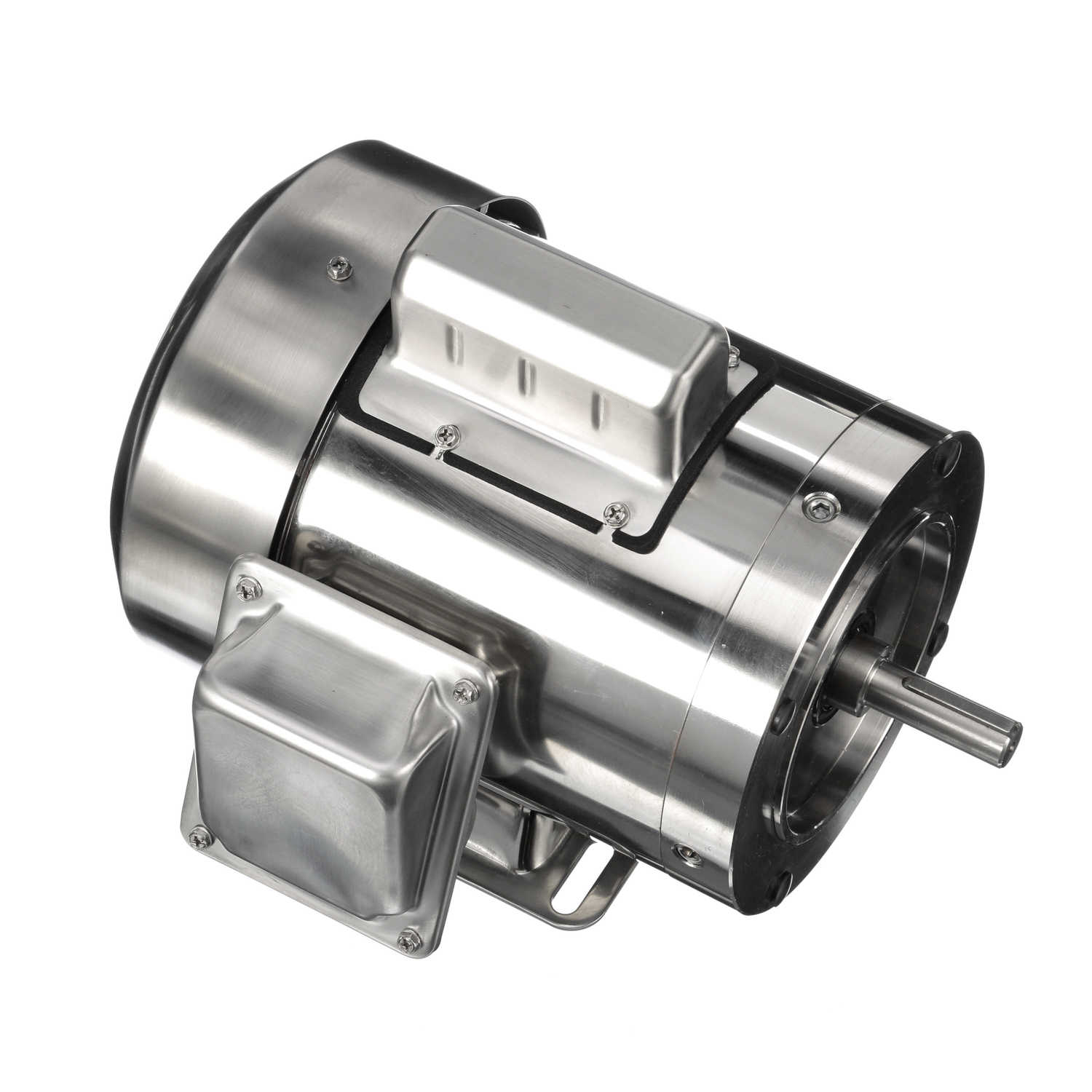

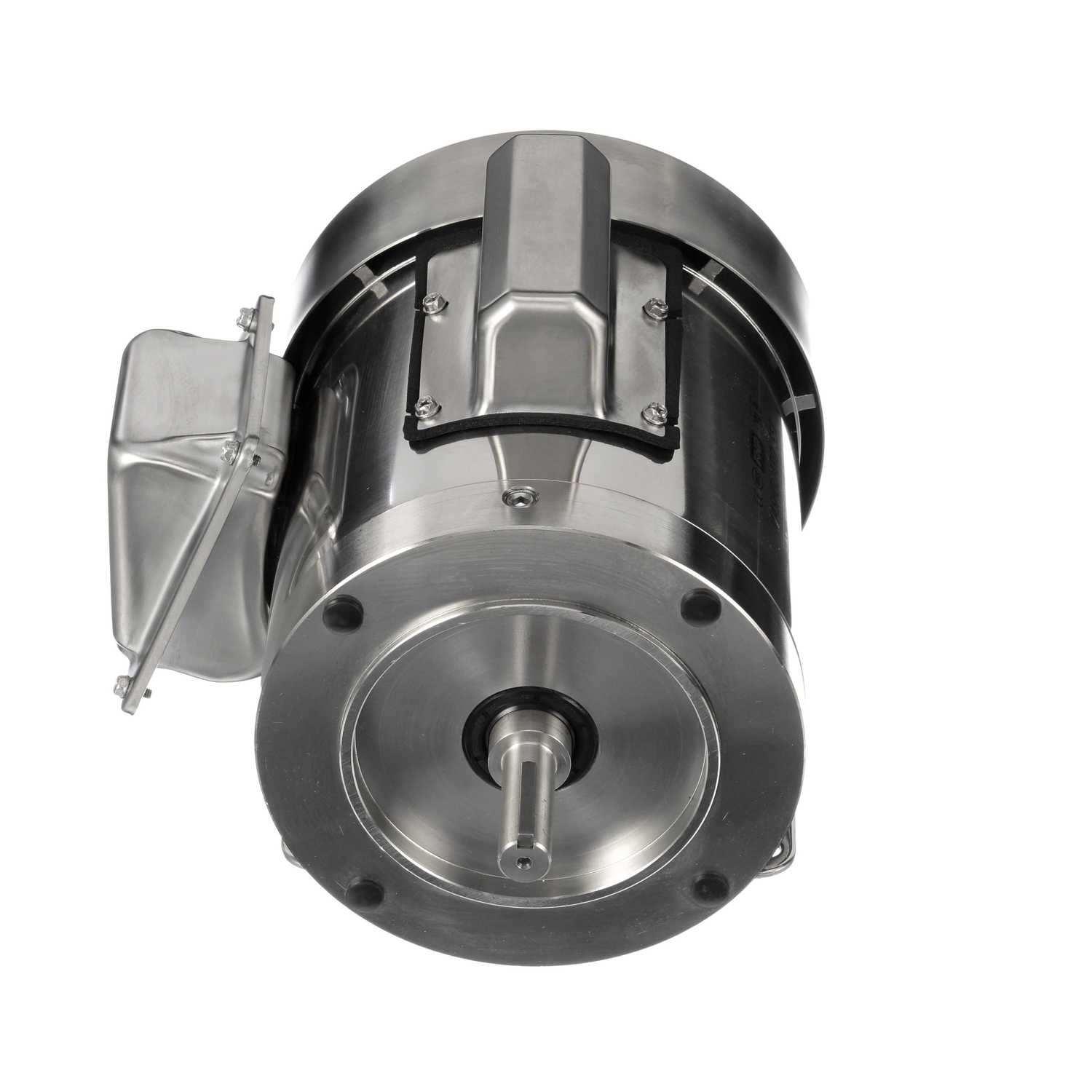

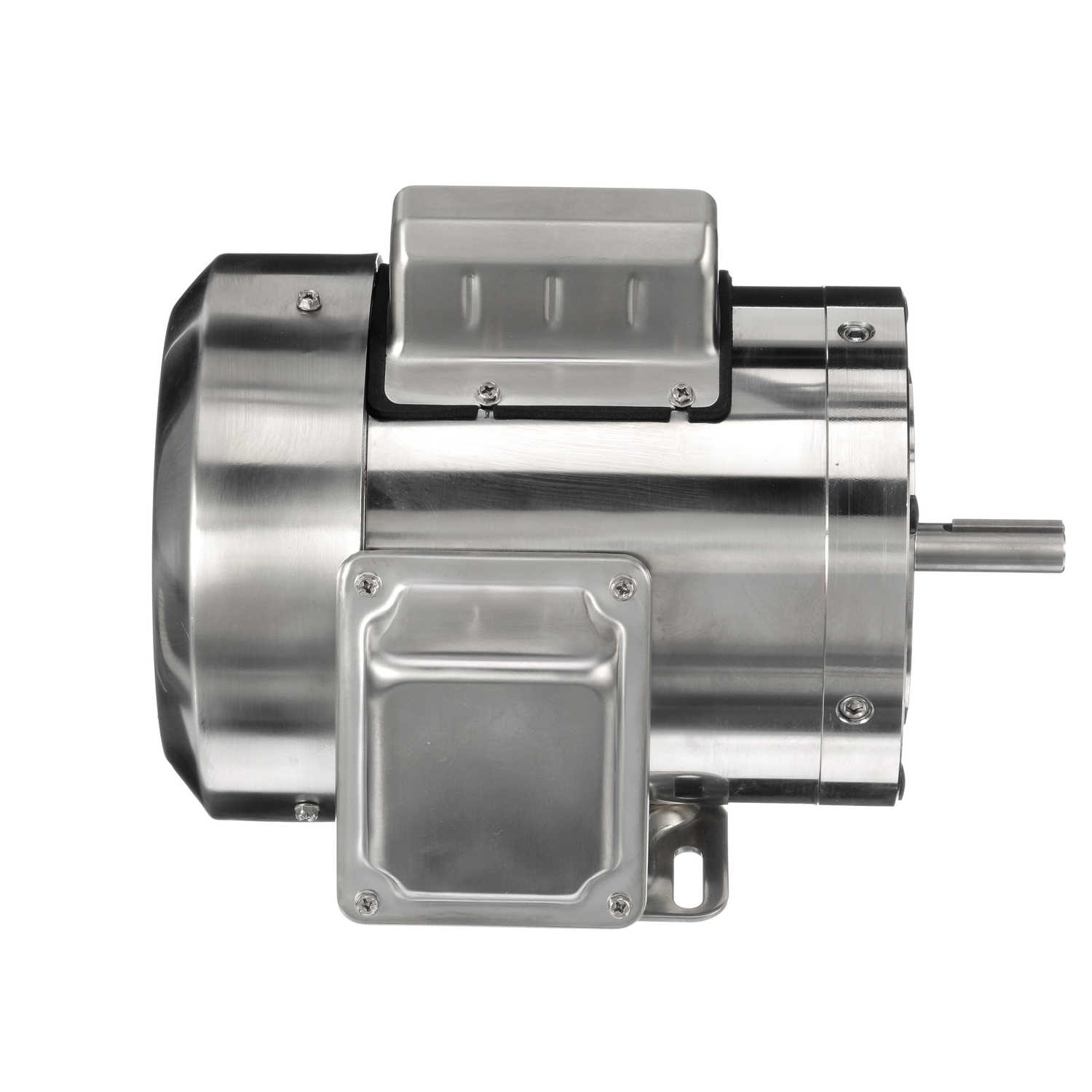

191475.00 1/2HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6C17WK14

Selected accessories will also be added to cart
$701.87 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, Single Phase, 115/208-230V

Features

Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model :C6C17WK14A Catalog No :191475.00
Part Description :..1/2HP..1800RPM.56.TEFC./V.1PH.60HZ..40C..RIGID C.CA......NOT....... Category :Paint Free
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :8.2/4.1 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :61 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :K Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :T
Overall Length :11.10 in Frame Length :5.49 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720399446
Weight :32.00 LB
