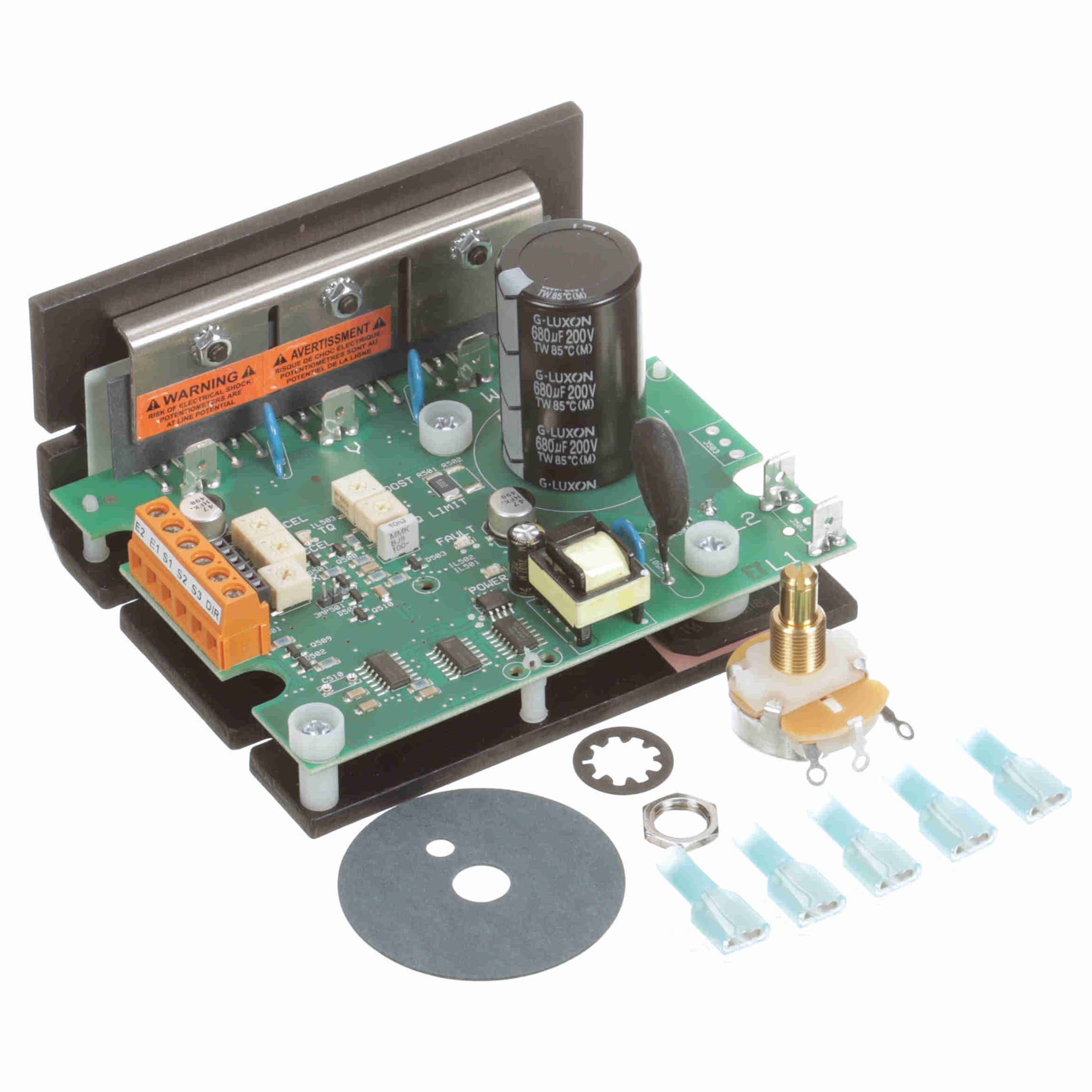

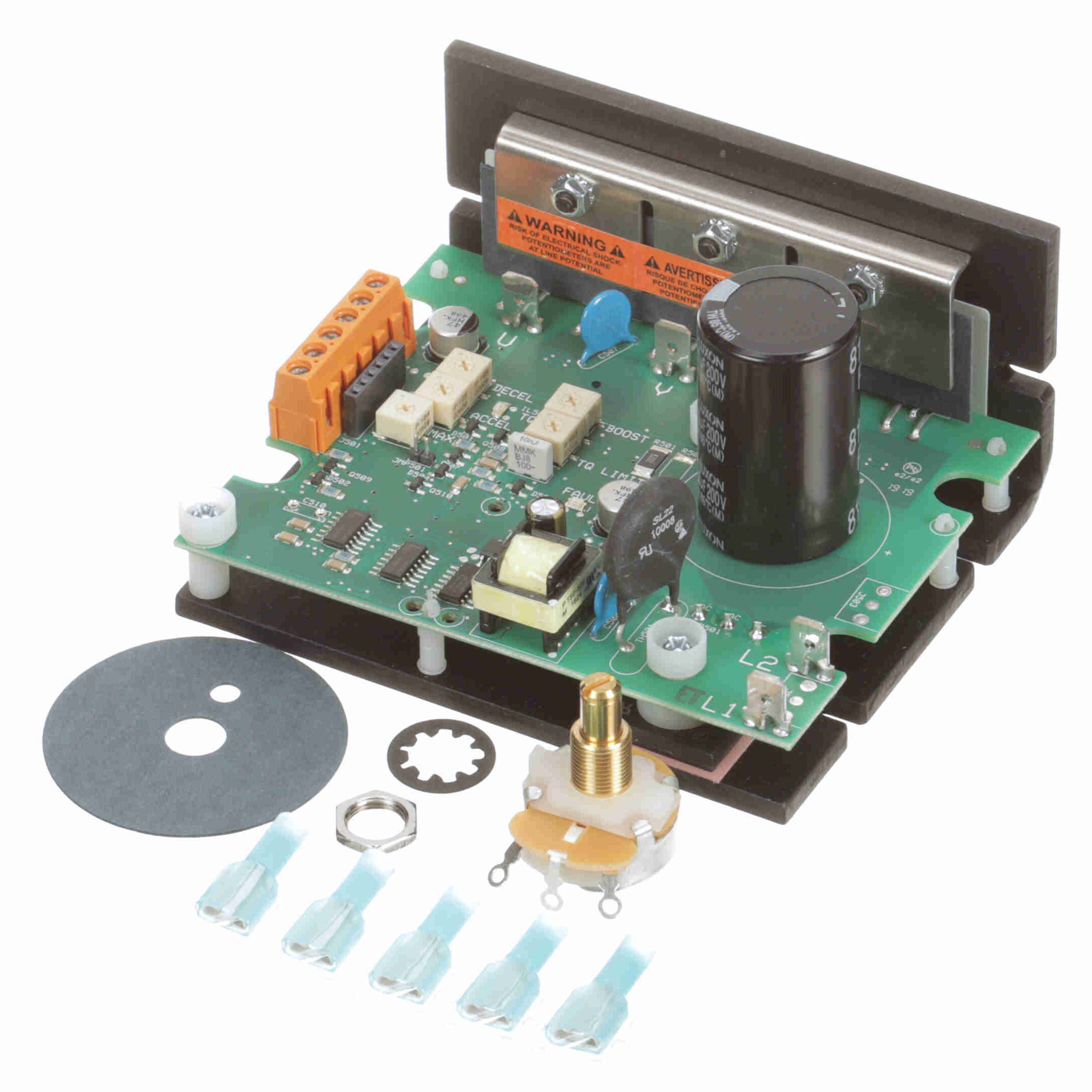

General Specifications:The FHP Series are volts/hertz-type AC inverters are simple to set-up and calibrate as an SCR-type DC control. These cost-conscious and compact designs maintain the industry standard for mounting hole location.
Features include: • Compact Size (4.30" x 3.70")
• Output voltage on dual voltage models is jumper selectable and has voltage doubler
• Acceleration and deceleration trim pots
Torque, maxiumum speed and torque limit trim pots
• Torque “Foldback” feature - Allows up to 200% torque for short periods
• 16kHz switchig frequency, with option to change between 4 and 16kHz
• Adjustable torque boost for startup - Up to 200%
• Color-coded on-board LEDs for power, fault and torque limit
• Easy start/stop and direction control with enable and direction terminal connections
• Accepts Speed reference via 0-5VDC isolated signal or wired in speed pot
• Speed potentiometer shipped loose
• Plug-in Process Control Module(PCM) kit available to accept 0-5VDC, 0-10VDC or 4-20mA input
• UL listed
NEMA 4 Features include: • NEMA 4X enclosure
• Jumper selectable DC injection braking or coast to stop
• Brake time and current are adjustable
• Built-in isolation card to accept a speed reference signal
• Minimum speed adjustment
• Auto or manual restart after power loss
