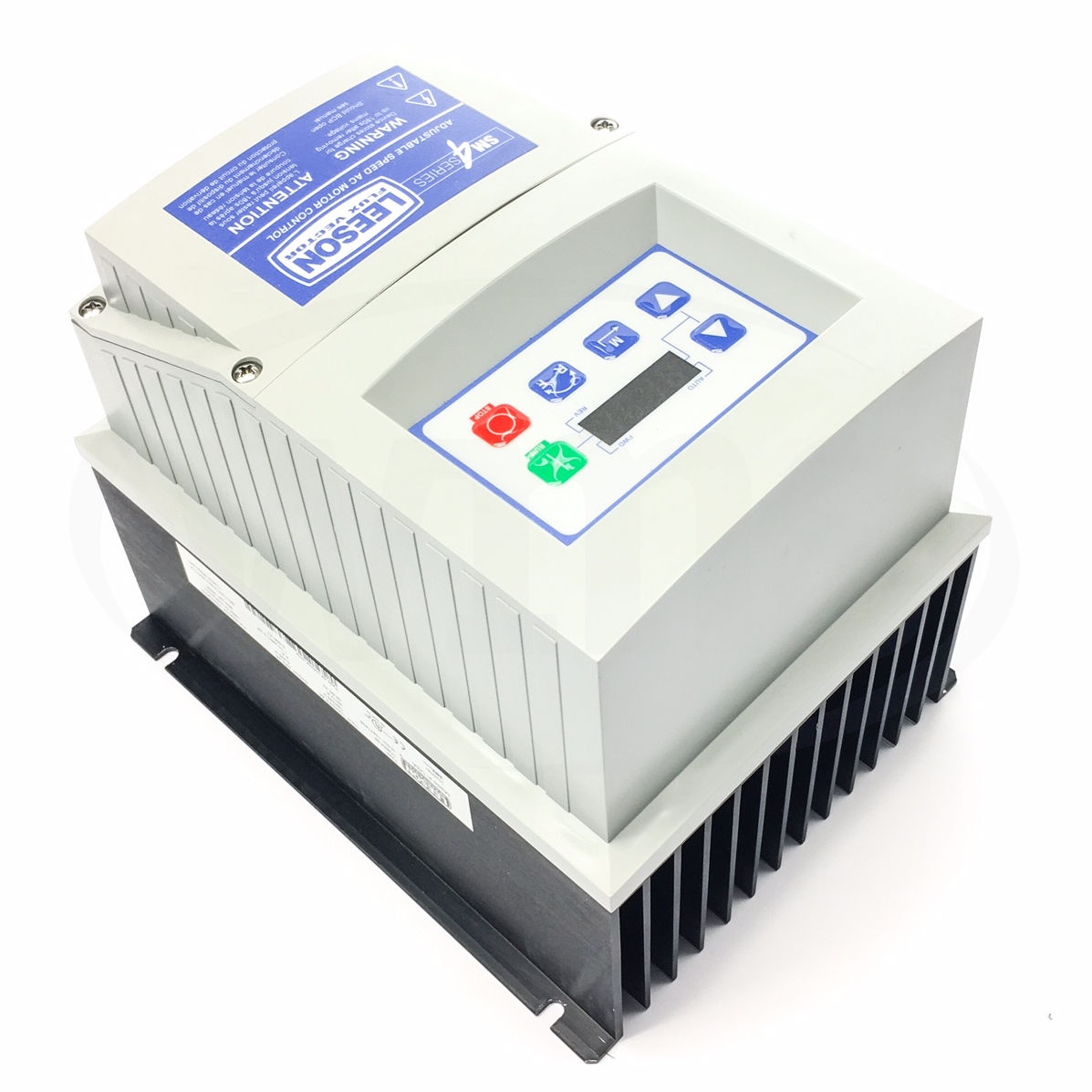

Dimensions: 8.0" H x 6.28" W x 4.47" D

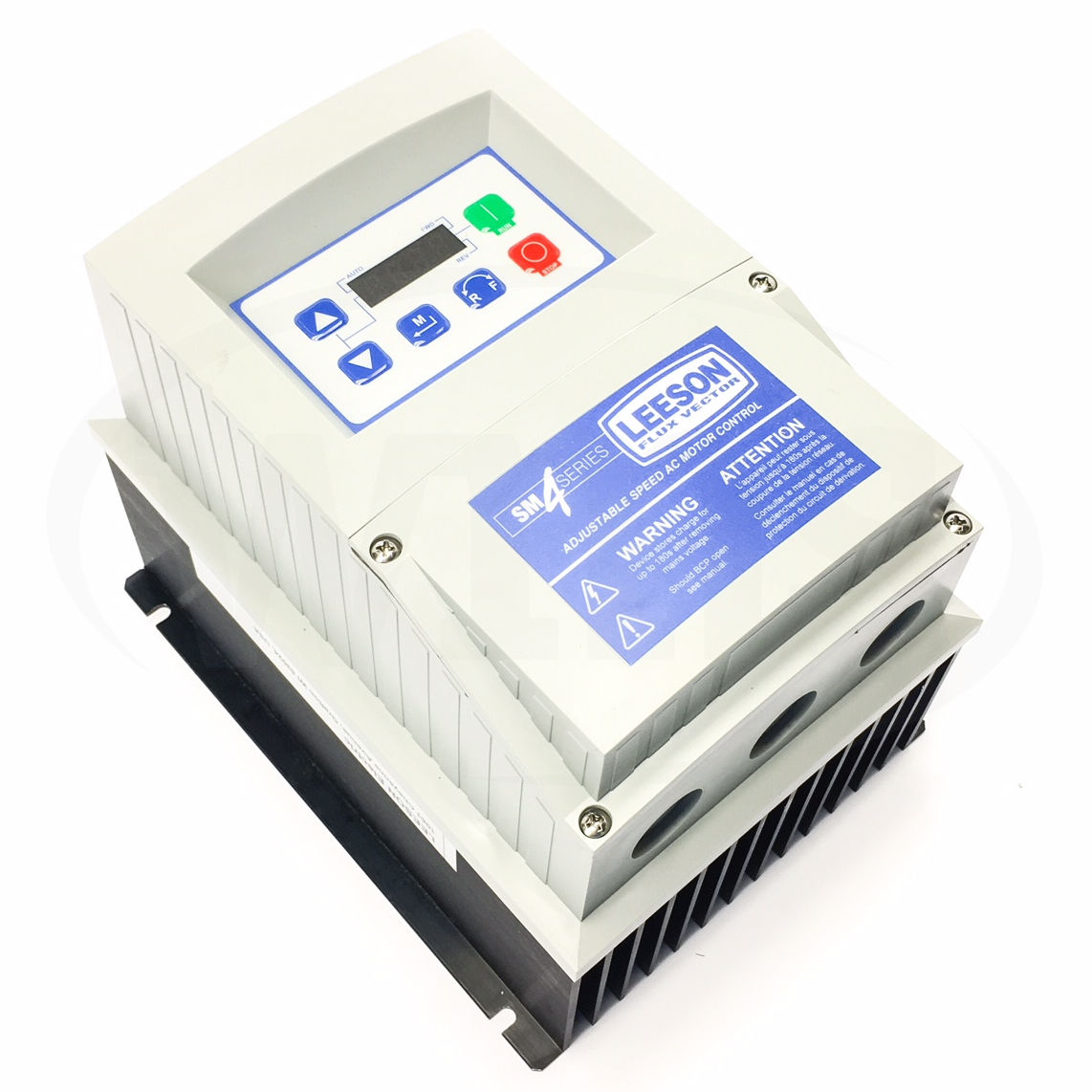

General Specifications:
• Indoor use only inverter that is designed to be used with vector duty motors
• Typical applications would include : packaging machinery, food processing, conveying systems, machinery and HVAC systems

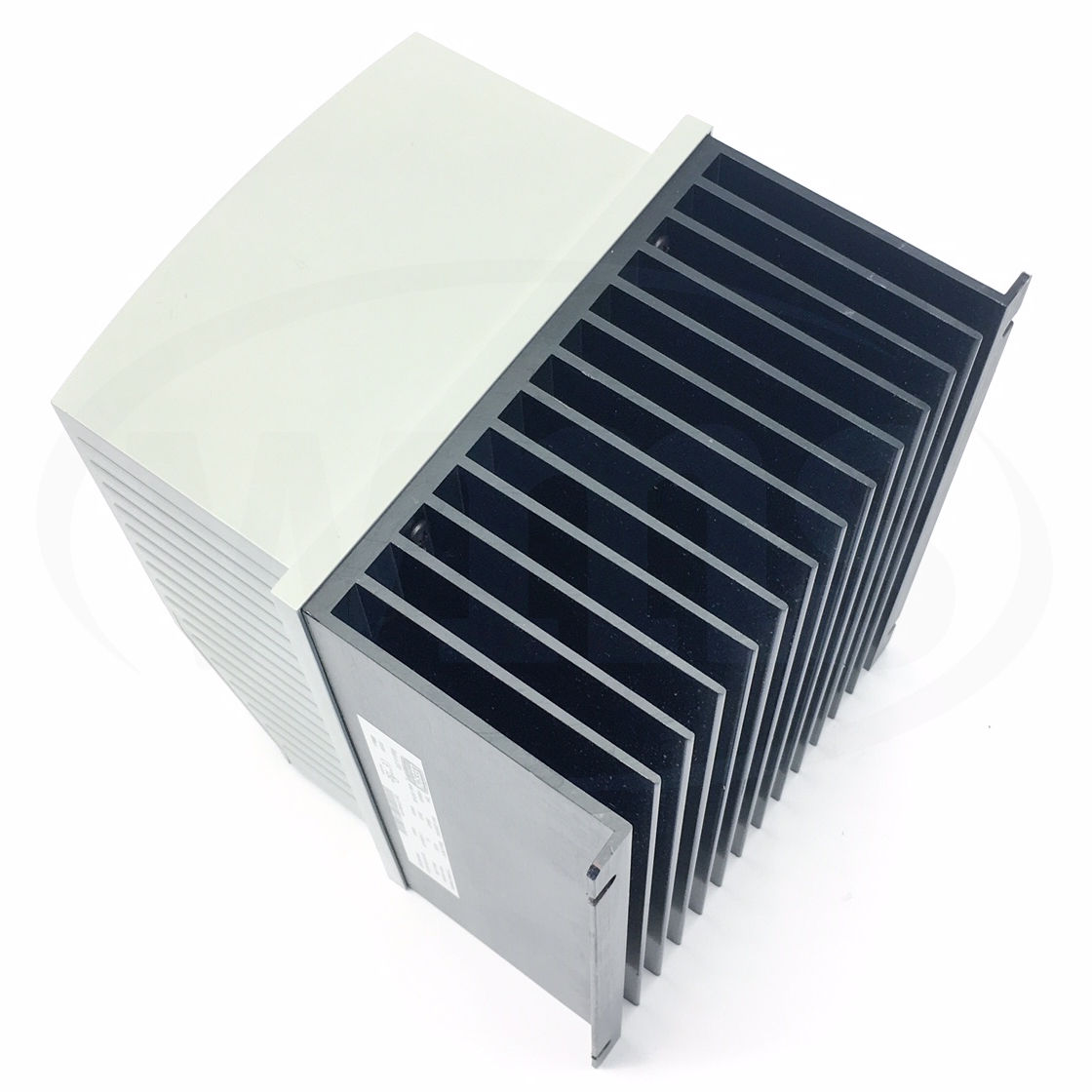

• Enclosure: NEMA 4, IP65, -10 to 55°C, derate per °C above 40°C

Standard Features:
Easy Set-up and Operation: Program the Vector control in one of four convenient ways:
• From the front of the drive
• The optional remote keypad
• A PC Using TechLink software (Available free from www.leeson.com)
• The innovative EPM programmer

Modes of operation:
• Open Loop Flux Vector (speed or torque)
• V/Hz (constant or variable)
• Enhanced V/Hz with auto-tuning

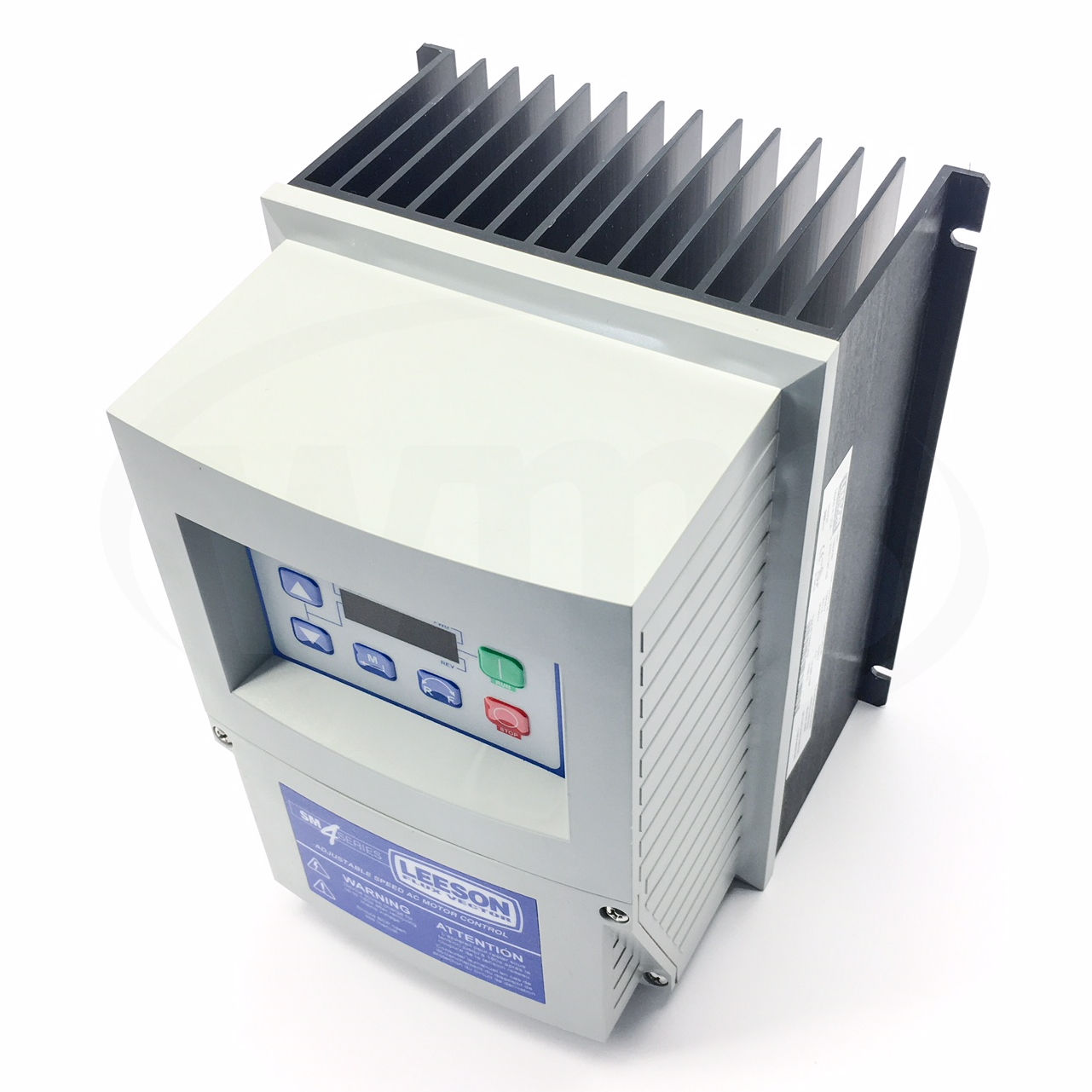

Easy to Use Keypad & Display
6-Button Interface:
• Start
• Stop
• Forward/reverse
• Scroll up
• Scroll down
• Enter/mode

Vivid Illumination:
• 4 digit LED display
• Easy to read from a distance
• Movable decimal point

Acceleration/Deceleration Profiles:
• Two independent accel ramps
• Two independent decel ramps
• Linear or S-type
• Auxiliary ramp-to-stop

Output Frequency:
• 500 Hz Std., 1000 Hz optional

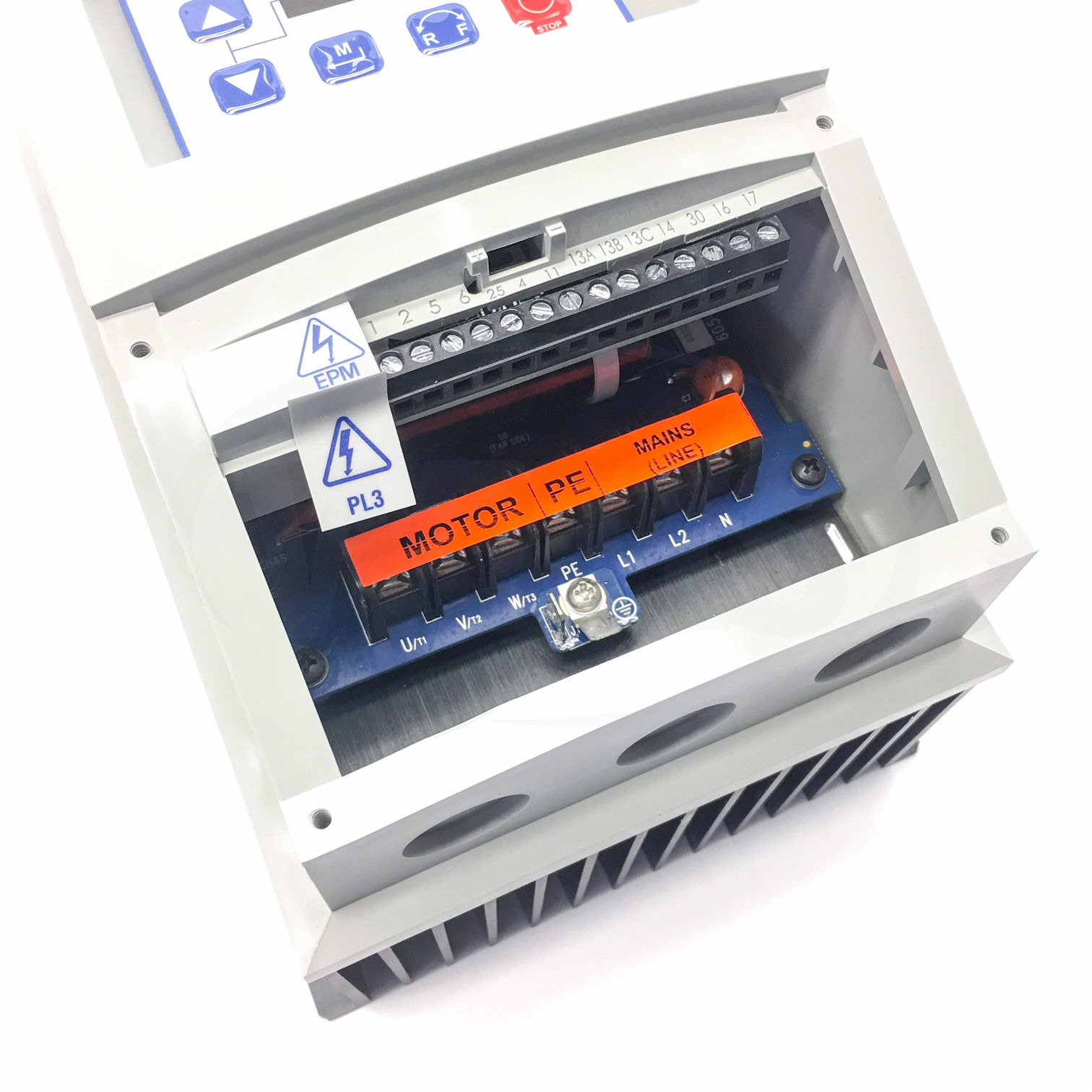

Selectable Logic Assertion:
• Positive logic input (PNP current sourcing)
• Negative logic input (NPN current sinking)

Multiple Braking Functions
• Loss of follower management
• Speed commands: keypad, jog, floating point control
• Voltage: scalable 0-10 VDC,
• Current: scalable 4-20 mA, potentiometer,
• 8 Preset speeds
• Process control: PID modes: direct or reverse acting,
• PID sleep mode
• Voltage monitoring
• Current monitoring
• Real time monitoring: 8 register fault history, software version drive network ID, DC bus
• Voltage (V), motor voltage (V), output current (%) motor current (A), motor torque (%), power (kW) energy consumption (kWh), heatsink
• Temperature (°C), 0-10 VDC input (user defined), 4-20 mA input (user defined) PID feedback (user defined), analog output (% load, % torque, kW), network speed (baud rate), terminal continuity, keypad status,
• Elapsed run time (hours), elapsed power on time (hours)
• Standards: UL (USA), cUL (Canada), CE (Europe),
