/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Refrigeration/15036OT3G405TSC-RFW40 WEG 150HP Refrigeration Electric Motor, 3600RPM

Product ID: 15036OT3G405TSC-RFW4

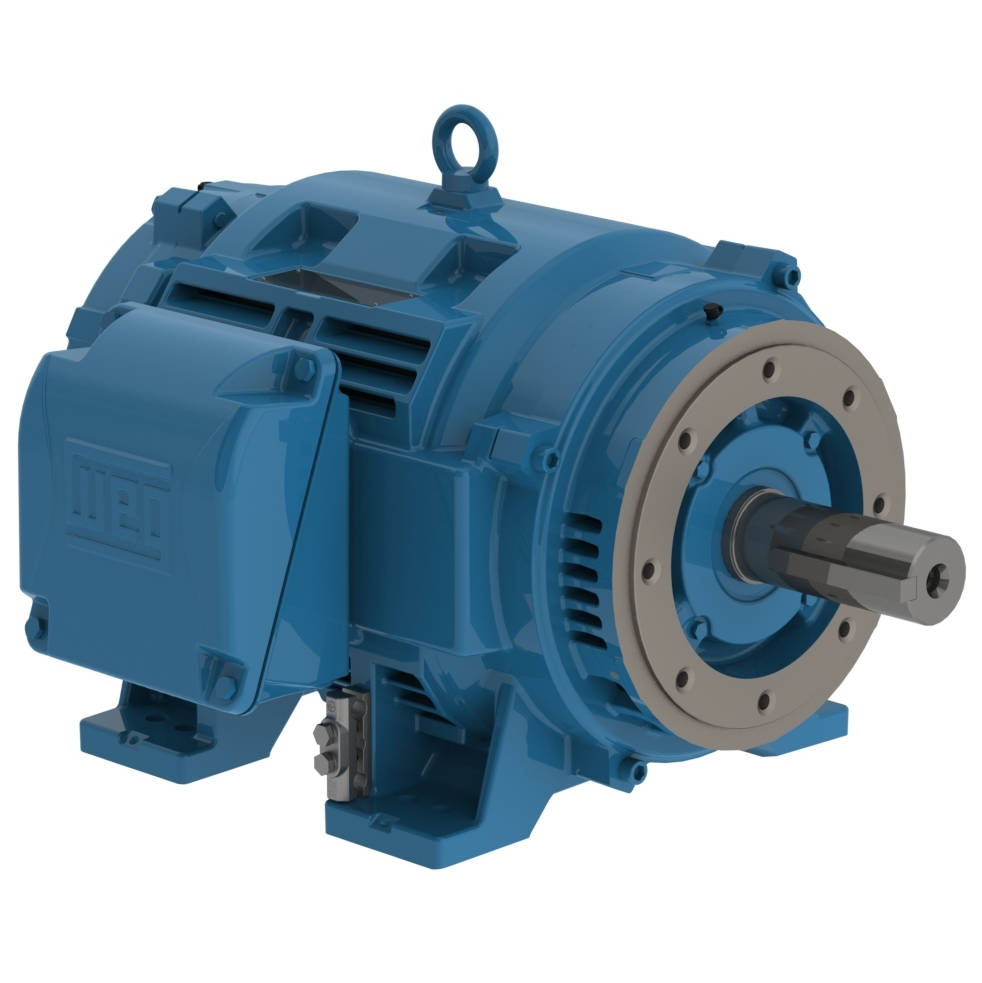

15036OT3G405TSC-RFW40 WEG 150HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 15036OT3G405TSC-RFW4

Selected accessories will also be added to cart

$9,786.00 / Each

Quantity:

IC01 - ODP, IP23, 404TSC/405TSC Frame, 460VAC 60Hz 3 Phase, 16213619, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	404/5TSC
Output	150 HP (110 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3552 rpm
Slip	1.33 %
Rated voltage	460 V
Rated current	167 A
L. R. Amperes	1102 A
LRC	6.6x(Code G)
No load current	40.0 A
Rated torque	222 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	8.80 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	931 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.79	0.86	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
