/Products/Electric Motors/3 Phase Stainless Steel/WEG/Hydroduty/TENV, C-Face, Footless/1323087114 WEG 3/4HP Hydroduty Washdown Electric Motor, 3600RPM
Click Image to Expand

Product ID: 1323087114

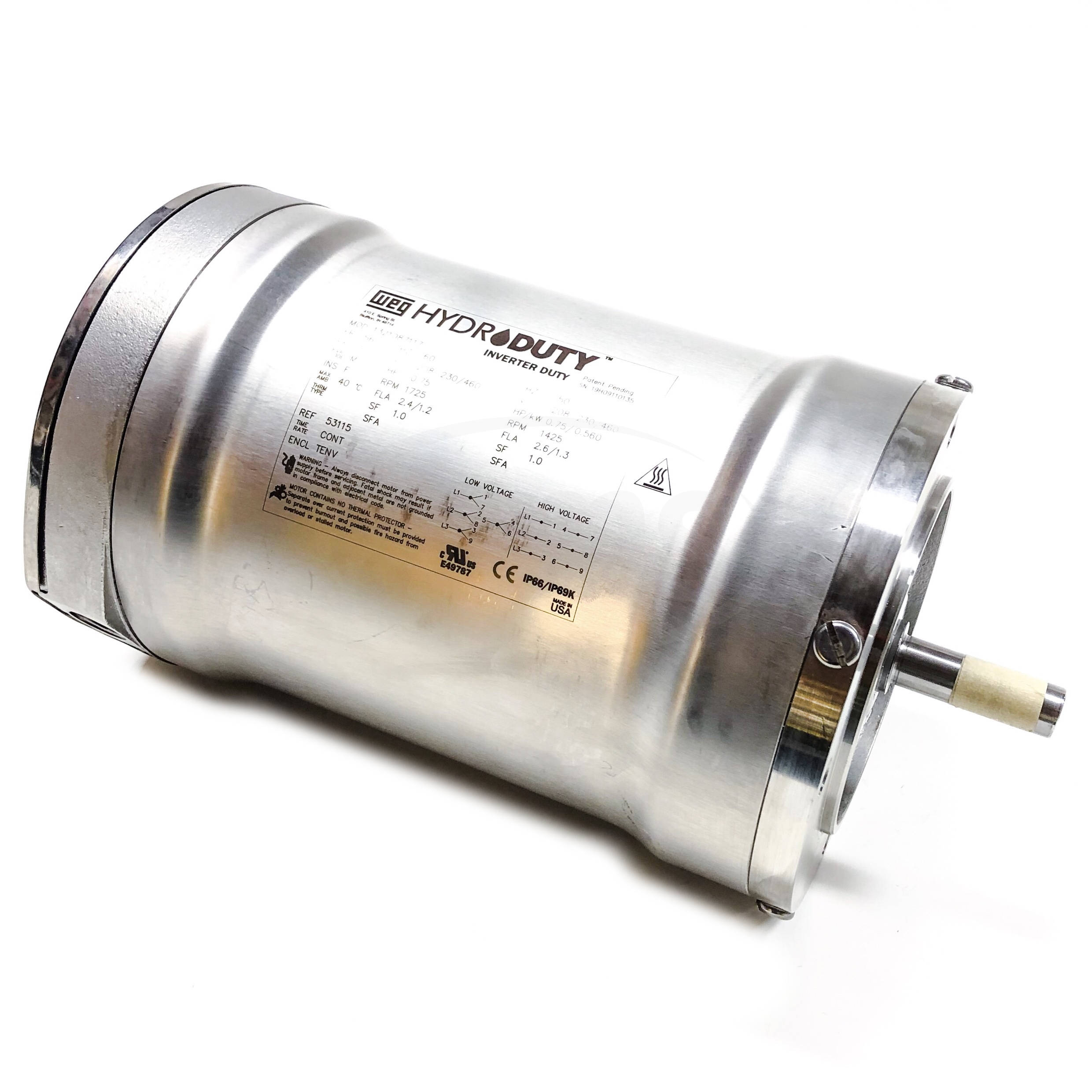

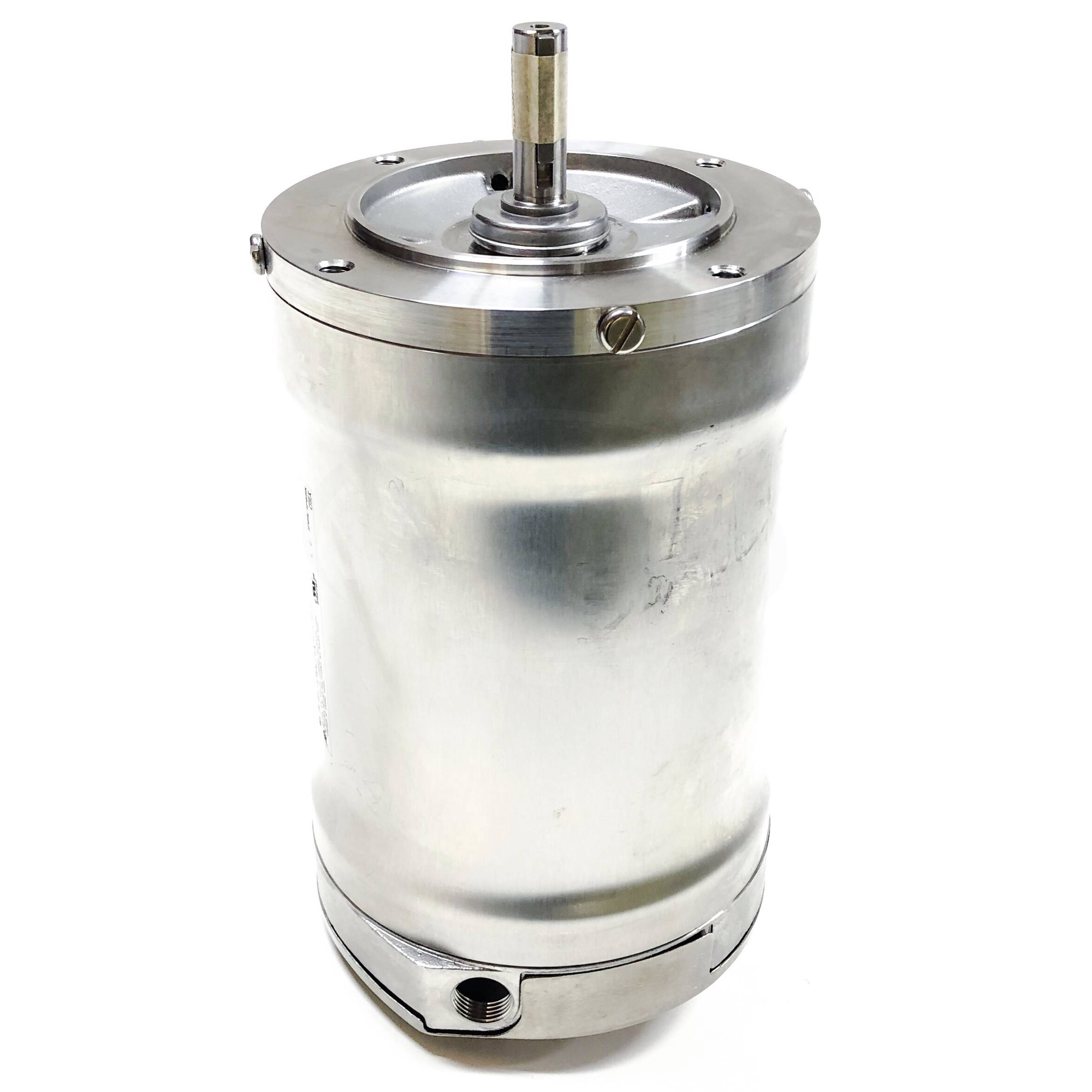

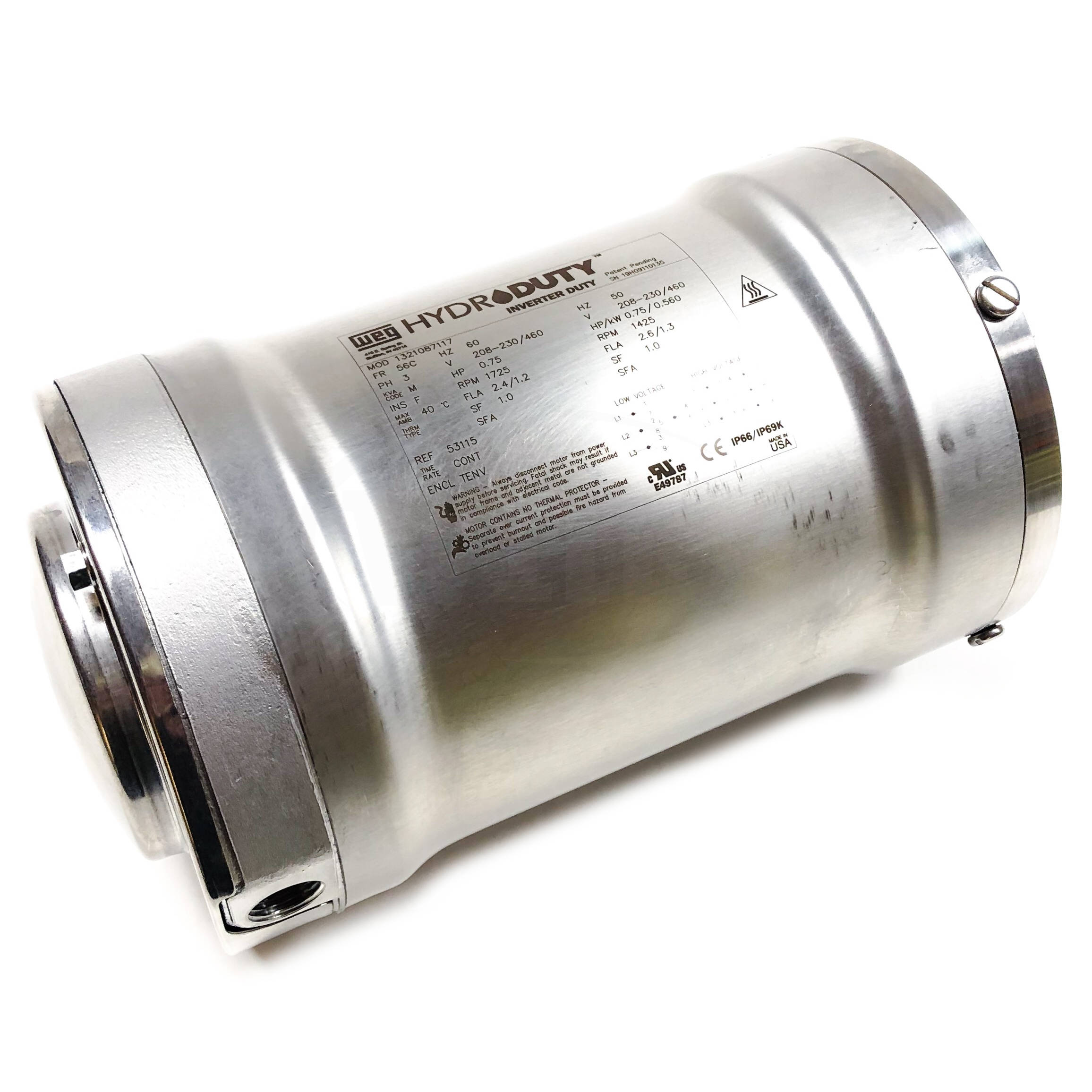

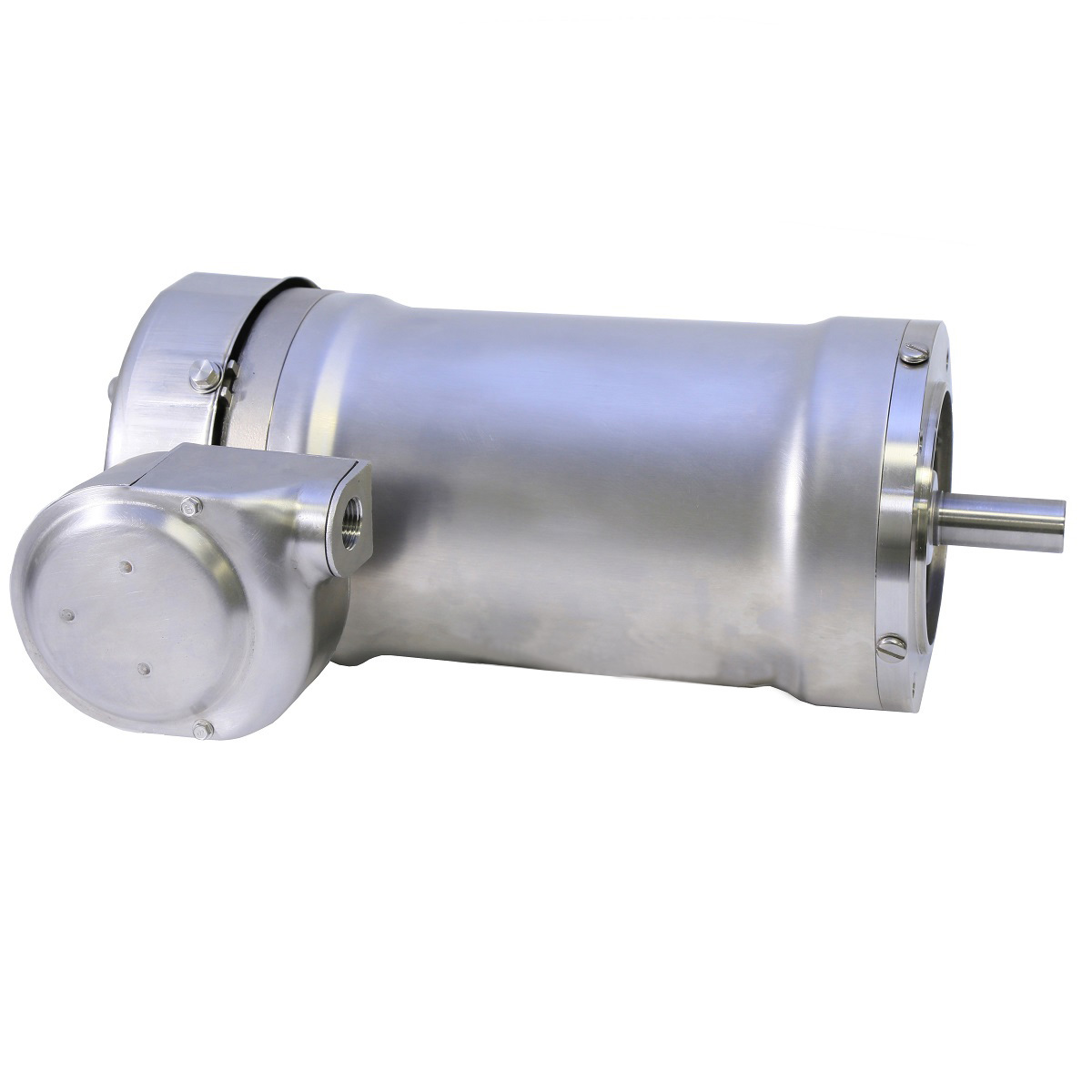

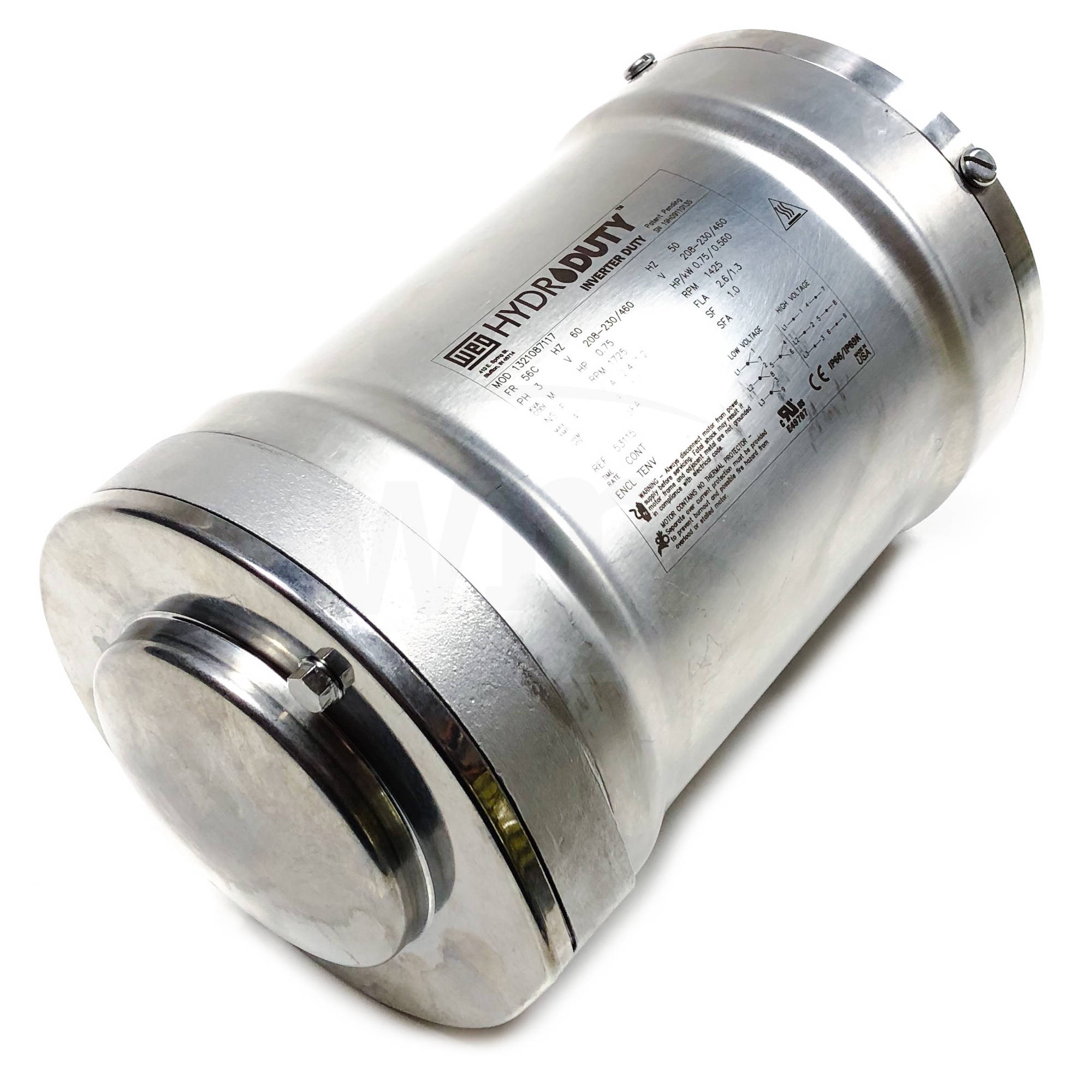

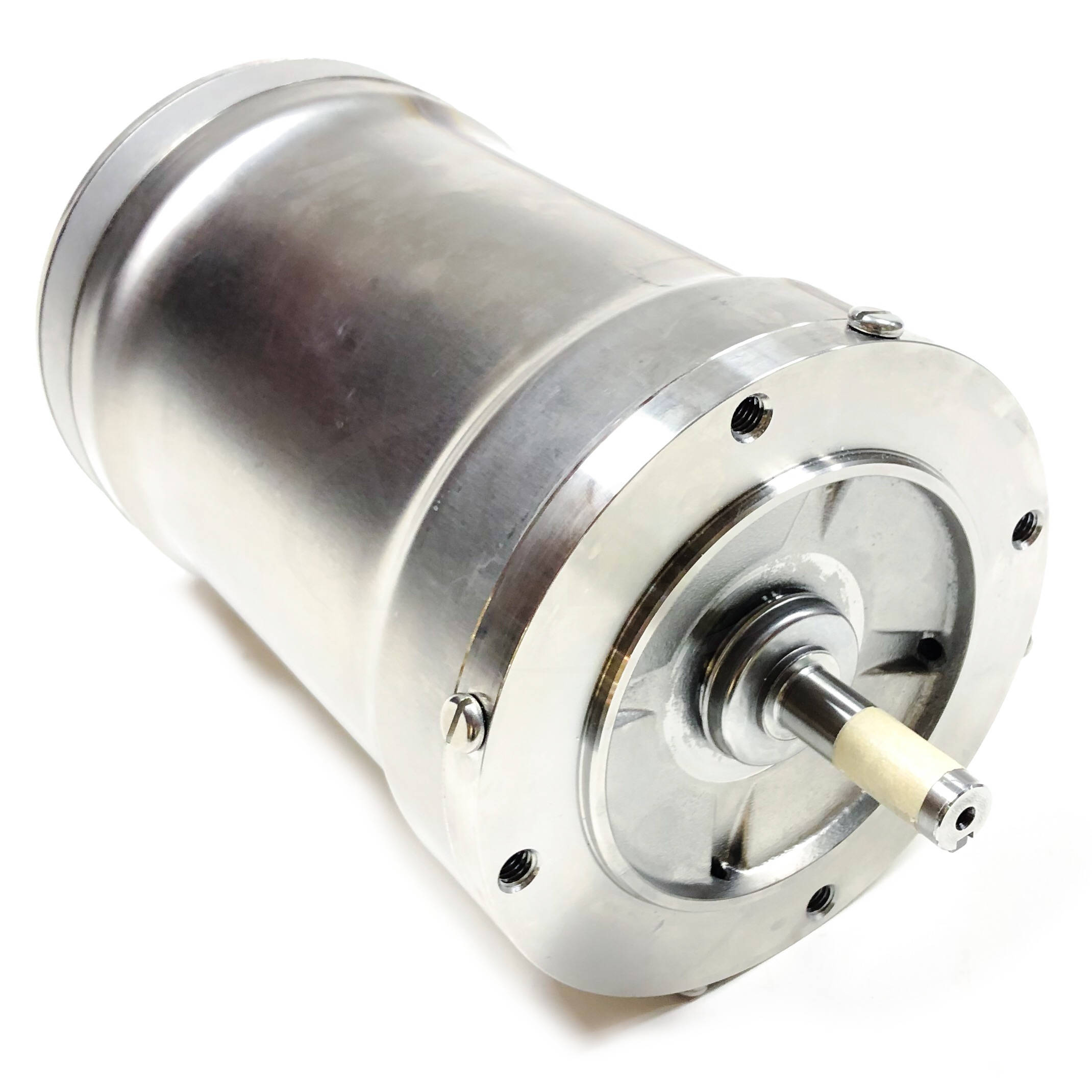

1323087114 WEG 3/4HP Hydroduty Washdown Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 1323087114

Selected accessories will also be added to cart
$1,082.25 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763236, C-Face, Footless, Stainless Steel, Standard Efficiency, 5/8" Keyed Shaft, EZ-Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 0.75 HP
Enclosure TENV
Number of poles 2P
Motor Application HydroDuty
Mounting Footless
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600/3000 rpm

Promo Video

Documents
