/Products/Electric Motors/3 Phase Stainless Steel/WEG/Hydroduty/TENV, C-Face, Footless/1323087113 WEG 1/2HP Hydroduty Washdown Electric Motor, 3600RPM
Click Image to Expand

Product ID: 1323087113

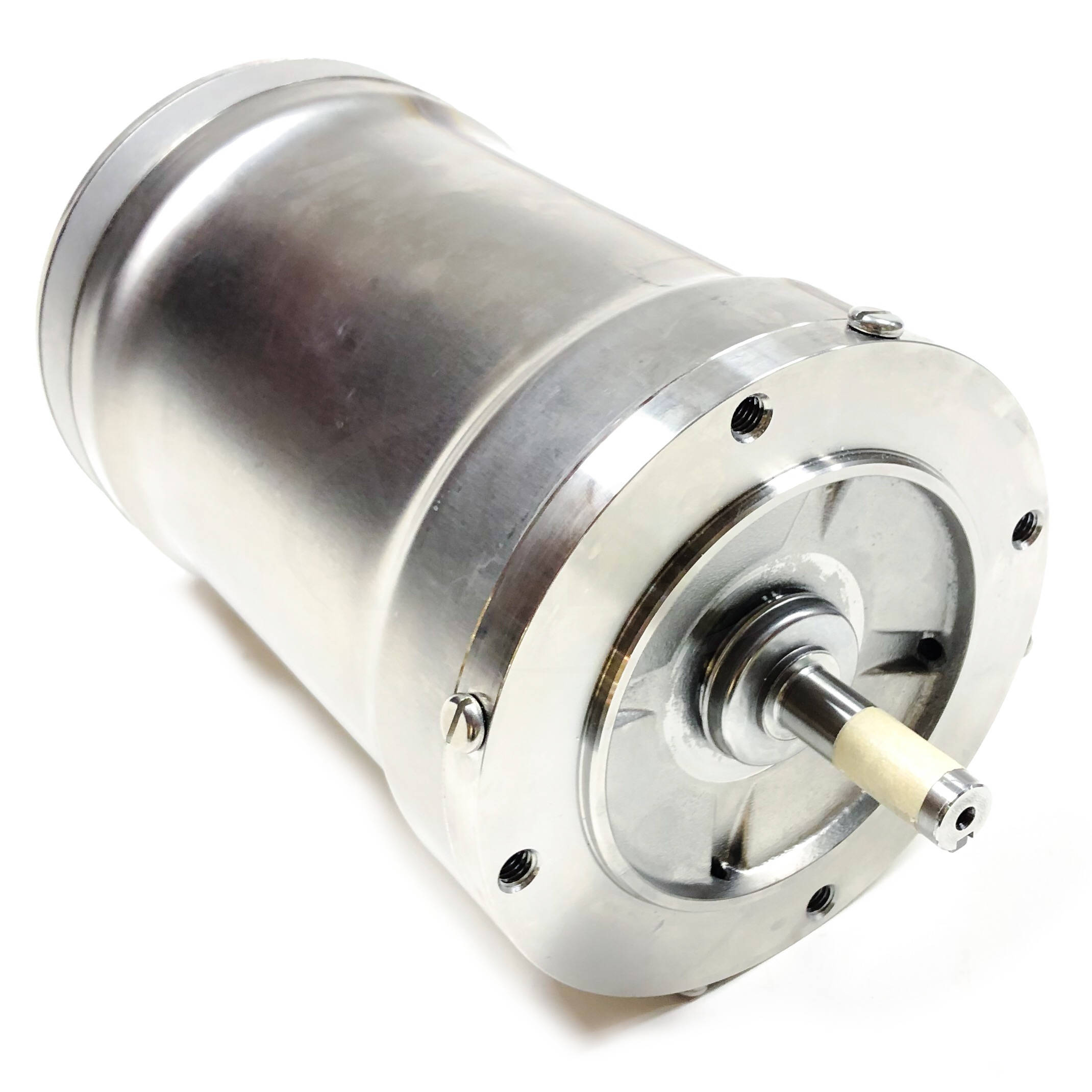

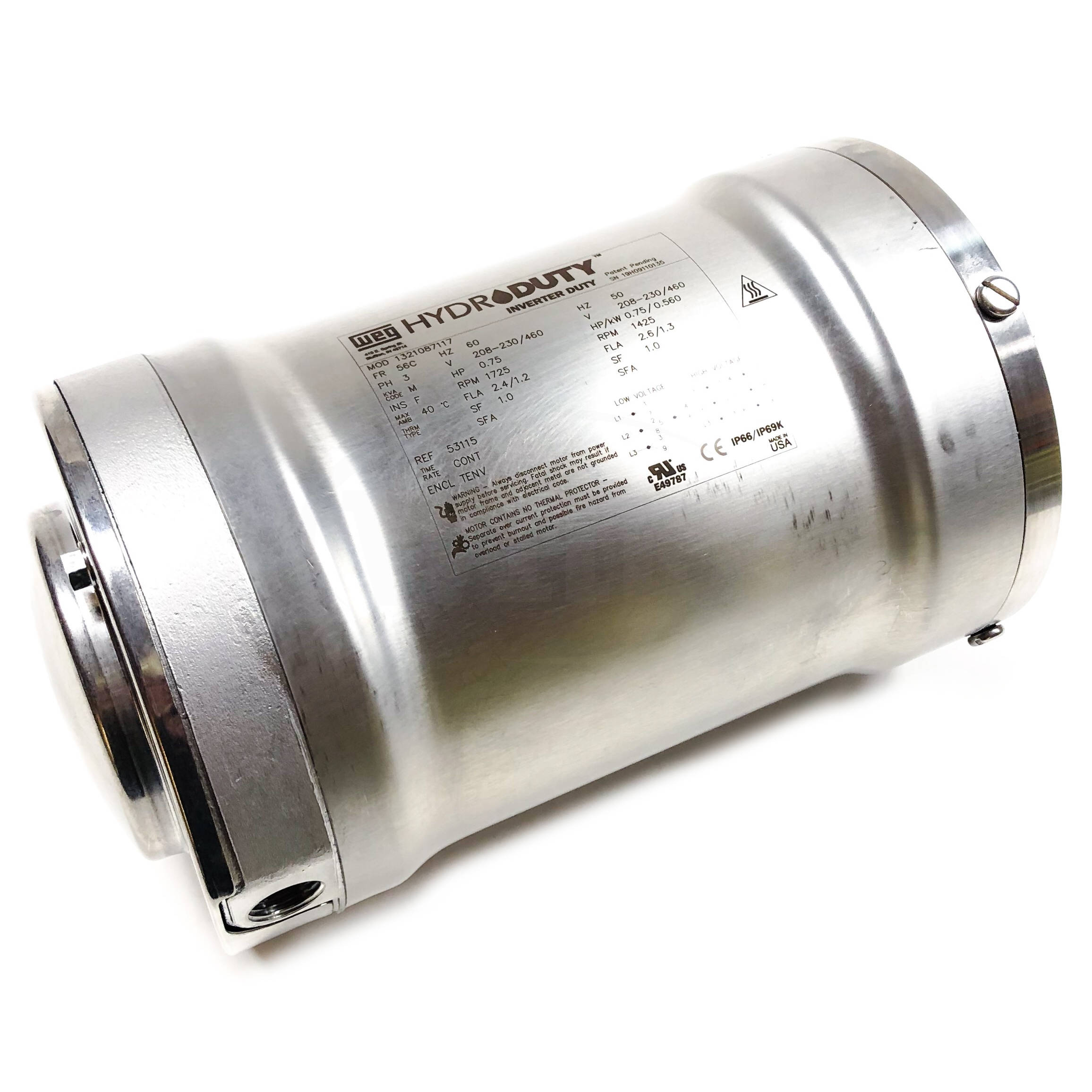

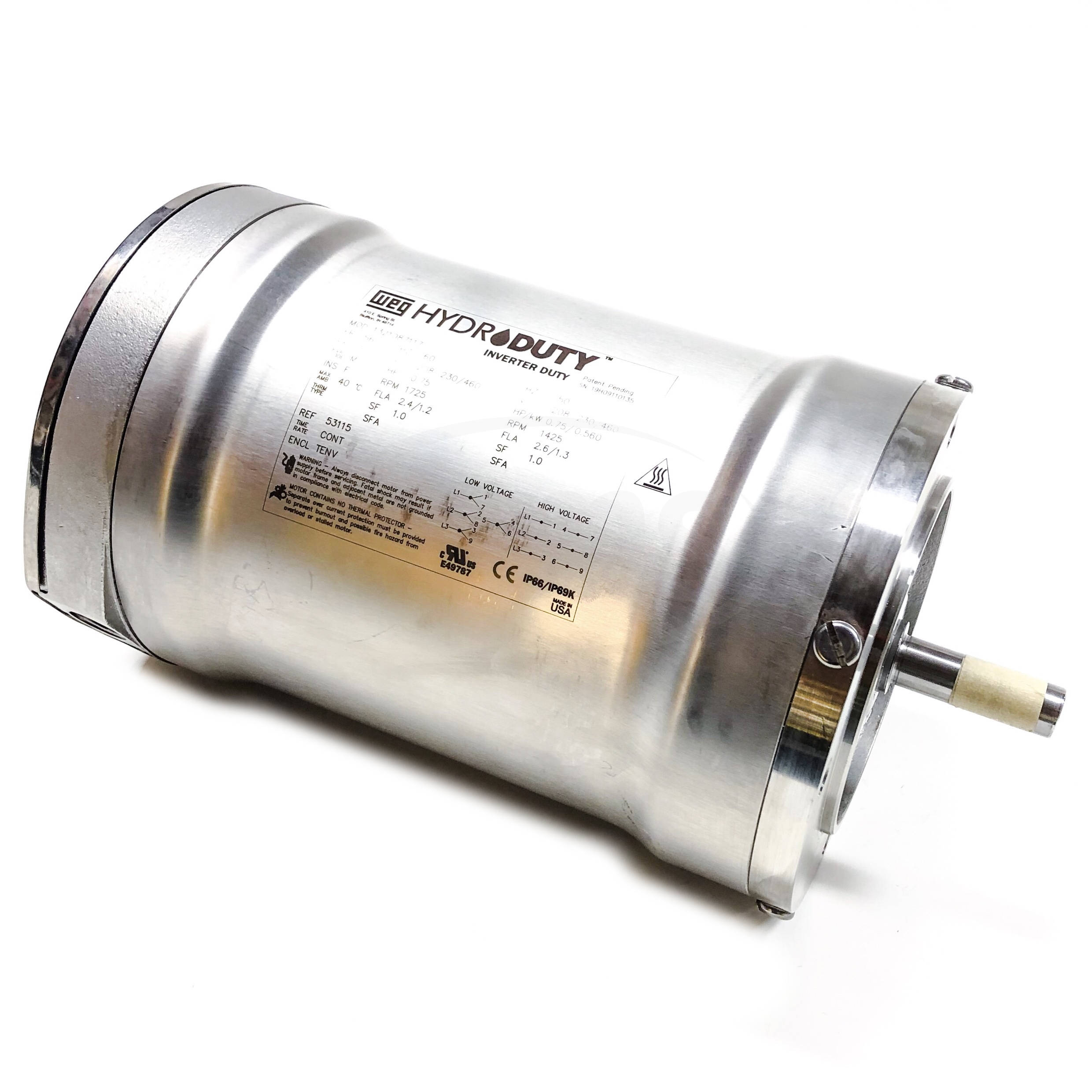

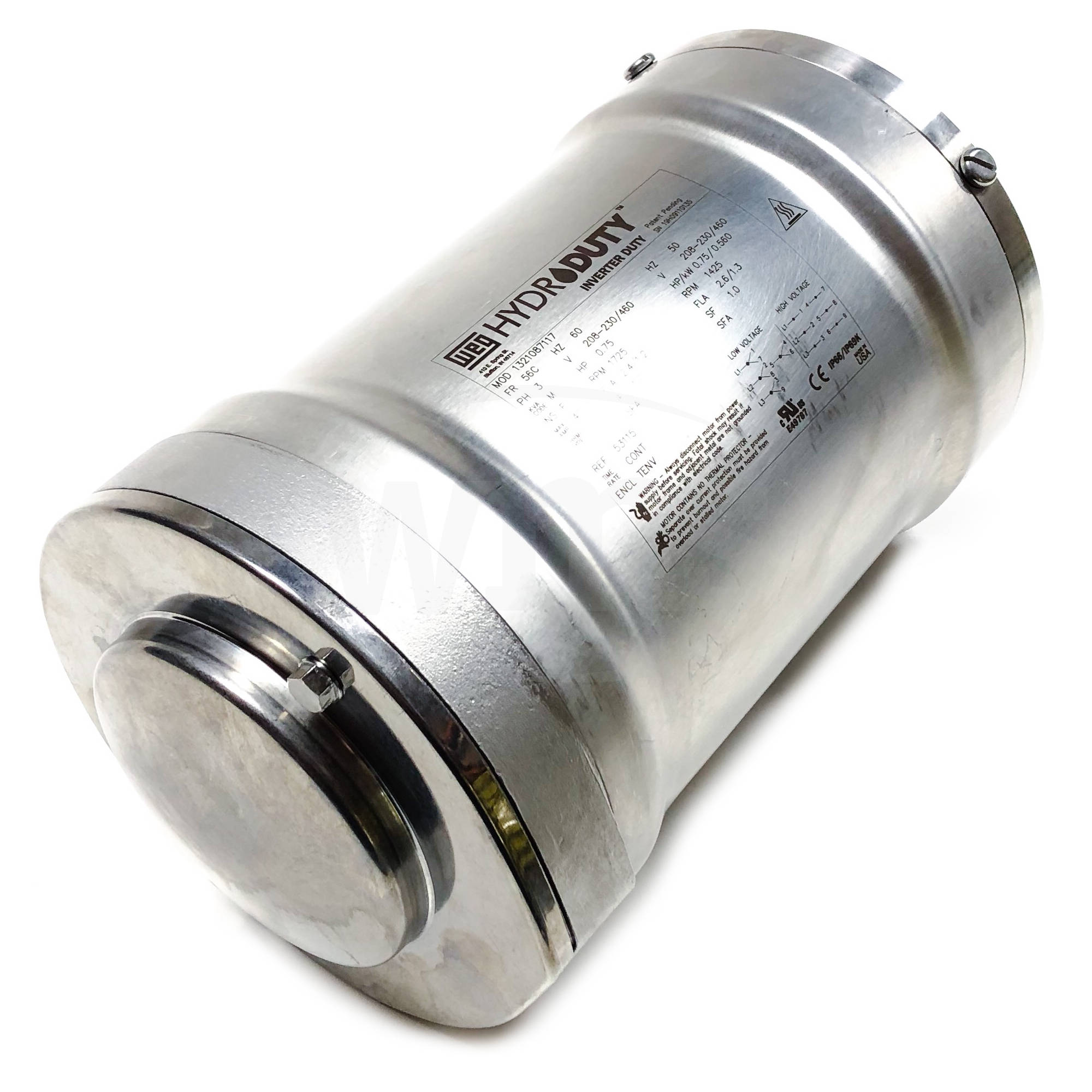

1323087113 WEG 1/2HP Hydroduty Washdown Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 1323087113

Selected accessories will also be added to cart
$1,048.50 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763235, C-Face, Footless, Stainless Steel, Standard Efficiency, 5/8" Keyed Shaft

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 0.5 HP
Enclosure TENV
Number of poles 02P
Motor Application HydroDuty
Mounting Footless
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600/3000 rpm
