/Products/Electric Motors/3 Phase Stainless Steel/WEG/Hydroduty/TENV, C-Face, Footless/1321087117 WEG 3/4HP Hydroduty Washdown Electric Motor, 1800RPM
Click Image to Expand

Product ID: 1321087117

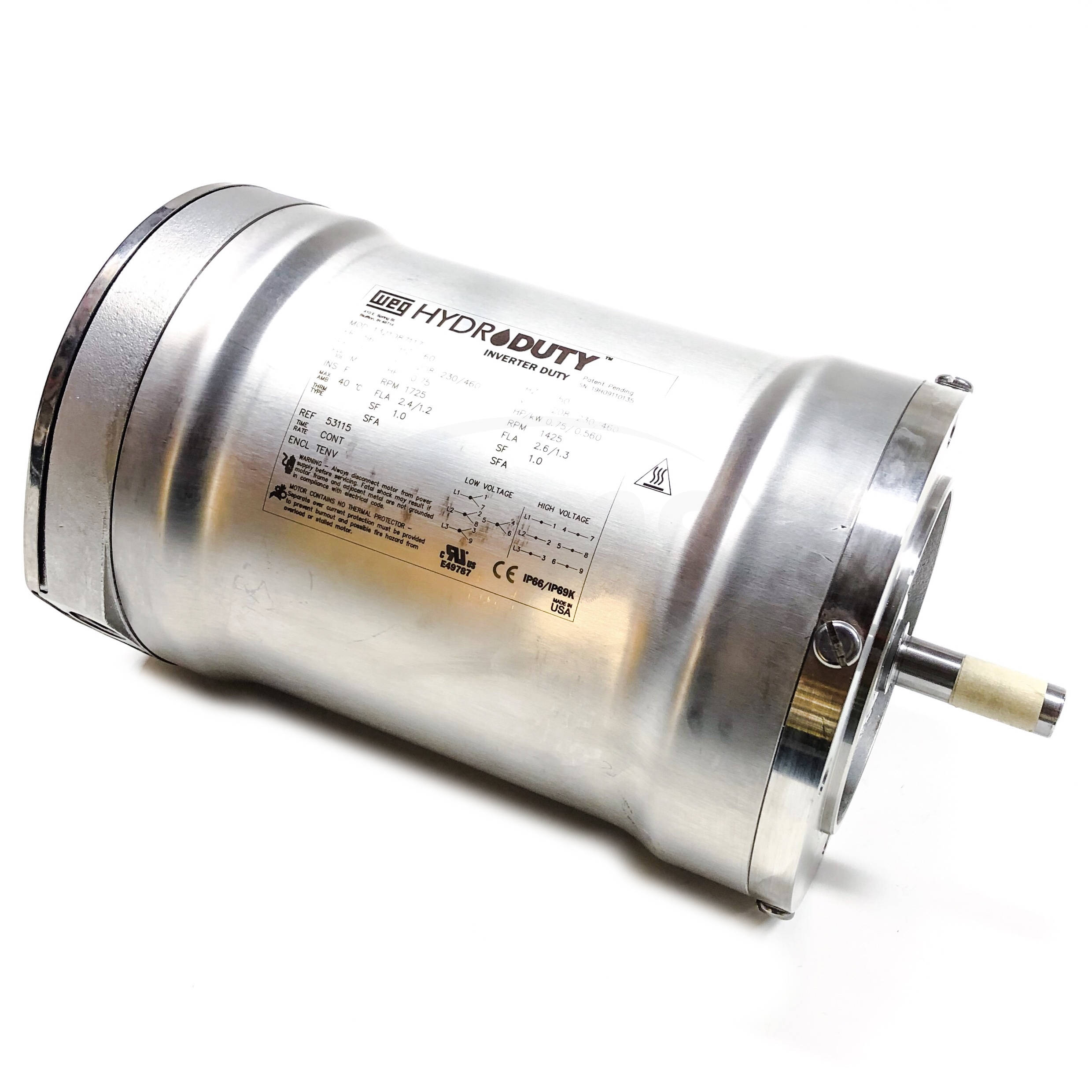

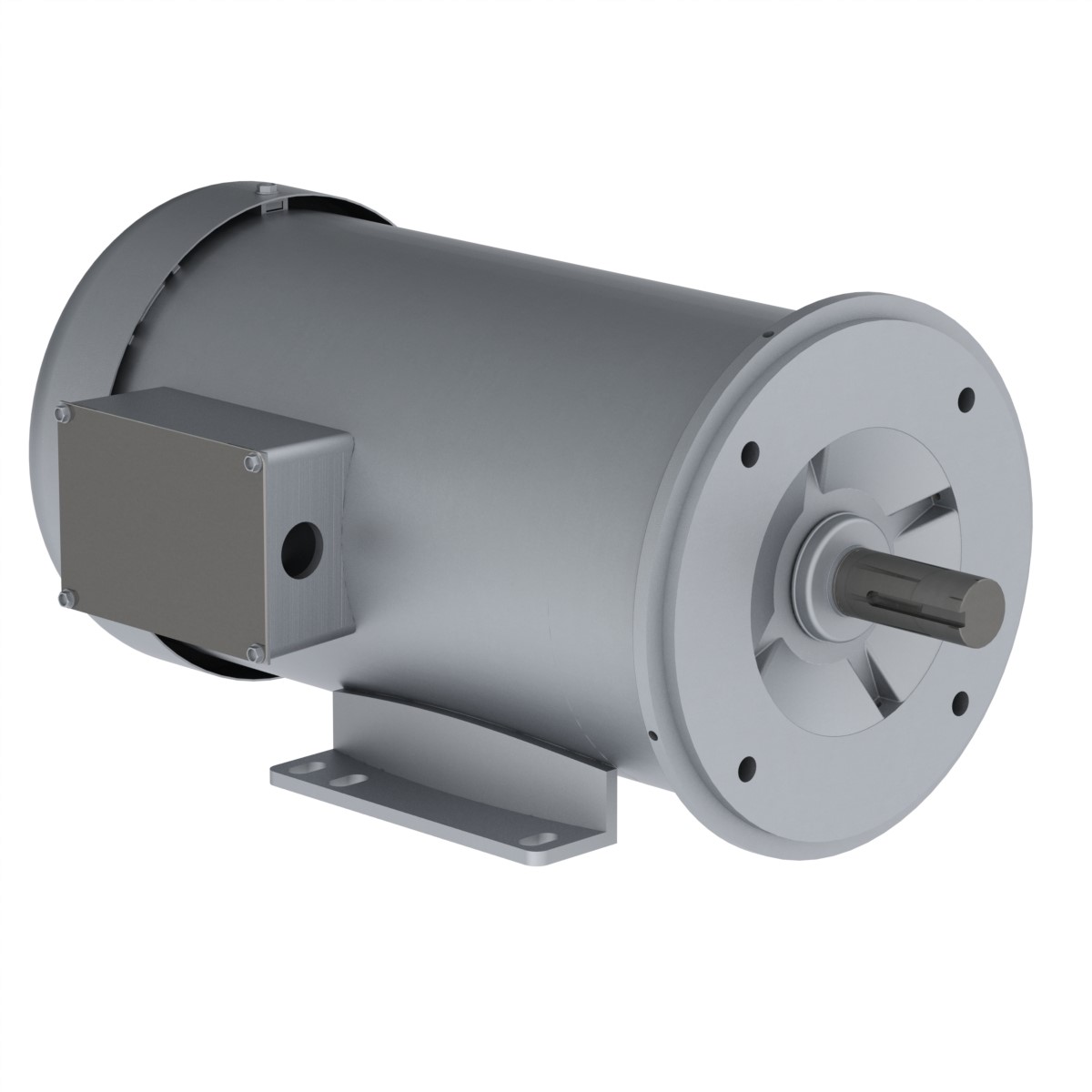

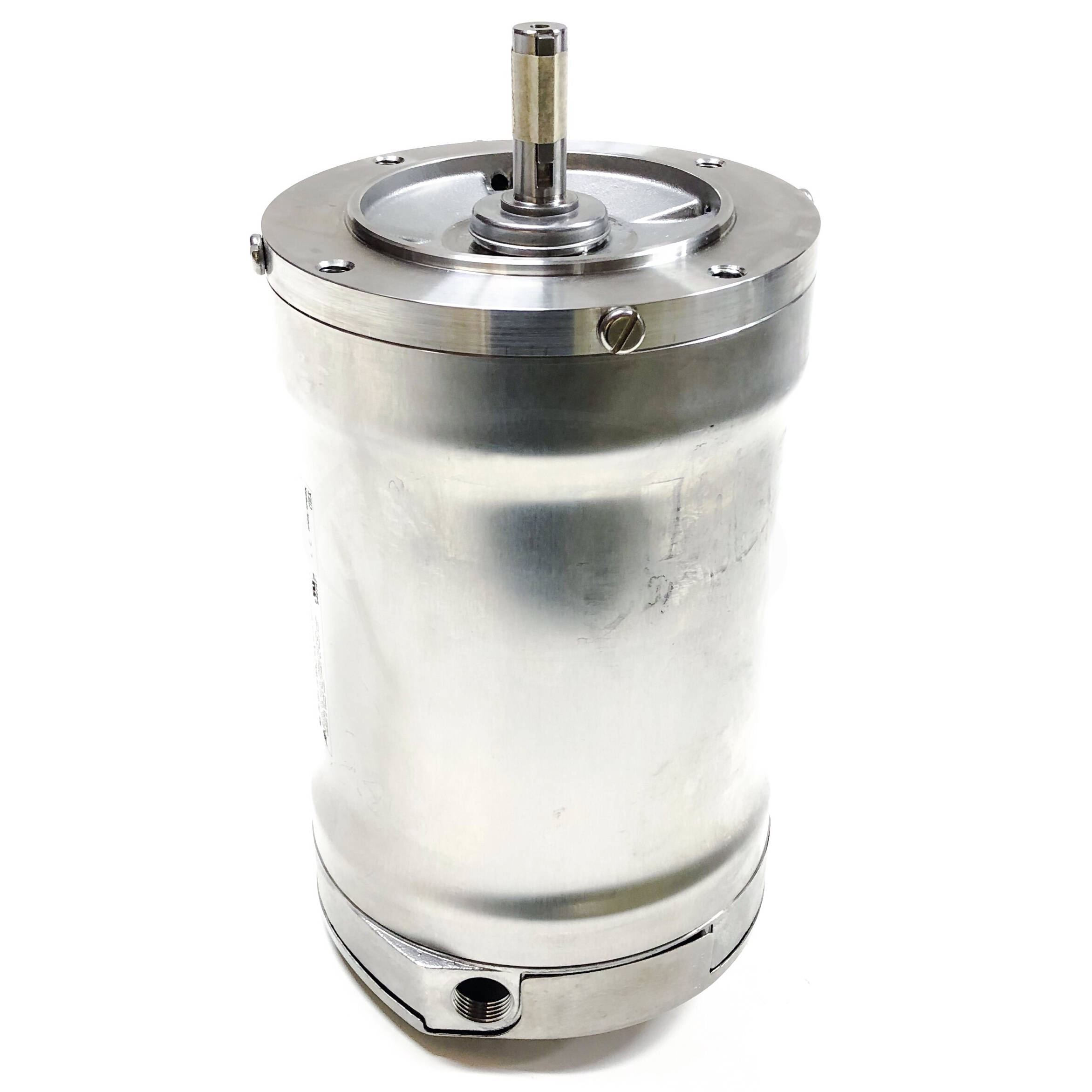

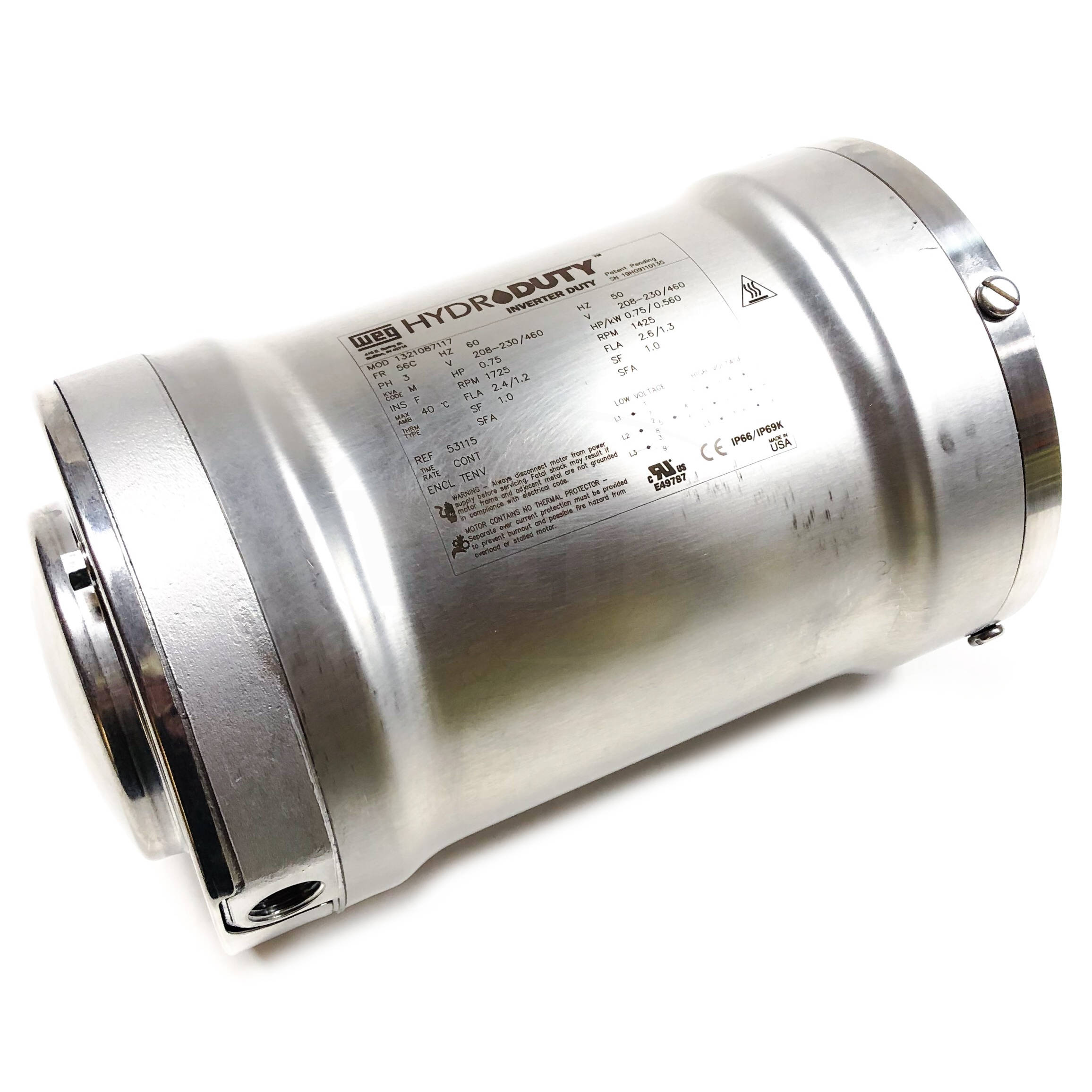

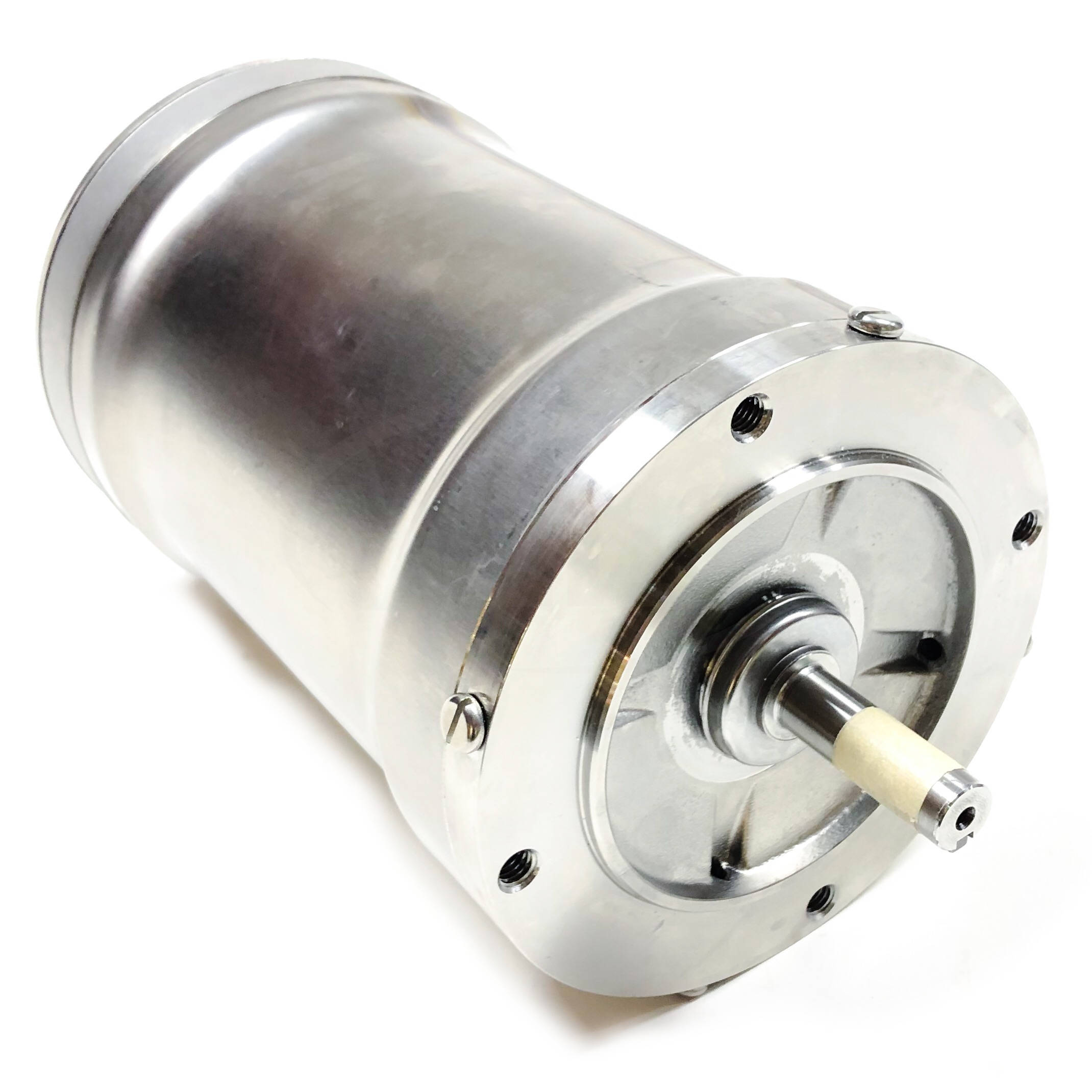

1321087117 WEG 3/4HP Hydroduty Washdown Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 1321087117

Selected accessories will also be added to cart
$1,098.75 / Each
Quantity:
TENV, IP69K, 56C Frame, 208-230/460VAC 50/60Hz 3-Phase, 14763220, 53115,C-Face, Footless, Stainless Steel, Standard Efficiency, 5/8" Keyed Shaft, EZ-Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

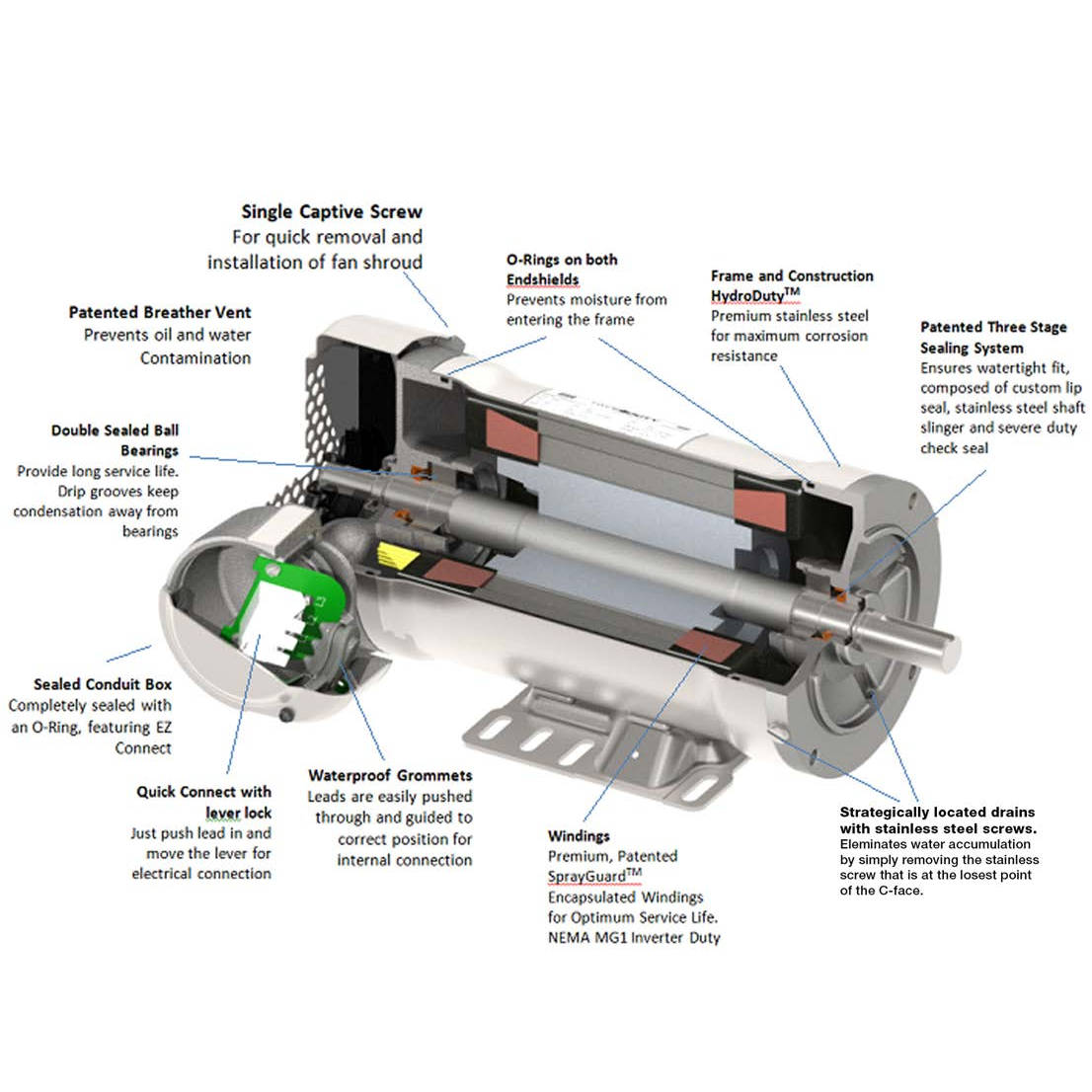

Encapsulated winding and a patented sealing system to ensure they will “standup” in the most severe applications.

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 0.75 HP
Enclosure TENV
Number of poles 4P
Motor Application HydroDuty
Mounting Footless
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800/1500 rpm
