/Products/Electric Motors/3 Phase Stainless Steel/WEG/Hydroduty/TEFC, C-Face, Footless/1311087117 WEG 1.5HP Hydroduty Washdown Electric Motor, 1725RPM
Click Image to Expand

Product ID: 1311087117

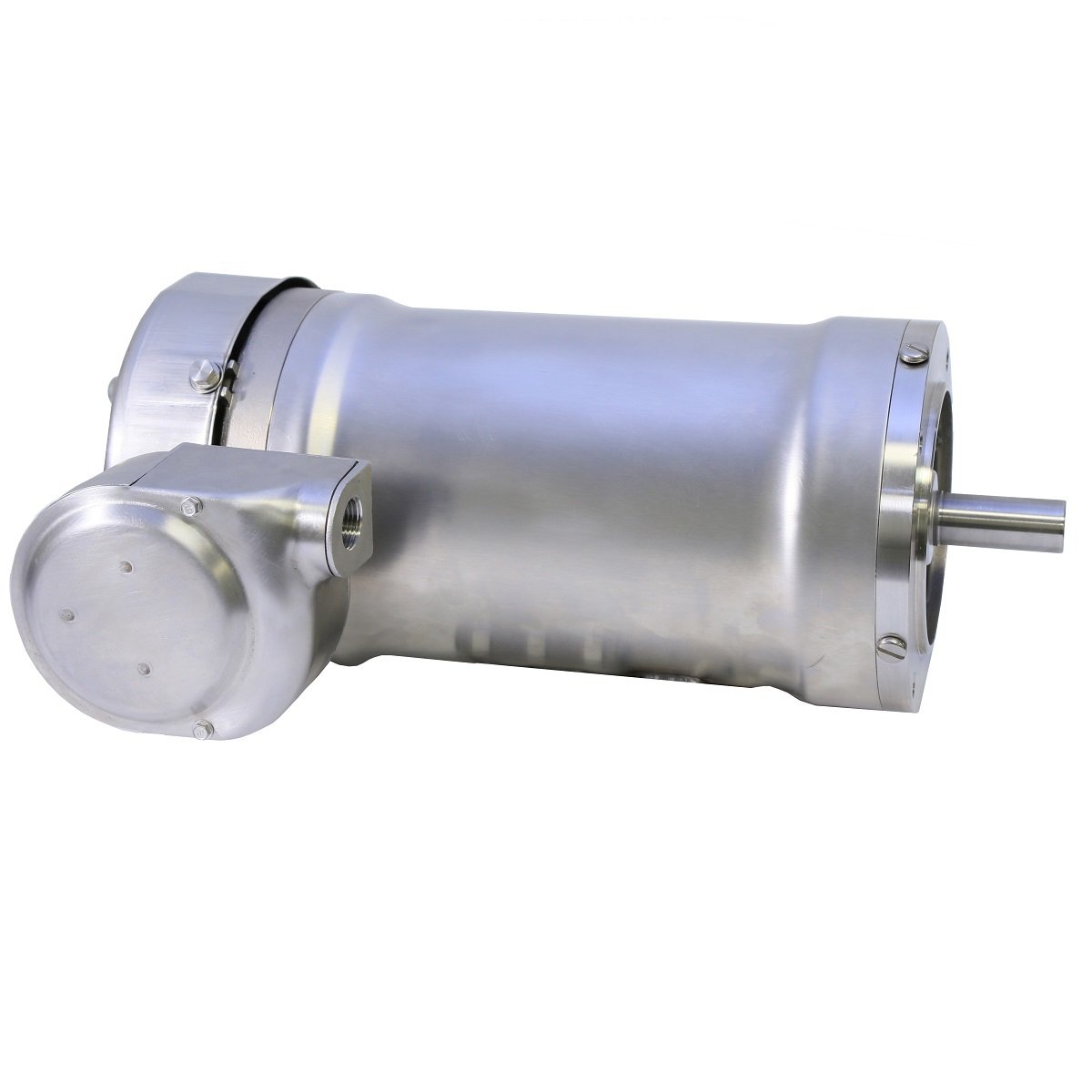

1311087117 WEG 1.5HP Hydroduty Washdown Electric Motor, 1725RPM

MFG: WEG Electric Corporation
MFG Part Number: 1311087117

Selected accessories will also be added to cart
$1,247.25 / Each
Quantity:
TEFC, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763226, C-Face, Footless, Stainless Steel, NEMA Premium Efficiency, EZ Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 1.5 HP
Enclosure TEFC
Number of poles 4P
Motor Application HydroDuty
Mounting Footless
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800/1500 rpm
