/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/12536EG3G444TS-W22 WEG 125HP Electric Motor, 3600RPM

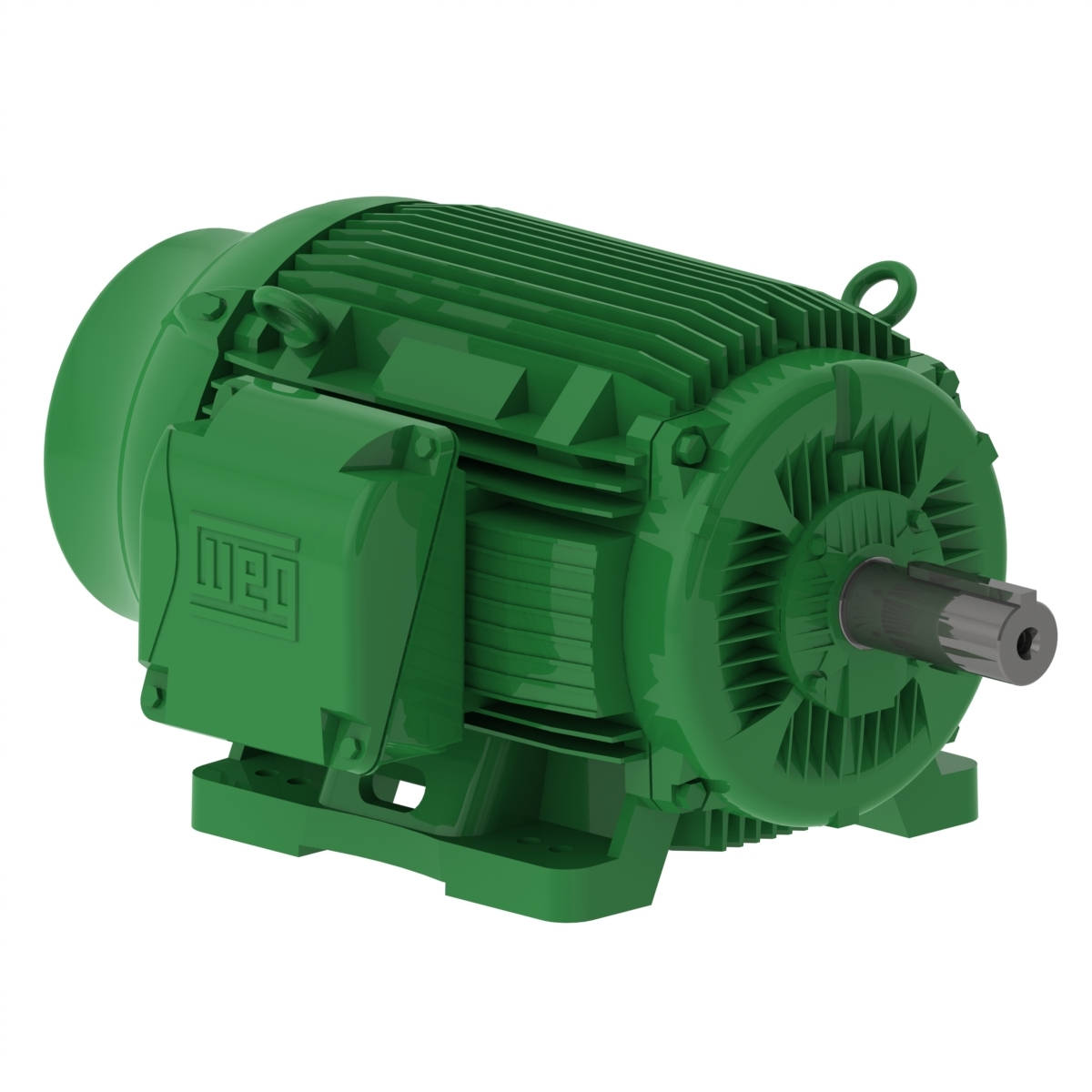

12536EG3G444TS-W22 WEG 125HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 12536EG3G444TS-W22

12536EG3G444TS-W22 WEG 125HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 12536EG3G444TS-W22

Selected accessories will also be added to cart
$12,663.75 / Each
Quantity:
IC411 - TEFC, IP55, 444TS/445TS Frame, 460VAC 60Hz 3 Phase, 11792520, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 60 Hz
Rated speed 3580 rpm
Slip 0.56 %
Rated voltage 460 V
Rated current 136 A
L. R. Amperes 1115 A
LRC 8.2x(Code J)
No load current 46.0 A
Rated torque 183 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 31.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 1705 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  95.4  95.8

Power factor

50% 75% 100%
0.76  0.84  0.87
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 380 V
Rated current 163 A
L. R. Amperes 1043 A
LRC 6.4x(Code F)
No load current 45.0 A
Rated torque 221 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 31.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1705 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.4  95.4

Power factor

50% 75% 100%
0.81  0.87  0.88
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2980 rpm
Slip 0.67 %
Rated voltage 400 V
Rated current 156 A
L. R. Amperes 1092 A
LRC 7.0x(Code G)
No load current 48.0 A
Rated torque 220 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 31.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1705 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.4  95.8  95.8

Power factor

50% 75% 100%
0.78  0.86  0.87
Frame 444/5TS
Output 125 HP
Number of Poles 2
Frequency 50 Hz
Rated speed 2980 rpm
Slip 0.67 %
Rated voltage 415 V
Rated current 152 A
L. R. Amperes 1125 A
LRC 7.4x(Code H)
No load current 50.0 A
Rated torque 220 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 31.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 1705 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.4  95.8  95.8

Power factor

50% 75% 100%
0.76  0.85  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
