/Products/Surplus Industrial/Switches/Light/1221-SI Leviton Toggle Switch, 20A-120/277V, Ivory
Click Image to Expand

Product ID: 1221-SI

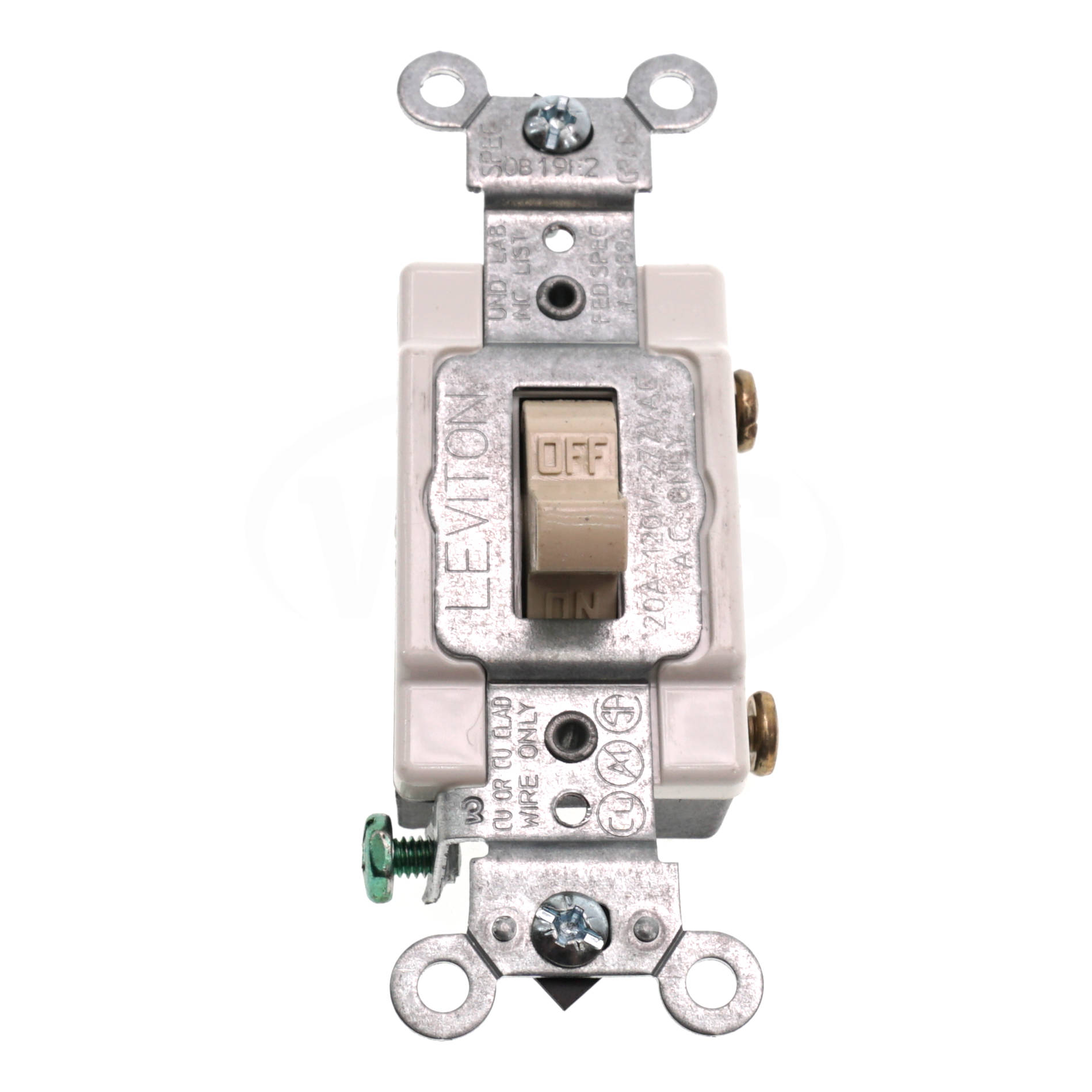

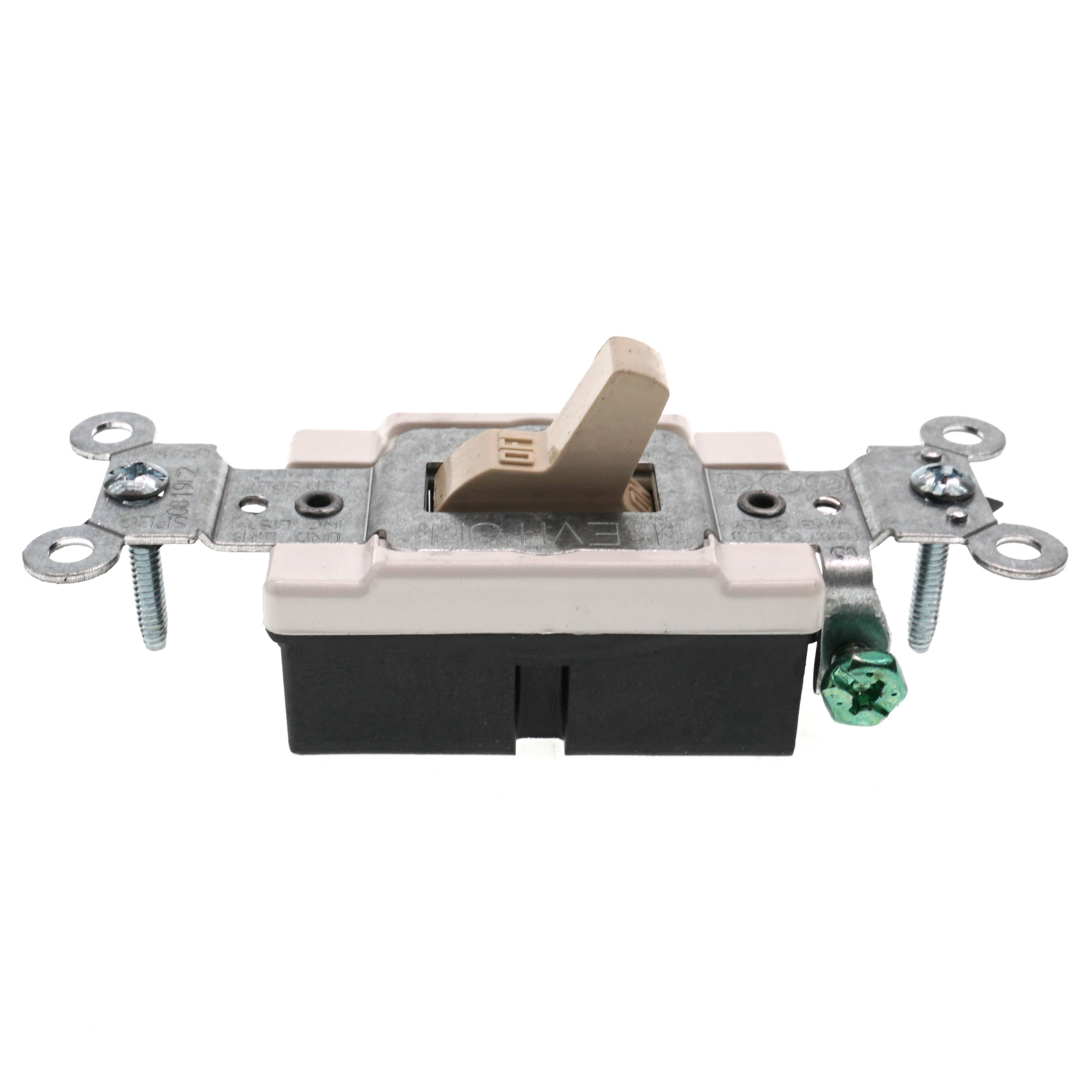

1221-SI Leviton Toggle Switch, 20A-120/277V, Ivory

MFG: Leviton Manufacturing Corporation
MFG Part Number: 1221-SI

Available Stock: 93
Selected accessories will also be added to cart
$3.97 / Each
Quantity:
New, Surplus Stock.

20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Back & Side Wired - IVORY


Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

AC Horsepower Ratings
HP Rating: 1HP-120V 2HP-240V-277V

Electrical Specifications
Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC
Grounding: Self-Grounding

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications
Actuator Material: Polycarbonate
Base Material: PBT
Body Material: Thermoplastic
Color: Ivory
Contacts: Silver-Cadmium .031 Thick
Cover Material: Nylon
Strap Material: Steel
Terminal Screws: Steel 8-32
Toggle: Polycarbonate
Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features
Color: Ivory
Grade: Heavy-Duty Industrial Specification Grade
Function: Single-Pole
Device Type: Toggle Switch

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
