/Products/Electric Motors/Single Phase, Explosion Proof/Leeson/C-Face with Base/116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 116612.00

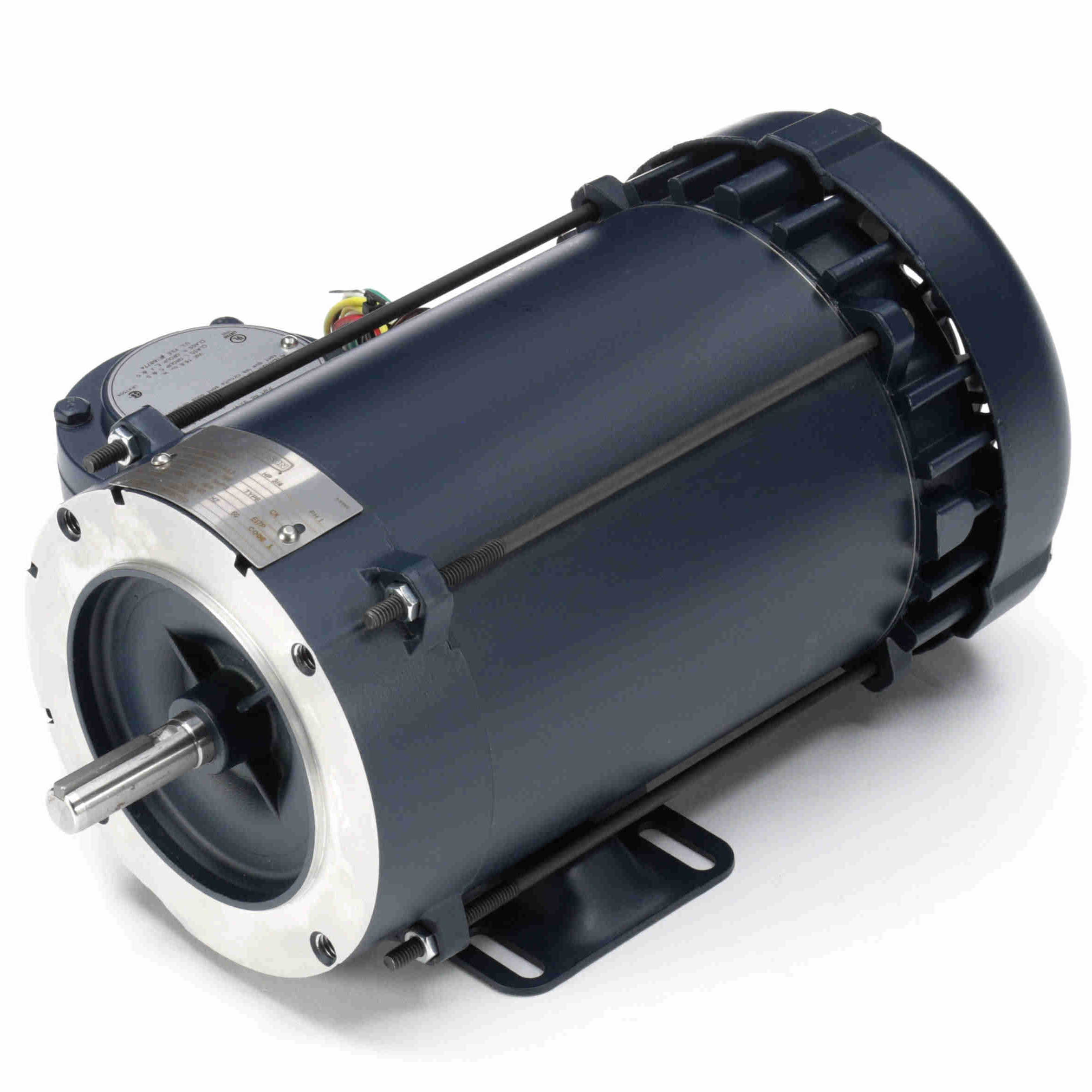

116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116612.00

Selected accessories will also be added to cart

$1,099.97 / Each

Quantity:

EPFC, 56C Frame, 115/208-230VAC 60Hz Single Phase, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Details

Features

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.

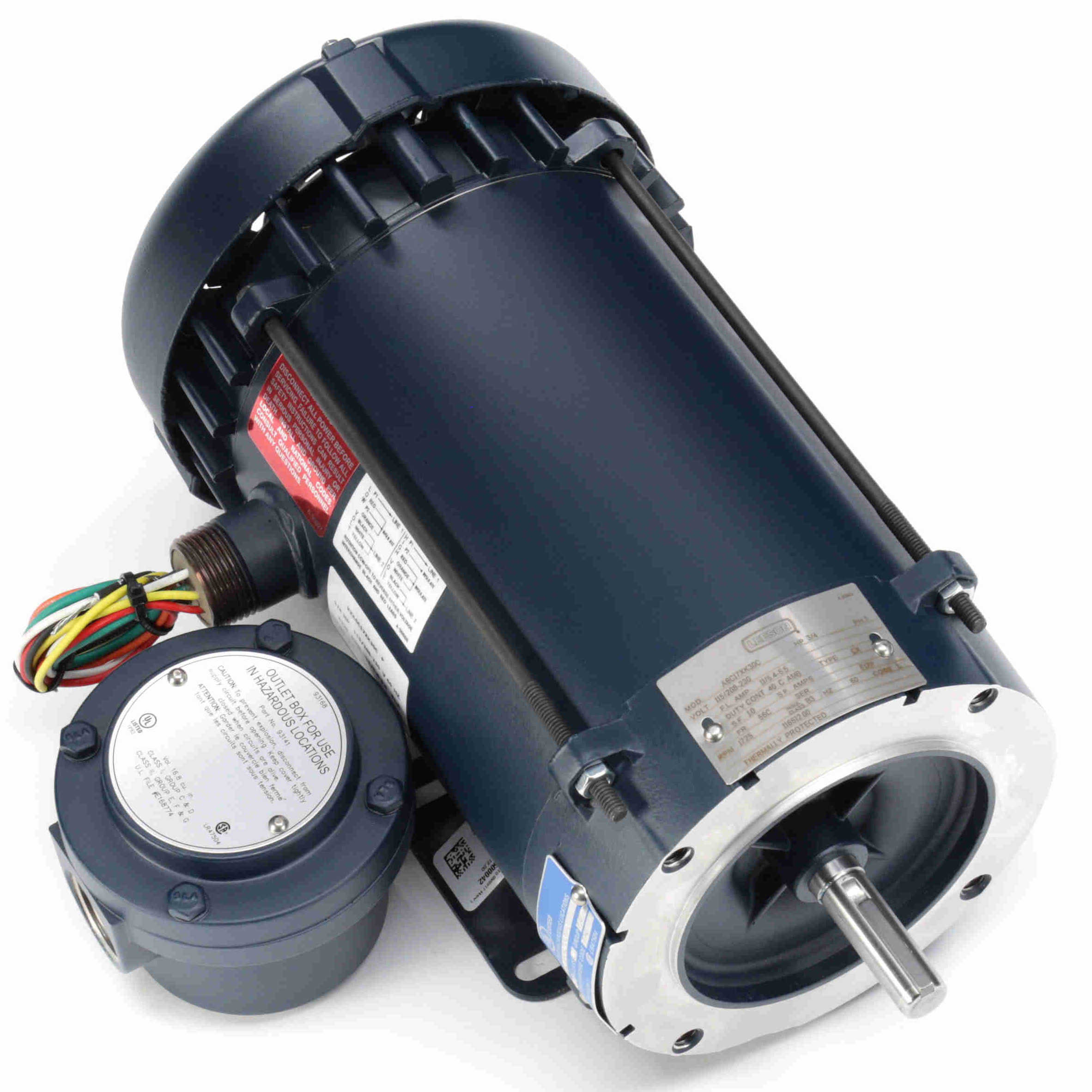

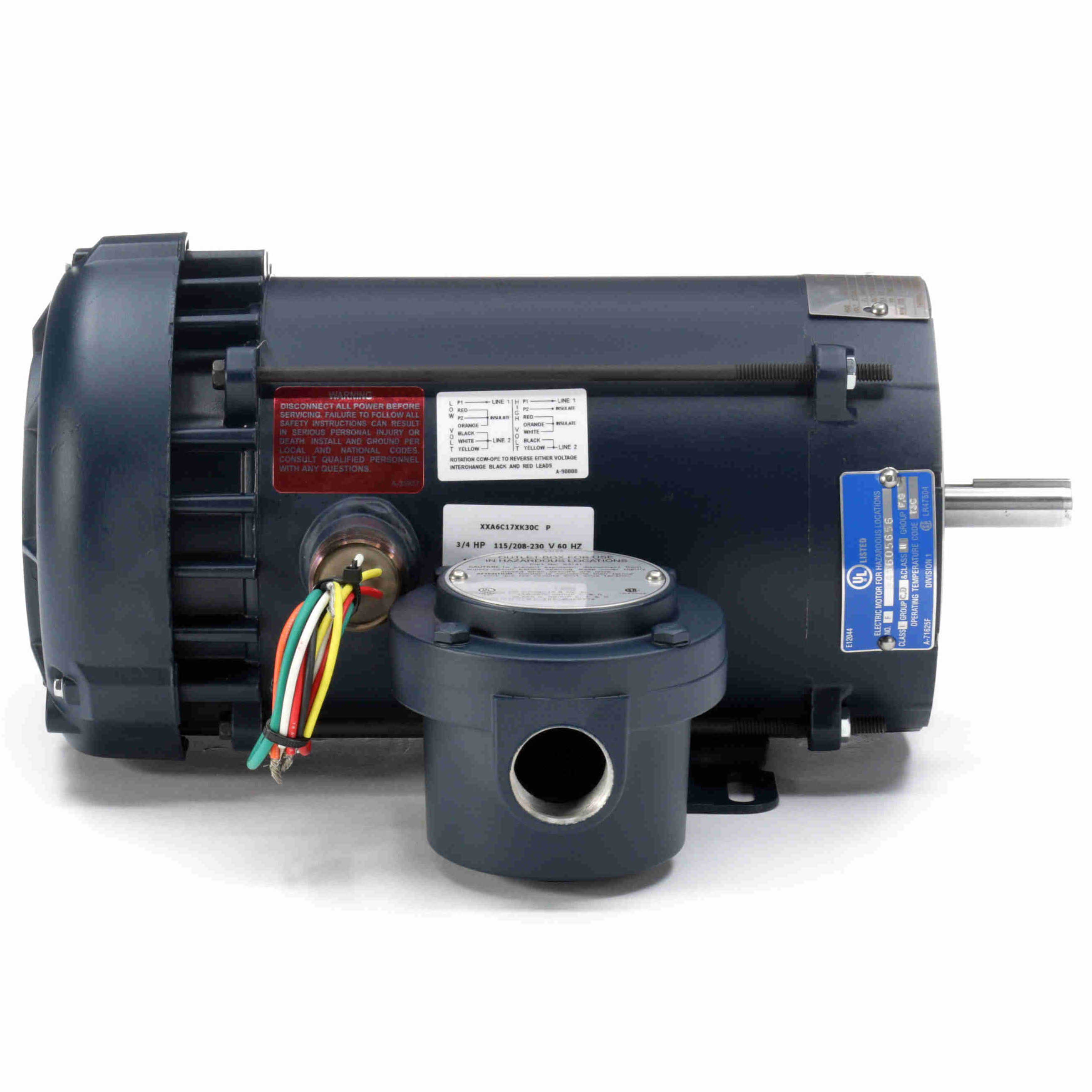

140 frame motor and below include explosion proof conduit box, shipped loose.

General Specifications

UPC:	691720341834	Weight:	51.00 LB
Packaged Length:	17.94 IN	Packaged Width:	13.06 IN
Packaged Height:	12.88 IN

Nameplate Specifications

Output HP:	0.75 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	11.0/5.4-5.5 A	Speed:	1725 rpm
Service Factor:	1	Phase:	1
Efficiency:	70 %	Power Factor:	66.2
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	L
Frame:	56C	Enclosure:	Explosion Proof Fan cooled
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	UL Listed And CSA Certified	CSA:	Y
CE:	N	IP Code:	54
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	14.44 in
Frame Length:	7.31 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.88 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (OZ-FT)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Break-Down	15.80		97.90		1,500	2.90		0.75
Pull-Up	20.50		72.60		1,229	3.40		0.75
Locked-Rotor	30.50	0.0	133.00	0.0	0	6.60	0.0	0.75

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %	150 %	175 %	200 %
Current (Amps)	3.76	3.89	4.19	4.64	5.50	5.90	5.95	6.82	7.91	9.32
Rated Output (KW)	0.15	0.29	0.44	0.61	0.78	0.90	0.98	1.18	1.43	1.73
Efficiency (%)	0.0	48.5	63.2	69.4	70.0	72.0	71.8	71.3	68.5	64.8
Power Factor (%)	17.3	32.5	46.1	56.9	66.2	69.5	71.2	75.2	78.6	80.7
Speed (RPM)	1,800	1,781	1,768	1,757	1,740	1,733	1,726	1,710	1,690	1,655
Temp. Rise @ FL	0.0	0.0	0.0	0.0	52.0	0.0	0.0	0.0	0.0	0.0
Torque (OZ-FT)	0.00	8.90	17.80	26.90	36.00	41.70	45.40	55.10	65.10	75.80
