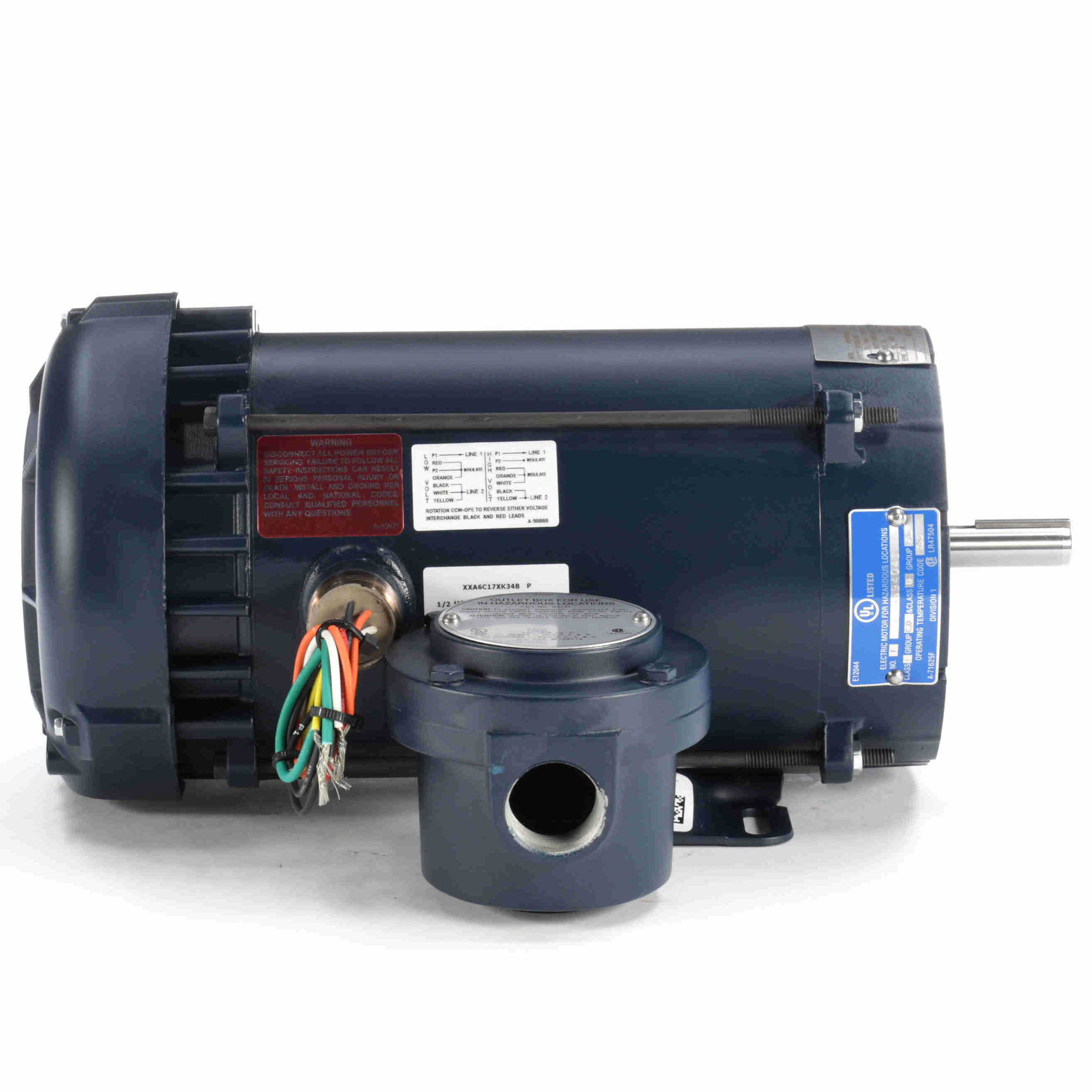

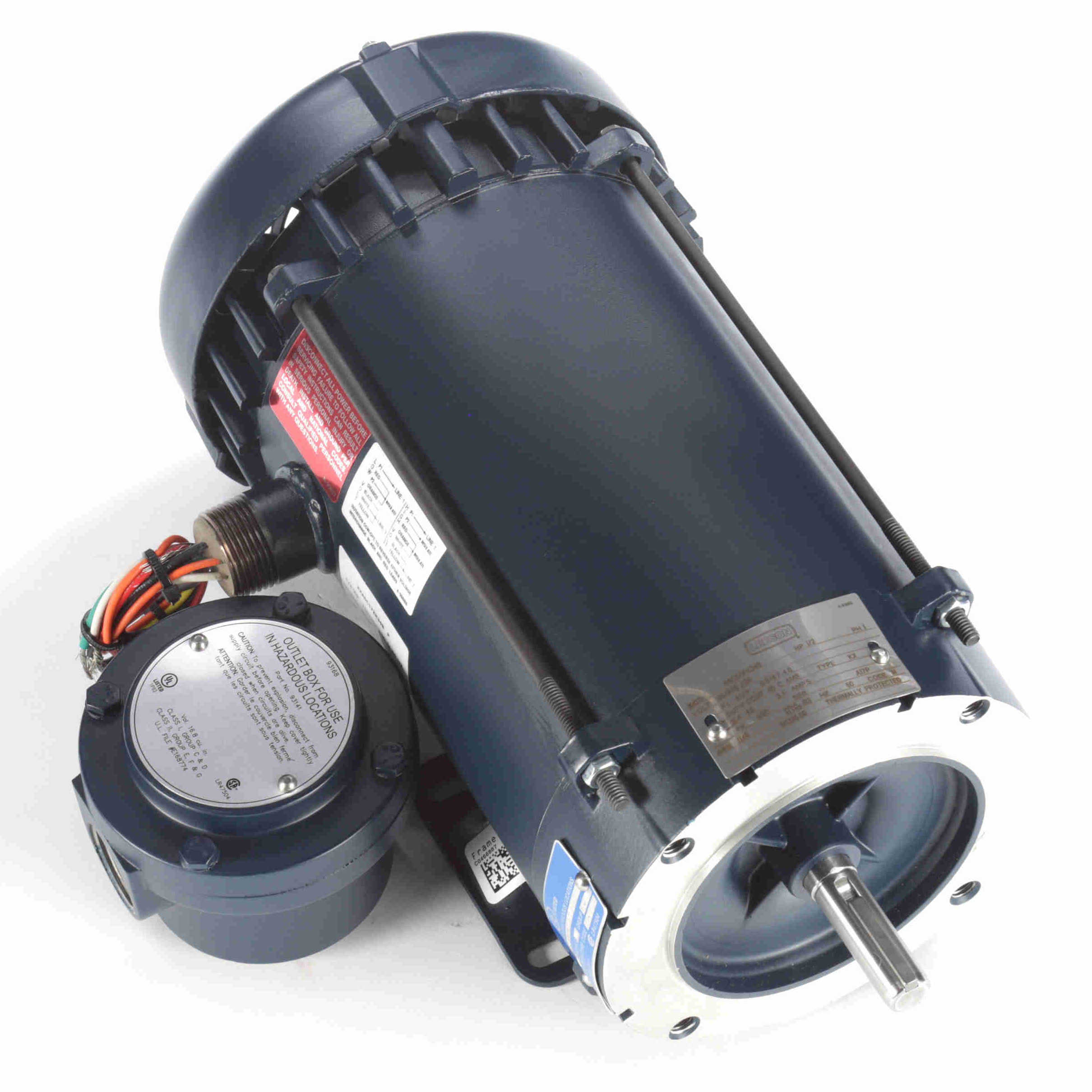

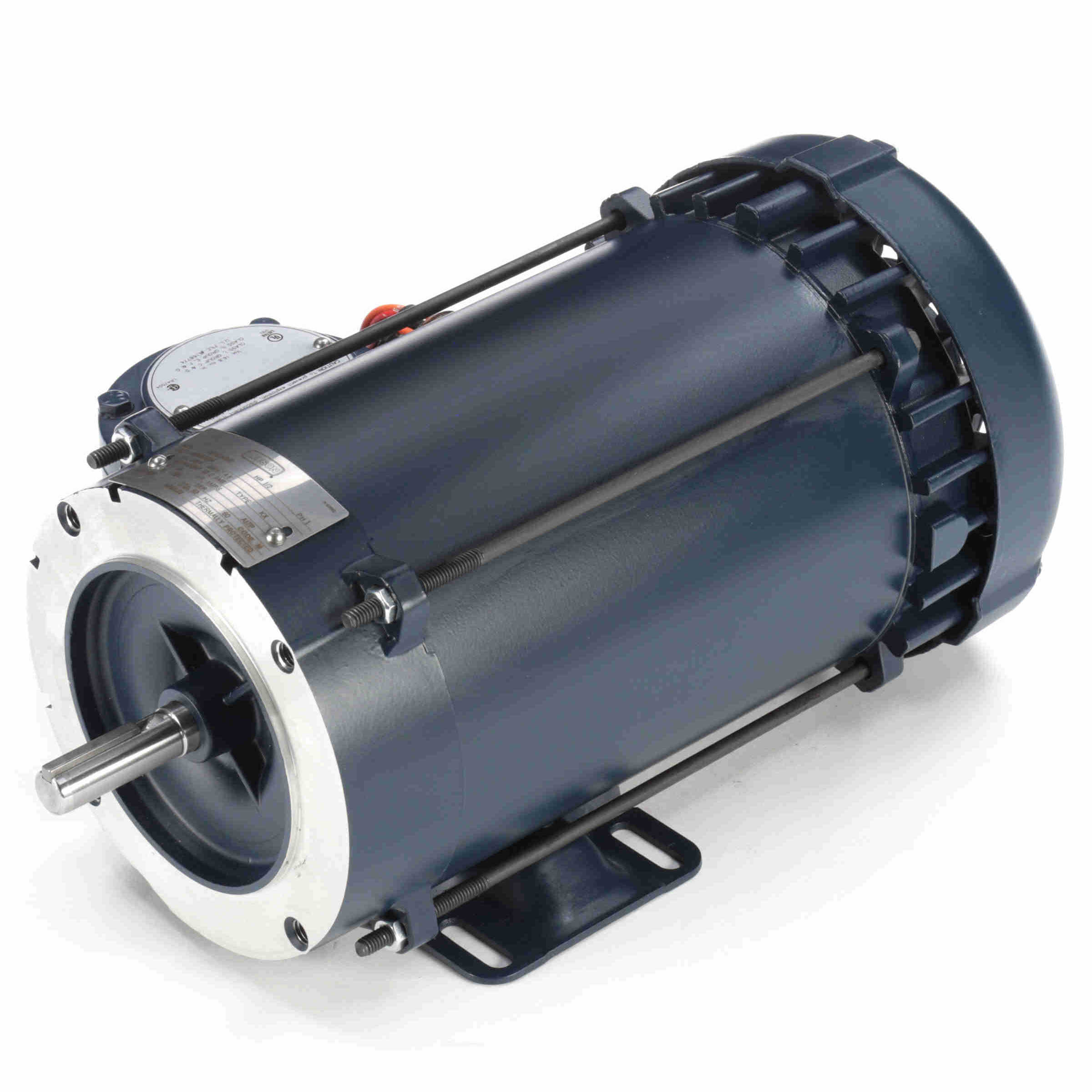

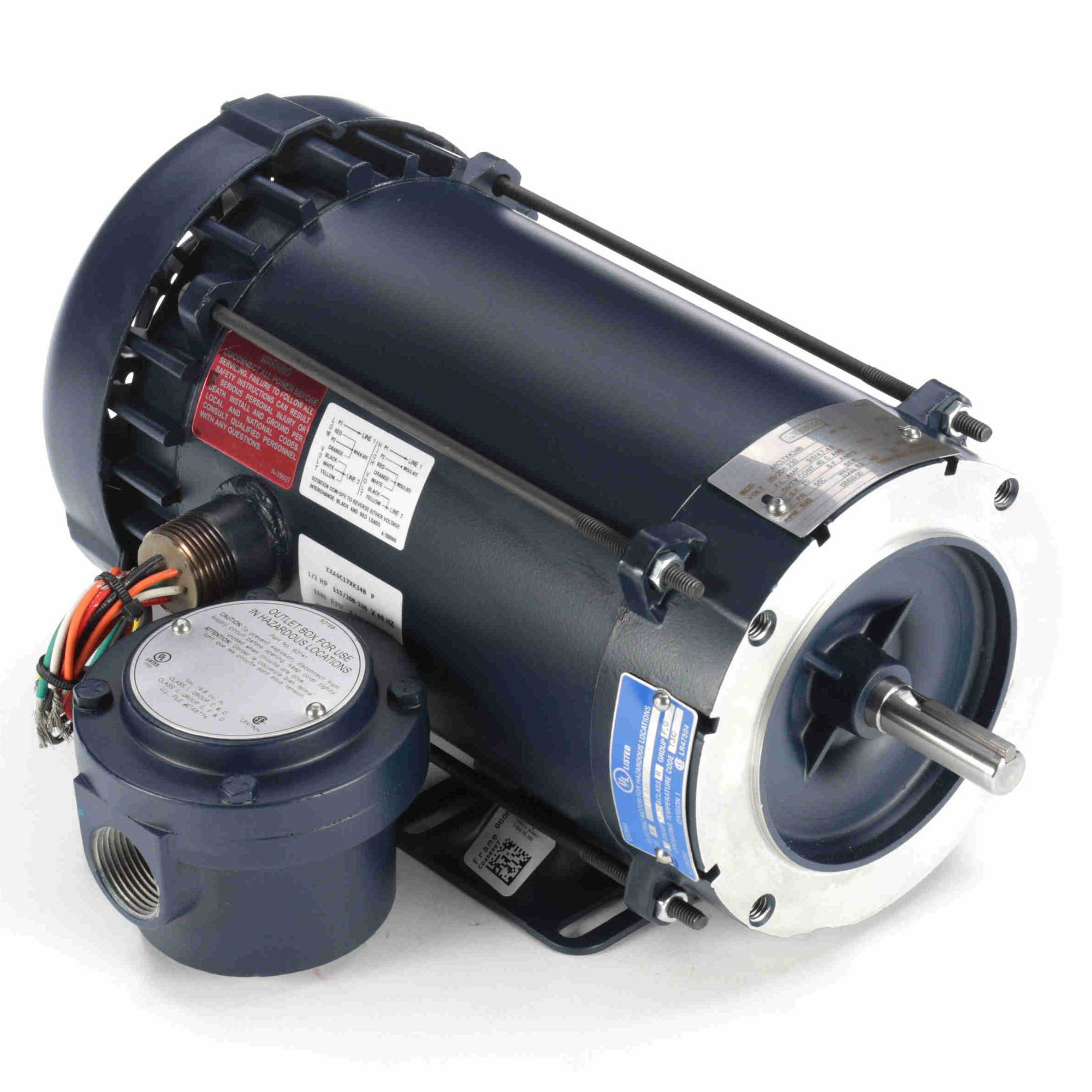

116610.00 Leeson 1/2HP Explosion Proof Electric Motor, 1200RPM
Click Image to Expand
Previous
Next
Product ID: 116610.00
116610.00 Leeson 1/2HP Explosion Proof Electric Motor, 1200RPM
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116610.00
Selected accessories will also be added to cart
$1,099.97 / Each
Quantity:
EPFC, 56C Frame, 115/208-230VAC 60Hz Single Phase, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft
Details
Features
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.
140 frame motor and below include explosion proof conduit box, shipped loose.
General Specifications
UPC:
691720341810
Weight:
56.00 LB
Packaged Length:
19.5 IN
Packaged Width:
10.44 IN
Packaged Height:
10.88 IN
Nameplate Specifications
Output HP:
0.50 Hp
Output KW:
0.37 kW
Frequency:
60 Hz
Voltage:
115/208-230 V
Current:
9.6/4.7-4.8 A
Speed:
1140 rpm
Service Factor:
1
Phase:
1
Efficiency:
64 %
Power Factor:
56
Duty:
Continuous
Insulation Class:
B
Design Code:
L
KVA Code:
M
Frame:
56C
Enclosure:
Explosion Proof Fan cooled
Thermal Protection:
Automatic
Ambient Temperature:
40 °C
Drive End Bearing Size:
6203
Opp Drive End Bearing Size:
6203
UL:
UL Listed And CSA Certified
CSA:
Y
CE:
N
IP Code:
54
Hazardous Location:
EXP PROOF CL I GR C&D CL II GR F&G T3C
Technical Specifications
Electrical Type:
Capacitor Start Capacitor Run
Starting Method:
Across The Line
Poles:
6
Rotation:
Selective Counterclockwise
Resistance Main:
0 Ohms
Mounting:
Rigid Base
Motor Orientation:
Horizontal
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
NEMA 56
Overall Length:
14.94 in
Frame Length:
7.81 in
Shaft Diameter:
0.625 in
Shaft Extension:
1.88 in
Assembly/Box Mounting:
F1 ONLY
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (OZ-FT)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Pull-Up
15.50
78.90
814
2.61
0.50
Locked-Rotor
23.50
109.00
0
4.61
0.50
Break-Down
11.60
104.00
1,021
2.12
0.50
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
125 %
150 %
175 %
200 %
Current (Amps)
4.00
4.00
4.10
4.40
4.80
5.10
5.60
6.20
7.00
Rated Output (KW)
0.18
0.27
0.37
0.48
0.59
0.71
0.86
1.00
1.19
Efficiency (%)
0.0
36.5
52.5
60.5
64.0
66.5
66.5
65.5
63.5
Power Factor (%)
19.0
28.5
38.0
47.0
56.0
61.0
66.5
71.0
74.5
Speed (RPM)
1,200
1,192
1,185
1,178
1,170
1,163
1,155
1,140
1,125
Temp. Rise @ FL
0.0
0.0
0.0
0.0
60.0
0.0
0.0
0.0
0.0
Torque (OZ-FT)
0.00
8.98
17.80
26.80
35.90
45.20
54.70
64.50
74.80
