/Products/Electric Motors/Single Phase/Leeson/Auger/112615.00 Leeson 1HP Agriculture Duty Feed Auger Drive Electric Motor, 1800RPM
Click Image to Expand

Product ID: 112615.00

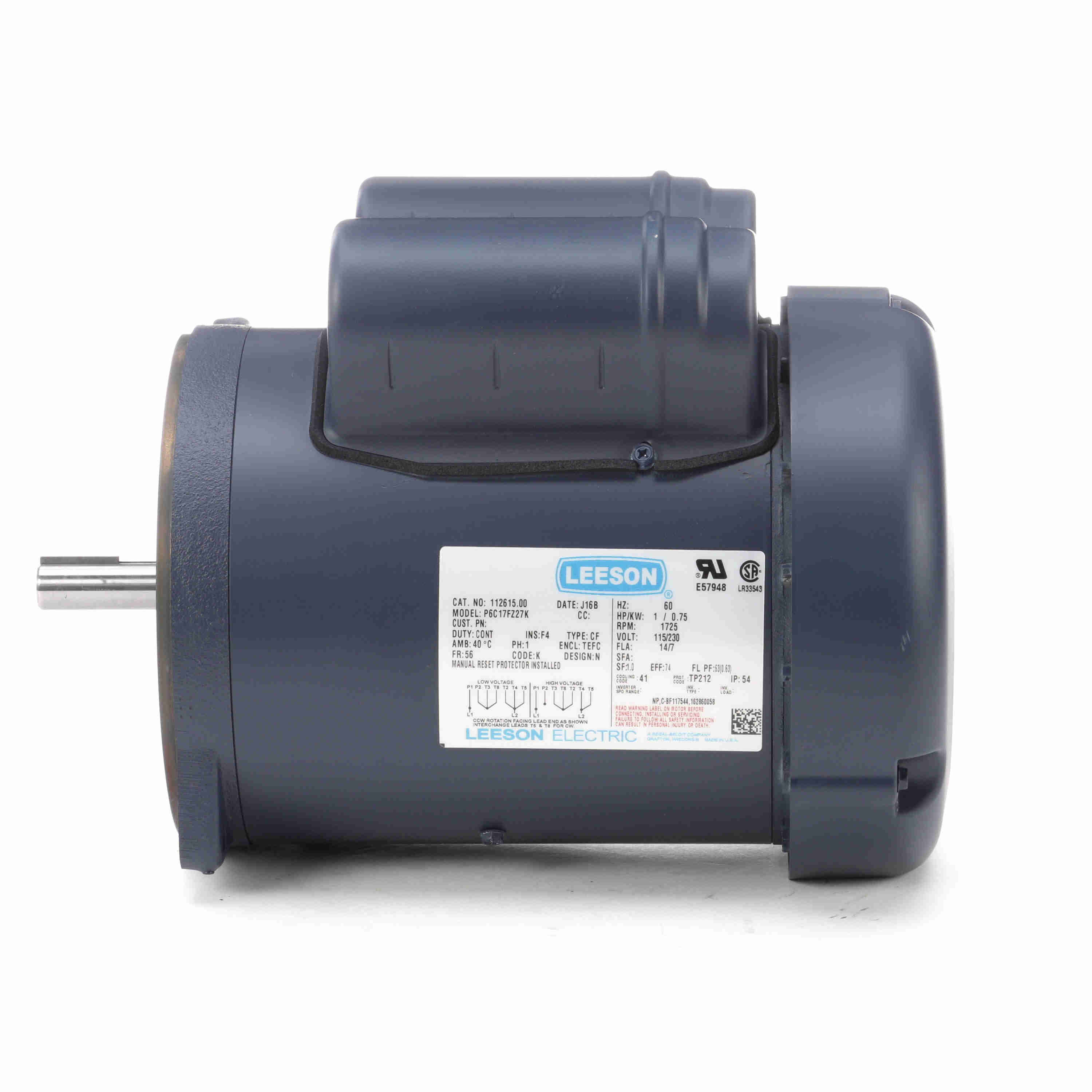

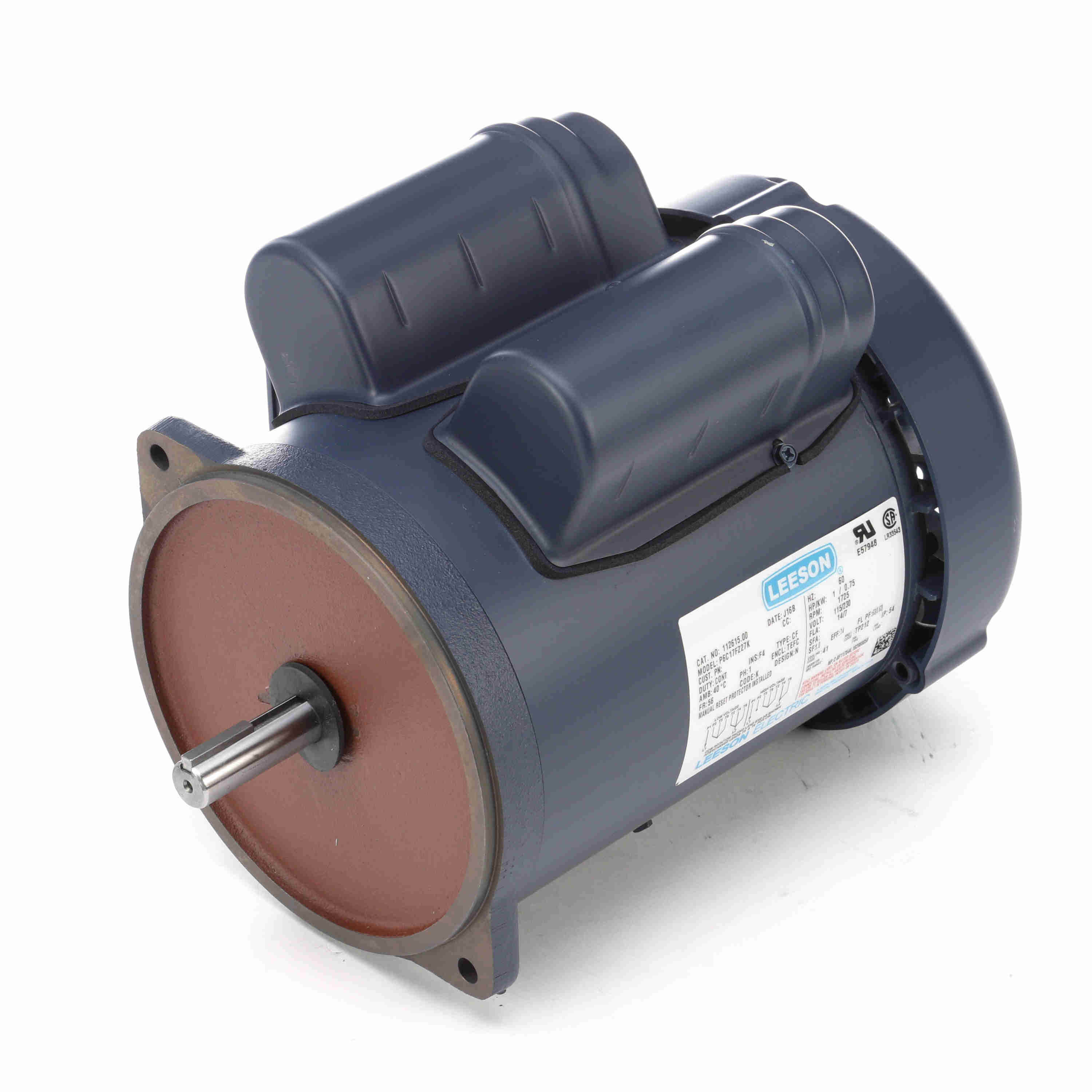

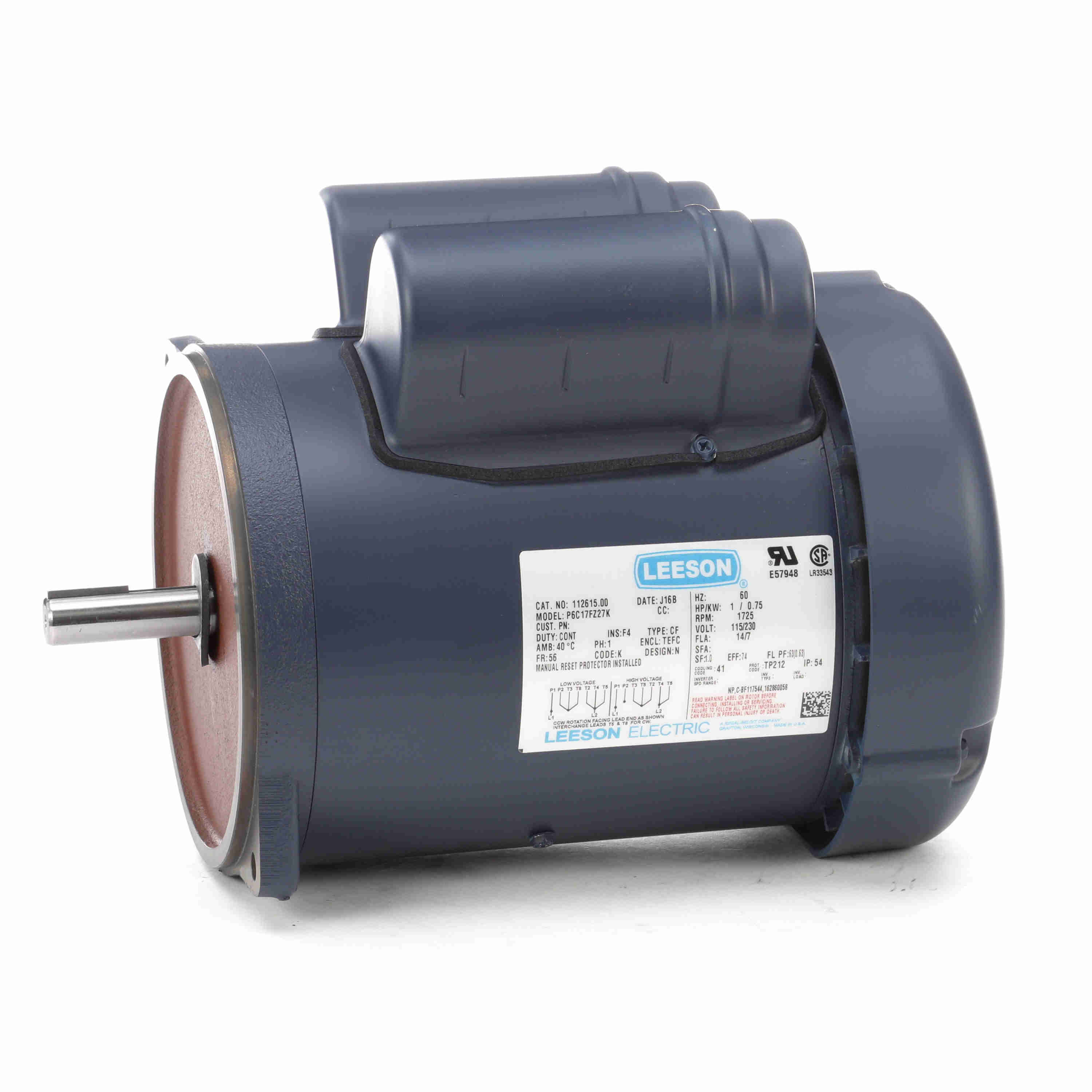

112615.00 Leeson 1HP Agriculture Duty Feed Auger Drive Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P6C17FZ27

Selected accessories will also be added to cart
$444.80 / Each
Quantity:
TEFC, 48YZ Frame, 115/230VAC Single Phase, Round Body, Rolled Steel, 5/8" Keyed Shaft

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double-shielded bearings extend the service life of the motor.
  • Extended shaft with wrench flats for manual jogging of auger.
  • Manual-reset thermal protector (as noted) protects against motor overload.

General Specifications

UPC: 691720011010 Weight: 38.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 14.0/7.0 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Efficiency: 74 % Power Factor: 63
Duty: Continuous Insulation Class: F
Design Code: N KVA Code: K
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 54
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 1.8 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.27 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 17.90 255.0 132.60 275.0 0 3.98 0.0 1.00
Locked-Rotor 37.30 532.0 141.80 294.0 0 7.35 0.0 1.00
Pull-Up 29.00 414.0 117.60 244.0 0 4.37 0.0 1.00
Full Load 7.01 100.0 48.16 100.0 1,751 1.06 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 4.85 5.24 5.61 6.20 7.01 7.56 7.97 9.14
Rated Output (KW) 0.21 0.40 0.61 0.83 1.06 1.21 1.31 1.59
Efficiency (%) 0.0 46.6 61.6 67.8 70.4 71.0 71.1 70.6
Power Factor (%) 0.0 33.3 46.9 57.8 65.9 69.4 71.5 75.5
Speed (RPM) 1,797 1,787 1,776 1,764 1,751 1,743 1,738 1,722
Temp. Rise @ FL 0.0 0.0 0.0 0.0 88.6 102.0 0.0 0.0
Torque (OZ-FT) 0.00 11.74 23.67 35.74 48.16 55.44 60.47 73.28
