/Products/Electric Motors/Single Phase/Leeson/Woodworking/110402.00 Leeson 2HP Electric Motor, 3450RPM
Click Image to Expand

Product ID: 110402.00

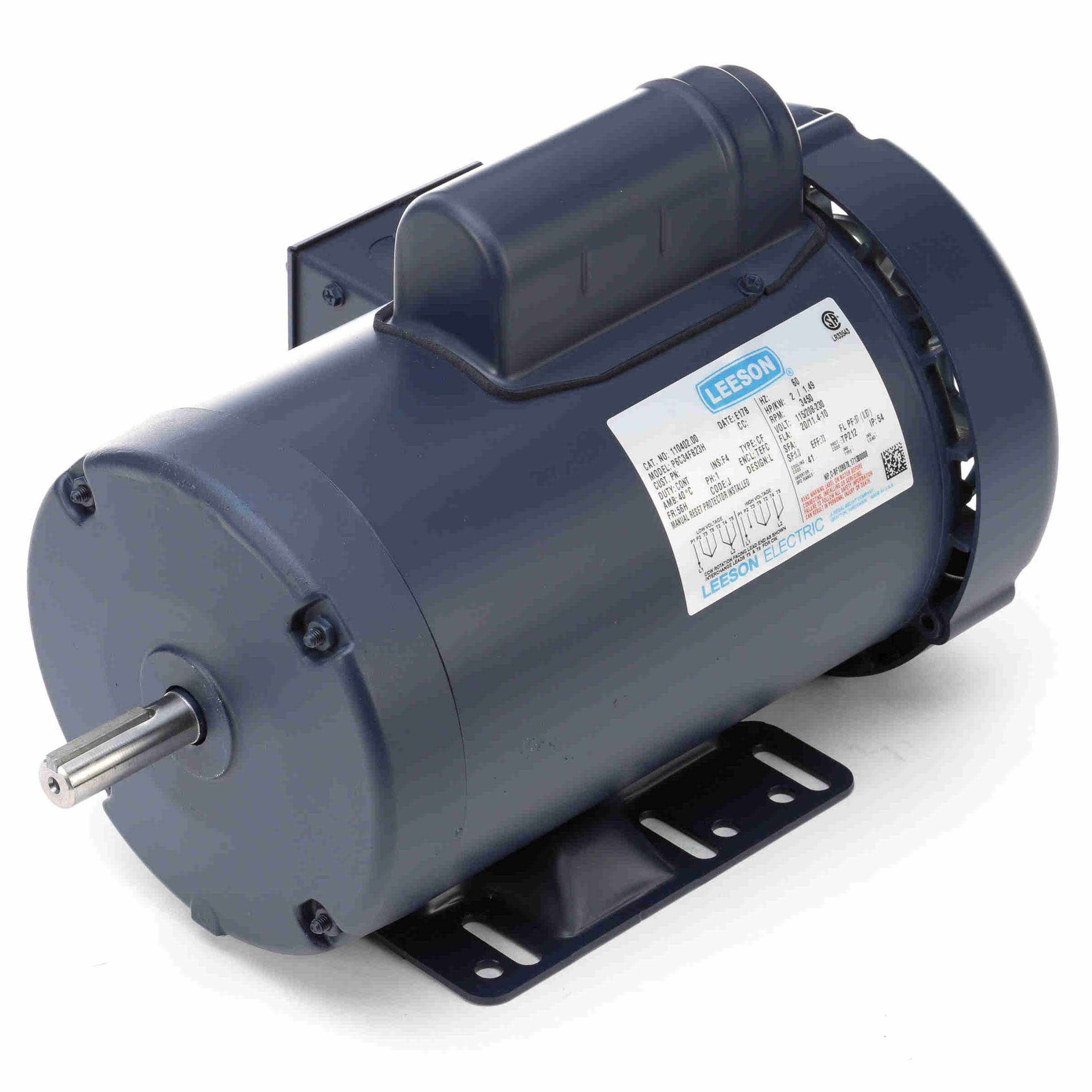

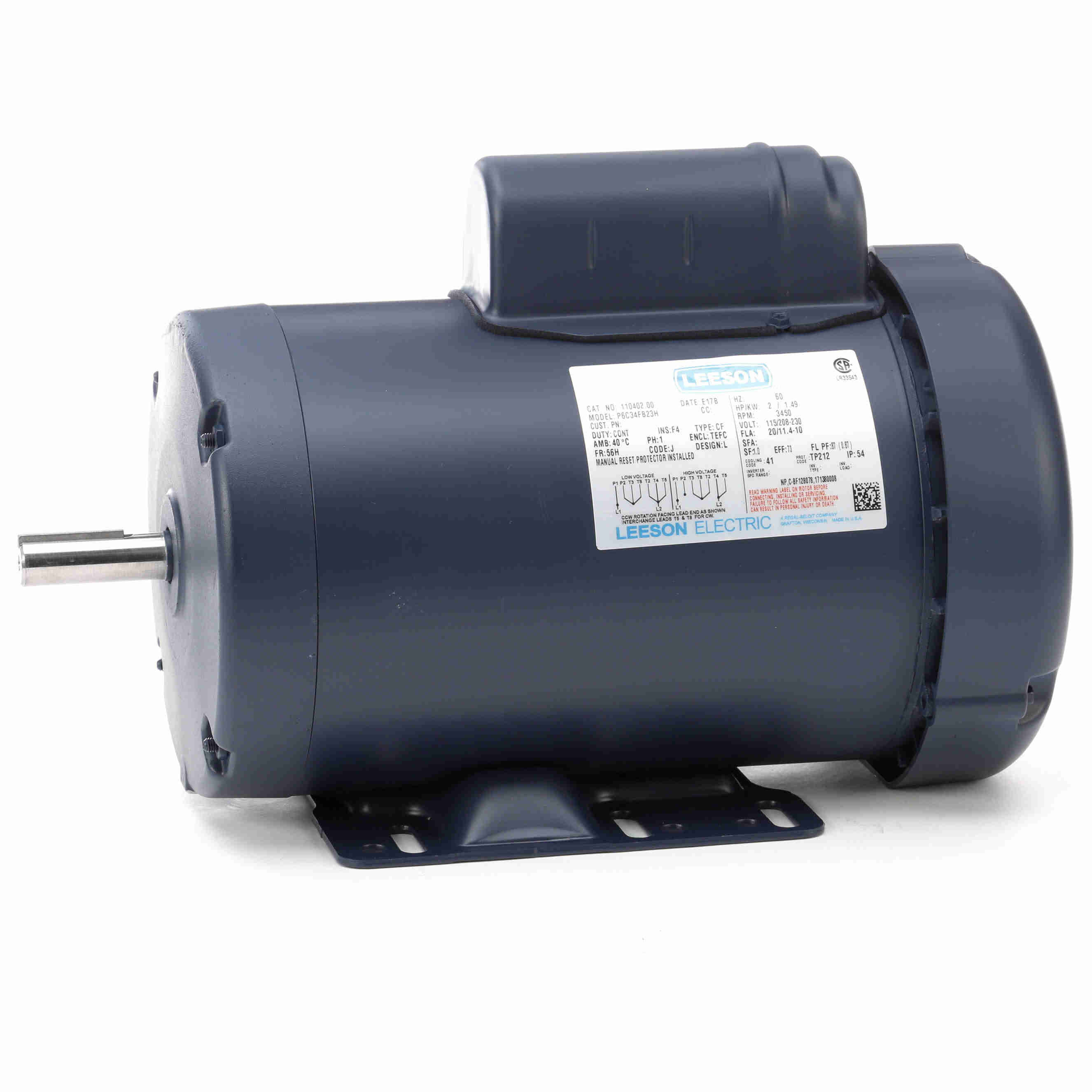

110402.00 Leeson 2HP Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110402.00

Selected accessories will also be added to cart
$844.91 / Each
Quantity:
P6C34FB23H, TEFC, 56H Frame, 115/208-230VAC Single Phase, Rigid Base, Rolled Steel, 5/8" Shaft

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors

General Specifications

UPC: 691720008669 Weight: 44.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 20.0/11.4-10.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 73 % Power Factor: 87
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: J
Frame: 56H Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized ( Not Protector) CSA: Y
CE: N IP Code: 54

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .92 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.48 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 7.00 233.0 2,400 2.00
Locked-Rotor 64.40 7.50 250.0 0 2.00
Break-Down 0.00 7.80 260.0 3,000 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.50 5.20 6.47 8.25 10.45 12.96 16.06
Rated Output (KW) 0.27 0.64 1.07 1.55 2.05 2.37 3.32
Efficiency (%) 0.0 59.9 71.0 72.9 73.0 78.0 65.9
Power Factor (%) 26.1 53.2 71.8 81.7 87.0 79.4 89.7
Speed (RPM) 3,598 3,577 3,556 3,532 3,503 3,467 3,415
Temp. Rise @ FL 0.0 0.0 0.0 0.0 90.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
