/Products/Electric Motors/Single Phase/Leeson/Woodworking/110109.00 Leeson 1.5HP Electric Motor, 3450RPM

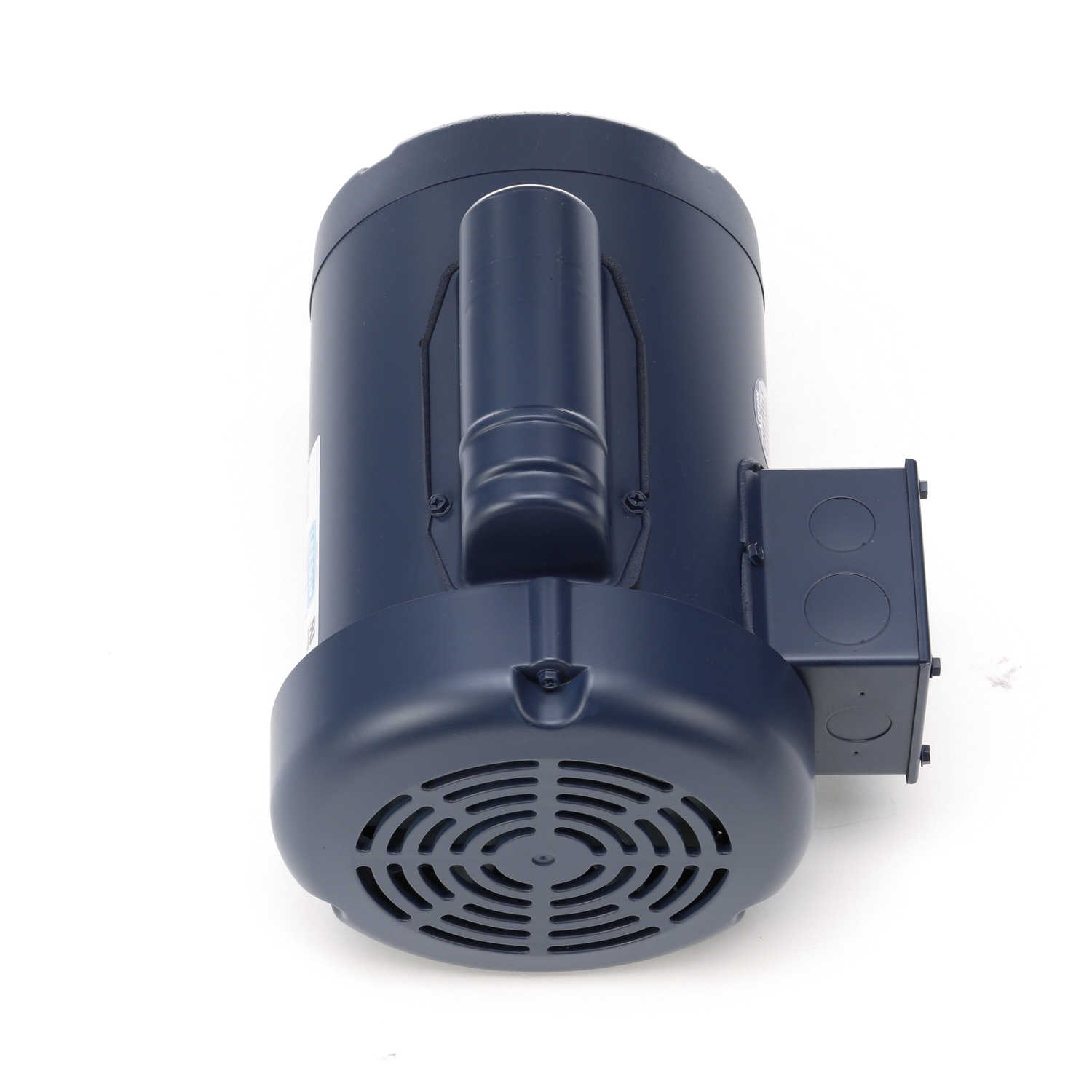

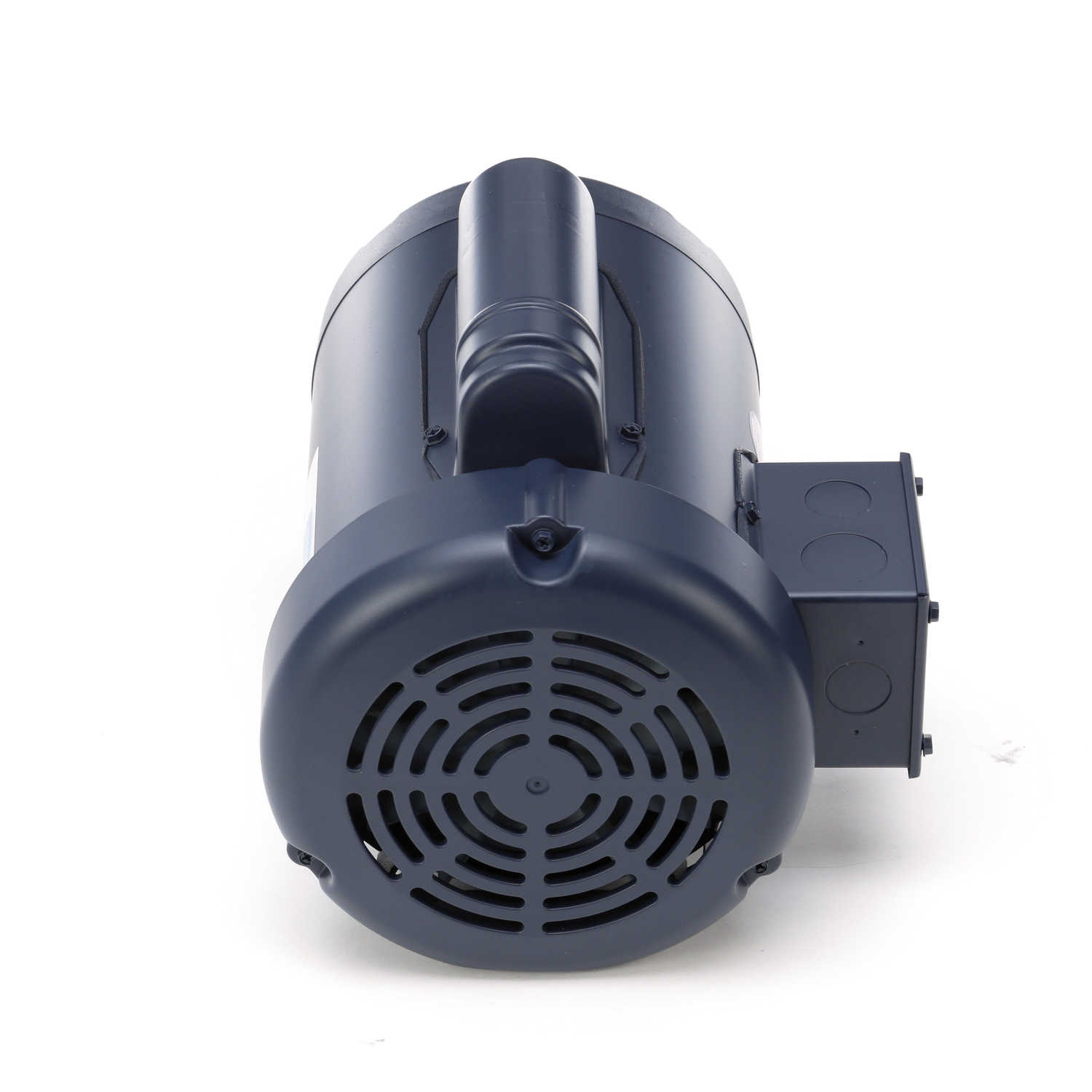

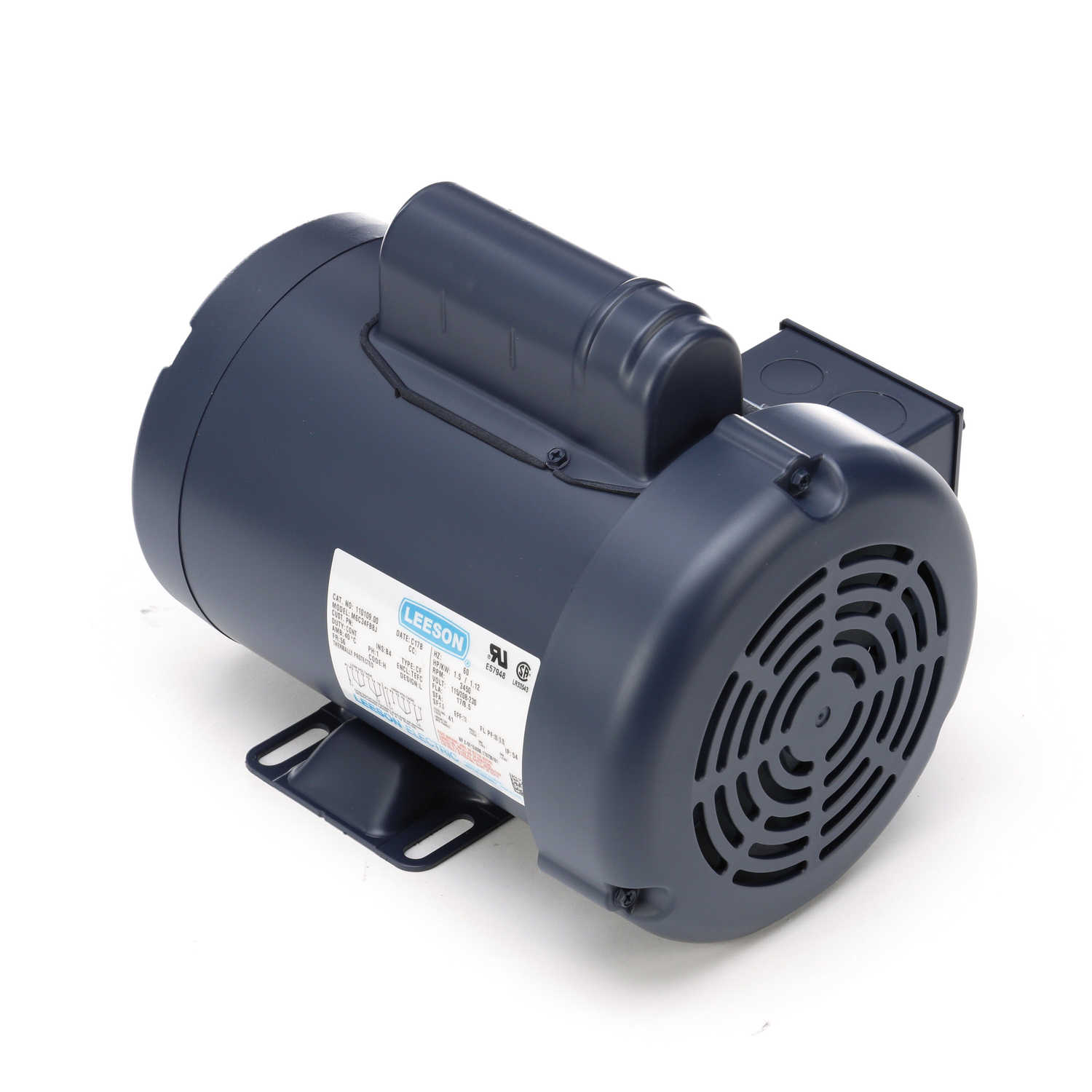

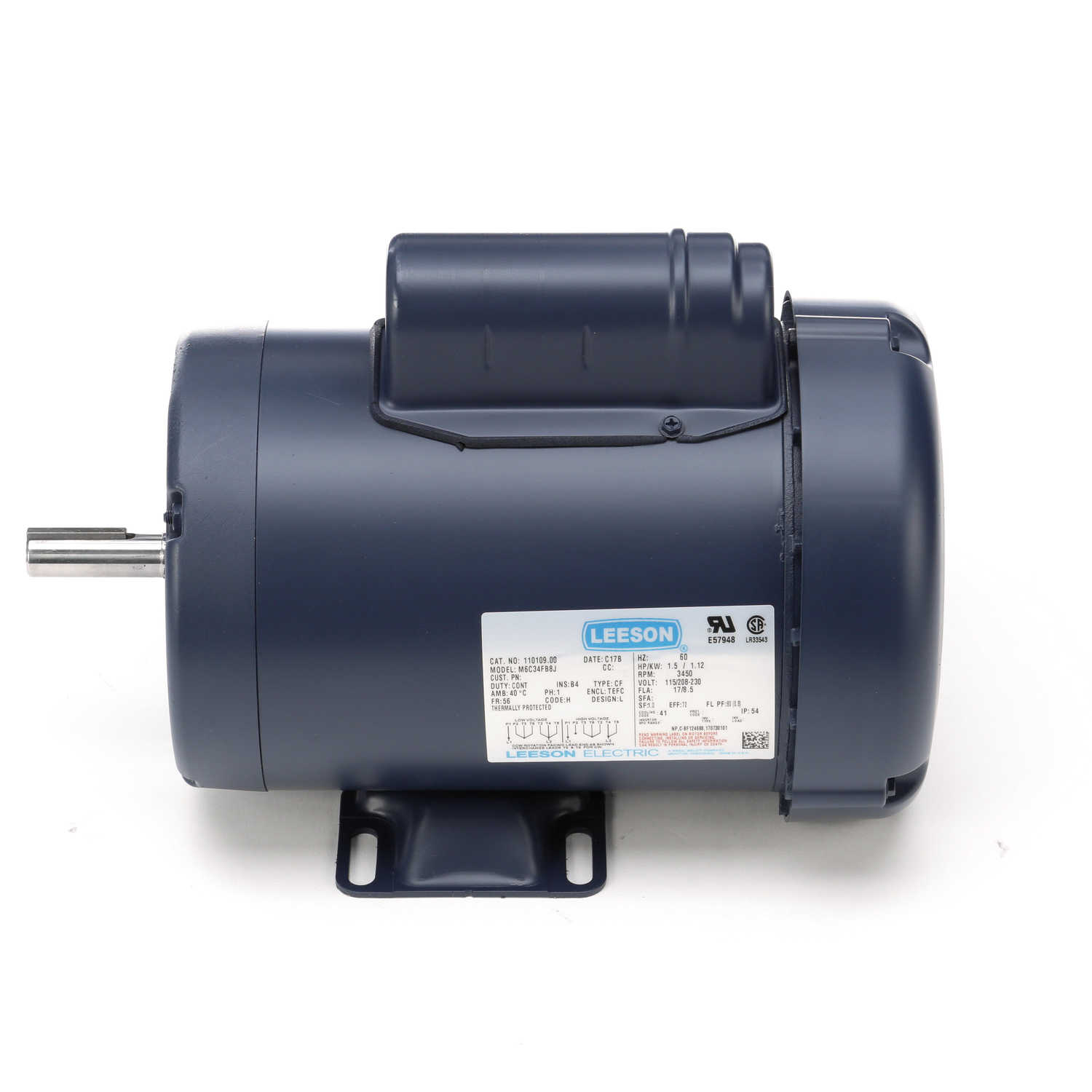

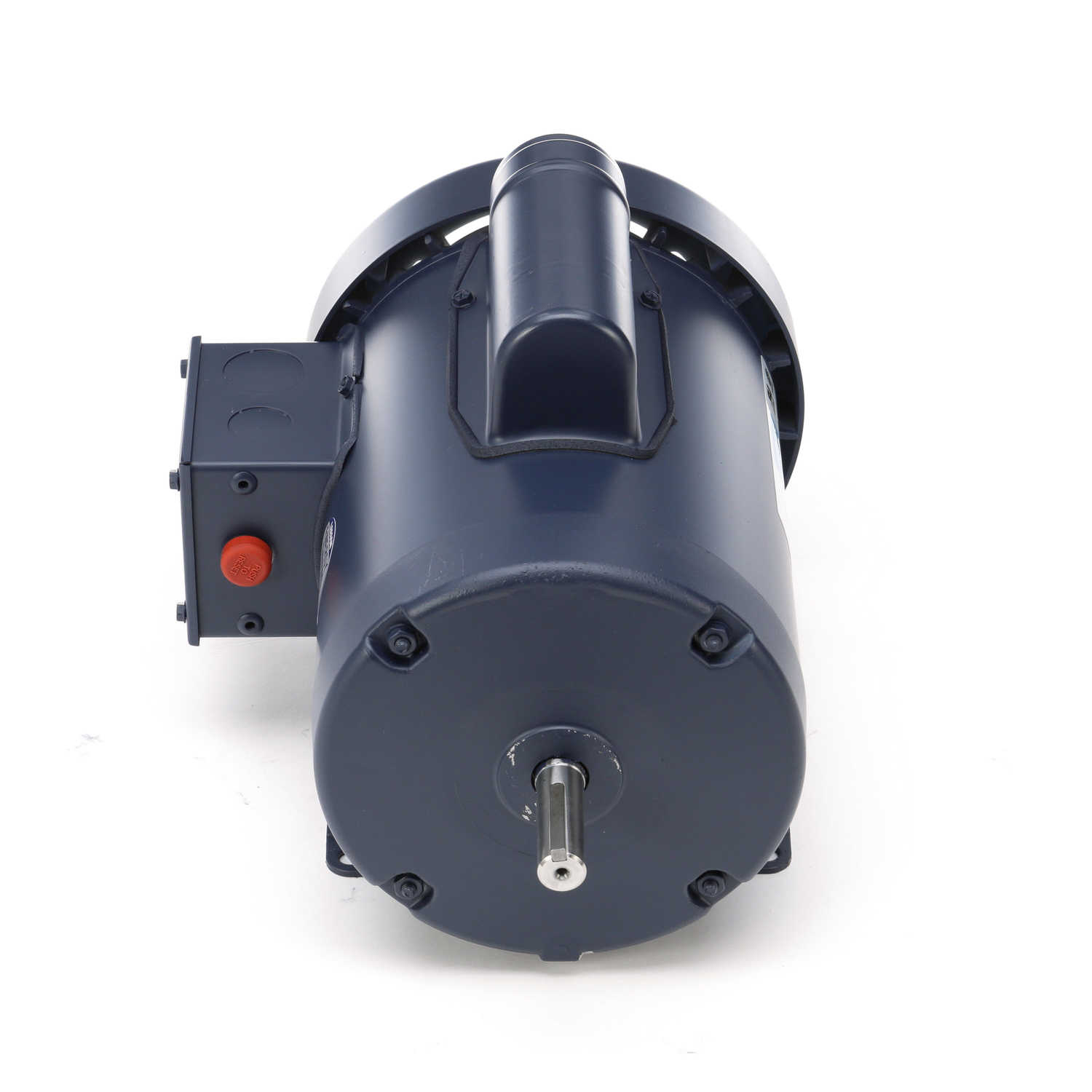

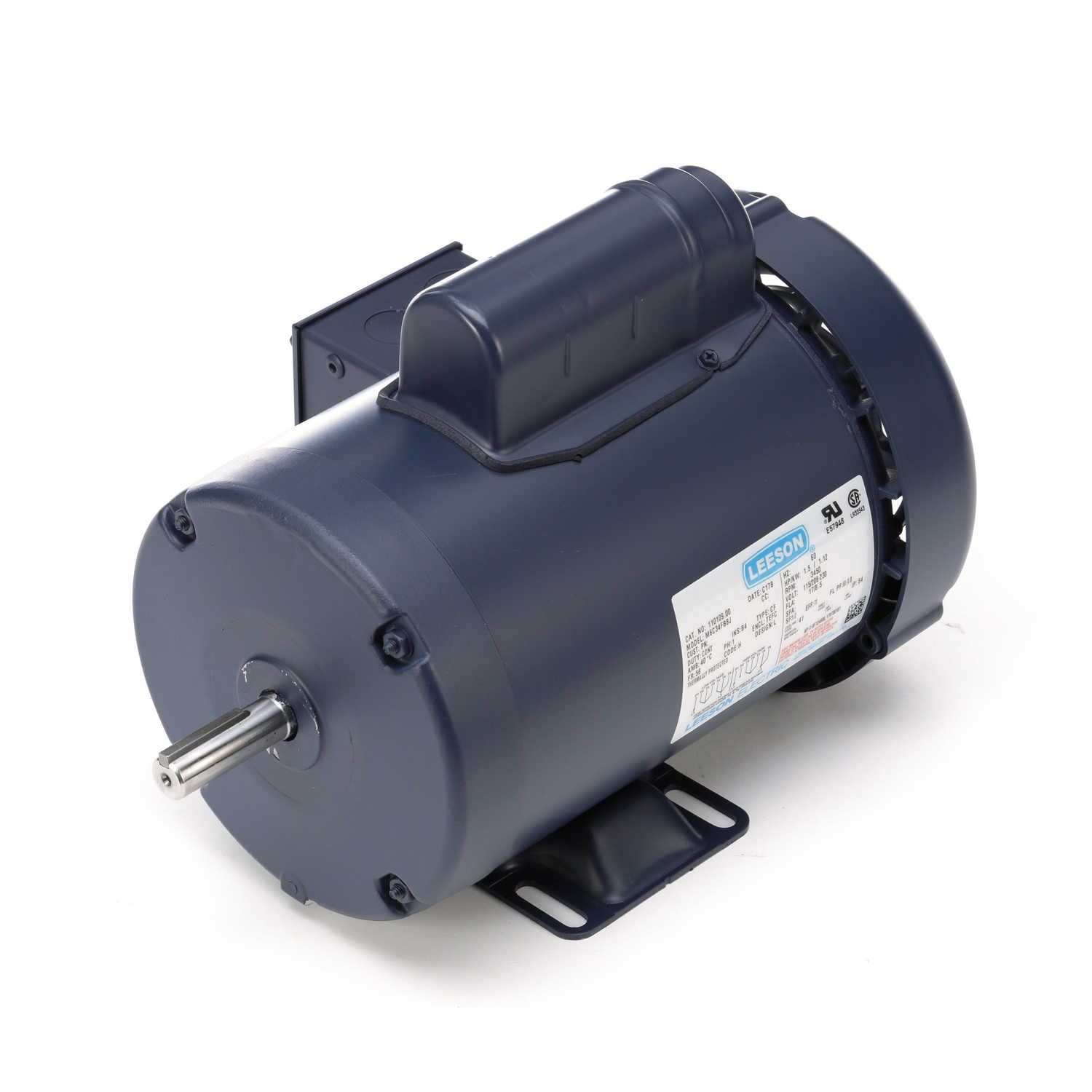

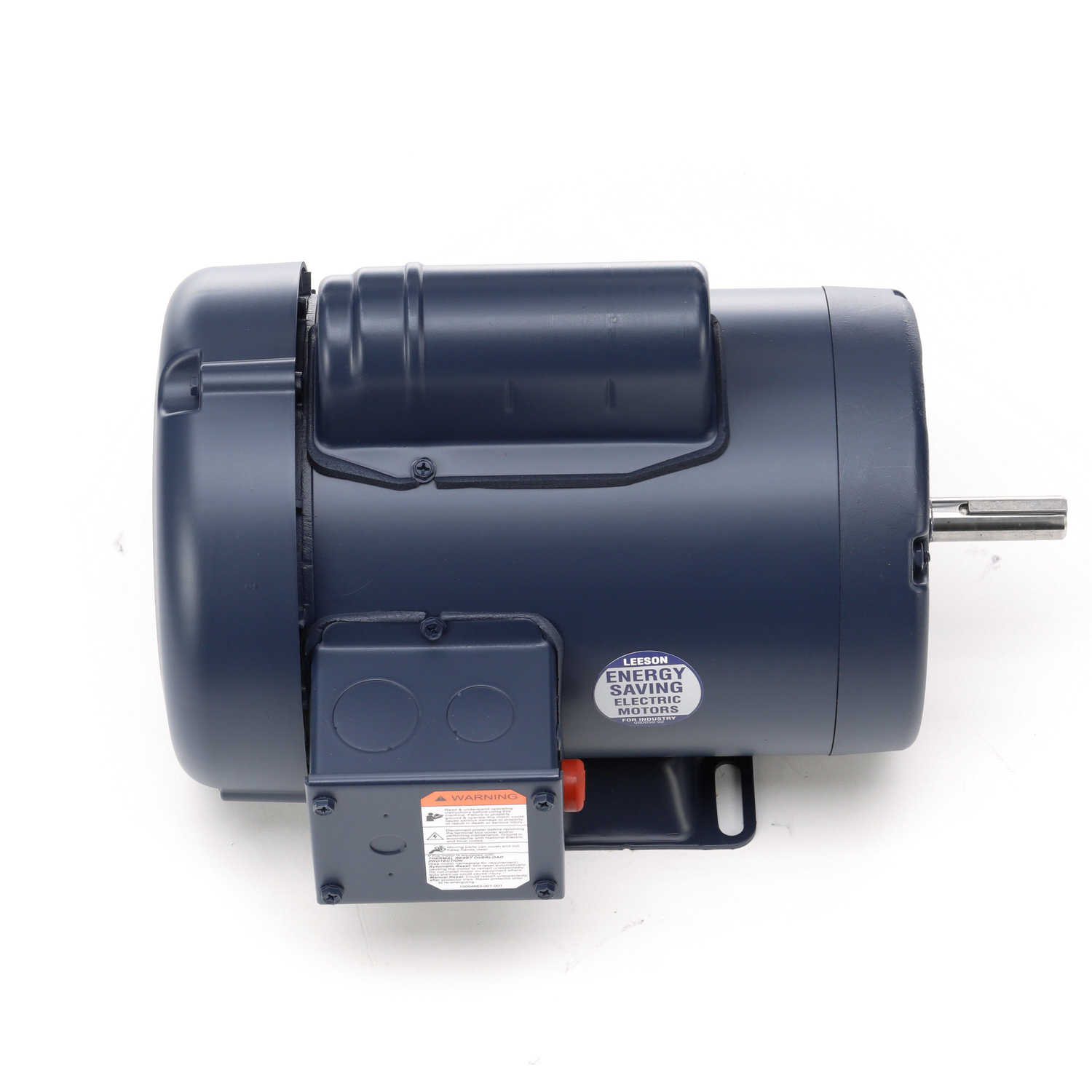

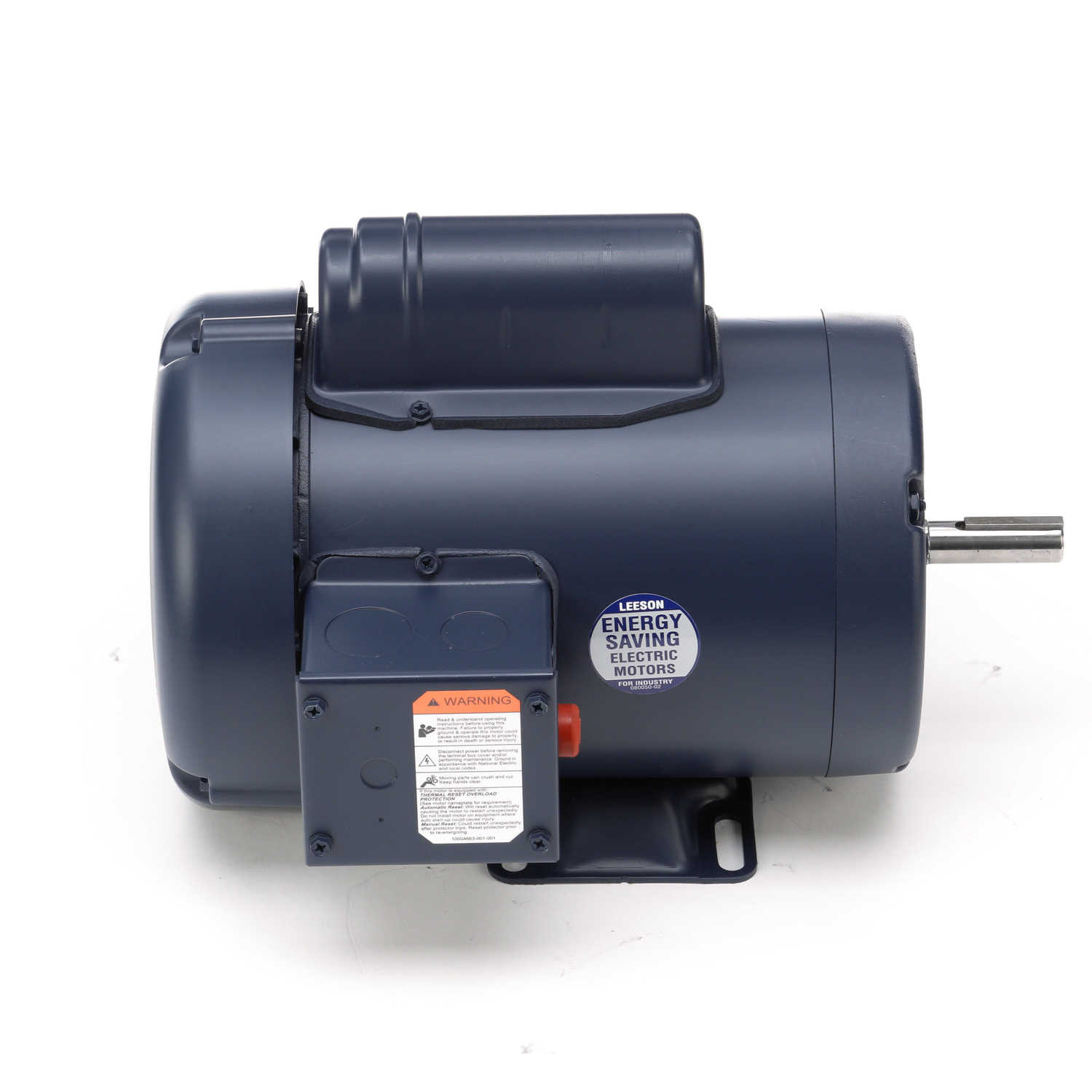

Click Image to Expand

Product ID: 110109.00

110109.00 Leeson 1.5HP Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110109.00

Selected accessories will also be added to cart
$725.90 / Each
Quantity:
TEFC, 56 Frame, 115/208-230VAC Single Phase 60Hz, M6C34FB8J, Rigid Base, Rolled Steel, 5/8" Shaft

Features

Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors
  • Fully gasketed

General Specifications

General Specifications
Model :M6C34FB8J Catalog No :110109.00
Part Description :..1 1/2HP..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1SF.RIGID.M6C34FB8J.....GENERAL PURPOSE.MANUAL....... Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 HP Output KW :1.1 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :17.0/9.0-8.5 A Speed :3450 RPM
Service Factor :1 Phase :1
Efficiency :72 % Duty :Continuous
Insulation Class :B Design Code :L
KVA Code :H Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :54

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.48 in Frame Length :7.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720007860
Weight :34.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load8.502.25100.03,4541.50
Break-Down0.005.60249.03,0001.50
Locked-Rotor46.005.50244.001.50
Pull-Up0.005.30236.02,8001.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.67
  • 0.259
  • 0.0
  • 24.1
  • 3,598
  •
  • 0.00
  • 25 %
  • 5.07
  • 0.536
  • 52.9
  • 46.0
  • 3,561
  •
  • 0.56
  • 50 %
  • 5.89
  • 0.850
  • 66.1
  • 62.7
  • 3,530
  •
  • 1.12
  • 75 %
  • 7.05
  • 1.191
  • 70.5
  • 73.5
  • 3,496
  •
  • 1.69
  • 100 %
  • 8.45
  • 1.555
  • 72.0
  • 80.0
  • 3,454
  • 82.0
  • 2.28
  • 125 %
  • 9.52
  • 1.813
  • 71.1
  • 82.8
  • 3,424
  •
  • 2.65
  • 150 %
  • 10.33
  • 2.000
  • 70.0
  • 84.2
  • 3,399
  •
  • 2.90
