/Products/Electric Motors/Single Phase/Leeson/Woodworking/110108.00 Leeson 3/4HP General Purpose Electric Motor, 3450RPM
Click Image to Expand

Product ID: 110108.00

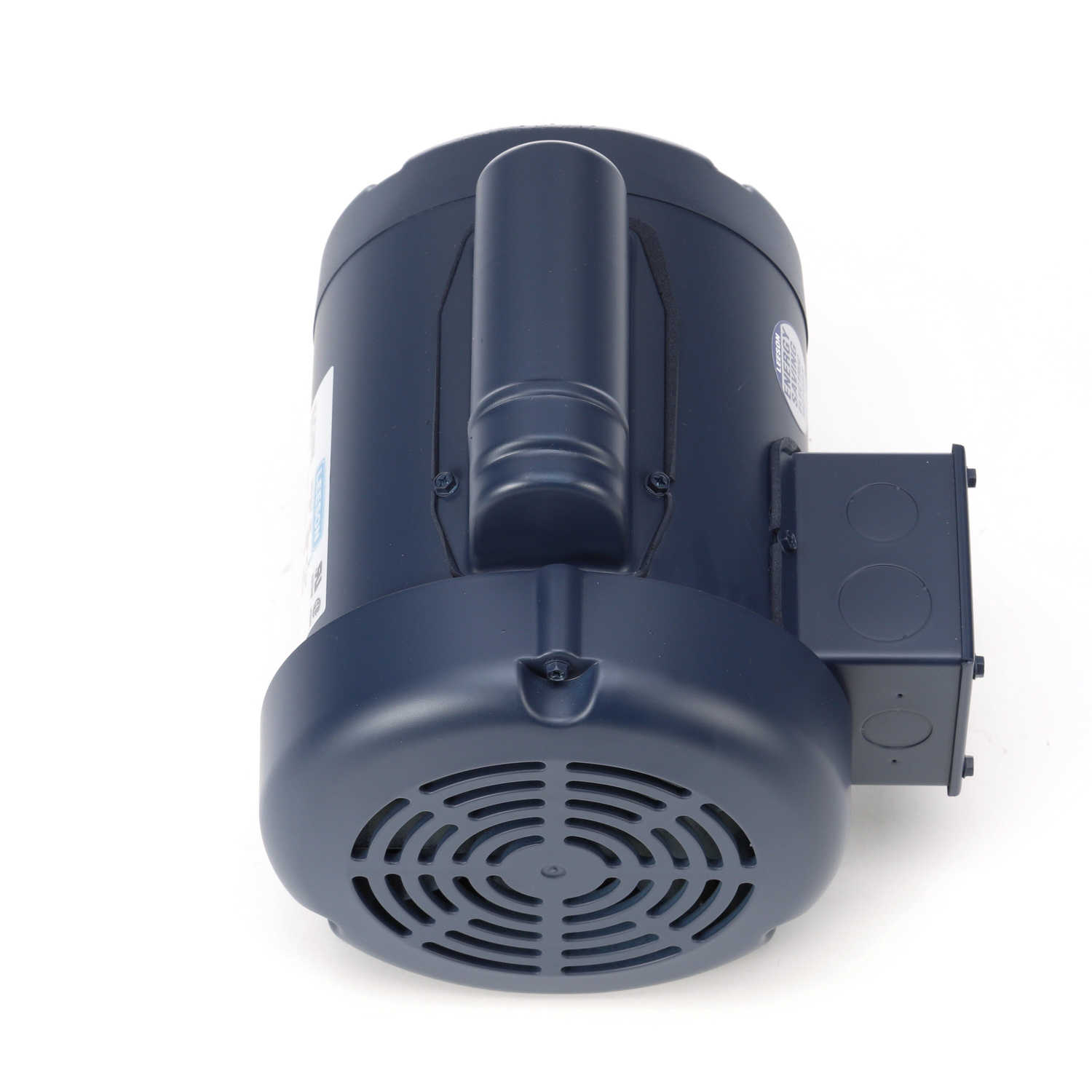

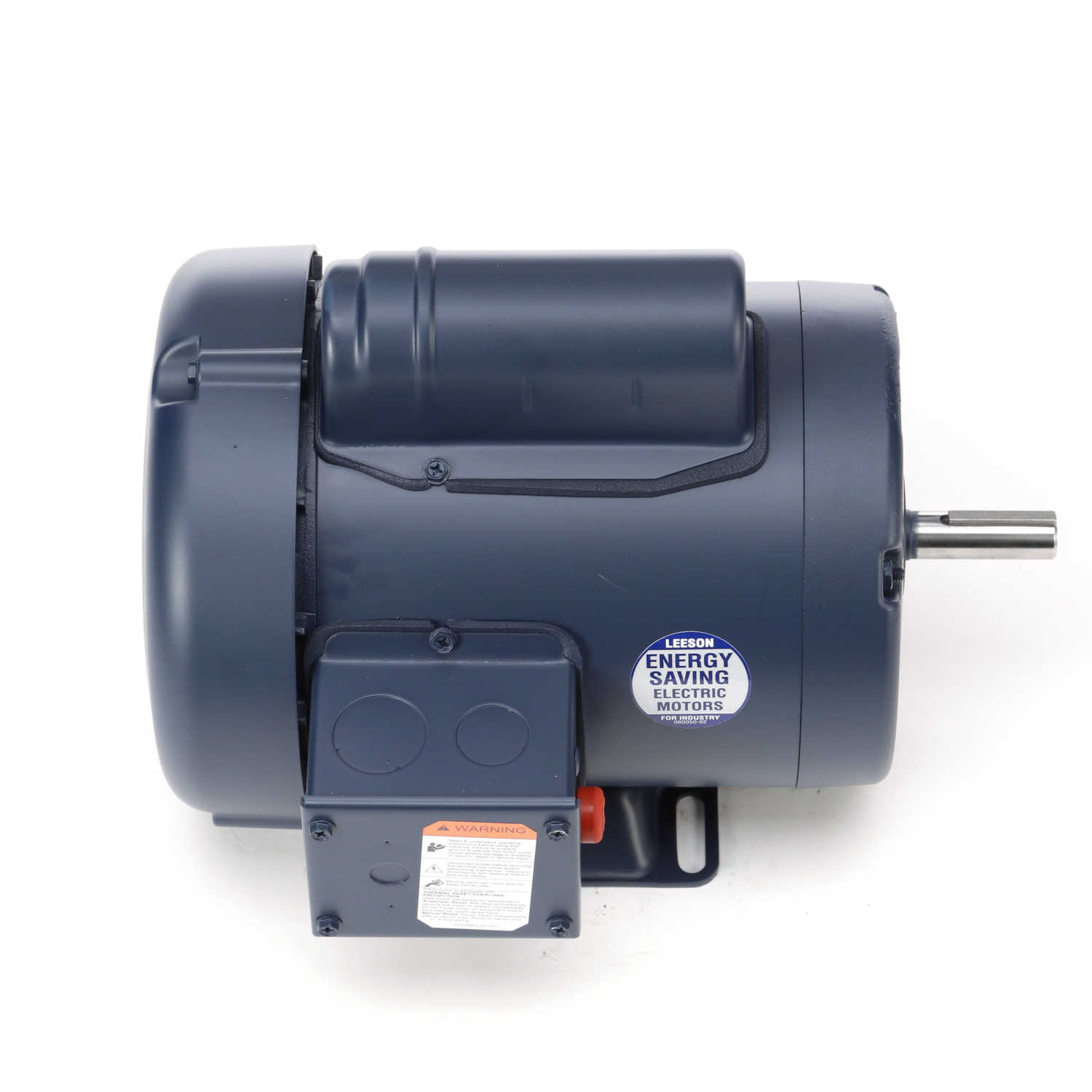

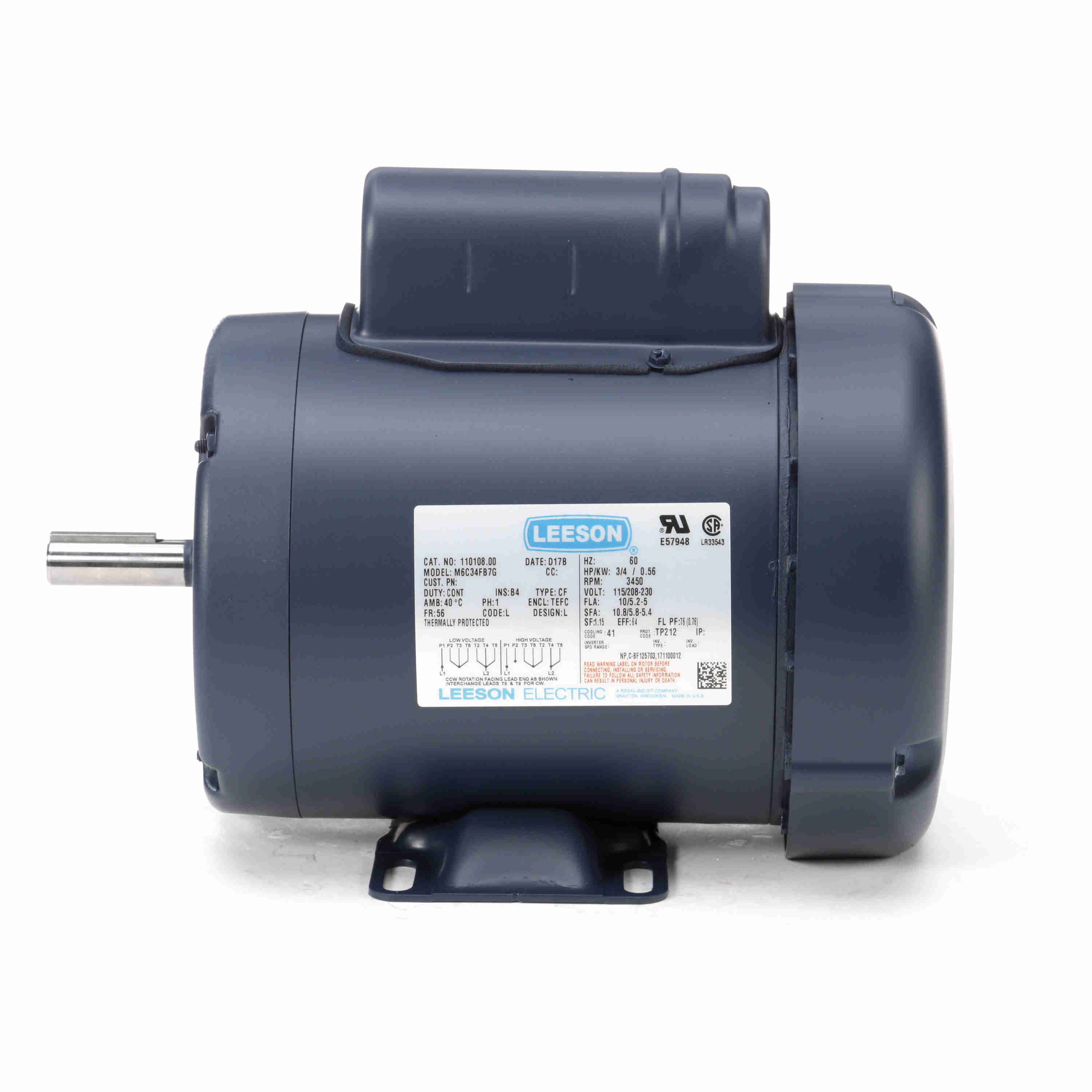

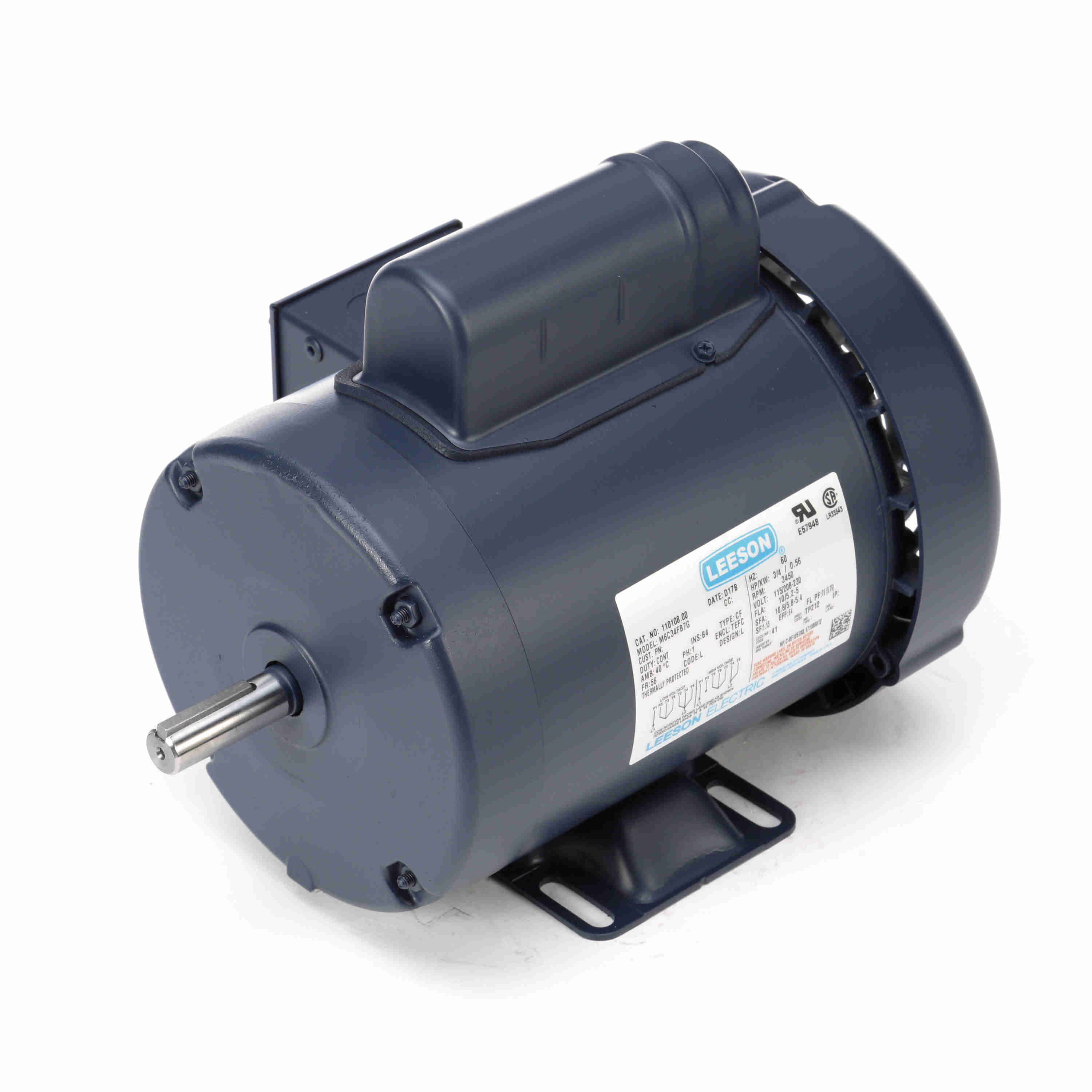

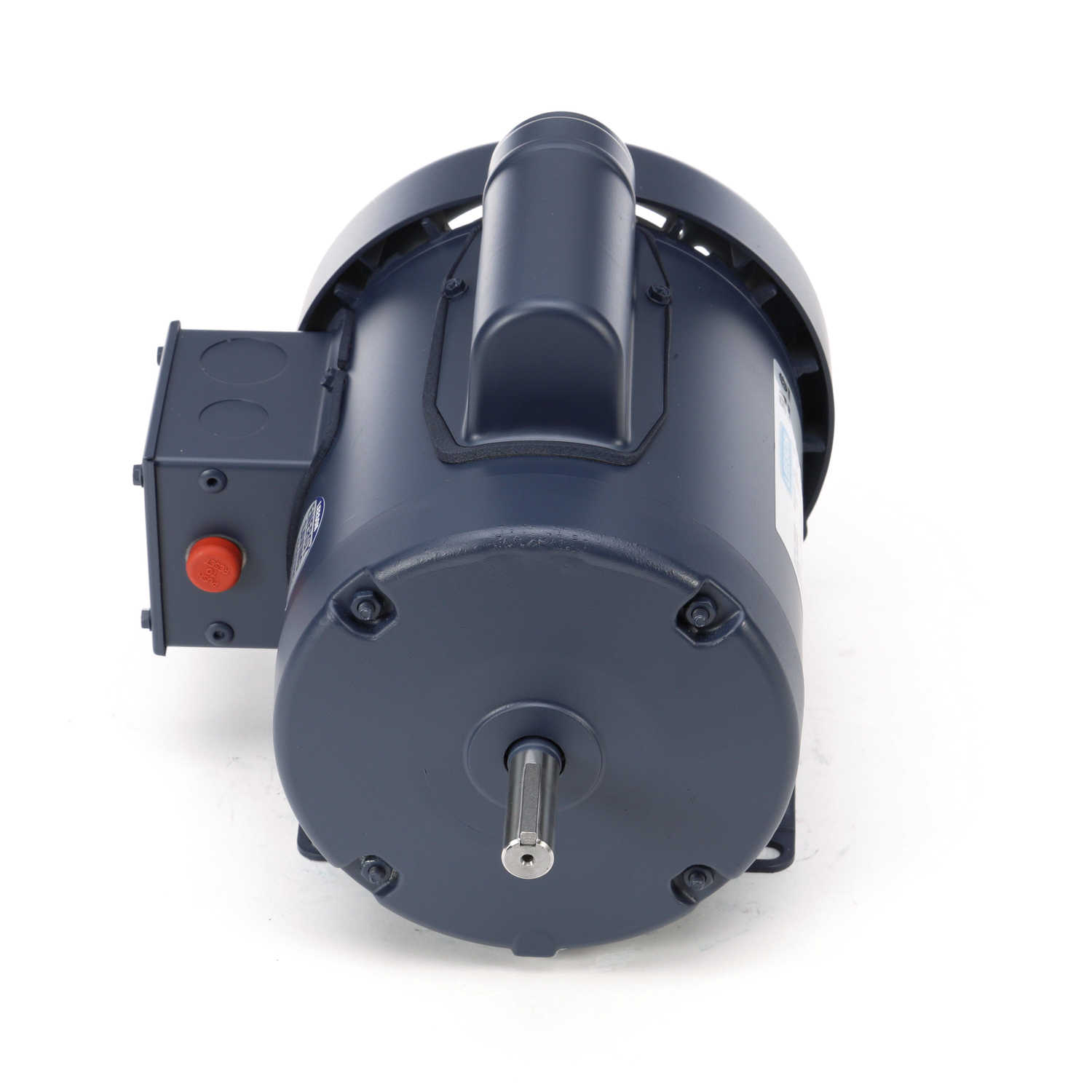

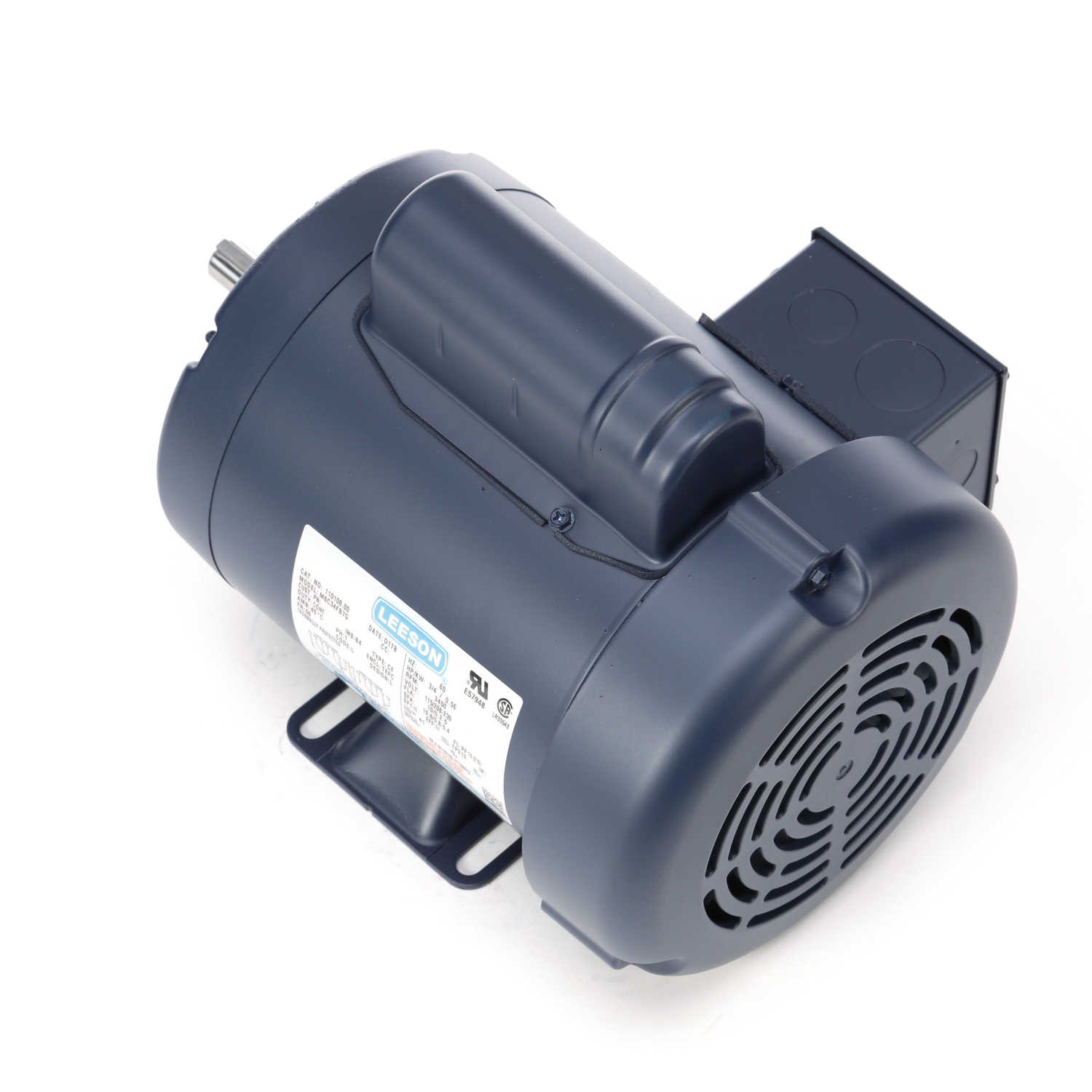

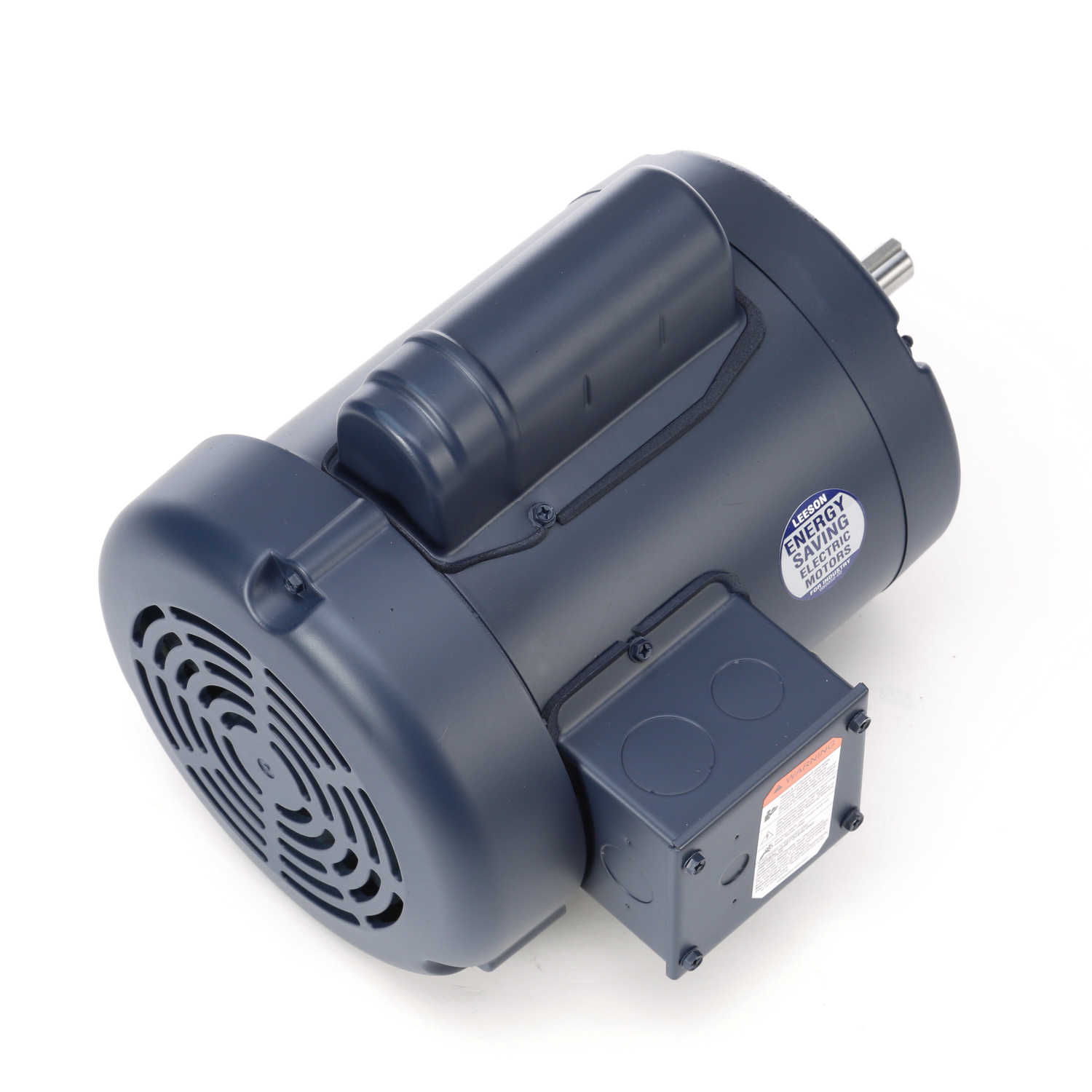

110108.00 Leeson 3/4HP General Purpose Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110108.00

Selected accessories will also be added to cart
$443.23 / Each
Quantity:
TEFC, 56 Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors
  • Fully gasketed

General Specifications

UPC: 691720007853 Weight: 29.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 10.0/5.2-5.0 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 64 % Power Factor: 76
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: L
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 2.4 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.48 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 45.00 250.0 2,700 0.75
Full Load 5.00 18.00 100.0 3,478 0.75
Break-Down 0.00 48.00 267.0 3,000 0.75
Locked-Rotor 30.00 64.00 356.0 0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 2.93 3.33 3.73 4.27 4.95 5.68 6.63
Rated Output (KW) 0.16 0.38 0.56 0.72 0.87 1.07 1.29
Efficiency (%) 0.0 37.5 50.3 58.6 64.0 64.2 63.3
Power Factor (%) 23.7 49.6 65.4 73.0 76.3 81.9 84.3
Speed (RPM) 3,598 3,569 3,530 3,502 3,478 3,437 3,395
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 70.0 0.0
Torque (ft-lbs) 0.00 4.50 9.00 13.50 18.00 22.50 27.00
