/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/110009.00 Leeson 1/3HP General Purpose Electric Motor, 1200RPM
Click Image to Expand

Product ID: 110009.00

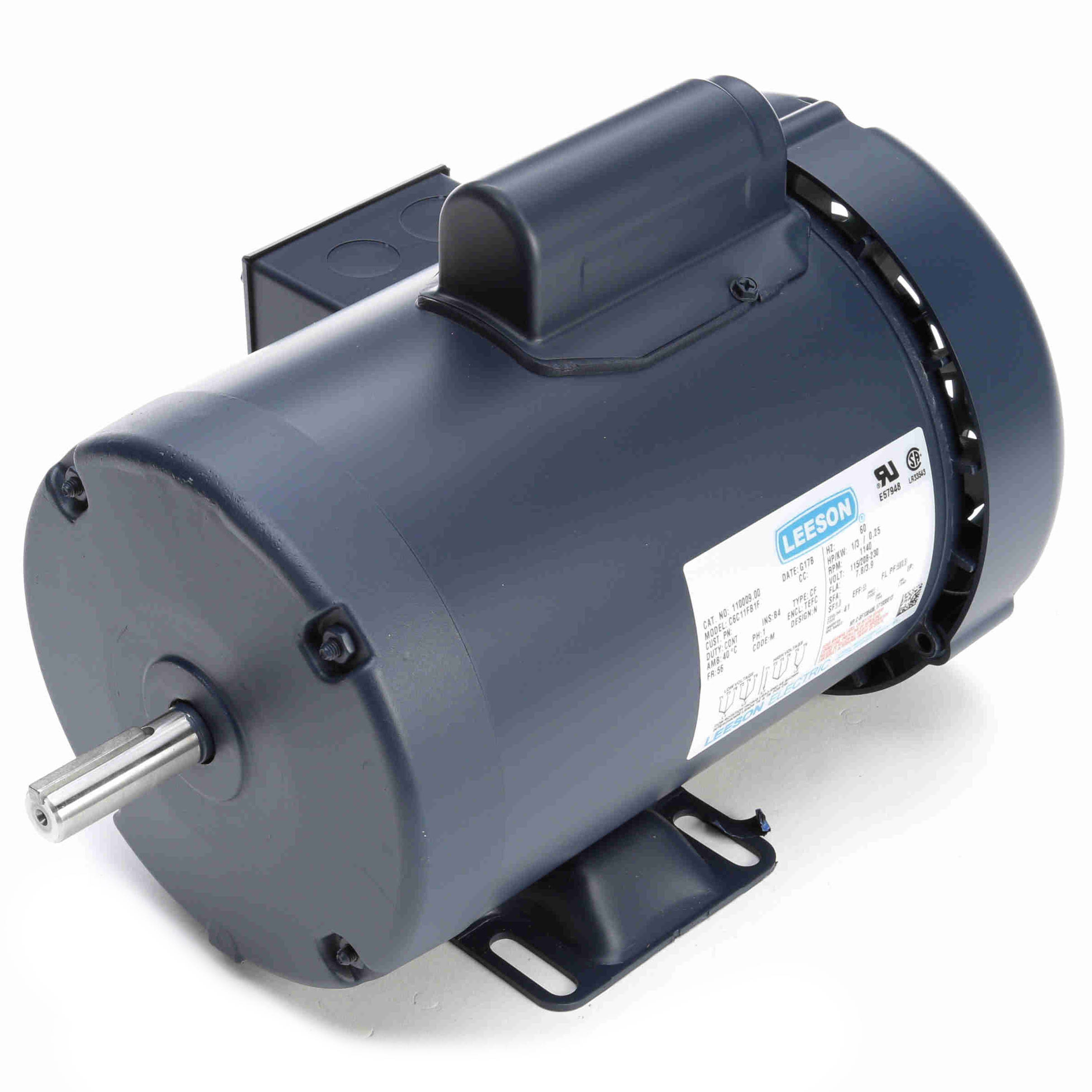

110009.00 Leeson 1/3HP General Purpose Electric Motor, 1200RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110009.00

Selected accessories will also be added to cart
$629.97 / Each
Quantity:
TEFC, 56 Frame, 115/208-230VAC 60Hz Single Phase, C6C11FB1F, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720007280 Weight: 31.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 7.8/3.6-3.9 A Speed: 1140 rpm
Service Factor: 1 Phase: 1
Efficiency: 57.7 % Power Factor: 50
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: M
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 4.8 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.48 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 7.80 24.00 100.0 1,171 0.33
Pull-Up 0.00 48.00 200.0 850 0.33
Locked-Rotor 16.00 88.00 367.0 0 0.33
Break-Down 0.00 60.00 250.0 1,050 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 3.30 3.43 3.52 3.64 3.84 4.11 4.46
Rated Output (KW) 0.17 0.21 0.27 0.35 0.43 0.52 0.61
Efficiency (%) 0.0 30.5 46.1 54.3 58.0 60.0 60.2
Power Factor (%) 22.4 26.4 33.8 41.4 48.7 54.7 59.8
Speed (RPM) 1,198 1,190 1,185 1,179 1,171 1,164 1,155
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 30.00 36.00
