/Products/Electric Motors/DC/Leeson/Low Voltage/109102.00 Leeson 1HP Low Voltage DC Electric Motor, 1800RPM
Click Image to Expand

Product ID: 109102.00

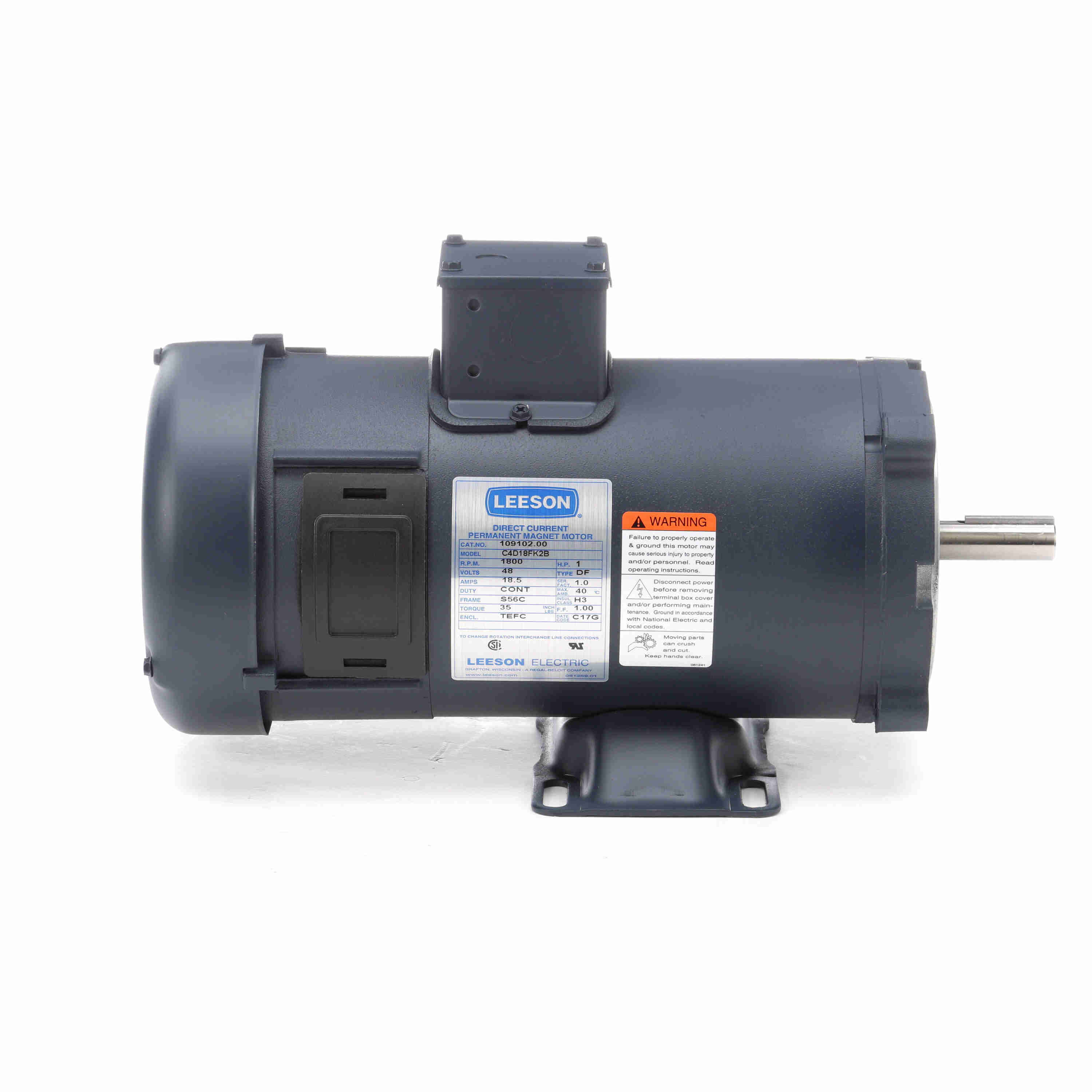

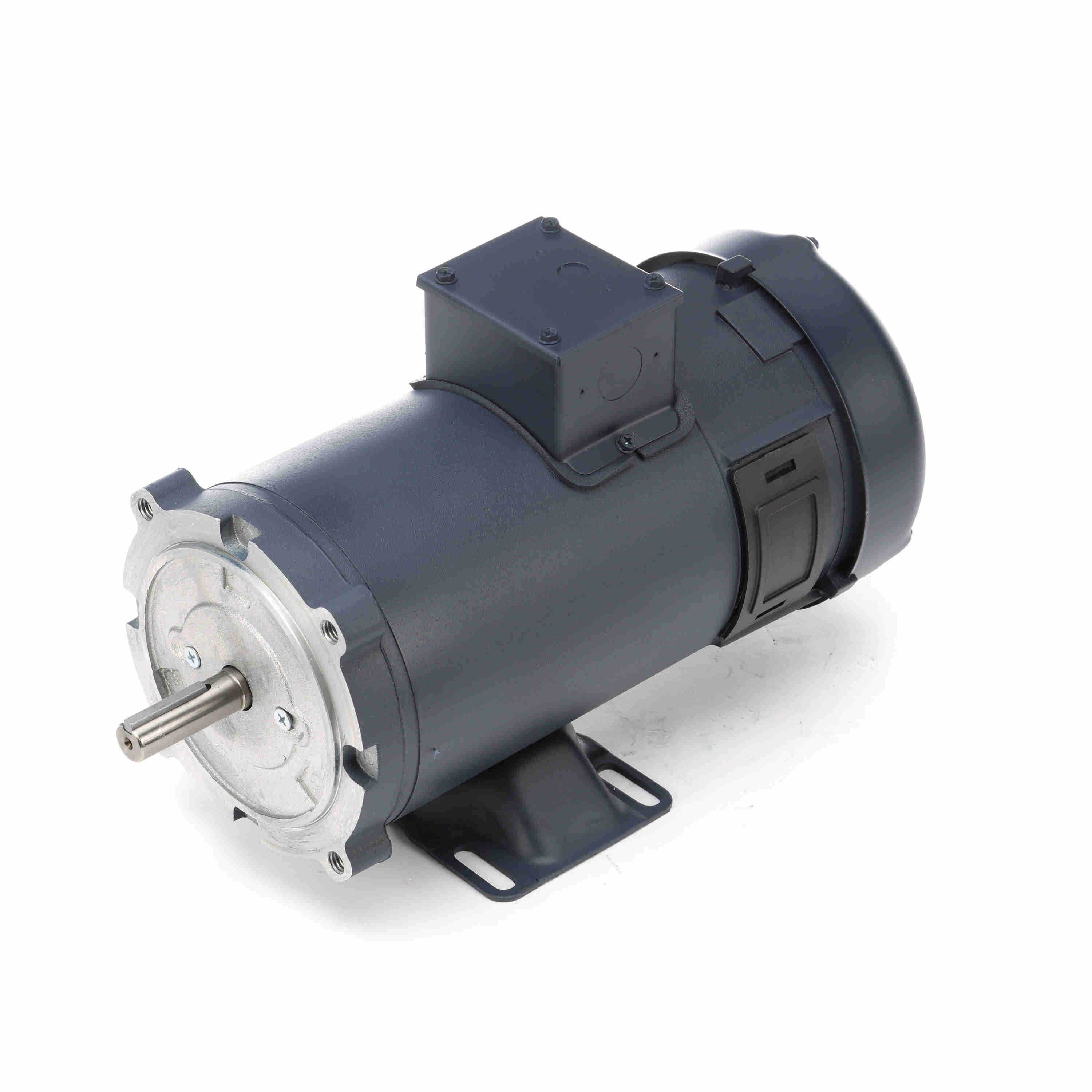

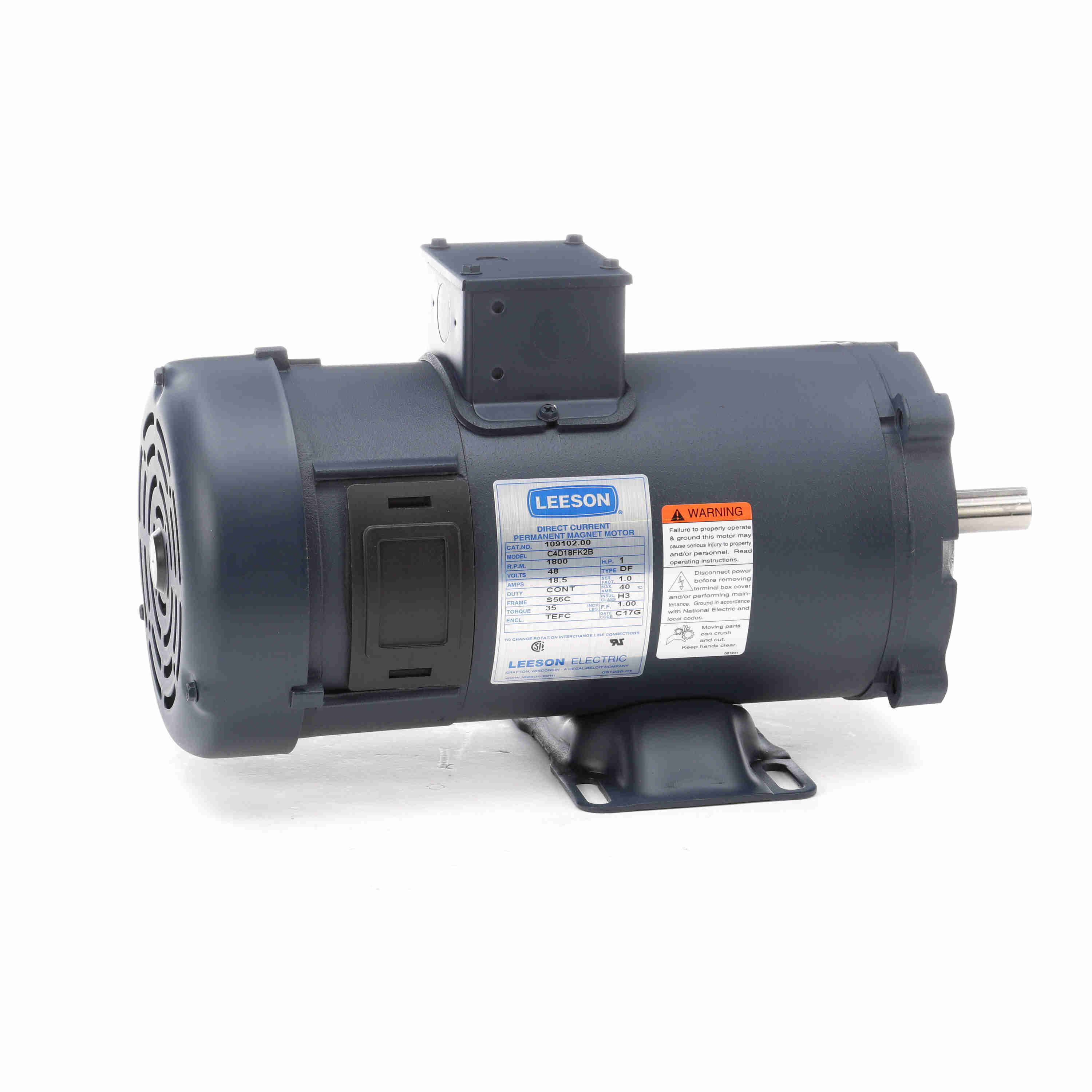

109102.00 Leeson 1HP Low Voltage DC Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 109102.00

Selected accessories will also be added to cart
$889.97 / Each
Quantity:
TEFC, S56C Frame, 48VDC, C4D18FK2D, C-Face, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
  • Heavy-duty, stamped steel, bolt on base (Removable)
  • NEMA C face mounting flange at no additional cost; High strength rolled steel frame
  • Rugged die cast end shields with steel bearing inserts
  • Permanently lubricated sealed ball bearings
  • High starting torques for heavy load applications
  • Linear speed torque characteristics throughout the speed range
  • Capable of dynamic braking for faster stops
  • Reversible rotation; Simple two lead connection

General Specifications

General Specifications
C4D18FK2D 109102.00
..1HP..1800RPM.S56C.TEFC.48V...CONT.40C.1.0SF.RIGID C.C4D18FK2.....DC NEMA LOW VOLTAGE........ Low Voltage
No

Nameplate Specifications

Nameplate Specifications
1 HP 0.75 kW
48 V 18.5 A
1800 RPM 1
82 % Continuous
H S56C
Totally Enclosed Fan Cooled No
40 °C 6203
6203
Recognized
Y N

Technical Specifications

Technical Specifications
Reversible Rigid C base
13.82 in 6.47 in
0.625 in 2.06 in
691720347447 37.00 LB

Speed & Load Characteristics
