/Products/Electric Motors/DC/Leeson/NEMA Frame - SCR Rated/109097.00 Leeson 1HP DC Electric Motor, 1750 RPM

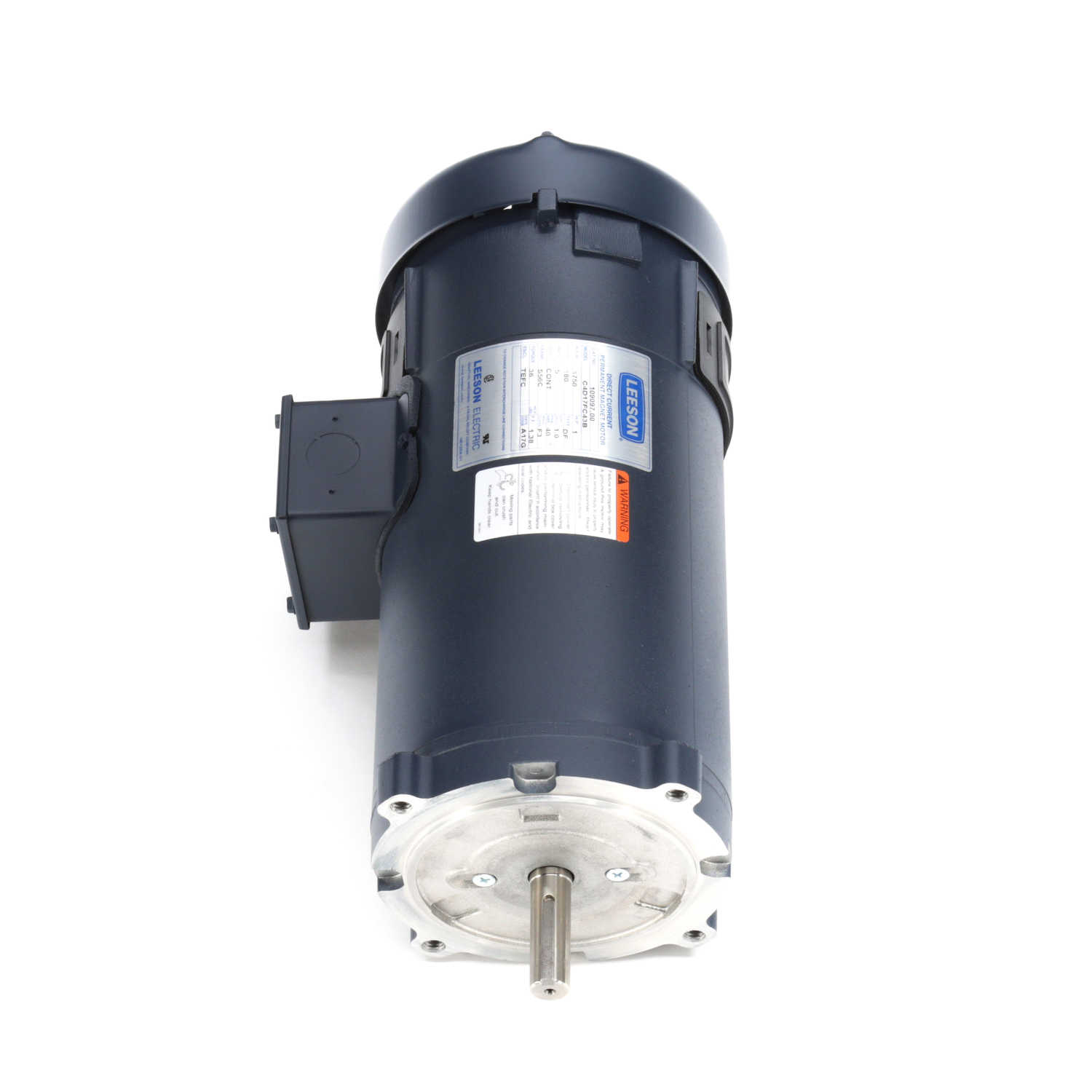

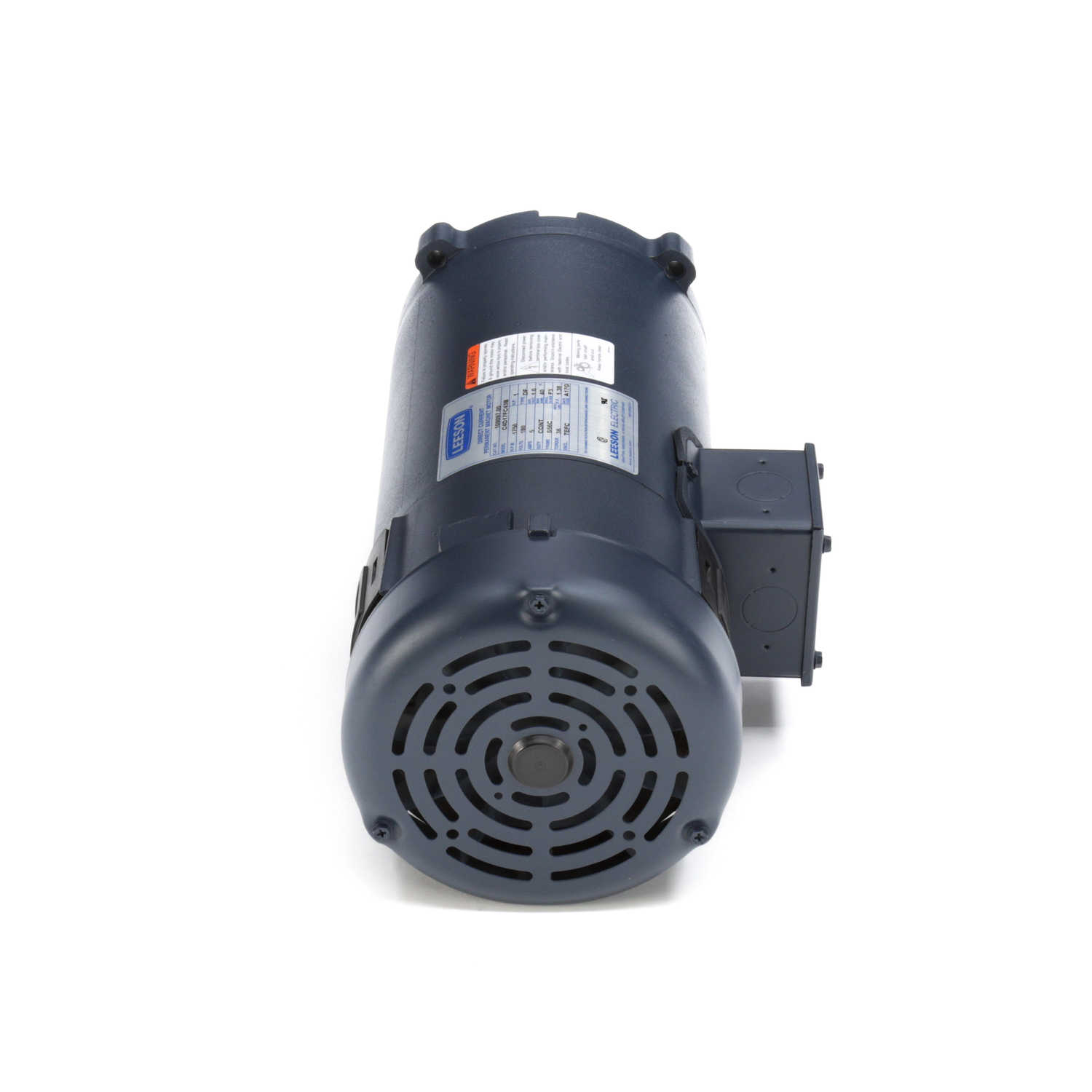

Click Image to Expand

Product ID: 109097.00

109097.00 Leeson 1HP DC Electric Motor, 1750 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 109097.00

Selected accessories will also be added to cart
$969.97 / Each
Quantity:
TEFC, S56C Frame, 180VDC, C4D17FC43C, C-Face Less Base

Features

Features
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable bolt-on base; NEMA C face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
  • PWM or SCR type controller rated; High starting torque
  • Permanently lubricated sealed bearings
  • LEESON SCR controls available to power motors; High starting torque
  • Higher HP and speed achievable using PWM type DC controls
  • UL and CSA Listed; Meets NEMA MG1 standards
  • Dynamically balanced armatures; 30:1 constant torque operation

General Specifications

General Specifications
Model :C4D17FC43C Catalog No :109097.00
Part Description :..1HP..1750RPM.S56C.TEFC.180V...CONT.40C.1.0SF.C FACE.C4D17FC43.....DC NEMA........ Category :SCR
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Voltage :180 V Current :5.0 A
Speed :1750 rpm Service Factor :1
Efficiency :85 % Duty :Continuous
Insulation Class :F Frame :S56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Round
Overall Length :14.82 in Frame Length :7.47 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
UPC :691720347317 Weight :39.00 LB
