/Products/Electric Motors/3 Phase/Leeson/Parallel Shaft Gearmotors/P1100 Series/107031.00 Leeson 1/3HP Parallel Shaft AC Gearmotor, 288RPM
Click Image to Expand

Product ID: 107031.00

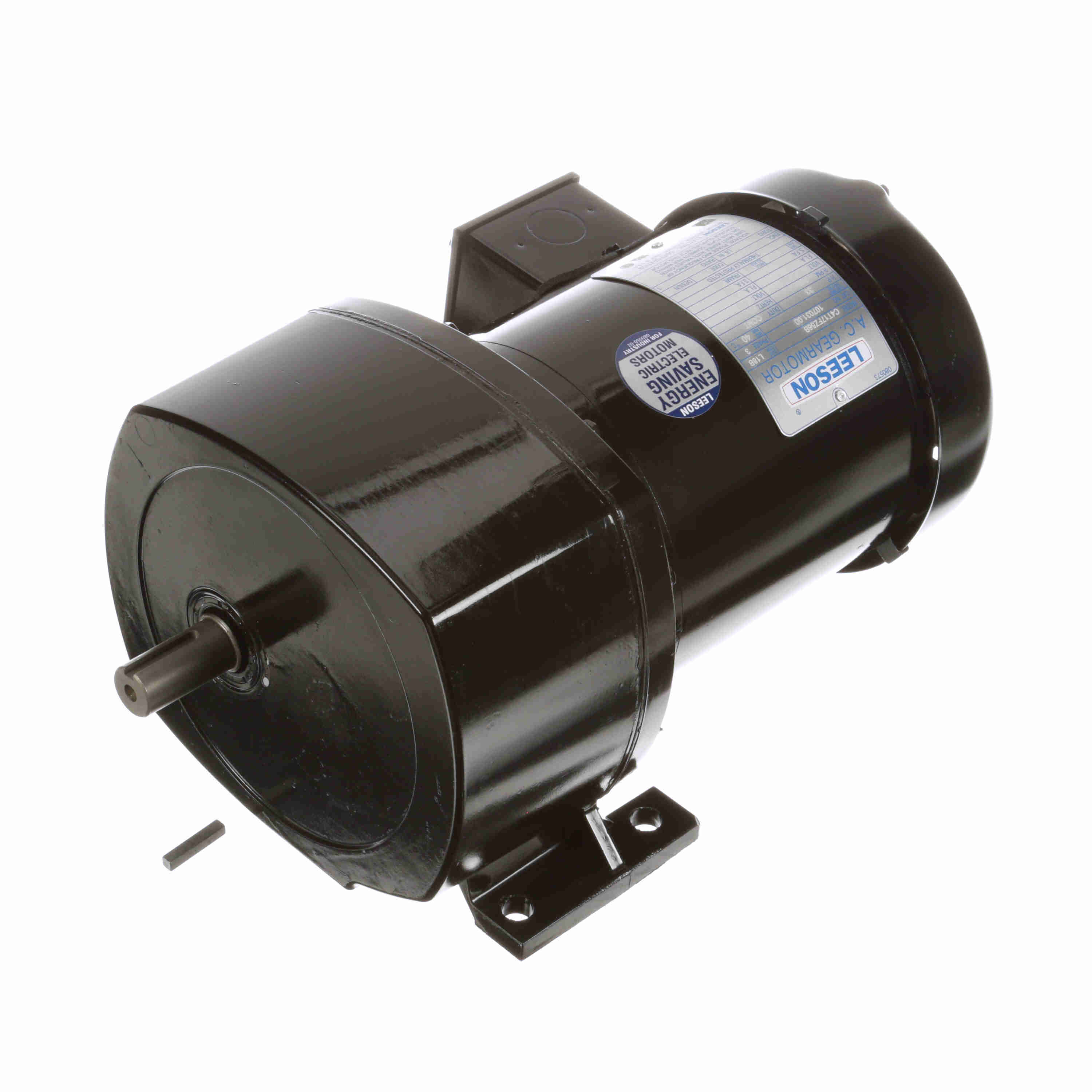

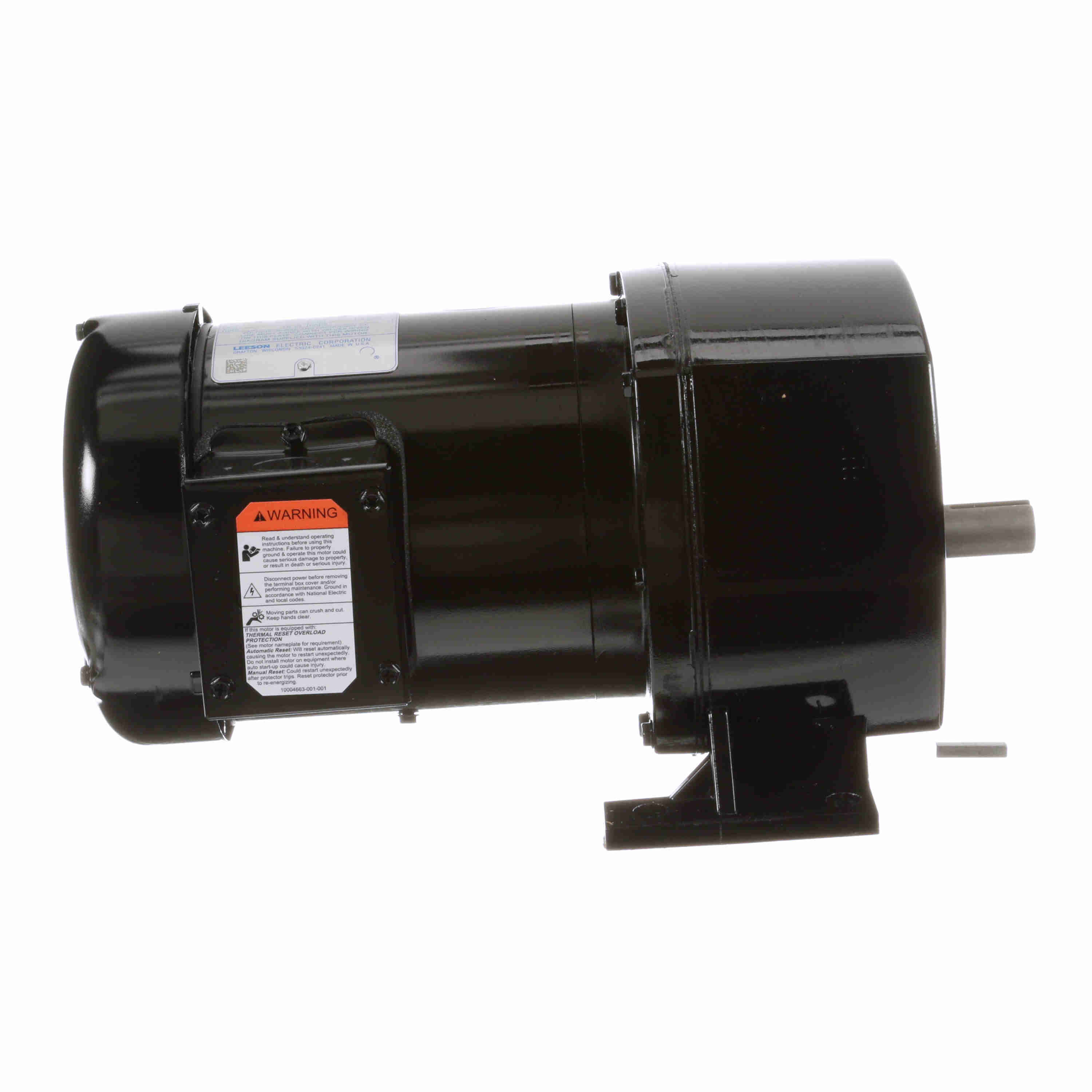

107031.00 Leeson 1/3HP Parallel Shaft AC Gearmotor, 288RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 107031.00

Selected accessories will also be added to cart
$1,027.03 / Each
Quantity:
TEFC, 48Y Frame, 208-230/460VAC 60Hz 3-Phase, P1100 Series, 3/4" Keyed Shaft

Features

  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Conduit box included as standard

General Specifications

UPC: 691720006528 Weight: 30.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.6/0.80 A Speed: 288 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
KVA Code: L Frame: 48Y
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Y CE: N

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 12.92 in
Frame Length: 5.00 in Shaft Diameter: 0.750 in
Shaft Extension: 1.5 in
