/Products/Electric Motors/3 Phase/Leeson/Parallel Shaft Gearmotors/P1100 Series/107026.00 Leeson 1/3HP Parallel Shaft AC Gearmotor, 26 RPM
Click Image to Expand

Product ID: 107026.00

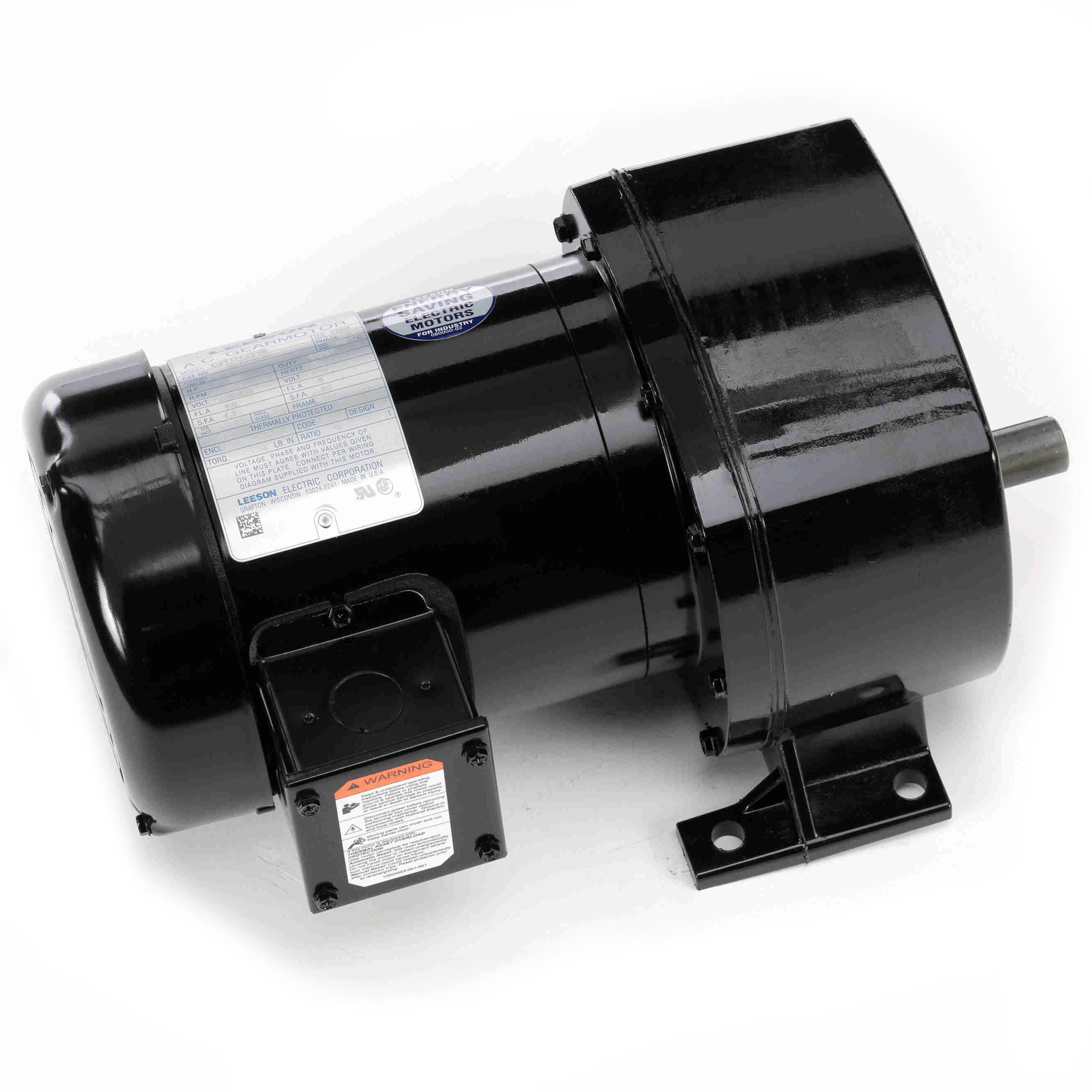

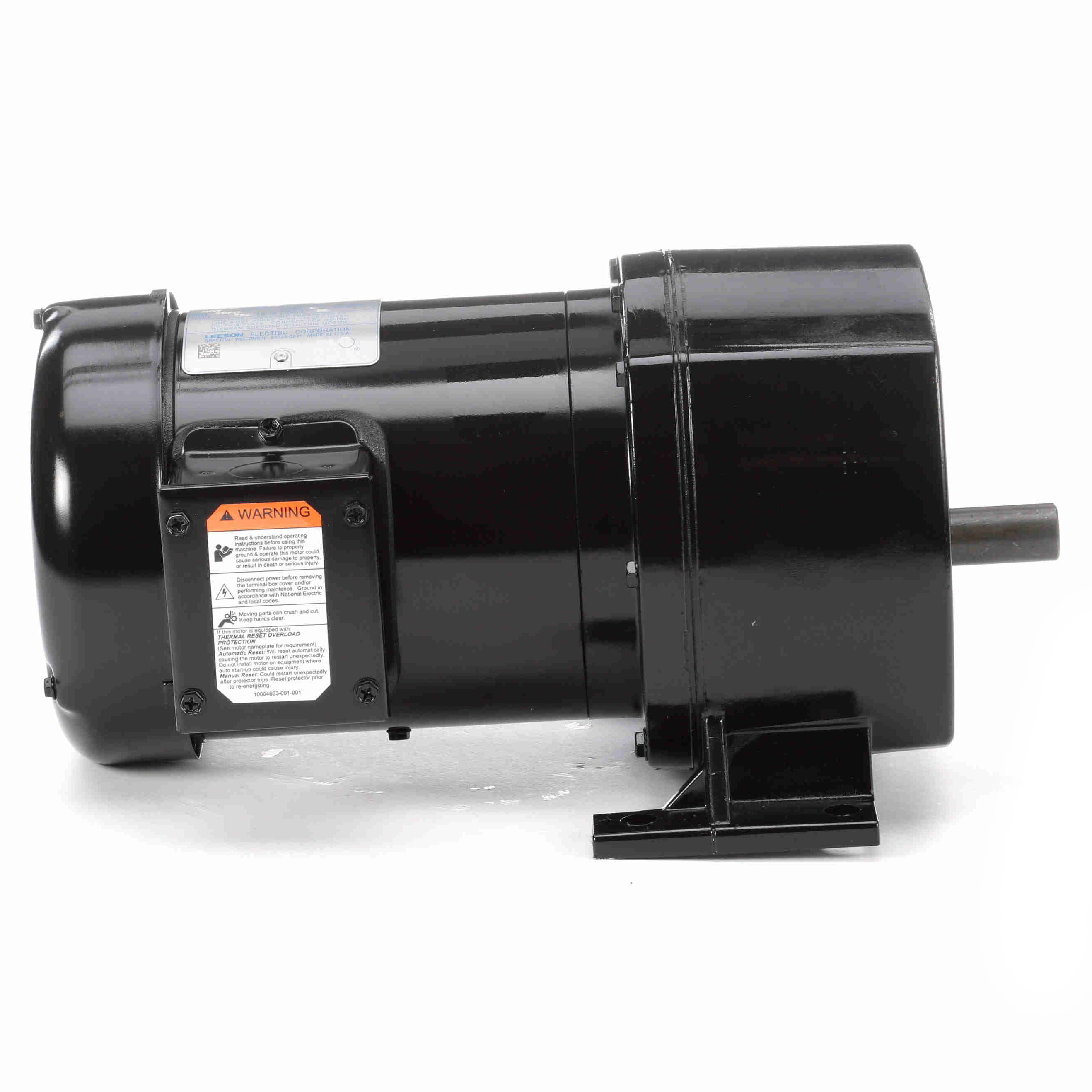

107026.00 Leeson 1/3HP Parallel Shaft AC Gearmotor, 26 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 107026.00

Selected accessories will also be added to cart
$1,089.61 / Each
Quantity:
TEFC, 48Y Frame, 208-230/460VAC 3-Phase 60Hz, C4T17FZ53B, P1100 Series, 3/4" Keyed Shaft

Features

Features
  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Conduit box included as standard

General Specifications

General Specifications
Model : C4T17FZ53B Catalog No : 107026.00
Part Description : P1100...66:1.26RPM.752LBIN..33HP.48Y...AC GEARMOTORS FHP.208-230/460V.3PH.60HZ.TEFC.C4T17FZ53B Category : P1100 Series
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 1.6/0.80 A Speed : 26 RPM
Service Factor : 1.15 Phase : 3
Duty : Continuous Insulation Class : F
KVA Code : L Frame : 48Y
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N

Technical Specifications

Technical Specifications
Rotation : Reversible Mounting : Special
Shaft Type : Parallel Overall Length : 12.92 in
Frame Length : 5.00 in Shaft Diameter : 0.750 in
Shaft Extension : 1.5 in UPC : 691720006474
Weight : 24.00 LB

Speed & Load Characteristics
