Product ID: 107002.00

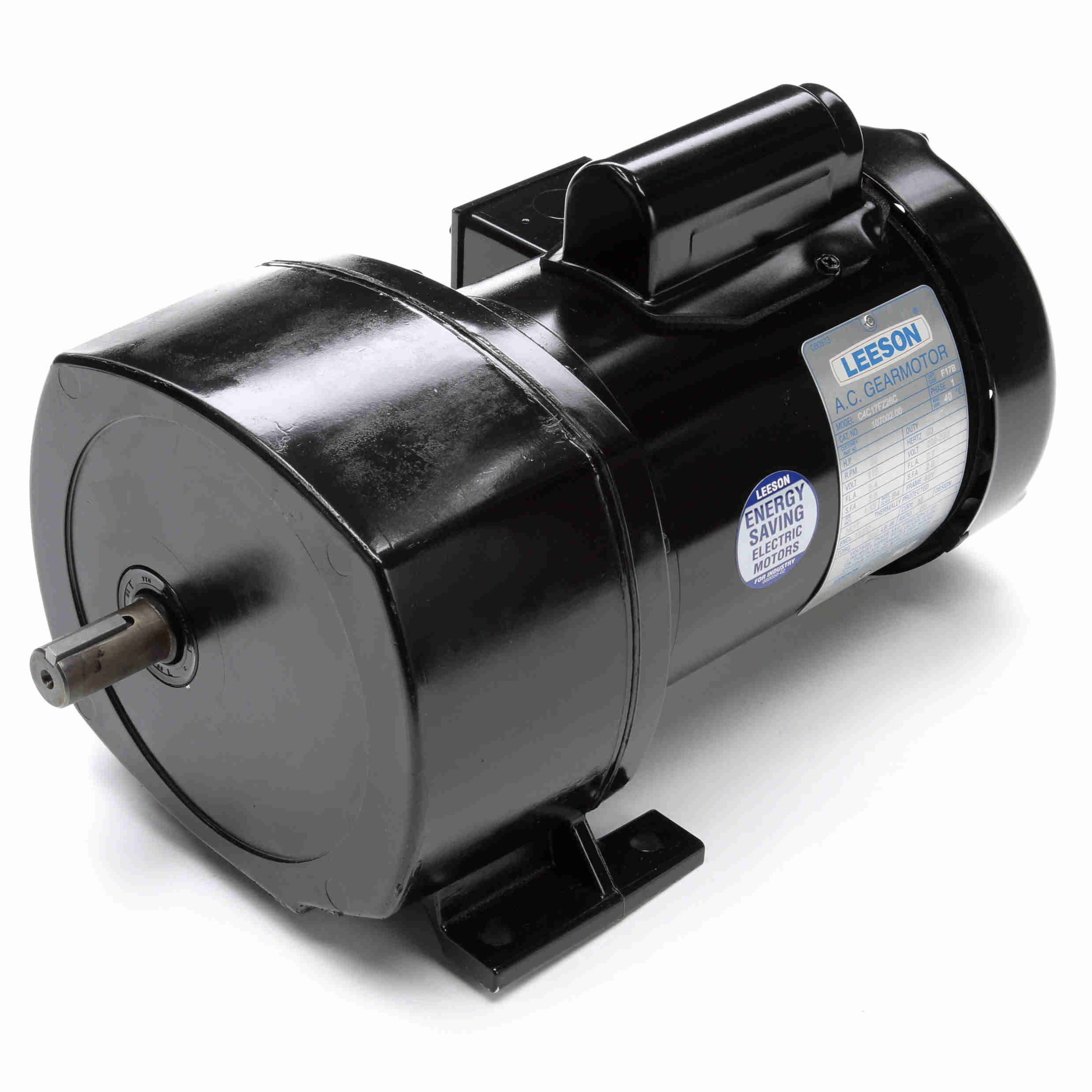

107002.00 Leeson 1/4HP Parallel Shaft AC Gearmotor, 26 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 107002.00

Selected accessories will also be added to cart

$1,013.69 / Each

Quantity:

TEFC, 48Y Frame, 115/208-230VAC Single Phase 60Hz, 3/4" Shaft, Reversible

Details
Purchase Components

Features

Capacitor start designs rated for 115/230VAC 60 HZ input
Rugged die cast aluminum gear housing for maximum gear and bearing support
Precision machined gearing, hardened for maximum load capability
All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
Oversized output bearings for greater overhung load capacity and long life
High carbon alloy output shaft provides maximum strength and rigidity
All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
Heavy duty industrial oil seals keep lubricant in and dirt out
Gears and bearings are splash lubricated with permanent, heavy duty gear oil
Conduit box included as standard

General Specifications

UPC:	691720006306	Weight:	34.00 LB
Packaged Length:	19.5 IN	Packaged Width:	10.44 IN
Packaged Height:	10.88 IN

Nameplate Specifications

Output HP:	0.25 Hp	Output KW:	0.19 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	5.4/2.7 A	Speed:	26 rpm
Service Factor:	1.15	Phase:	1
Duty:	Continuous	Insulation Class:	B
KVA Code:	M	Frame:	48Y
Enclosure:	Totally Enclosed Fan Cooled	Thermal Protection:	No
Ambient Temperature:	40 °C	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Y	CE:	N

Technical Specifications

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	13.42 in
Frame Length:	5.50 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.5 in
