/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/102013.00 Leeson 0.17HP General Purpose Electric Motor, 1200RPM
Click Image to Expand

Product ID: 102013.00

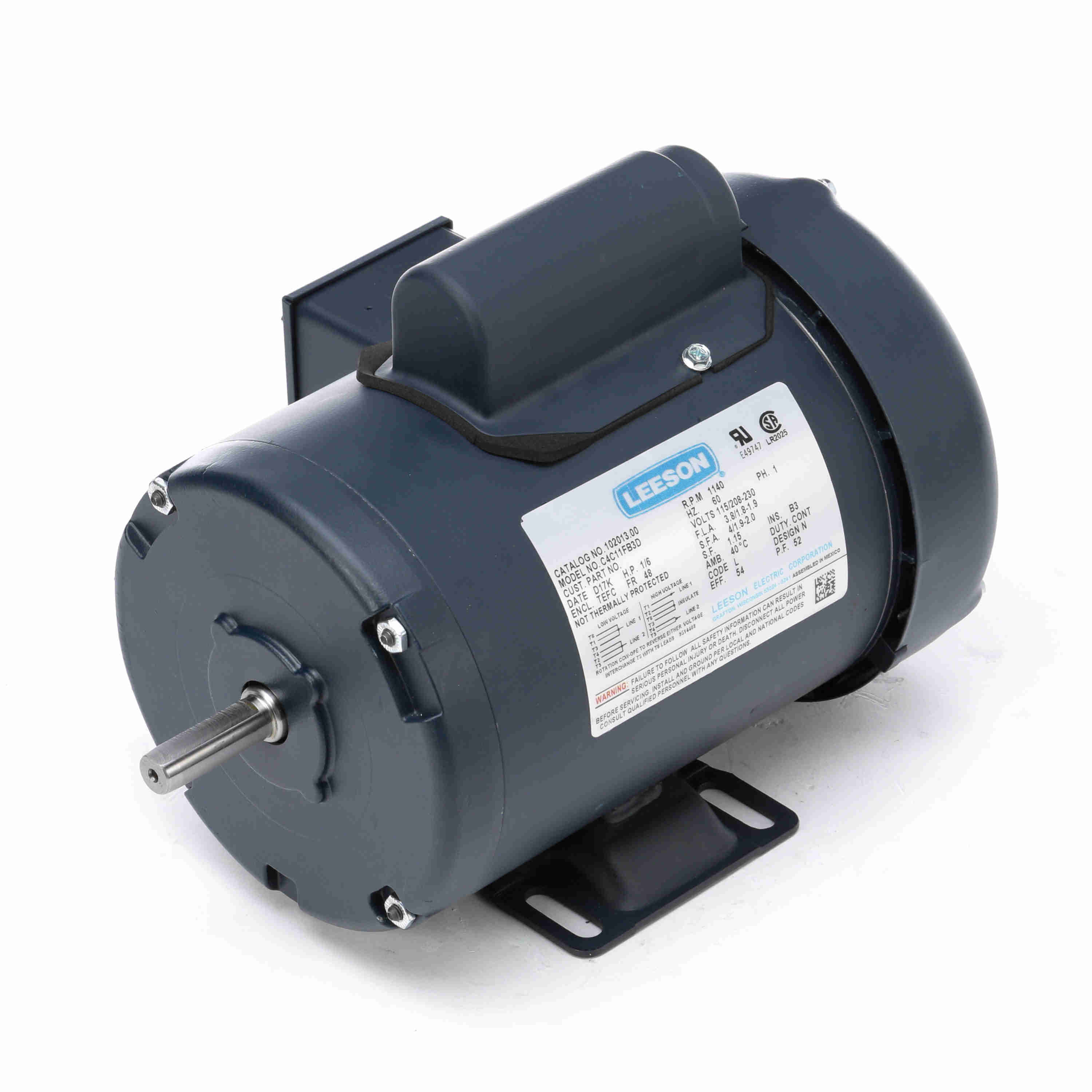

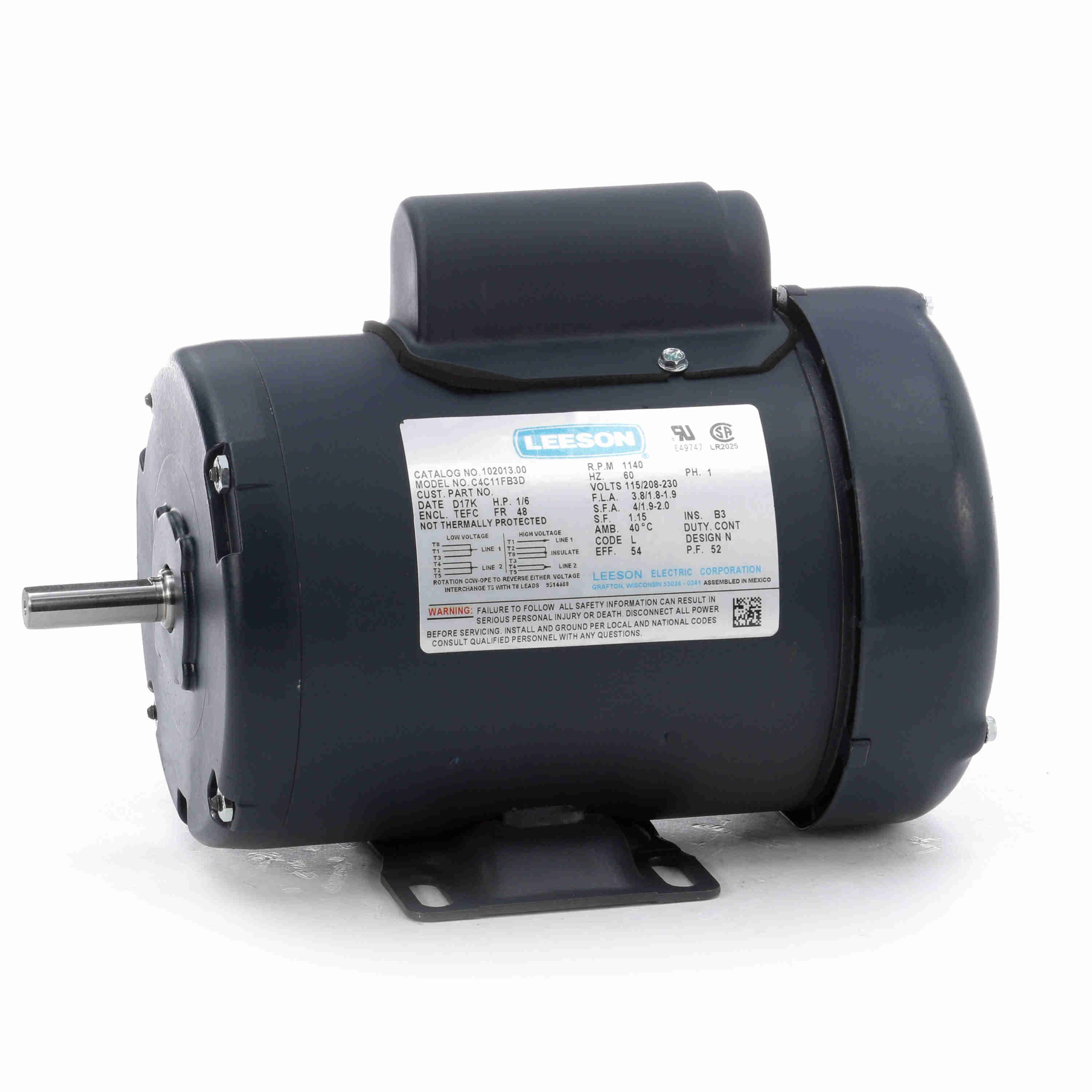

102013.00 Leeson 0.17HP General Purpose Electric Motor, 1200RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 102013.00

Selected accessories will also be added to cart
$479.97 / Each
Quantity:
TEFC, 48 Frame, 115/208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1/2" Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720006115 Weight: 20.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.17 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 3.8/1.8-1.9 A Speed: 1140 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 54 % Power Factor: 52
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: 48 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 2.61 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 10.31 in
Frame Length: 6.00 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 7.00 38.80 318.0 0 0.17
Pull-Up 0.00 25.40 208.0 0 0.17
Full Load 1.90 12.20 100.0 1,157 0.17
Break-Down 0.00 32.80 269.0 0 0.17

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.73 1.74 1.77 1.83 1.90 2.00 2.03 2.17
Rated Output (KW) 0.09 0.12 0.16 0.19 0.23 0.26 0.27 0.32
Efficiency (%) 0.0 26.6 41.0 49.4 54.3 55.9 57.3 58.2
Power Factor (%) 22.3 30.1 38.1 45.3 52.0 56.1 58.6 64.2
Speed (RPM) 1,196 1,185 1,177 1,167 1,157 1,150 1,145 1,132
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.2 0.0 0.0 0.0
Torque (ft-lbs) 0.00 3.05 6.10 9.10 12.15 14.10 15.44 18.65
