/Products/Electric Motors/Single Phase/Leeson/TEAO Rigid Base/101176.00 1/2HP Leeson Ag/Fan Duty Electric Motor

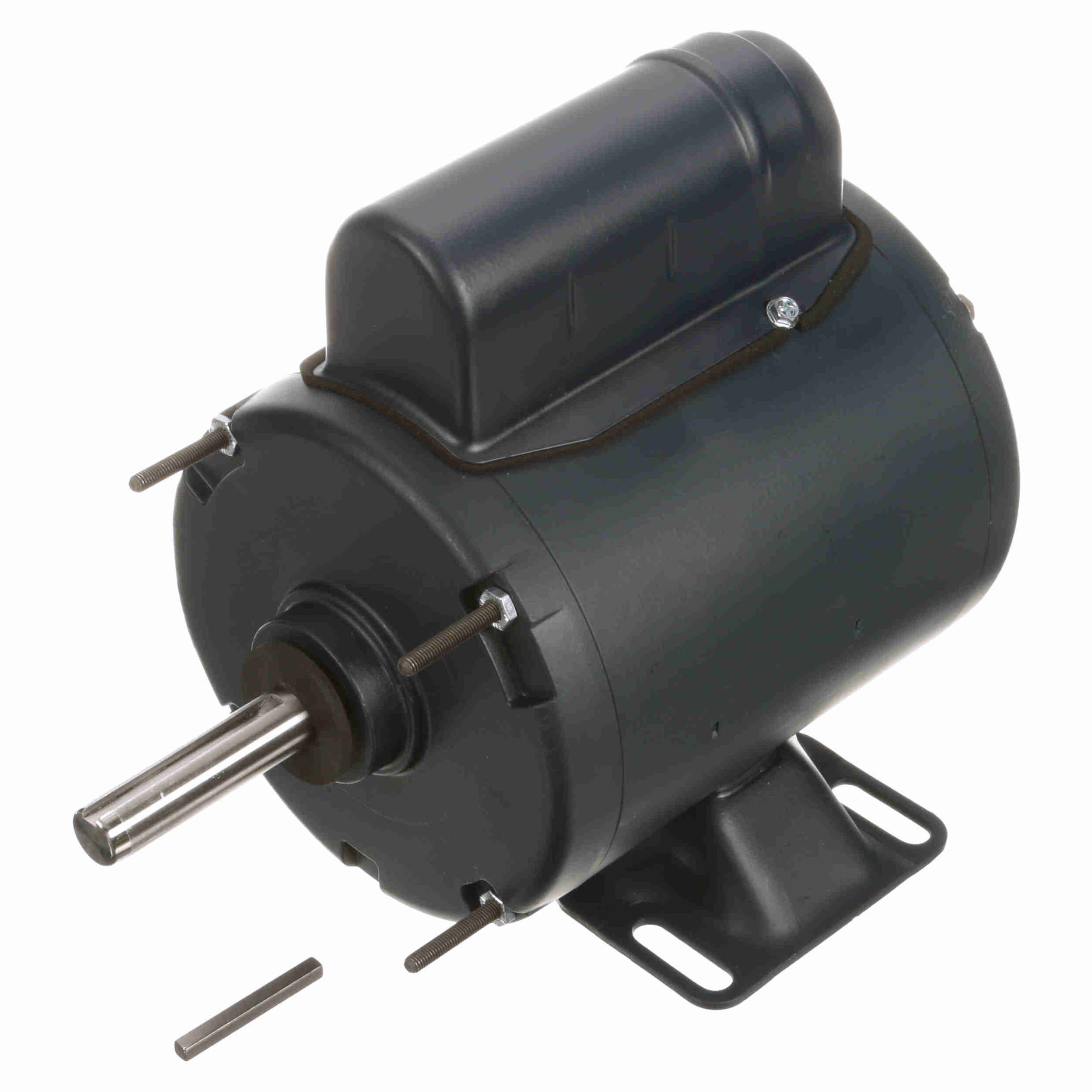

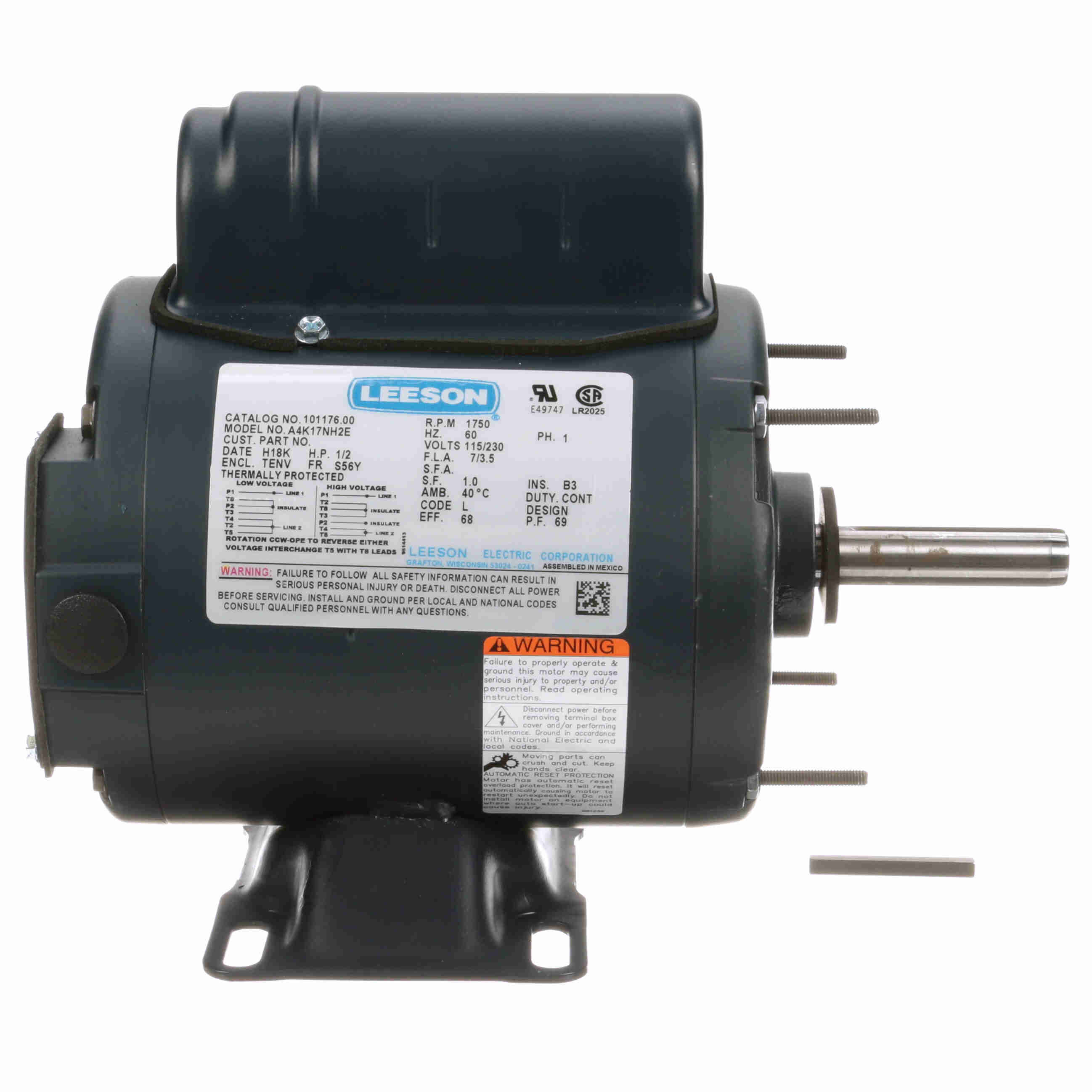

Click Image to Expand

Product ID: 101176.00

101176.00 1/2HP Leeson Ag/Fan Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4K17NH2

Selected accessories will also be added to cart
$344.28 / Each
Quantity:
TEAO, 1750RPM, S56Y Frame, 1Ph, 115/230V

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC: 691720005361 Weight: 18.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 7.0/3.5 A Speed: 1750 rpm
Service Factor: 1 Phase: 1
Efficiency: 68 % Power Factor: 69
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: L
Frame: S56Y Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 5.552 Ohms Mounting: Rigid - Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.40 in
Frame Length: 5.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.5 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 26.10 107.0 0 0.50
Locked-Rotor 20.20 27.60 114.0 0 0.50
Break-Down 0.00 50.80 209.0 0 0.50
Full Load 3.50 24.30 100.0 1,736 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 120 % 125 % 150 %
Current (Amps) 2.46 2.52 2.72 3.03 3.50 4.00 4.06 4.84
Rated Output (KW) 0.11 0.21 0.31 0.43 0.55 0.67 0.70 0.88
Efficiency (%) 0.0 45.4 60.0 65.8 68.0 67.1 66.9 63.9
Power Factor (%) 20.1 35.5 49.9 61.1 69.0 73.6 74.7 78.7
Speed (RPM) 1,796 1,784 1,770 1,754 1,736 1,715 1,712 1,682
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 5.90 11.90 18.00 24.30 29.40 30.70 37.50
