/Products/Electric Motors/Single Phase/Leeson/Auger/101159.00 1/3HP Leeson Feed-Auger Drive Motor
Click Image to Expand

Product ID: 101159.00

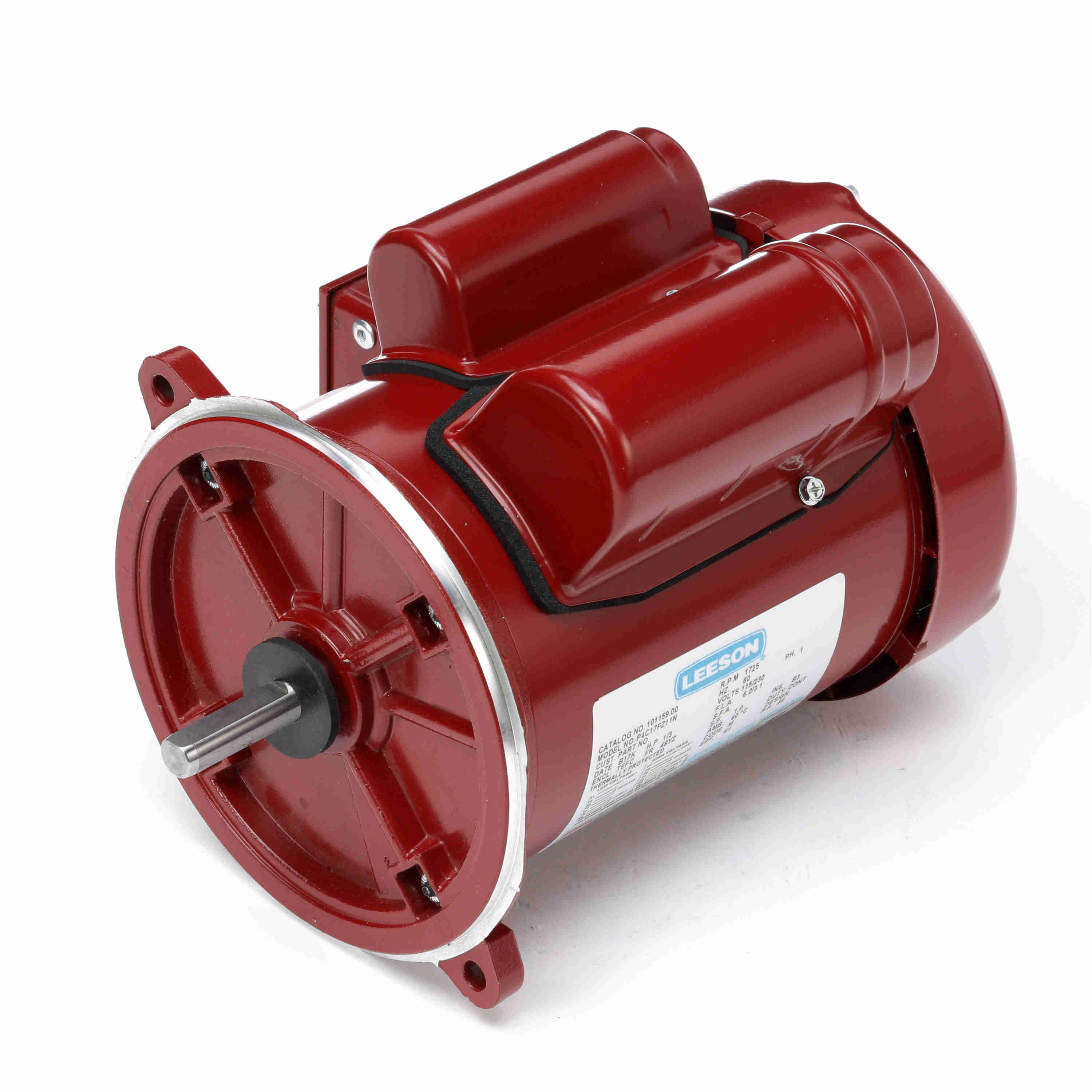

101159.00 1/3HP Leeson Feed-Auger Drive Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P4C17FZ11

Selected accessories will also be added to cart
$314.86 / Each
Quantity:
TEFC, 1800RPM, 48YZ Frame, Single Phase, 115/230VAC

Features

Features
  • Choice of mechanical or solid state starting switch
  • Mechanical switch has over-speed protection
  • Manual overload protected

General Specifications

General Specifications
Model : P4C17FZ11N Catalog No : 101159.00
Part Description : 1/3HP..1725RPM.48.TEFC.115/230V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.SPECIAL.AG - FEED-AUGER.P4C17FZ11N Category : Auger Drive
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 6.2/3.1 A Speed : 1725 RPM
Service Factor : 1 Phase : 1
Efficiency : 61 % Duty : Continuous
Insulation Class : B Design Code : NO DESIGN CODE
KVA Code : M Frame : 48Y
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : No
CSA : N CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 48
Overall Length : 10.47 in Frame Length : 6.00 in
Shaft Diameter : 0.500 in Shaft Extension : 1.5 in
Assembly/Box Mounting : F1 ONLY UPC : 691720005354
Weight : 24.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 15.70 67.60 423.0 0 0.33
Full Load 6.20 16.00 100.0 1,756 0.33
Break-Down 0.00 48.80 305.0 0 0.33
Pull-Up 0.00 39.10 244.0 0 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.74
  • 0.129
  • 0.0
  • 20.5
  • 1,796
  • 0.0
  • 0.00
  • 25 %
  • 2.75
  • 0.189
  • 33.3
  • 29.9
  • 1,786
  • 0.0
  • 3.97
  • 50 %
  • 2.82
  • 0.256
  • 49.0
  • 39.5
  • 1,776
  • 0.0
  • 7.95
  • 75 %
  • 2.95
  • 0.327
  • 57.6
  • 48.2
  • 1,766
  • 0.0
  • 12.00
  • 100 %
  • 3.13
  • 0.402
  • 62.0
  • 55.8
  • 1,756
  • 54.0
  • 15.98
  • 125 %
  • 3.37
  • 0.483
  • 64.5
  • 62.3
  • 1,744
  • 0.0
  • 20.12
  • 150 %
  • 3.67
  • 0.573
  • 65.4
  • 67.9
  • 1,730
  • 0.0
  • 24.40
