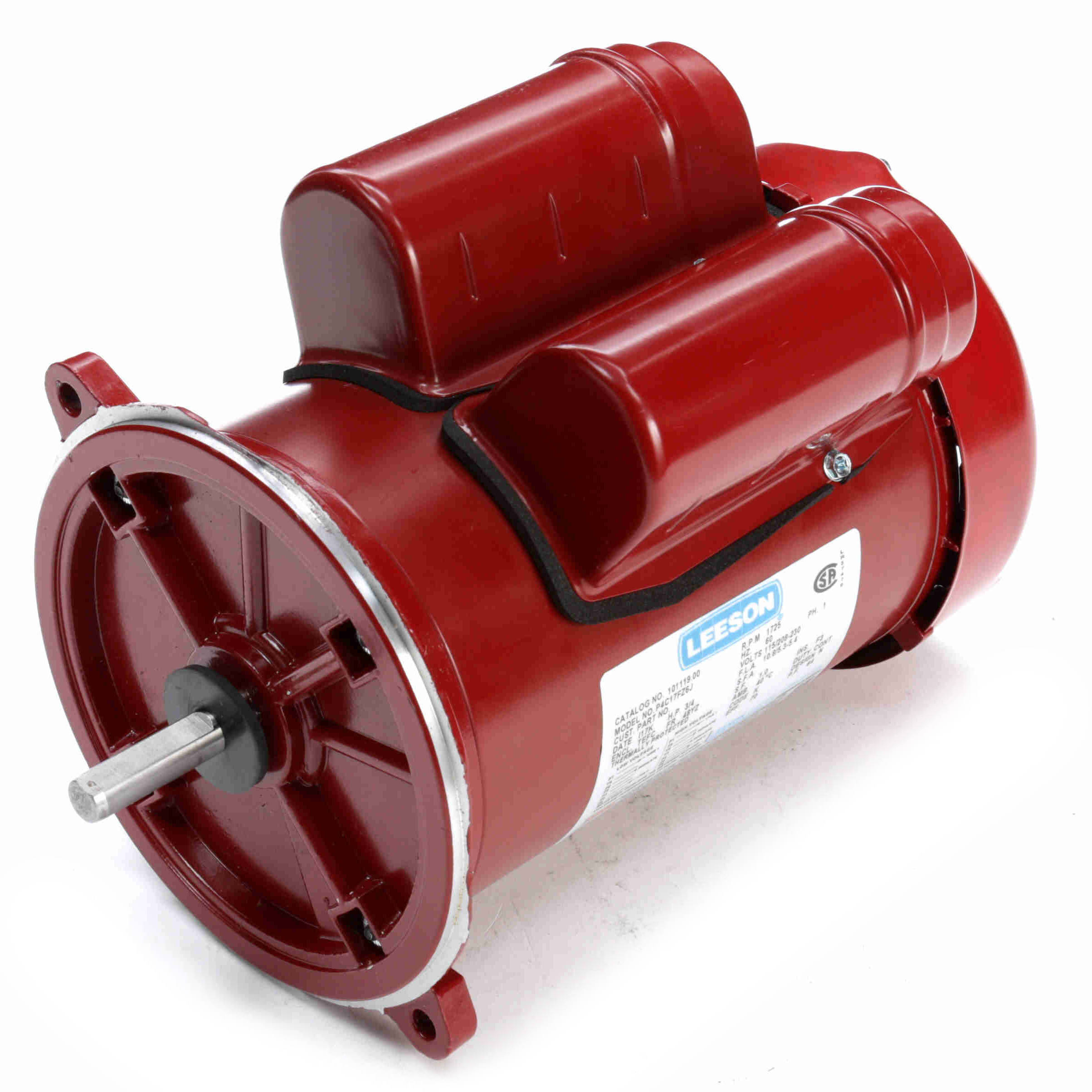

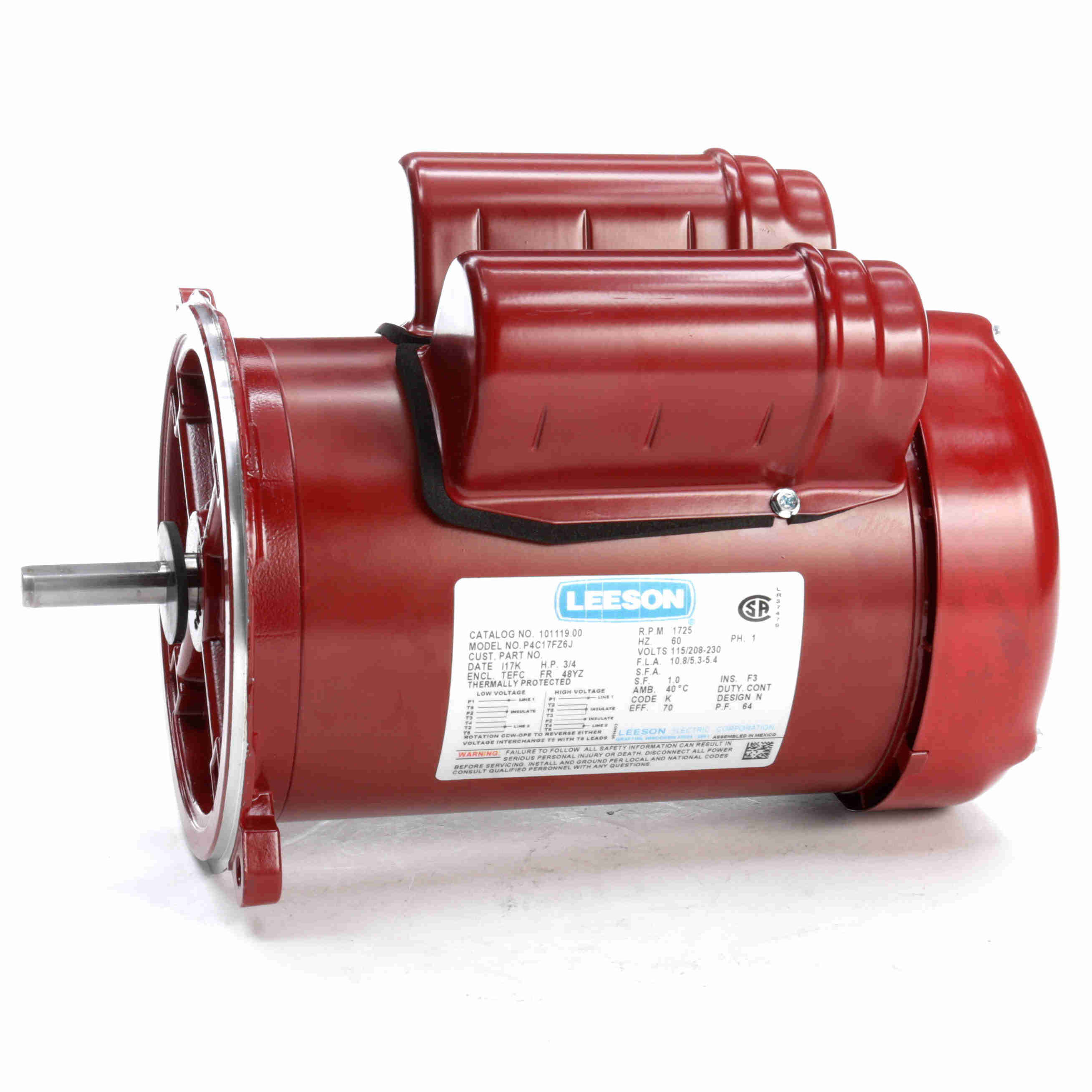

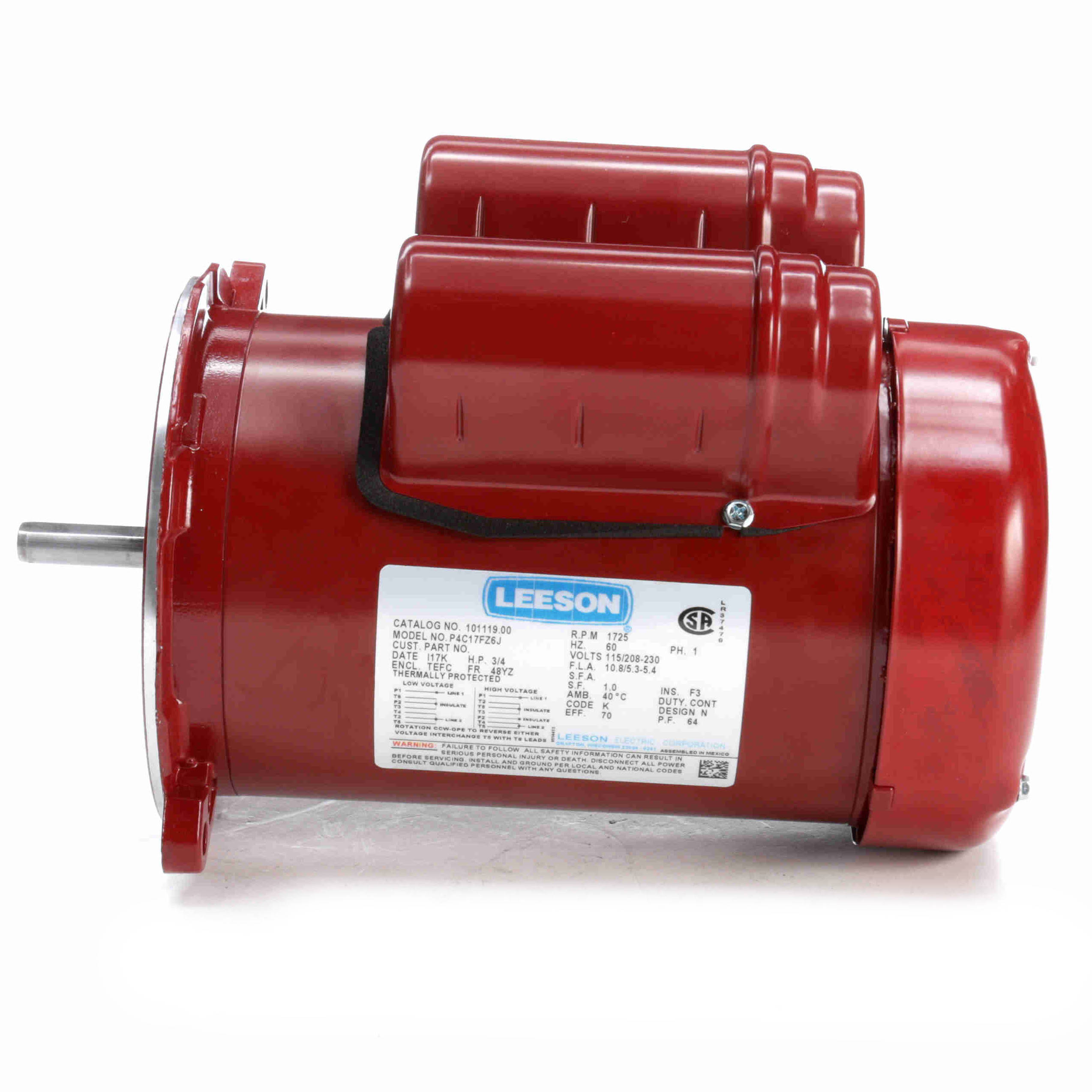

Replacement motors for poultry feed auger drive systems
Features:
• Choice of mechanical or solid state starting switch
• Mechanical switch has over-speed protection - Note 51
• Manual overload protected
Features
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double-shielded bearings extend the service life of the motor.
- Extended shaft with wrench flats for manual jogging of auger.
- Manual-reset thermal protector (as noted) protects against motor overload.
General Specifications
General Specifications
| UPC: |
691720005330 |
Weight: |
27.00 LB |
| Packaged Length: |
12.75 IN |
Packaged Width: |
9.5 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
10.8/5.3-5.4 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
70 % |
Power Factor: |
64 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
K |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized ( Not Protector) |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
| Number of Speeds: |
1 |
Technical Specifications
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
2.82 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
11.47 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.5 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (OZ-FT) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
0.0 |
84.00 |
233.0 |
0 |
0.00 |
0.0 |
0.75 |
| Locked-Rotor |
27.01 |
0.0 |
114.00 |
317.0 |
0 |
0.00 |
0.0 |
0.75 |
| Pull-Up |
27.30 |
0.0 |
82.00 |
228.0 |
0 |
0.00 |
0.0 |
0.75 |
Load Characteristics
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
4.15 |
4.16 |
4.42 |
4.84 |
5.43 |
6.17 |
7.10 |
| Rated Output (KW) |
0.16 |
0.30 |
0.46 |
0.63 |
0.81 |
1.02 |
1.22 |
| Efficiency (%) |
0.0 |
46.9 |
61.3 |
67.9 |
70.0 |
68.4 |
67.1 |
| Power Factor (%) |
16.6 |
31.8 |
45.4 |
56.4 |
64.7 |
71.5 |
74.6 |
| Speed (RPM) |
1,797 |
1,785 |
1,773 |
1,760 |
1,745 |
1,727 |
1,705 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
90.0 |
0.0 |
0.0 |
| Torque (OZ-FT) |
0.00 |
9.00 |
18.00 |
27.30 |
36.50 |
45.30 |
54.00 |
