/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/100955.00 Leeson 1/3HP General Purpose Electric Motor, 1800RPM

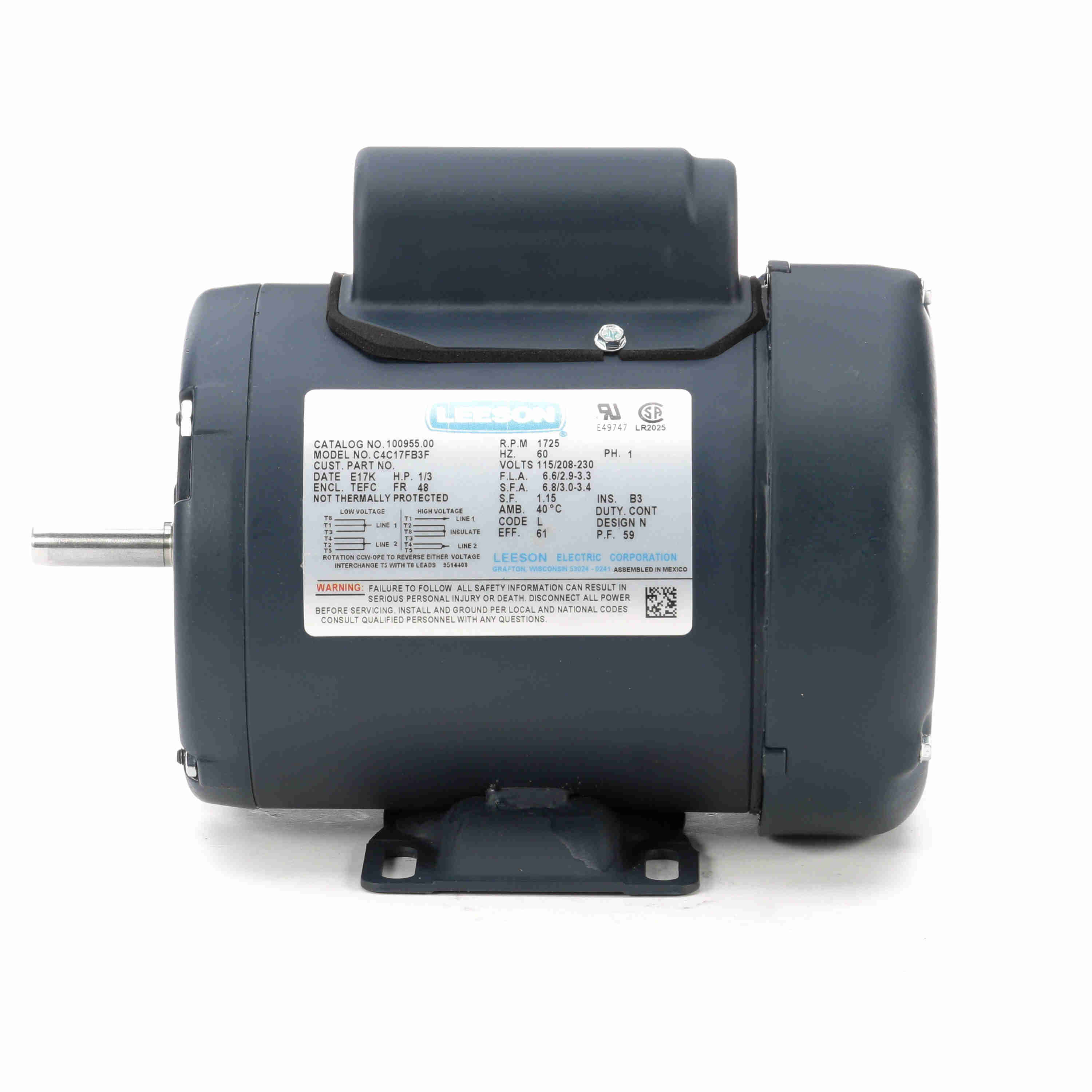

Click Image to Expand

Product ID: 100955.00

100955.00 Leeson 1/3HP General Purpose Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100955.00

Selected accessories will also be added to cart
$369.97 / Each
Quantity:
TEFC, 48 Frame, 115/208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1/2" Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720005200 Weight: 17.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 6.6/2.9-3.3 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 61 % Power Factor: 59
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: 48 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 6.16 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 9.56 in
Frame Length: 5.25 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 14.00 0.0 52.00 325.0 0 0.00 0.0 0.33
Full Load 3.30 16.00 100.0 0 0.33
Pull-Up 0.00 38.00 238.0 0 0.33
Break-Down 0.00 44.00 275.0 0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 2.85 2.91 2.95 2.98 3.00 3.49 3.76
Rated Output (KW) 0.15 0.20 0.27 0.34 0.41 0.49 0.58
Efficiency (%) 0.0 31.2 46.6 55.3 61.0 62.3 62.8
Power Factor (%) 23.3 30.3 39.8 49.5 59.0 61.4 67.1
Speed (RPM) 1,798 1,784 1,771 1,759 1,746 1,729 1,710
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 0.0 0.0
Torque (ft-lbs) 0.00 4.00 8.00 12.00 16.00 20.00 24.00
