/Products/Electric Motors/3 Phase/Leeson/TEFC, Rigid Base/100905.00 Leeson 1/2 HP Electric Motor, 3450 RPM, 208-230V, FR: J48
Click Image to Expand

Product ID: 100905.00

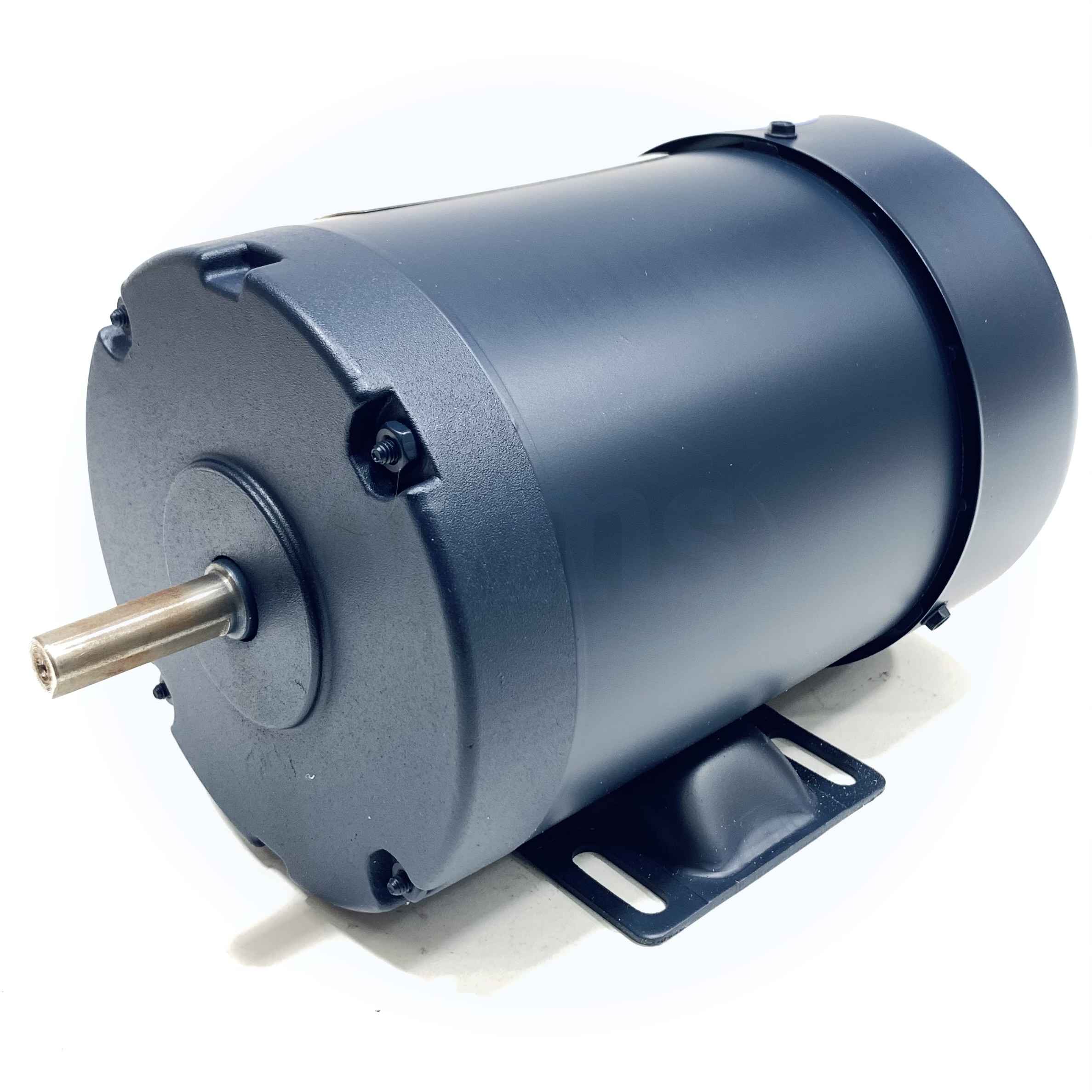

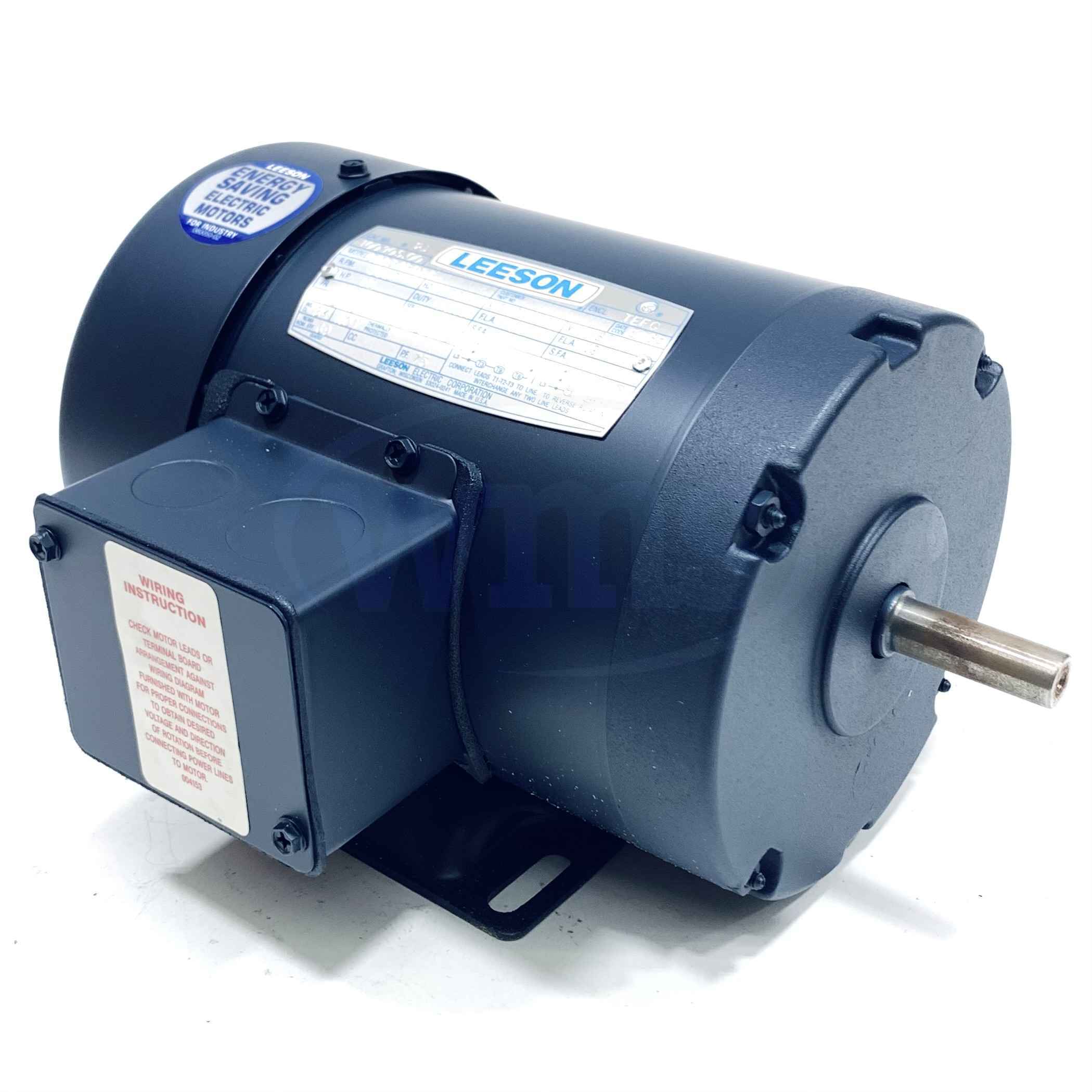

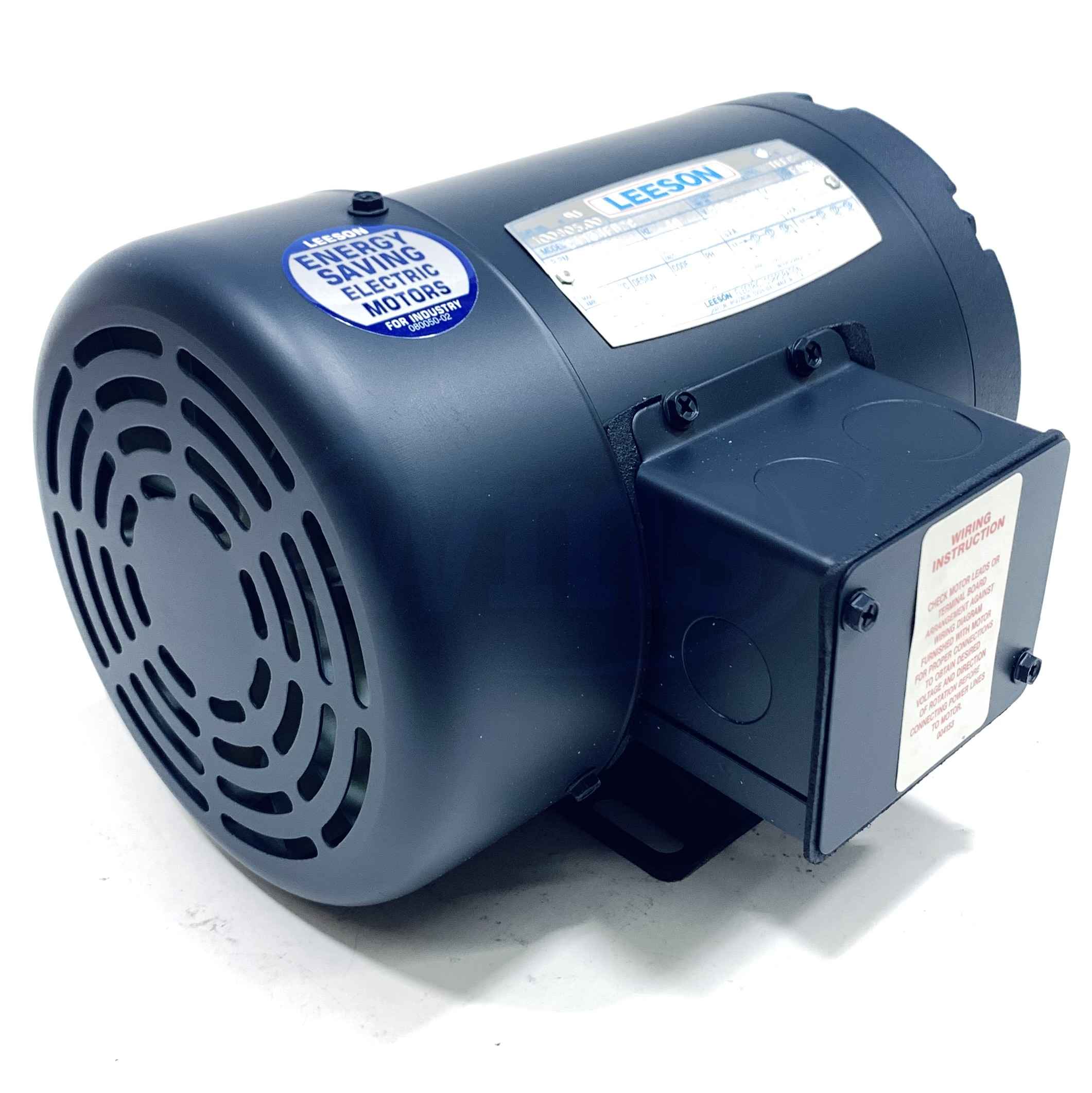

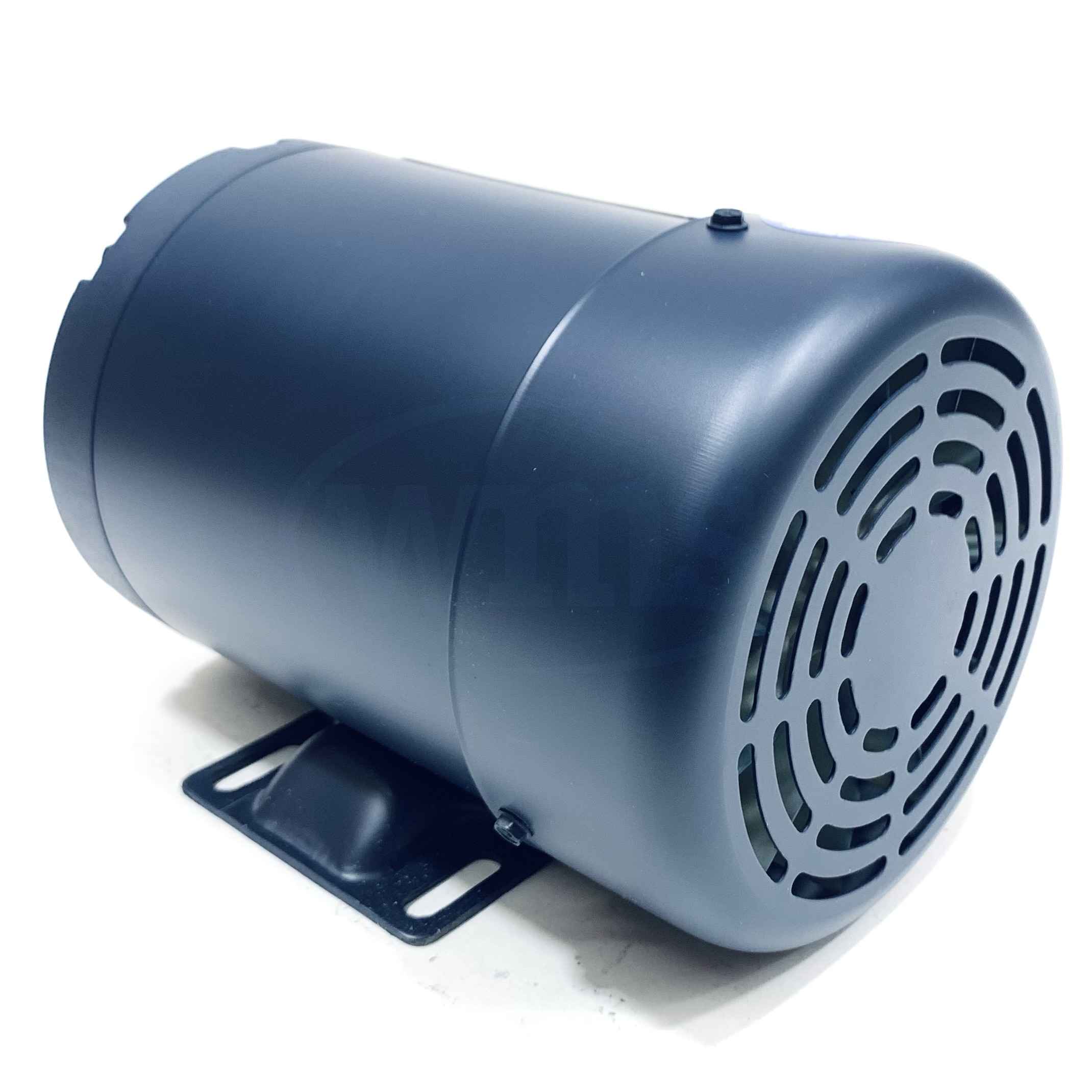

100905.00 Leeson 1/2 HP Electric Motor, 3450 RPM, 208-230V, FR: J48

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100905.00

Available Stock: 1
Selected accessories will also be added to cart
$399.97 / Each
Quantity:
TEFC, 48 Frame, 208-230/460V 3-Phase 60Hz, Rigid Base
Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified
General Specifications
Model :C4T34FB2D Catalog No :100905.00
Part Description :1/2HP..3450RPM.48.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.0SF.RIGID.GENERAL PURPOSE.C4T34FB2D Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

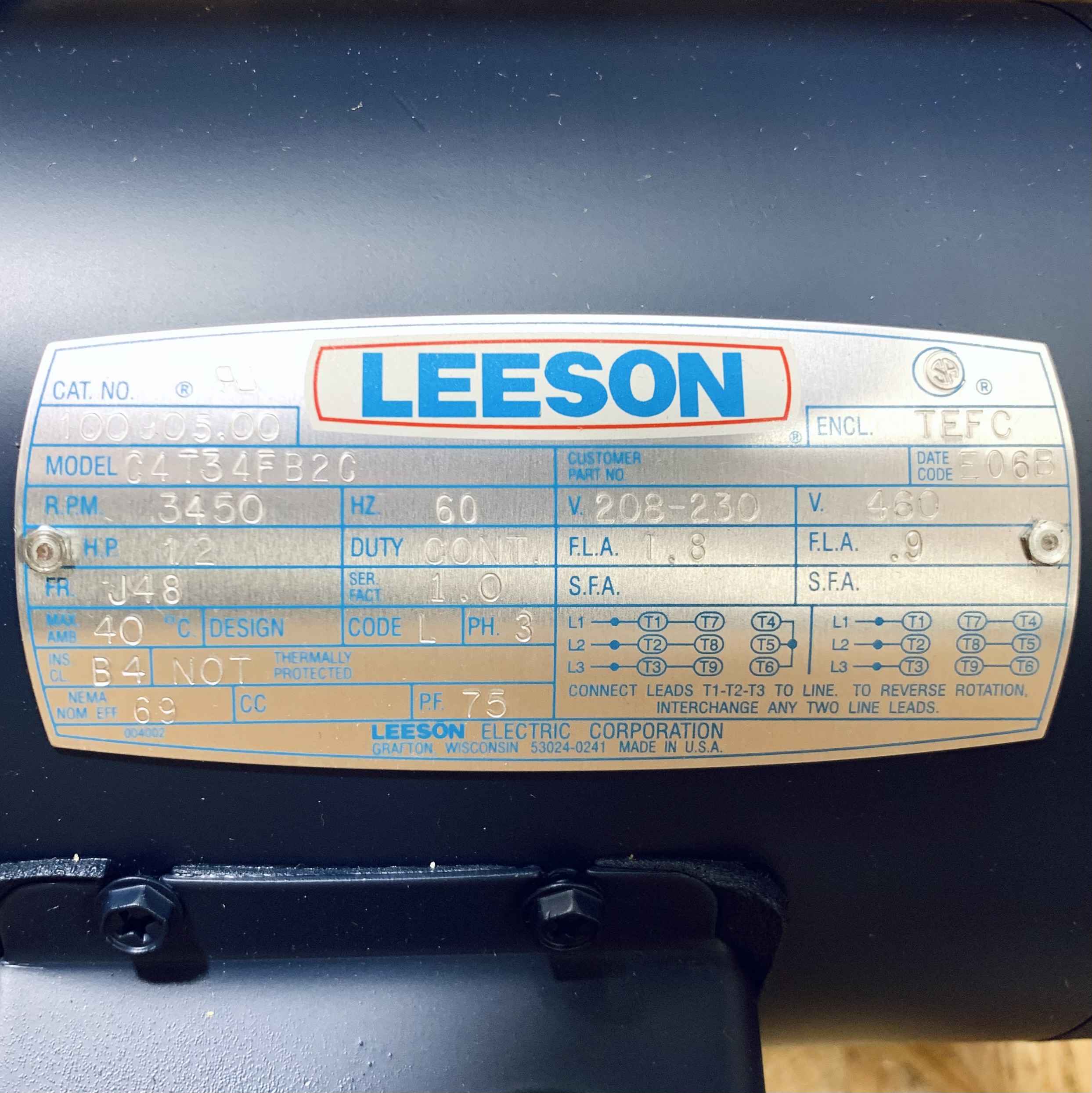

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.8/0.90 A Speed :3450 rpm
Service Factor :1 Phase :3
Efficiency :75 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :L Frame :48
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 48
Overall Length :9.56 in Frame Length :5.25 in
Shaft Diameter :0.500 in Shaft Extension :1.5 in
Assembly/Box Mounting :F1 ONLY UPC :691720005170
Weight :21.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load1.8012.00100.000.50
Break-Down0.0049.00408.000.50
Locked-Rotor12.0034.50288.000.50
Pull-Up0.0032.00267.000.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.60
  • 0.130
  • 0.0
  • 27.3
  • 3,580
  • 0.0
  • 0.00
  • 25 %
  • 0.65
  • 0.210
  • 45.7
  • 40.2
  • 3,565
  • 0.0
  • 3.00
  • 50 %
  • 0.70
  • 0.300
  • 62.1
  • 54.0
  • 3,545
  • 0.0
  • 6.00
  • 75 %
  • 0.79
  • 0.400
  • 68.7
  • 65.3
  • 3,525
  • 0.0
  • 9.00
  • 100 %
  • 0.90
  • 0.500
  • 72.8
  • 72.8
  • 3,500
  • 0.0
  • 12.00
  • 125 %
  • 1.00
  • 0.620
  • 74.1
  • 78.5
  • 3,475
  • 0.0
  • 15.00
