/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, C-Face/10036OT3E365TSCF2-W40 WEG 100HP, General Purpose Electric Motor, 3600RPM

Product ID: 10036OT3E365TSCF2-W4

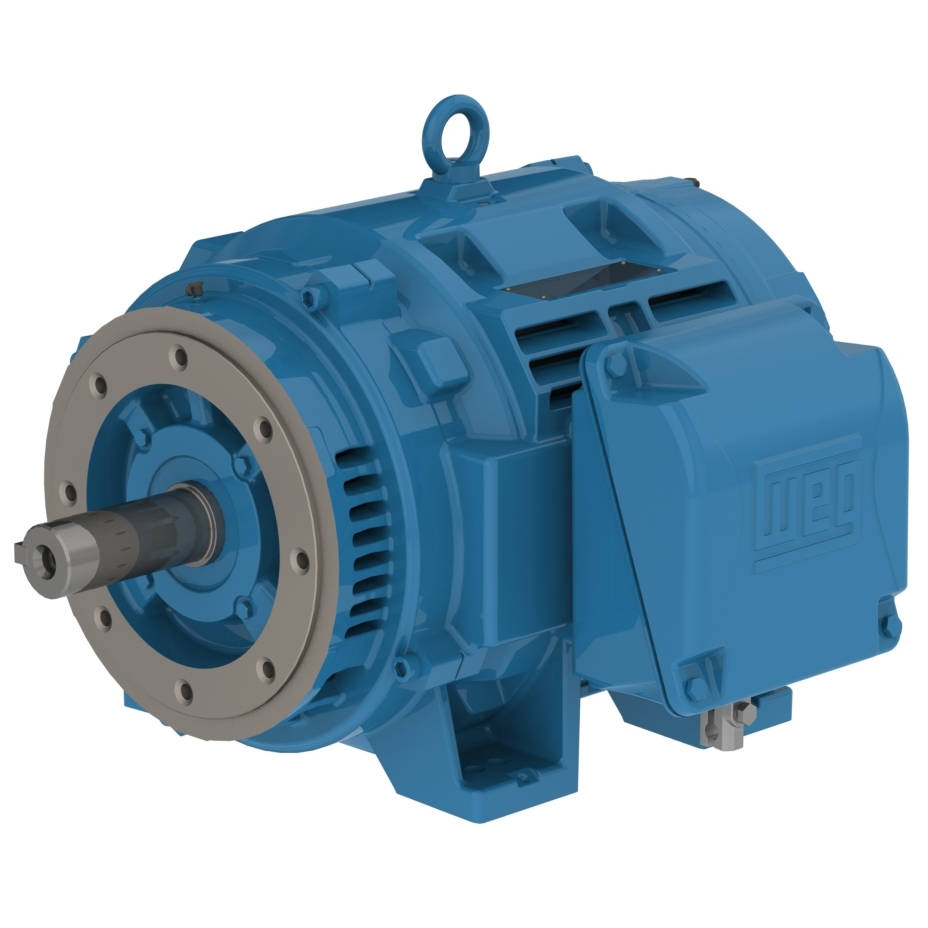

10036OT3E365TSCF2-W40 WEG 100HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 10036OT3E365TSCF2-W40

Selected accessories will also be added to cart

$5,278.50 / Each

Quantity:

IC01 - ODP, IP23, 364TSC/365TSC Frame, 230/460VAC 60Hz 3 Phase, 14284844, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	364/5TSC
Output	100 HP (75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3555 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	232/116 A
L. R. Amperes	1531/766 A
LRC	6.6x(Code G)
No load current	59.0/29.5 A
Rated torque	148 ft.lb
Locked rotor torque	180 %
Breakdown torque	229 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	760 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.6	93.6

Power factor

50%	75%	100%
0.77	0.84	0.87

Frame	364/5TSC
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	103 A
L. R. Amperes	773 A
LRC	7.5x(Code H)
No load current	28.5 A
Rated torque	133 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	760 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.9	94.3

Power factor

50%	75%	100%
0.74	0.83	0.86

Frame	364/5TSC
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2964 rpm
Slip	1.20 %
Rated voltage	400 V
Rated current	100 A
L. R. Amperes	800 A
LRC	8.0x(Code J)
No load current	32.5 A
Rated torque	133 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	760 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	92.0	94.3

Power factor

50%	75%	100%
0.69	0.78	0.84

Frame	364/5TSC
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2967 rpm
Slip	1.10 %
Rated voltage	415 V
Rated current	97.8 A
L. R. Amperes	773 A
LRC	7.9x(Code J)
No load current	35.0 A
Rated torque	133 ft.lb
Locked rotor torque	250 %
Breakdown torque	320 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	7.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	84.0 dB(A)
Approx. weight³	760 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	92.0	94.3

Power factor

50%	75%	100%
0.70	0.80	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
