/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/10036ET3E405JM-W22 WEG 100HP JM Close Coupled Pump Electric Motor, 3600RPM

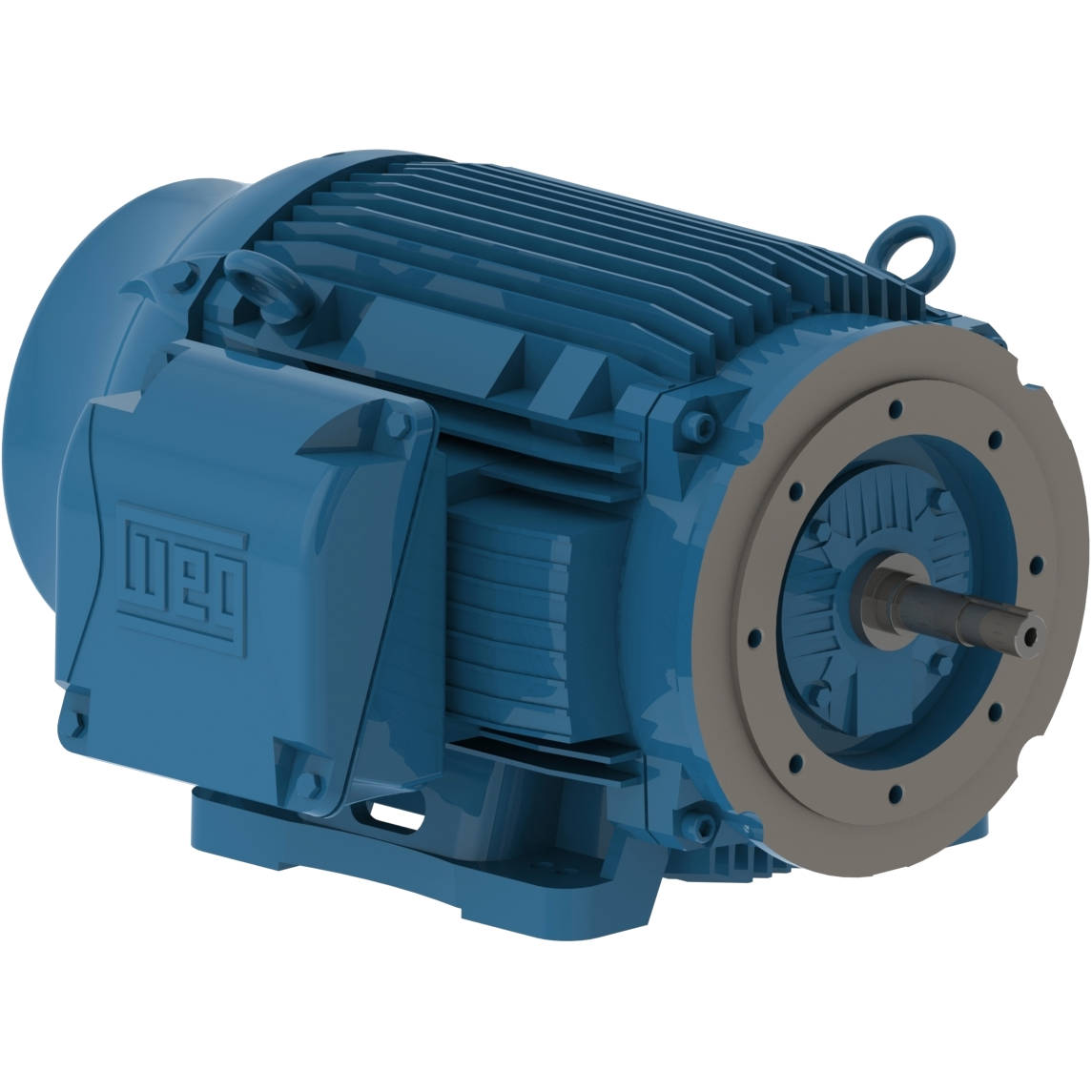

10036ET3E405JM-W22 WEG 100HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 10036ET3E405JM-W22

10036ET3E405JM-W22 WEG 100HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 10036ET3E405JM-W22

Selected accessories will also be added to cart
$9,819.75 / Each
Quantity:
IC411 - TEFC, IP55, 404TCZ/405TCZ Frame, 230/460/380VAC 50/60Hz 3 Phase, 11576328, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 404/5TCZ
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 230/460 V
Rated current 224/112 A
L. R. Amperes 1456/728 A
LRC 6.5x(Code G)
No load current 52.0/26.0 A
Rated torque 148 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 1113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  94.1  94.1

Power factor

50% 75% 100%
0.83  0.88  0.89
Frame 404/5TCZ
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 99.6 A
L. R. Amperes 677 A
LRC 6.8x(Code G)
No load current 25.7 A
Rated torque 133 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 1113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.8  94.3

Power factor

50% 75% 100%
0.82  0.88  0.89
Frame 404/5TCZ
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 94.6 A
L. R. Amperes 719 A
LRC 7.6x(Code H)
No load current 27.5 A
Rated torque 133 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 1113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.1  93.8  94.3

Power factor

50% 75% 100%
0.80  0.86  0.89
Frame 404/5TCZ
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 92.2 A
L. R. Amperes 756 A
LRC 8.2x(Code J)
No load current 29.1 A
Rated torque 133 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 1113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.5  94.0  94.3

Power factor

50% 75% 100%
0.78  0.85  0.88

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
