/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/10018OT3E404TS-W40G WEG 100HP, General Purpose Electric Motor, 1800RPM

Product ID: 10018OT3E404TS-W40G

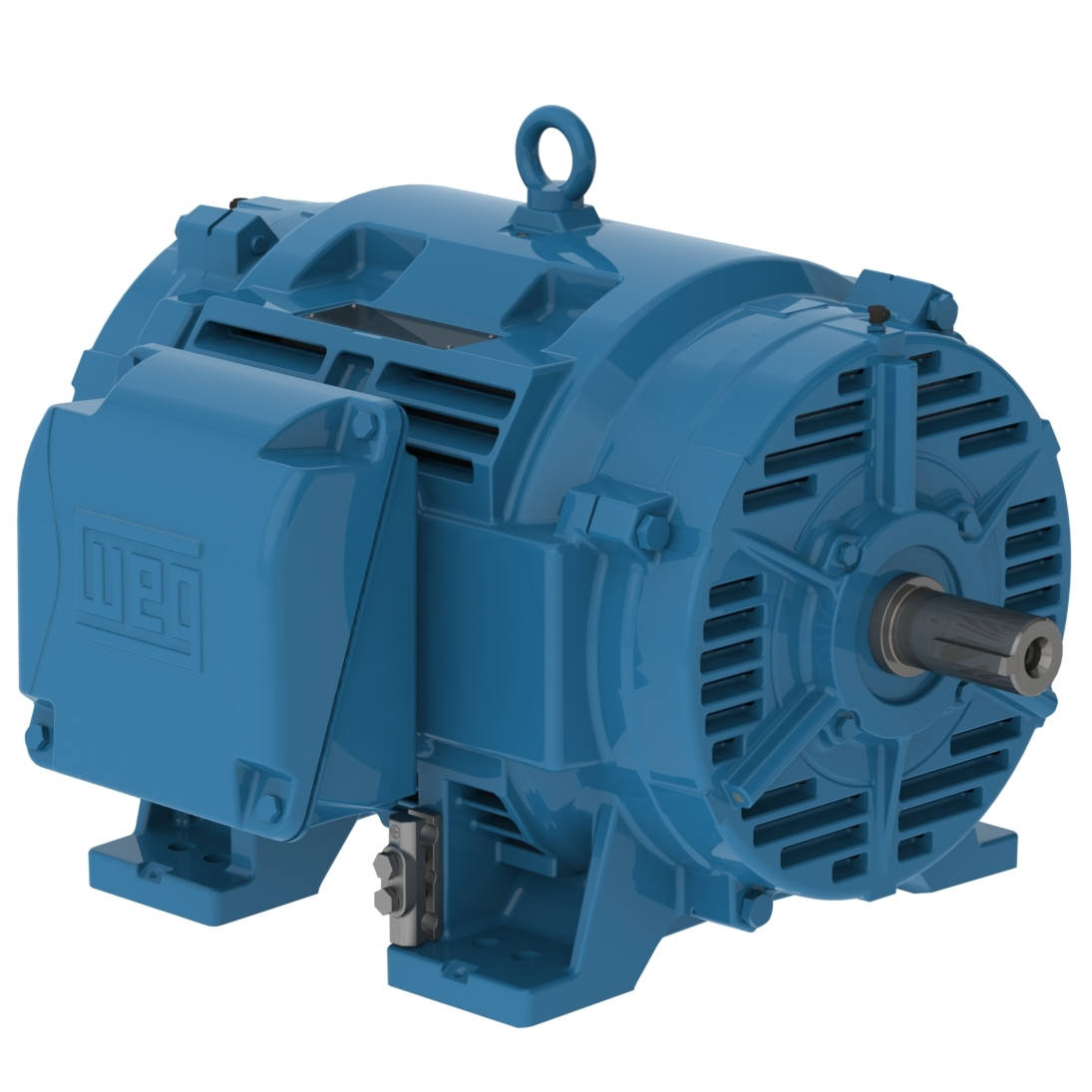

10018OT3E404TS-W40G WEG 100HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018OT3E404TS-W40G

Selected accessories will also be added to cart

$5,813.25 / Each

Quantity:

IC01 - ODP, IP23, 404TS/405TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 14285005, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	404/5TS
Output	100 HP (75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	230/115 A
L. R. Amperes	1564/782 A
LRC	6.8x(Code G)
No load current	79.4/39.7 A
Rated torque	295 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	21.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	938 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.75	0.83	0.86

Frame	404/5TS
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1482 rpm
Slip	1.20 %
Rated voltage	380 V
Rated current	103 A
L. R. Amperes	742 A
LRC	7.2x(Code H)
No load current	33.0 A
Rated torque	266 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	21.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	938 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.9	92.9	94.7

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	404/5TS
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1484 rpm
Slip	1.07 %
Rated voltage	400 V
Rated current	97.5 A
L. R. Amperes	683 A
LRC	7.0x(Code H)
No load current	36.5 A
Rated torque	265 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	21.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	938 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.9	94.7

Power factor

50%	75%	100%
0.72	0.80	0.86

Frame	404/5TS
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	96.2 A
L. R. Amperes	750 A
LRC	7.8x(Code J)
No load current	40.0 A
Rated torque	265 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	21.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	938 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.9	94.7

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
