/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-1 Mounting/10018AT3ECT405TF1-W22 WEG 100HP Cooling Tower Electric Motor, 1800RPM

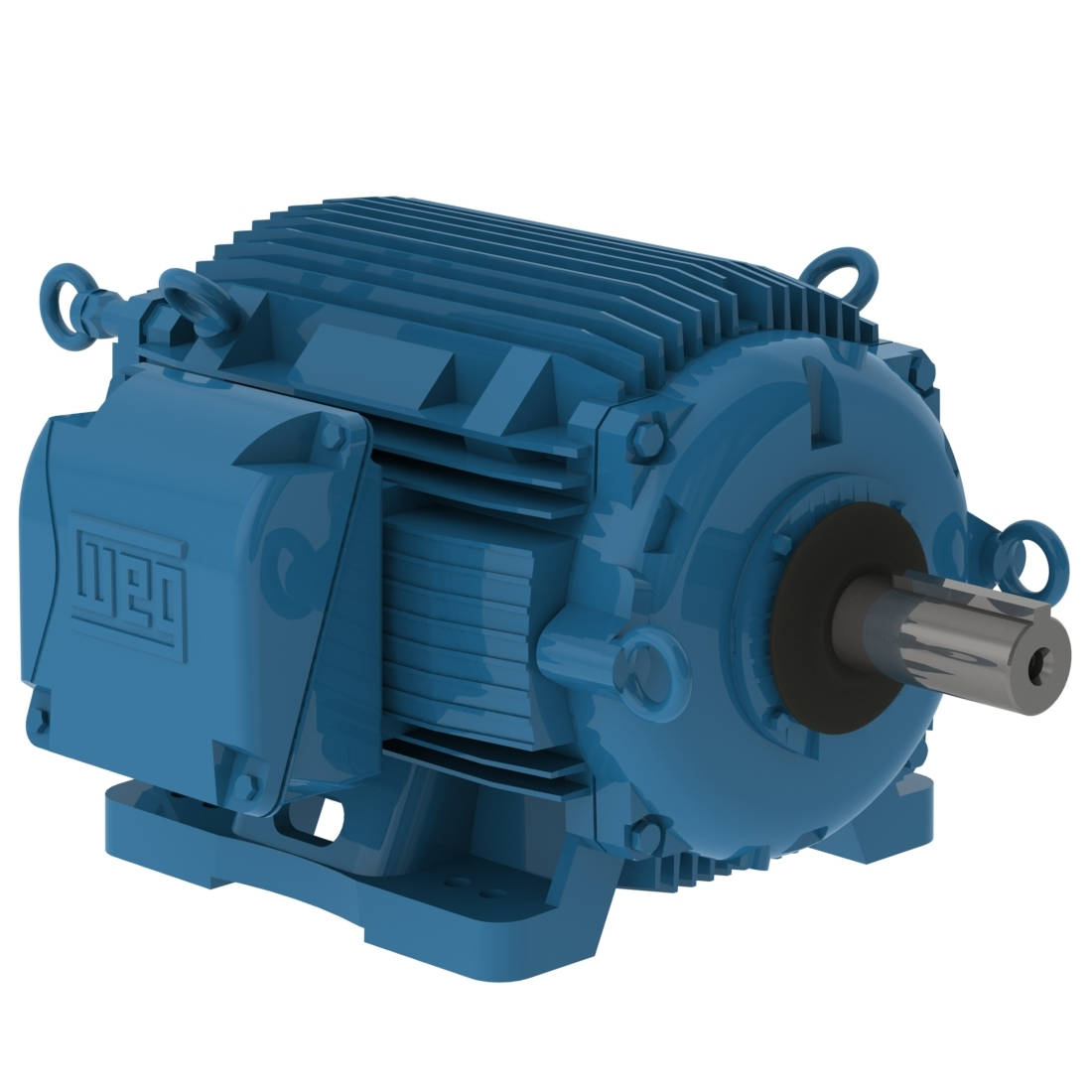

10018AT3ECT405TF1-W22 WEG 100HP Cooling Tower Electric Motor, 1800RPM
Enlarge Photo

Product ID: 10018AT3ECT405TF1-W2

10018AT3ECT405TF1-W22 WEG 100HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018AT3ECT405TF1-W22

Selected accessories will also be added to cart
$8,559.00 / Each
Quantity:
IC410 - TEAO, IP55, 404T/405T Frame, 208-230/460/380VAC 60Hz 3 Phase, 14409276, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft

Electric Motors

Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 208-230/460 V
Rated current 245-226/113 A
L. R. Amperes 1792-1650/825 A
LRC 7.3x(Code H)
No load current 65.5-76.0/38.0 A
Rated torque 295 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.4

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 102 A
L. R. Amperes 785 A
LRC 7.7x(Code H)
No load current 37.6 A
Rated torque 265 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.0  94.4  95.0

Power factor

50% 75% 100%
0.72  0.83  0.86
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 98.3 A
L. R. Amperes 826 A
LRC 8.4x(Code J)
No load current 40.1 A
Rated torque 265 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.5  95.0

Power factor

50% 75% 100%
0.69  0.81  0.85
Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 95.9 A
L. R. Amperes 854 A
LRC 8.9x(Code K)
No load current 42.0 A
Rated torque 265 ft.lb
Locked rotor torque 290 %
Breakdown torque 330 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.5  95.0

Power factor

50% 75% 100%
0.66  0.79  0.84
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 138 A
L. R. Amperes 814 A
LRC 5.9x(Code F)
No load current 37.6 A
Rated torque 357 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.1  93.6

Power factor

50% 75% 100%
0.82  0.86  0.88
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 131 A
L. R. Amperes 852 A
LRC 6.5x(Code G)
No load current 40.1 A
Rated torque 356 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.5  94.1

Power factor

50% 75% 100%
0.79  0.85  0.88
Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 127 A
L. R. Amperes 902 A
LRC 7.1x(Code H)
No load current 42.0 A
Rated torque 356 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.5  94.5

Power factor

50% 75% 100%
0.77  0.84  0.87

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6316 2RS C3  6314 2RS C3
Sealing WSeal  WSeal
Lubrication interval -  -
Lubricant amount -  -
Grease Type POLYREA ESTER OIL (WT/ ENS)

Foundation loads

Max. traction Max. compression
2094 lb  3250 lb
