/Products/Electric Motors/DC/Leeson/NEMA Frame - SCR Rated/098004.00 Leeson 1/3HP DC Electric Motor, 1750 RPM
Click Image to Expand

Product ID: 098004.00

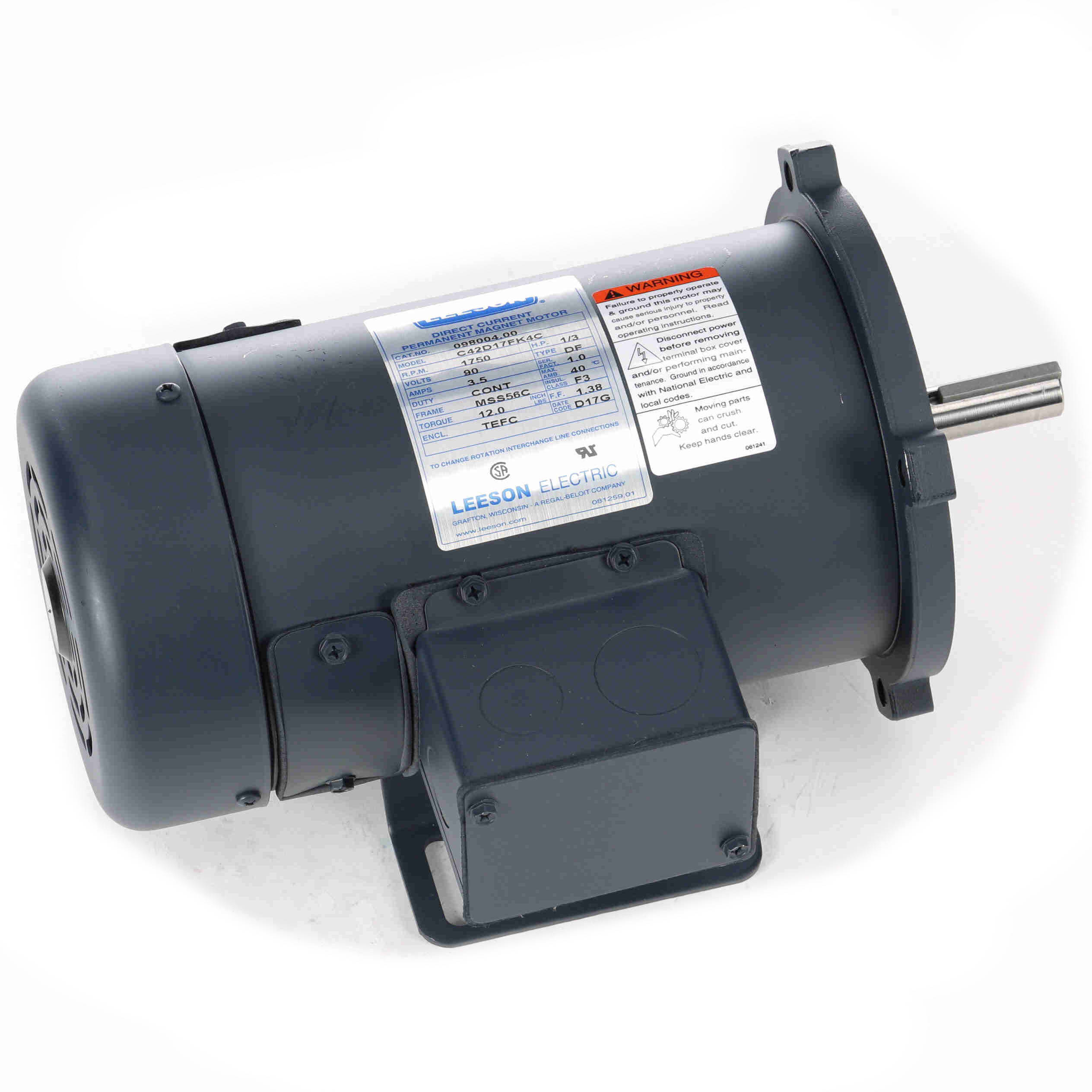

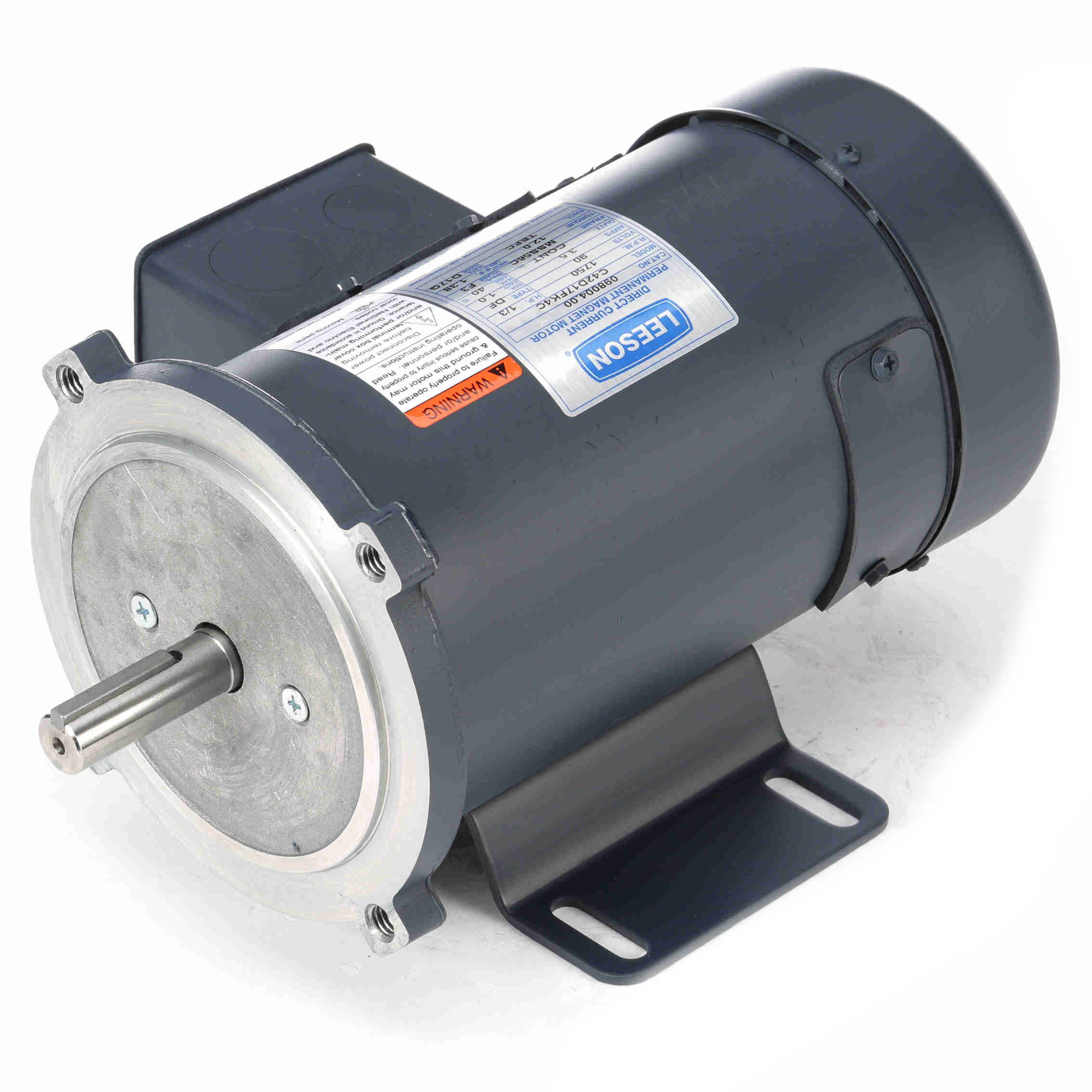

098004.00 Leeson 1/3HP DC Electric Motor, 1750 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 098004.00

Selected accessories will also be added to cart
$419.97 / Each
Quantity:
TEFC, SS56C Frame, 90VDC,C42D17FK4C, C-Face With Removable Base

Features

Features
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable bolt-on base; NEMA C face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
  • PWM or SCR type controller rated; High starting torque
  • Permanently lubricated sealed bearings
  • LEESON SCR controls available to power motors; High starting torque
  • Higher HP and speed achievable using PWM type DC controls
  • UL and CSA Listed; Meets NEMA MG1 standards
  • Dynamically balanced armatures; 30:1 constant torque operation

General Specifications

General Specifications
Model :C42D17FK4C Catalog No :098004.00
Part Description :1/3HP.1750RPM.MSS56C.TEFC.90V.CONT.40C.1.0SF.RIGID C.DC NEMA.C42D17FK4C Category :SCR
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Voltage :90 V Current :3.5 A
Speed :1750 rpm Service Factor :1
Efficiency :82 % Duty :Continuous
Insulation Class :F Frame :MSS56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Rigid C base
Overall Length :11.31 in Frame Length :7.00 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
UPC :691720000953 Weight :26.00 LB
